PRO Basic FirePlus

Notes before purchase Enigma FirePlus Only.

Adapt model -FBD210/RTF -FBD211/RTF -FBD250/RTF -FBD260/RTF -FBD330/RTFW -FBD340/RTF -FBD510/RTF

This app edit fuel mapping and spark angle setting(PRO mode) which the Fuel Injection / Spark Angle piggyback controller DILTS JAPAN's ENIGMA FirePlus basic model.

This App can control only ENIGMA FirePlus. Since conventional applications ENIGMA, Enigma LC, Enigma type-V, FirePlus type-V and Semi-Full each have its own App, please use it.

This APP responds by buying bike model to all models of ENIGMA FirePlus.

Although this App can be downloaded for free, only the screen of the tachometer is displayed free of charge. It is necessary to purchase download bike model that conforms to the model of the motorcycles.

Please app in purchase bike model according to the type of motorcycle of ENIGMA FirePlus which you own.

Purchase bike model in the App and connect with ENIGMA FirePlus with Bluetooth LE. Then you can control the following ENIGMA FirePlus functions.

On your purchase, if you connect a BluetoothLE ENIGMA FirePlus Bluetooth model,

Other operations of the following ENIGMA FirePlus body, I can in a variety of iOS devices. This app need Bluetooth LE.After iphone4s ipad 3rd.

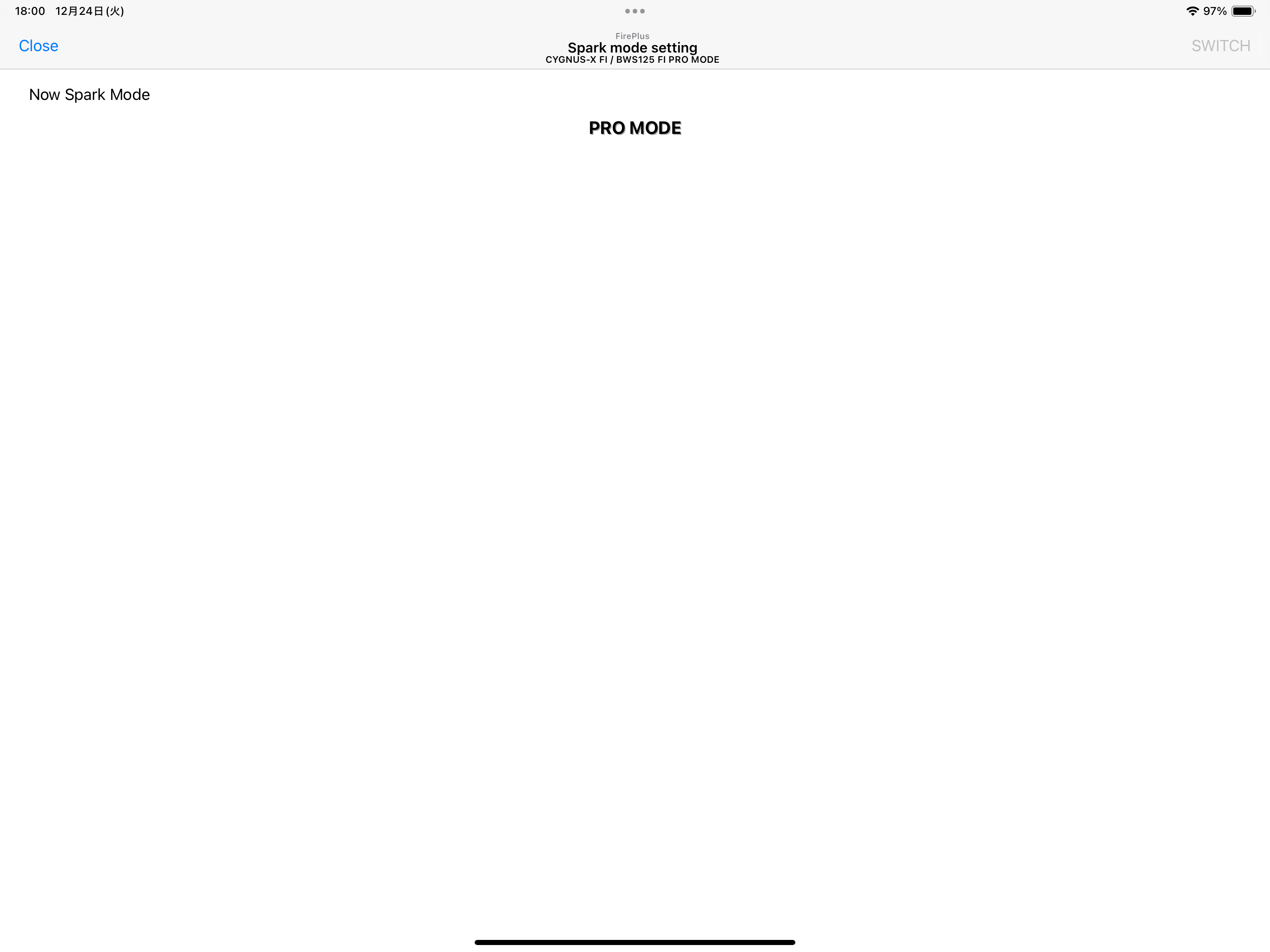

This App can edit PRO spark mode(spark setting edit) only. Use to EASY mode(spark adjustedit) must buy another app.

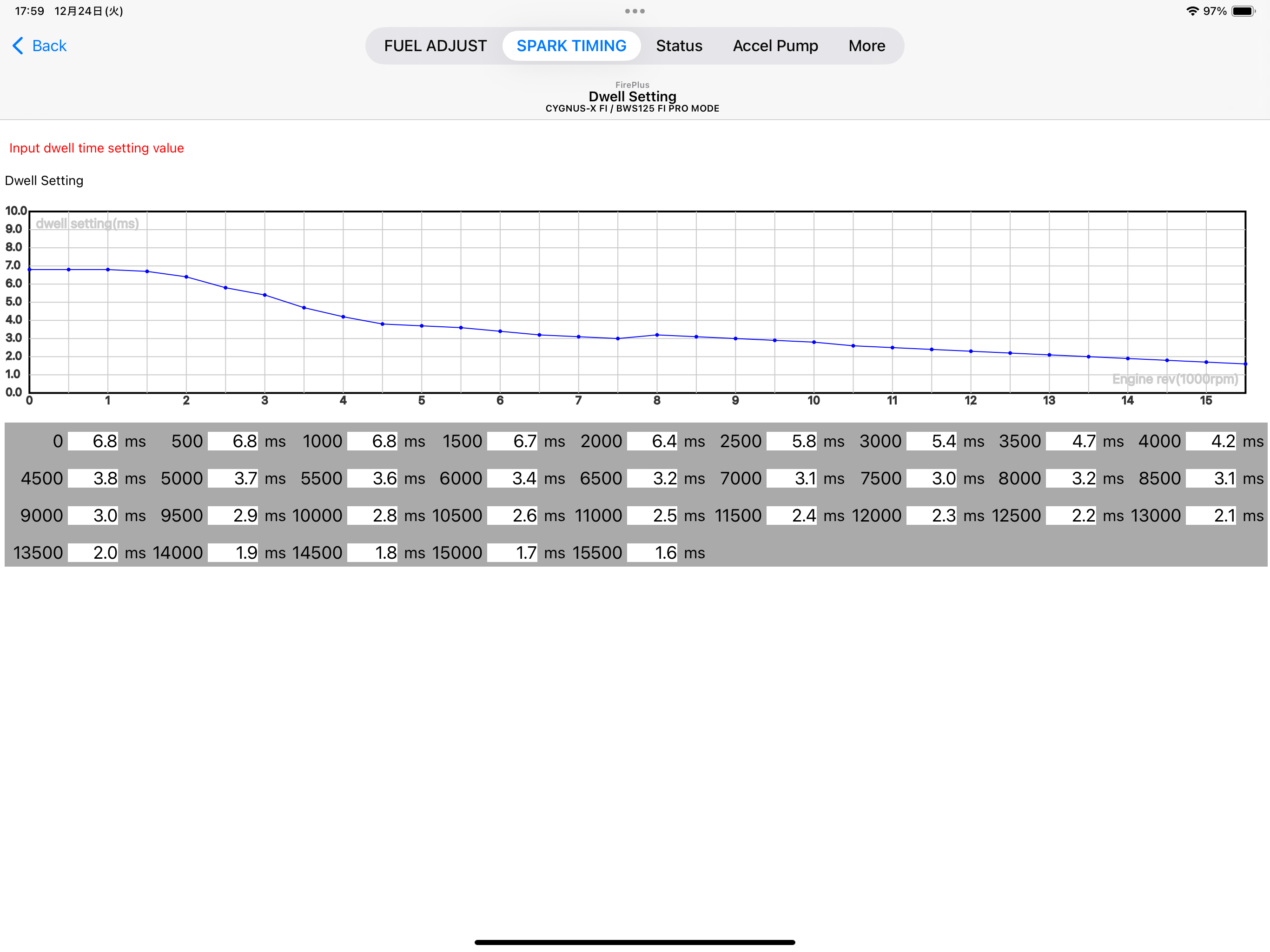

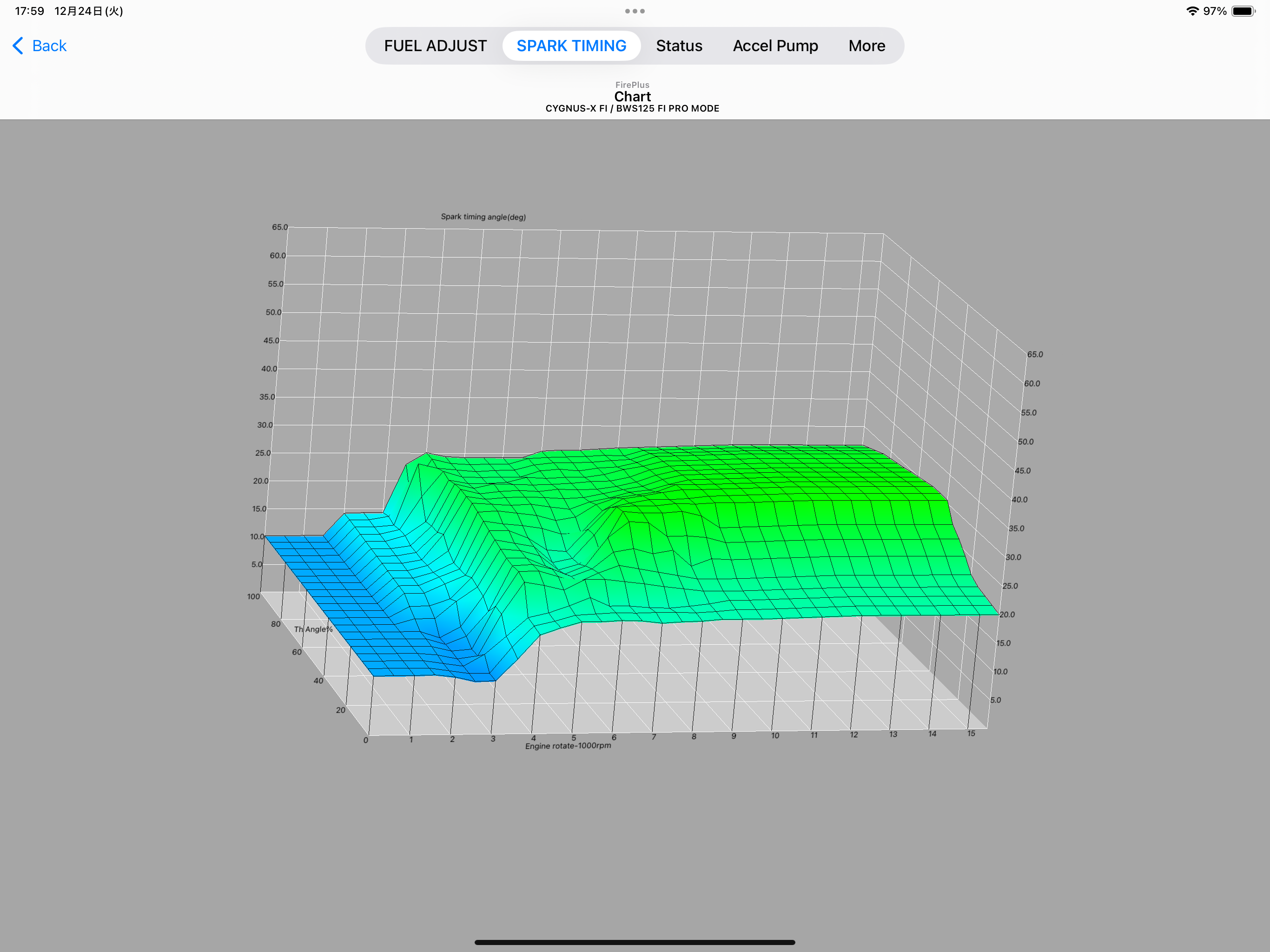

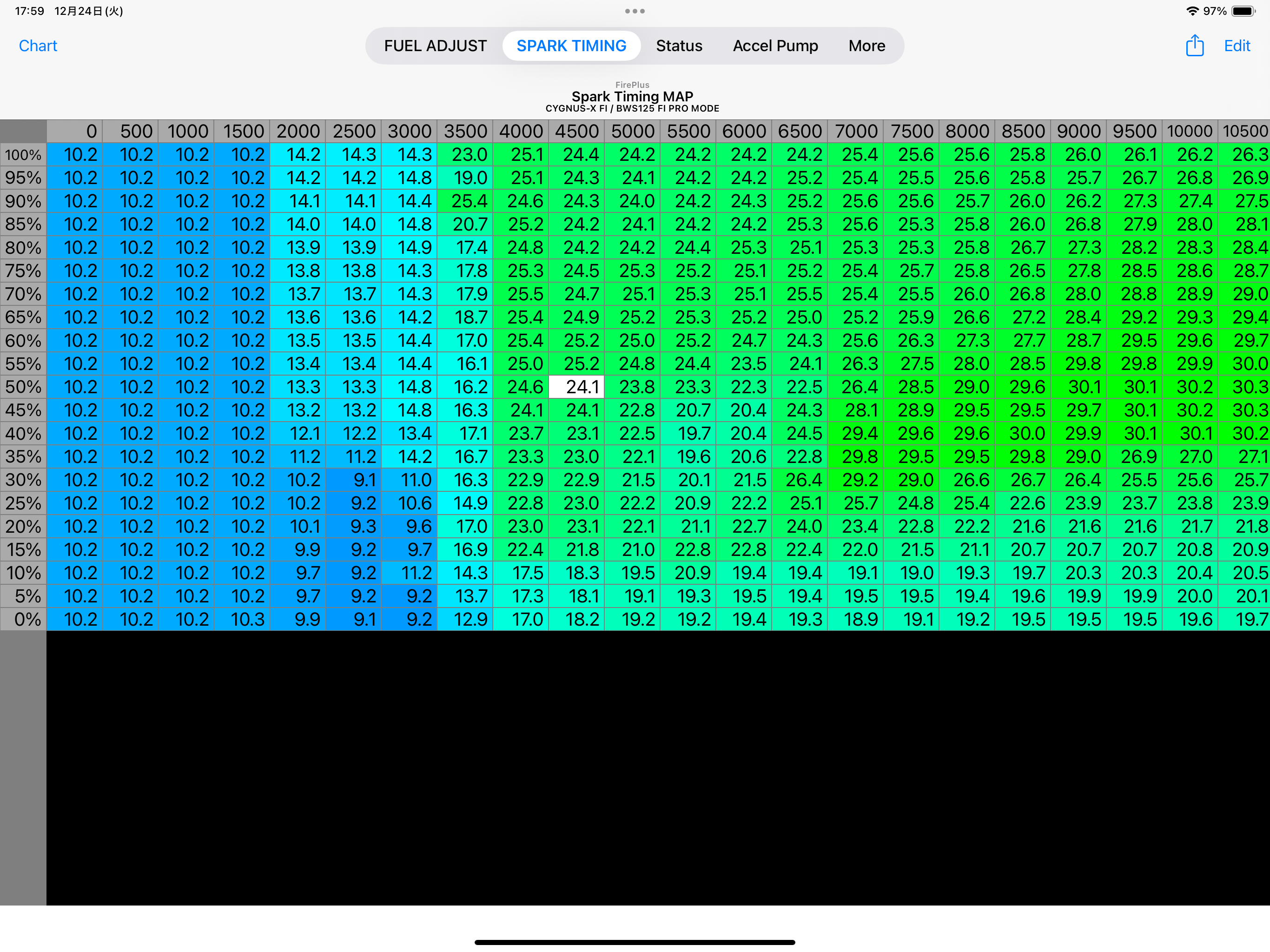

• Spark angle setting 0/60 degrees. and adjust dwell time.(It depends on the model.)

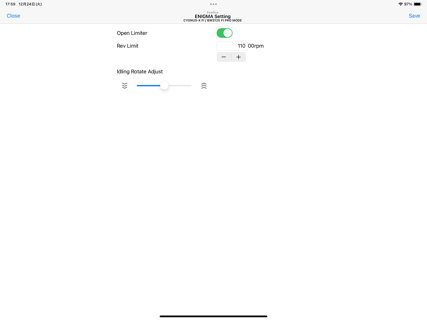

• Two revlimitter setting function,normal revlimit and pitrane limitter.(manual transmission model only)
• cancel / set the engine speed limiter.

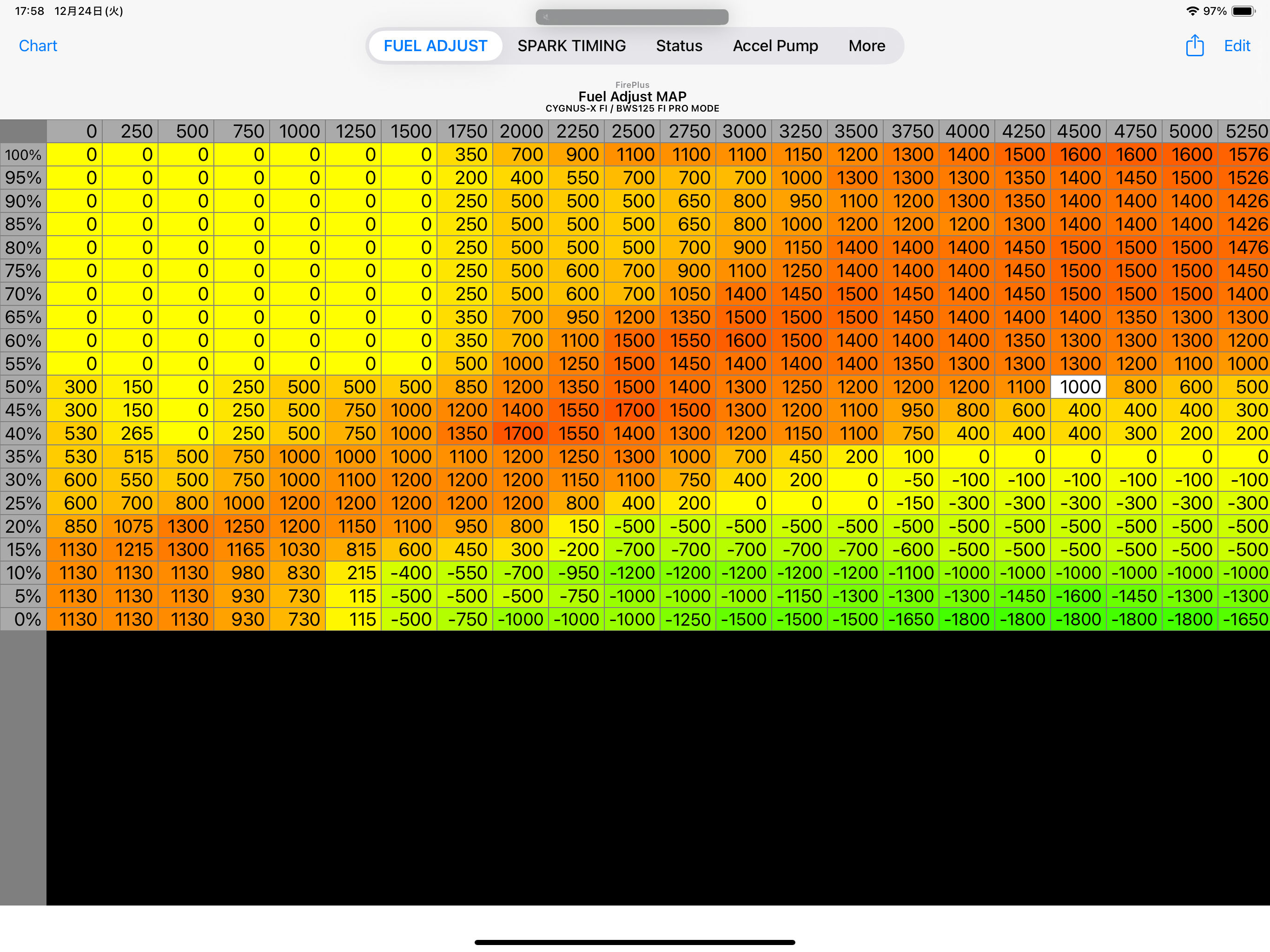

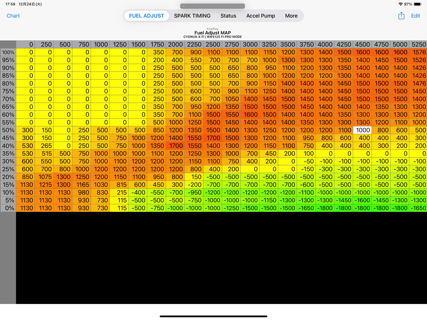

• The maximum 2500micro/-7500(ex.GROM JC61)micro seconds the engine rotation and throttle position for each fuel injection increase / decrease can edit and write-read.

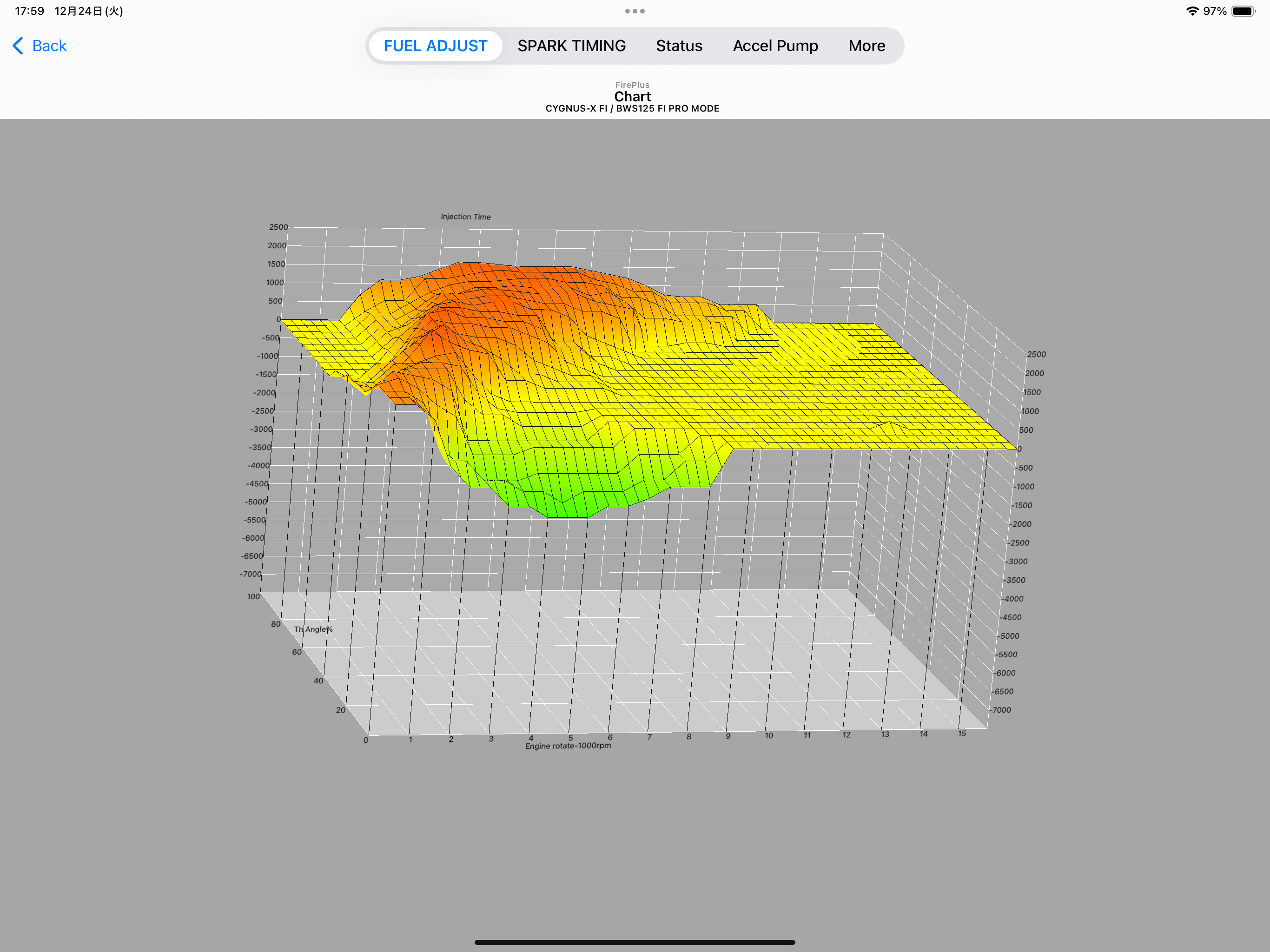

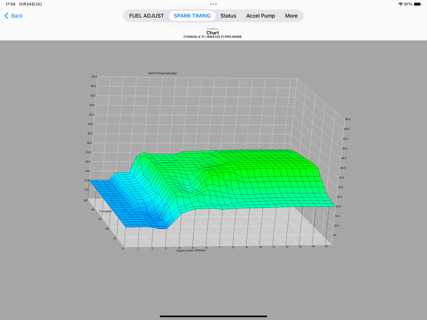

• displayed in 3D graph increase or decrease the amount of fuel.

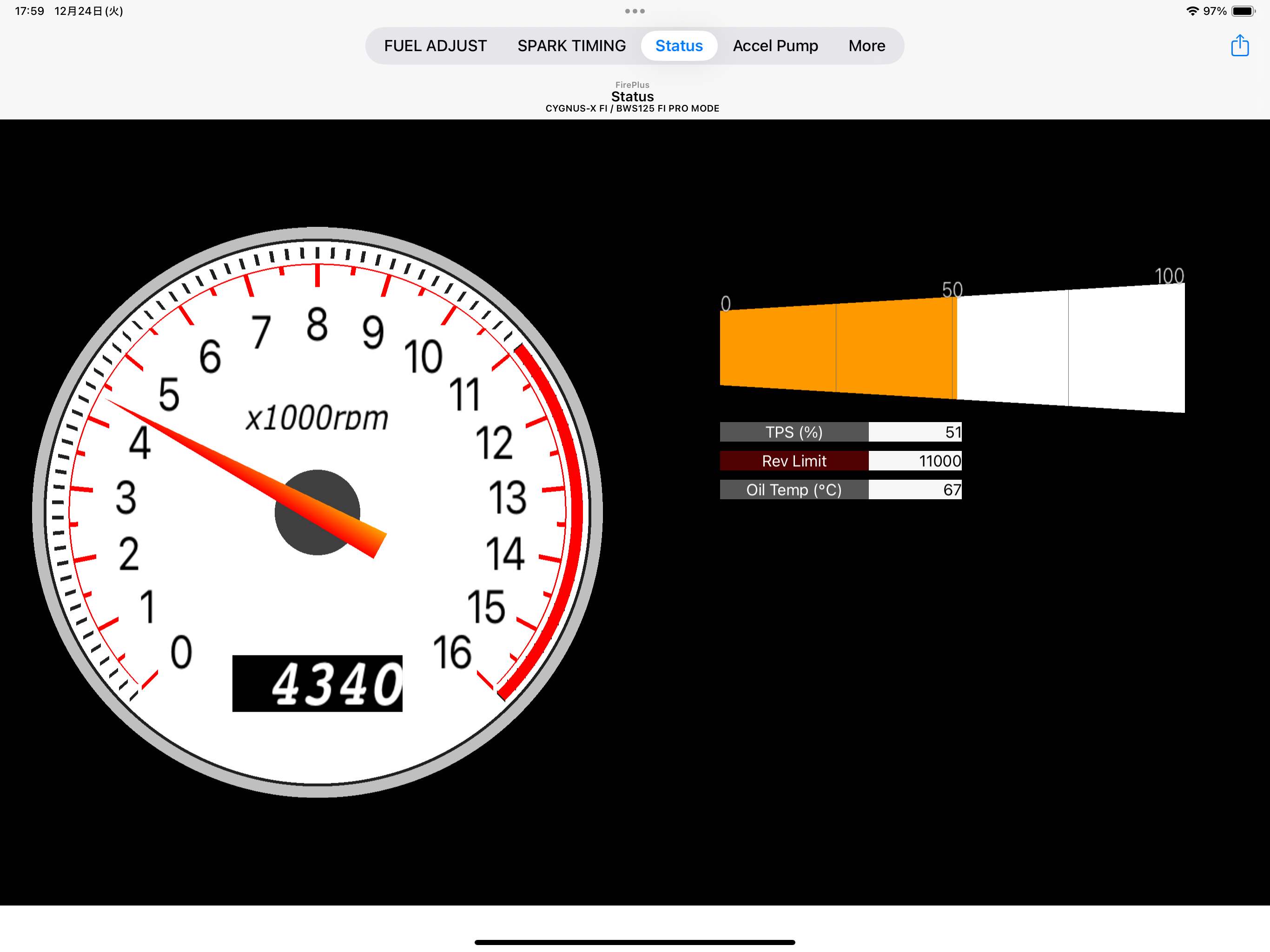

• view the throttle opening ,tachometer and oil temperature monitor in real time.
• The fuel map, showing real-time engine speed, throttle position of the current.

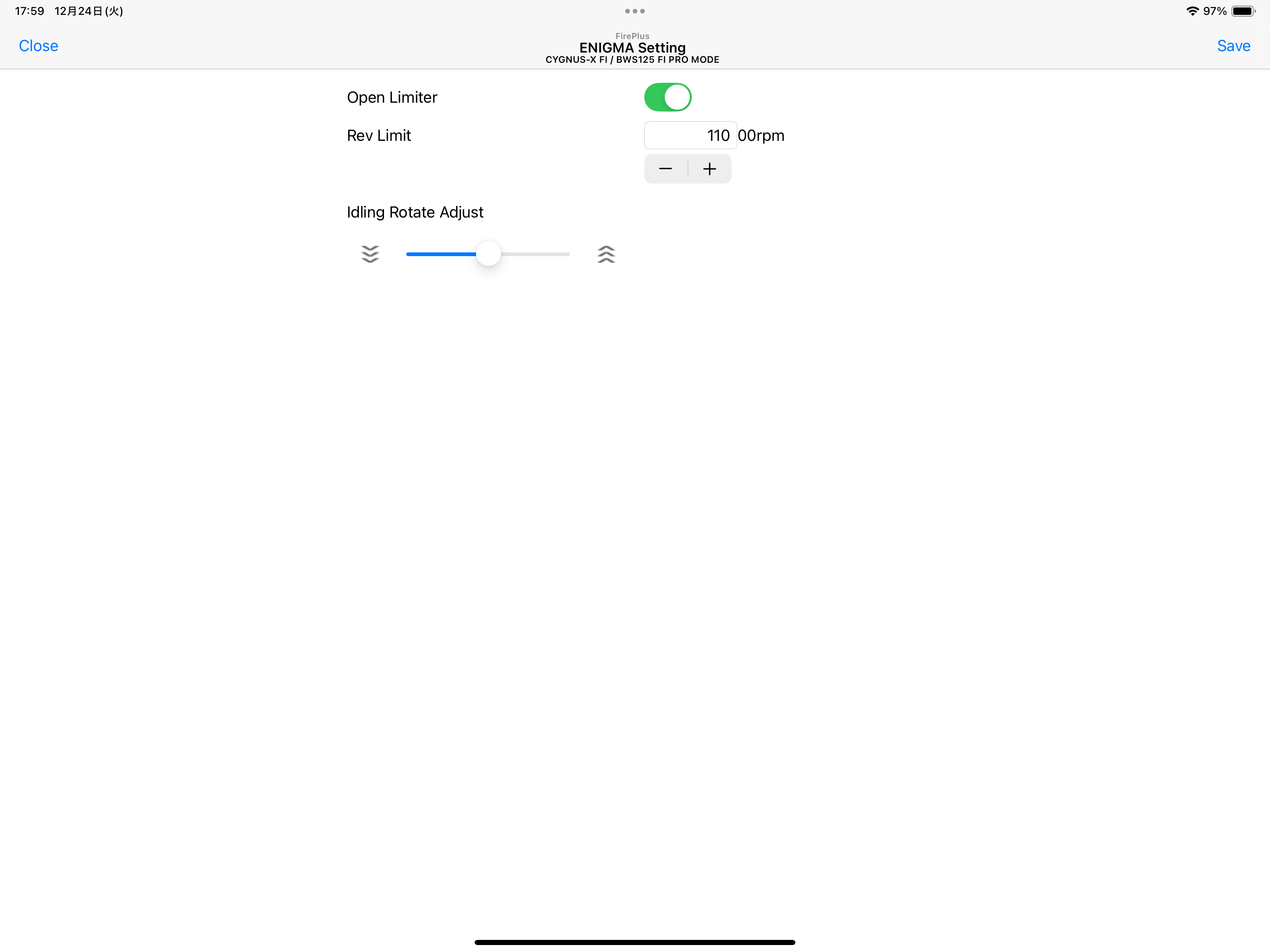

• arbitrarily set the rev limit.
• the digital acceleration pump.

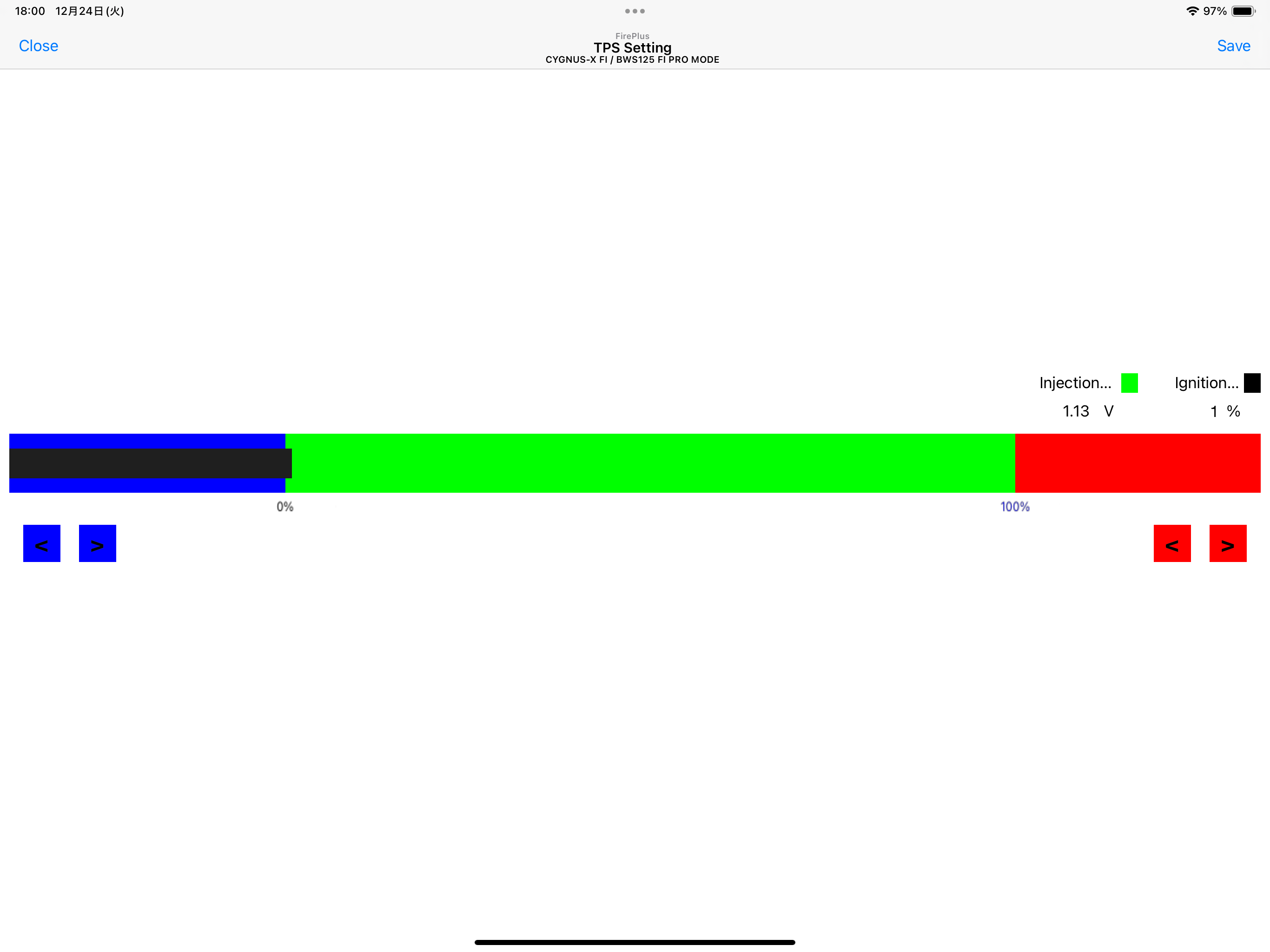

• corrected for the actual Throttle position sensor.
• save and create multiple fuel data, you can swap immediately when needed.
• English,Japanese localize.

Pairing is not required. Do not search Enigma in the Bluetooth settings screen. After the Bluetooth to ON in the Bluetooth settings screen to exit the setting screen in the home button, start the app, please do the connection from the "Connect to ENIGMA" app.

There is no direct linkage function of the map data and the PC version and other smartphones. Please migrate the map data via the Enigma.

There are no preset maps in the app. The fuel map is preset to ZERO. At ZERO, the fuel works the same as a normal ECU. We do not provide ignition setting data. Please set it yourself. Please use only if you understand ignition advance and dwell time. Otherwise, please use EASY mode. The engine will not rev up unless you set the ignition and dwell time yourself. The numbers in the screenshots are demos.
