EASY type-V FirePlus

Notes before purchase Enigma FirePlus Type-V Only. Adapt model -FPV211/FPV211RTF -FPV213/FPV213RTF -FPV330/FPV330RTFW -FPV335/FPV335RTF -FPV430/FPV430RTF

This app edit fuel mapping and spark angle adjust (EASY mode) which the Fuel Injection / Spark Angle piggyback controller DILTS JAPAN's ENIGMA FirePlus type-V.

This App can control only ENIGMA FirePlus type-V. Since conventional applications ENIGMA, Enigma LC, Enigma Fireplus, Enigma type-V and Semi-Full each have its own App, please use it.

This APP responds by buying bike model to all models of ENIGMA FirePlus type-V.

Although this App can be downloaded for free, only the screen of the tachometer is displayed free of charge. It is necessary to purchase download bike model that conforms to the model of the motorcycles.

Please app in purchase bike model according to the type of motorcycle of ENIGMA FirePlus type-V which you own.

Purchase bike model in the App and connect with ENIGMA FirePlus type-V with Bluetooth LE. Then you can control the following ENIGMA FirePlus type-V functions.

On your purchase, if you connect a BluetoothLE ENIGMA FirePlus type-V Bluetooth model,

Other operations of the following ENIGMA FirePlus type-V body, I can in a variety of iOS devices. This app need Bluetooth LE.After iphone4s ipad 3rd.

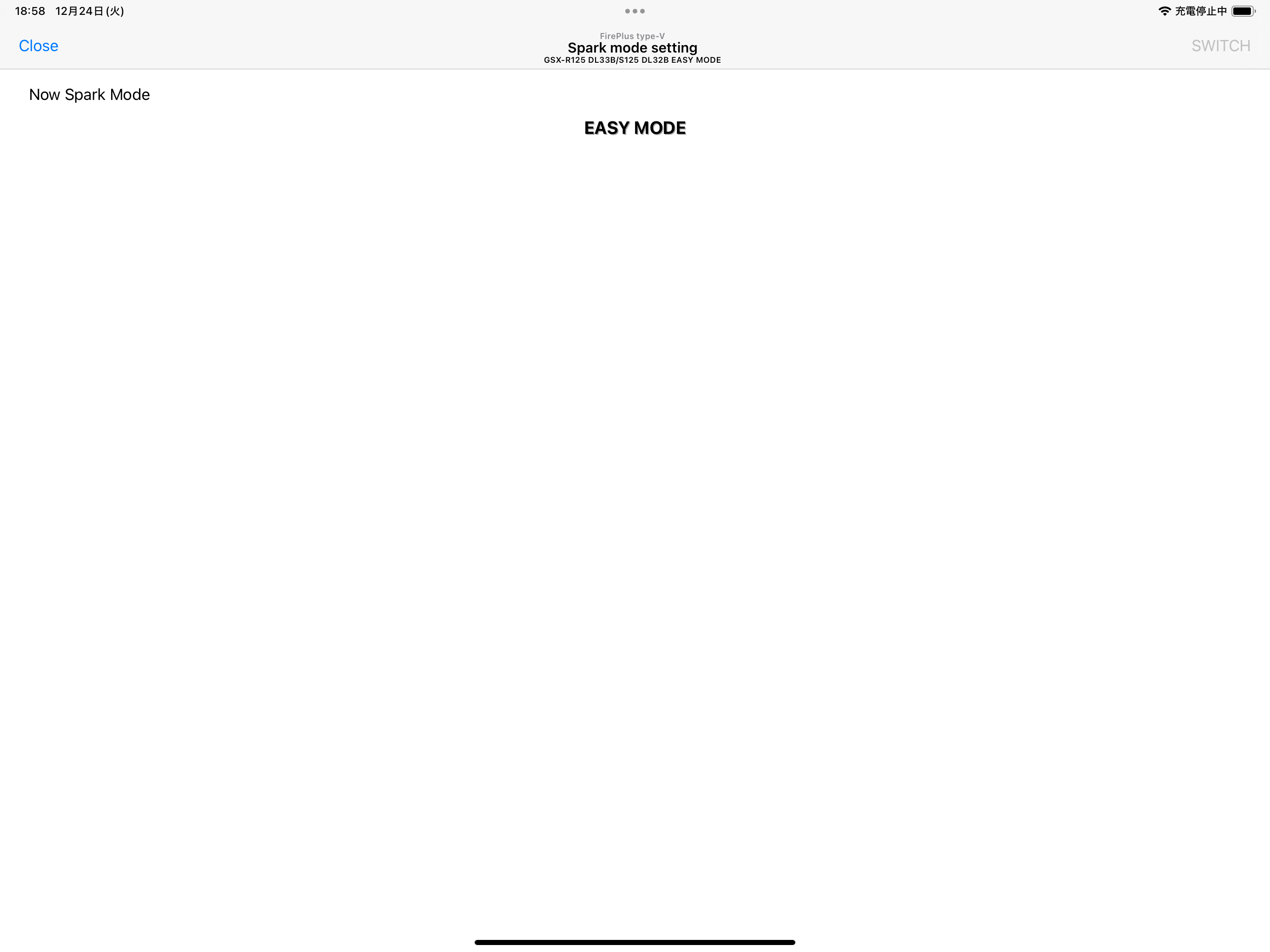

This App can edit EASY spark mode(spark adjust edit) only. Use to PRO mode(spark setting edit) must buy another app.

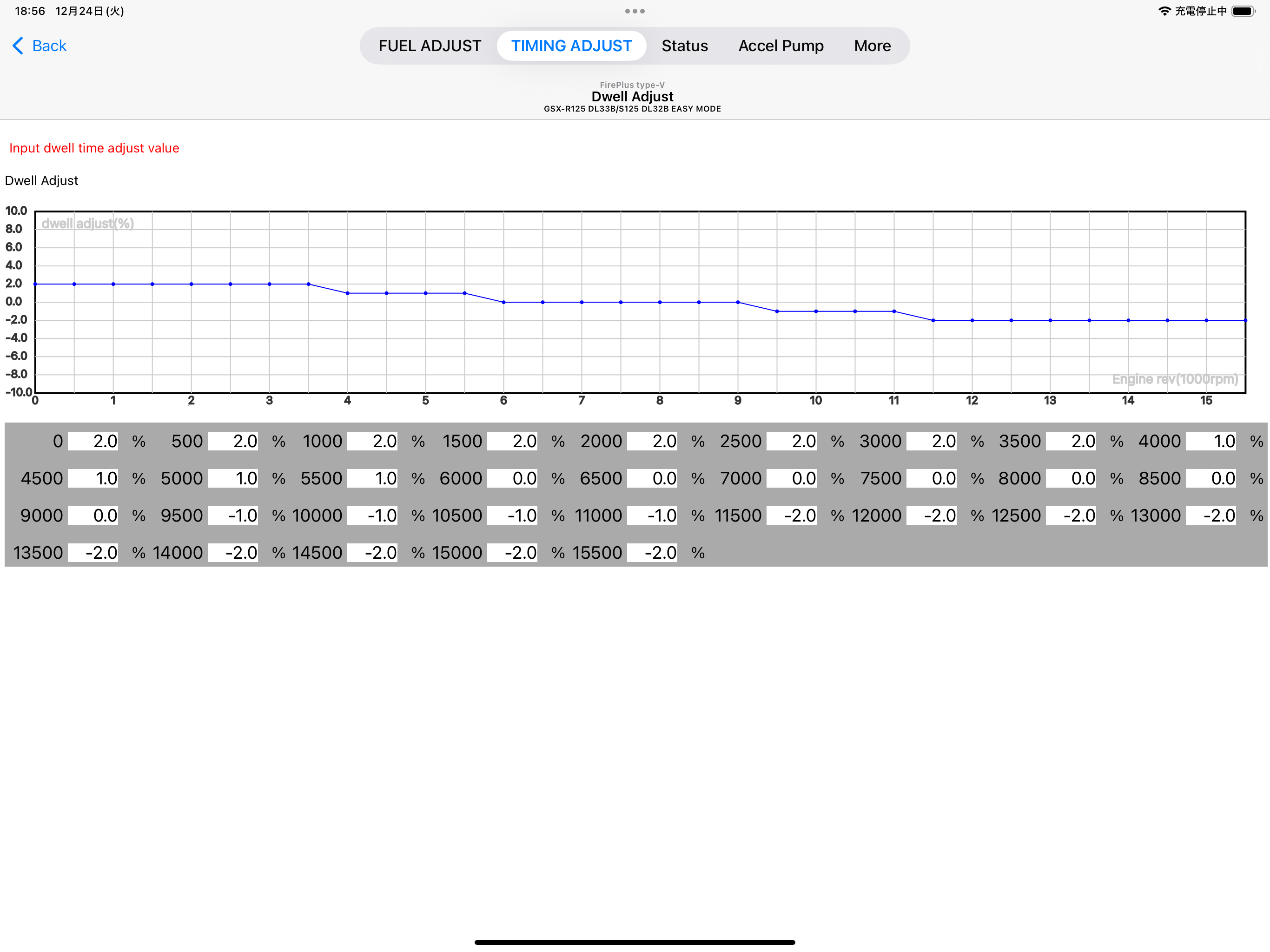

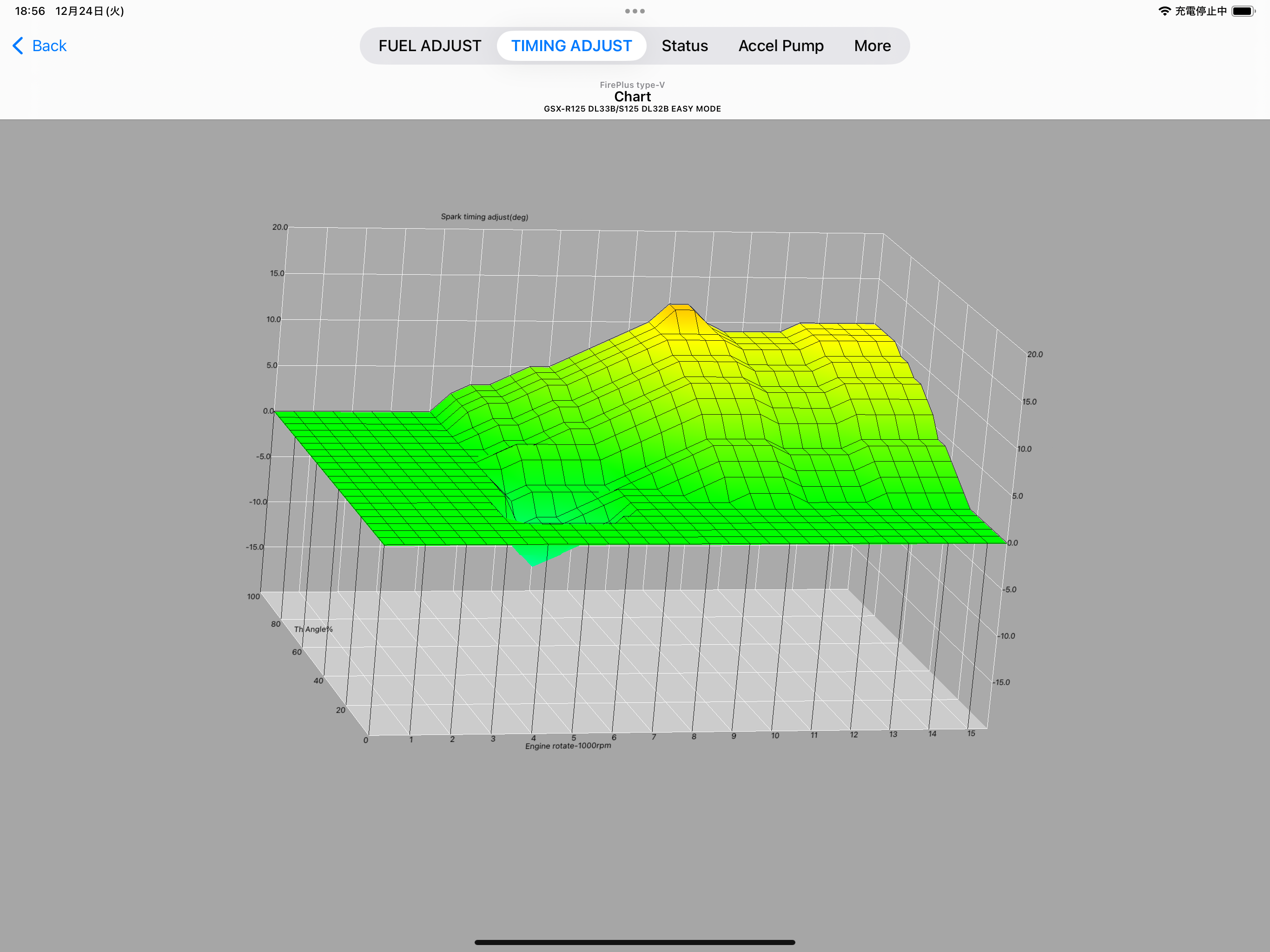

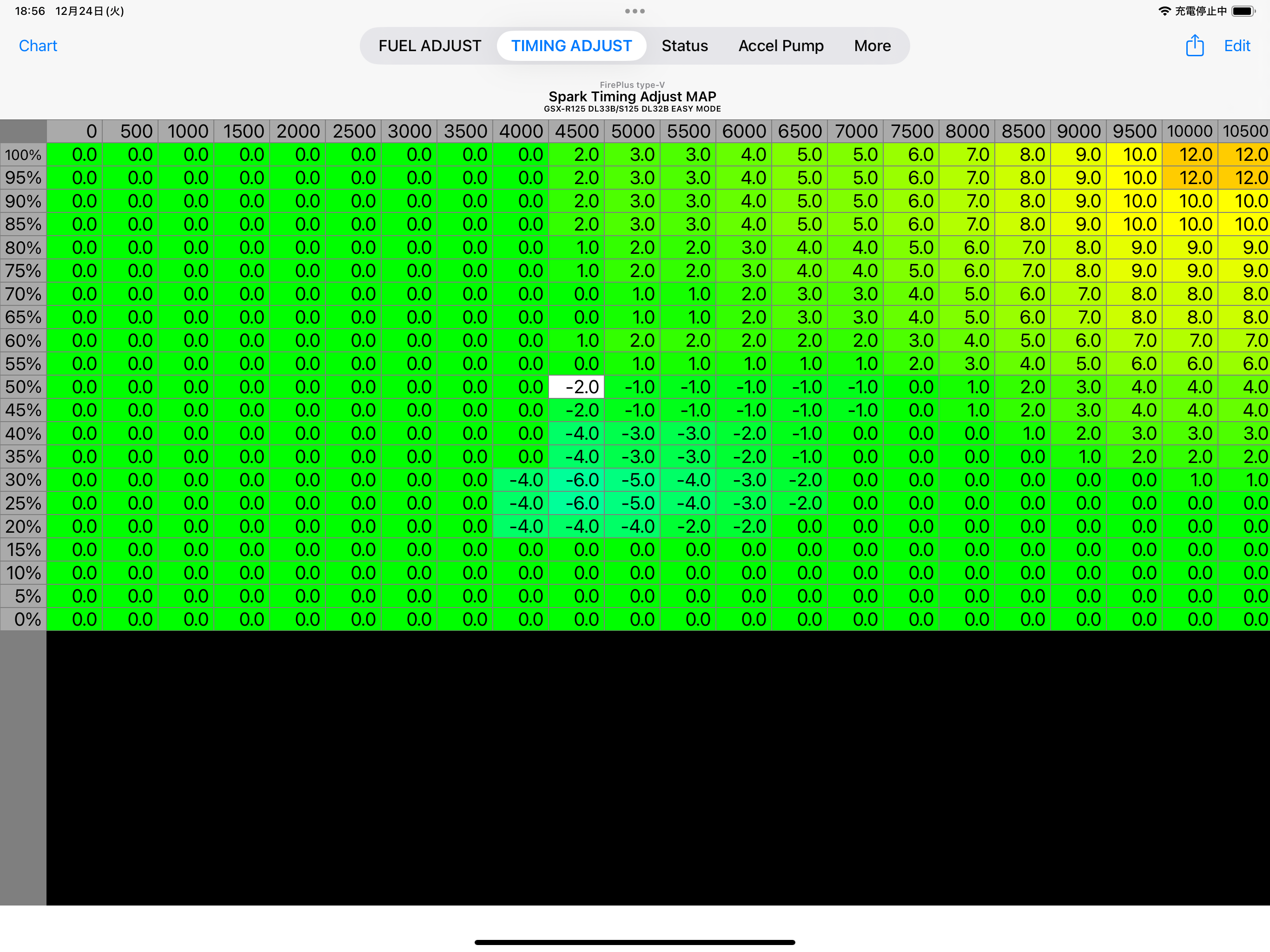

• Spark angle adjust 20/-20 degrees. and adjust dwell time.
• Two revlimitter setting function,normal revlimit and pitrane limitter.
• ENIGMA FirePlus type-V have new O2 feed back canceller.It is possible to achieve the desired flame throughout the whole area.
• cancel / set the engine speed limiter.
• The maximum 4000micro/-7500(ex.GROM JC75)micro seconds the engine rotation and throttle position for each fuel injection increase / decrease can edit and write-read.

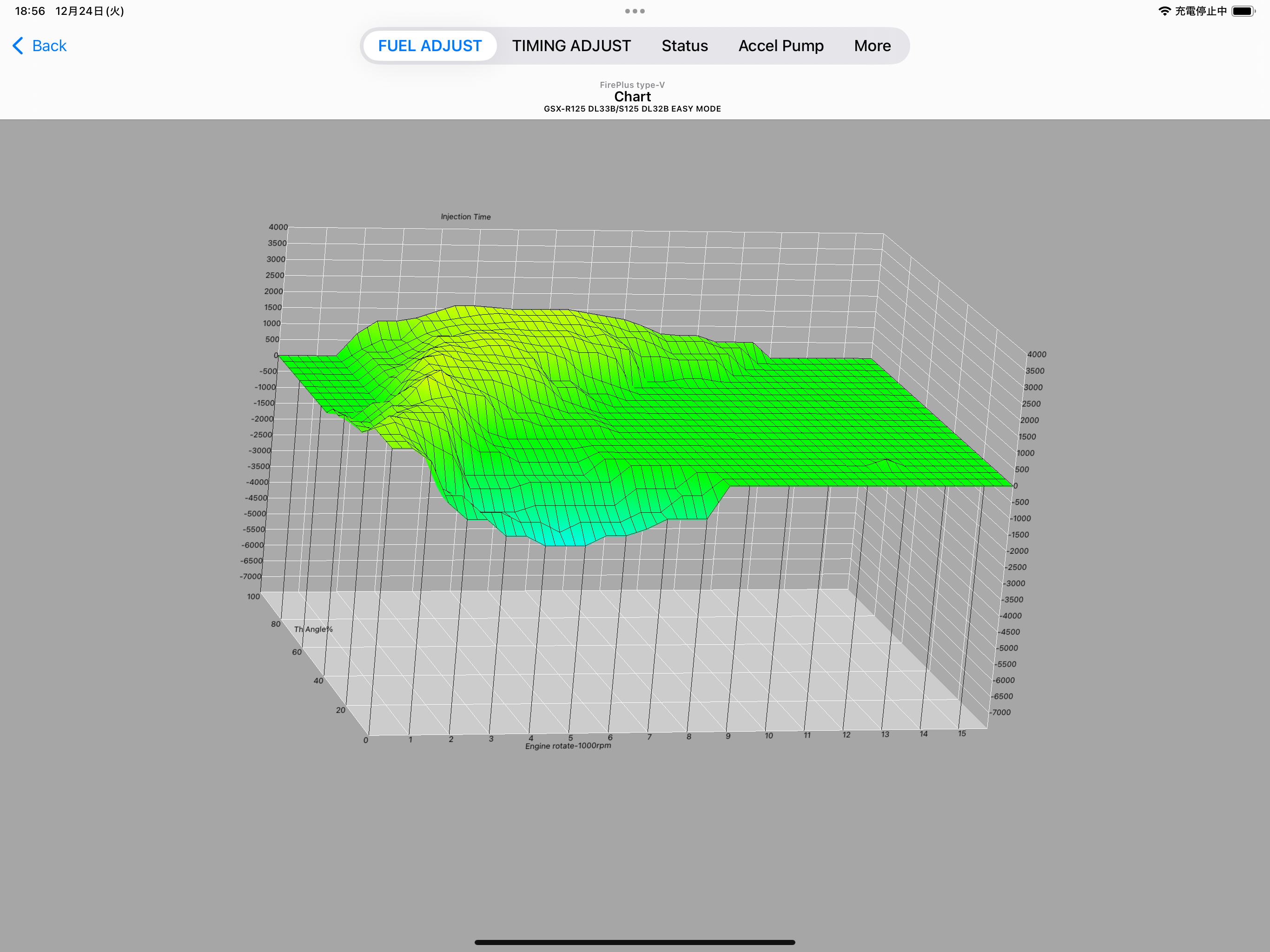

• displayed in 3D graph increase or decrease the amount of fuel.
• view the throttle opening ,tachometer and oil temperature monitor in real time.
• The fuel map, showing real-time engine speed, throttle position of the current.
• arbitrarily set the rev limit.
• the digital acceleration pump.

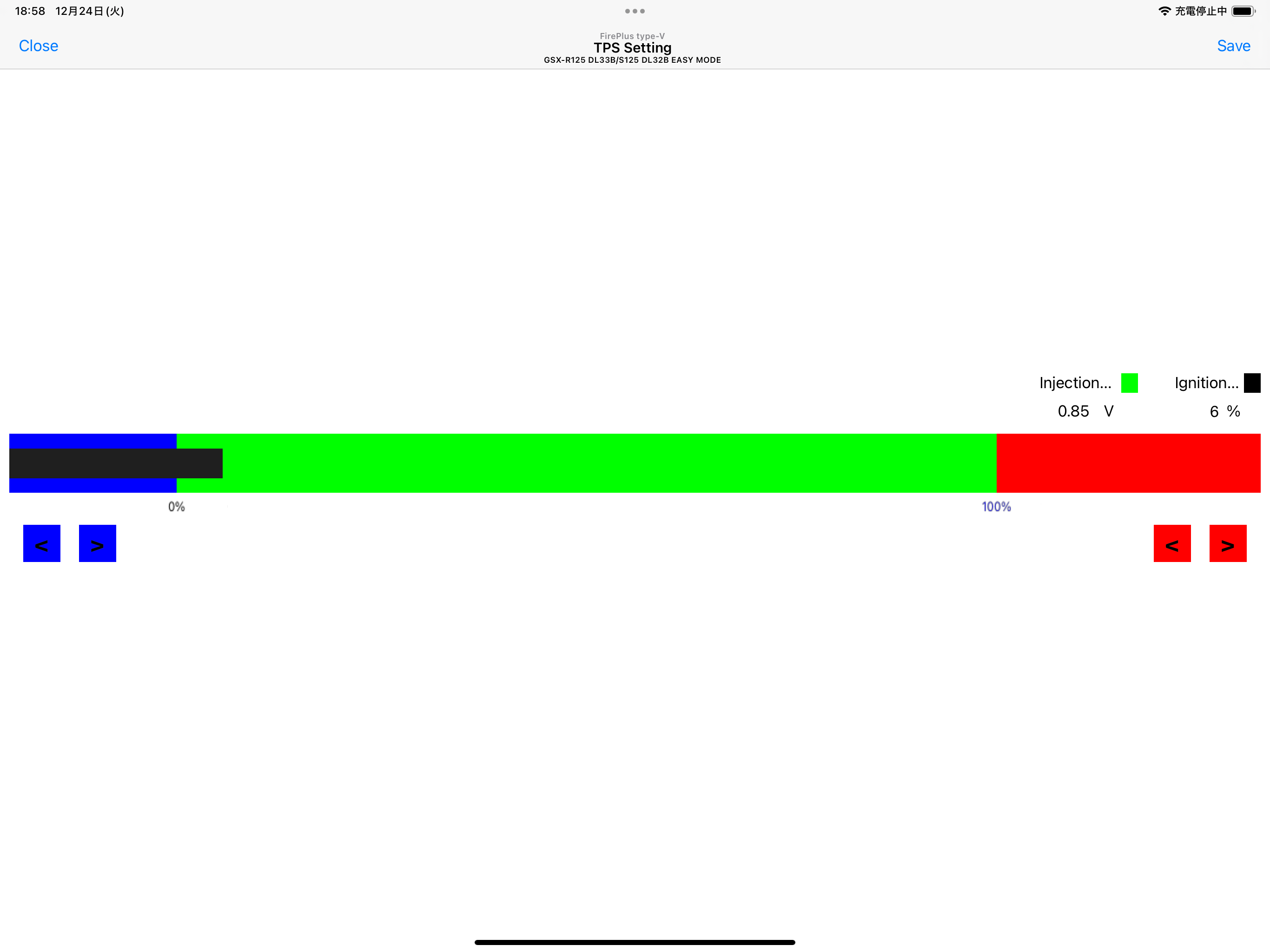

• corrected for the actual Throttle position sensor.
• save and create multiple fuel data, you can swap immediately when needed.
• English,Japanese localize.

Pairing is not required. Do not search Enigma in the Bluetooth settings screen. After the Bluetooth to ON in the Bluetooth settings screen to exit the setting screen in the home button, start the app, please do the connection from the "Connect to ENIGMA" app.

There is no direct linkage function of the map data and the PC version and other smartphones. Please migrate the map data via the Enigma.

There is no preset map in the app. ZERO is the preset. ZERO works the same as a normal ECU. The numbers in the screenshots are just demos.
