EXPERT FI-CON TYPE-X

FI CON TYPE-X EXPERT mode This application is dedicated to operation.

This application is for FI CON TYPE-X only. It can not be used for the conventional FI CON TYPE-ENIGMA Z 125 or DILTS-JAPAN ENIGMA series.

This application is only for EXPERT mode which can set the ignition time. Professional knowledge is required to set the ignition timing. EASY mode has special application which can make adjustment from ignition timing of normal ECU without advanced expert knowledge.

This application can be downloaded for free. When it is free, you can connect with all FI - CON TYPE - X, but only the tachometer screen is displayed. (Only tachometer and TPS are displayed). In order to set various functions of FI CON TYPE-X, you need to purchase the model data corresponding to FI CONTYPE-X you have from the model selection screen.

When purchasing and selecting model data, the following functions can be used.

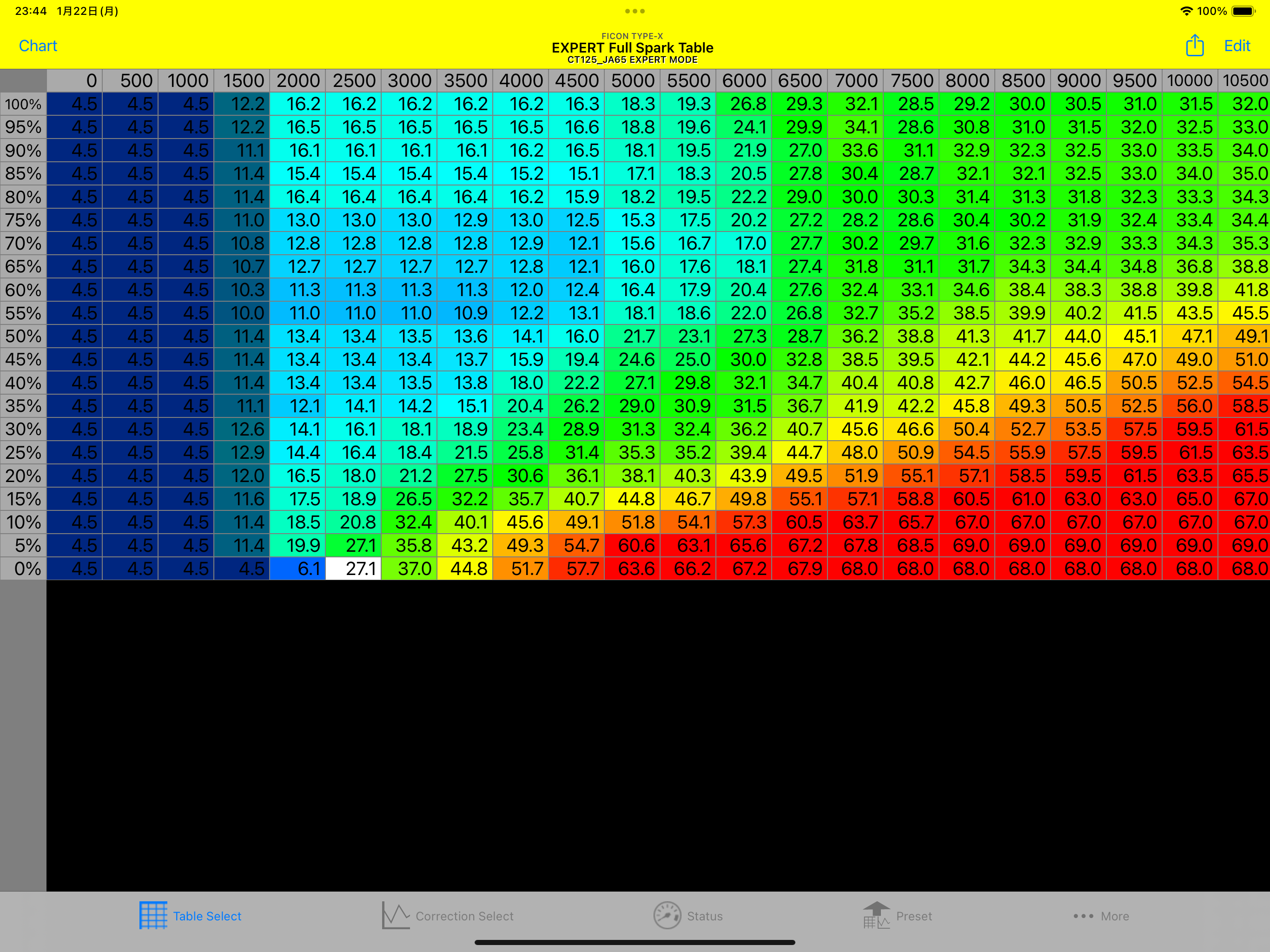

· Preset data combined with TAKEGAWA made boa up kit etc. are prepared. Preset data can be easily written to FI - CON. · The ignition timing of 0 - 60 degrees can be adjusted for each engine rotation / throttle position. It is also possible to set the dwell time.

• The fuel injection amount can be set for each engine rotation / throttle position.
• Fuel correction at idling can be performed.
• Startability and idling stabilization correction function when using a big injector. (Only for compatible models)
• Adjustment of fuel injection time by engine temperature and intake air temperature is possible.
• It is possible to set injection timing at each rotation speed.
• Various maps can be displayed in 3D graph.
• Two maps can be put inside FI - CON, and it can be switched with an external switch.
• In real time, you can display tachometer, throttle opening monitor, injector opening / closing rate, oil / water · engine temperature (depending on model),Voltage (Applicable models only).
• Display the current engine speed and throttle position in real time in the fuel map.
• Revolution Limit can be set .
• Pit-in limit can be set (Applicable model only)
• Digital acceleration pump can be set.
• It is possible to correct the TPS sensor according to the actual machine.
• You can make several fuel data and save it, you can change it immediately when you need it.
• It corresponds to Japanese and English.

No pairing is necessary. On the Bluetooth setting screen, FI-CON is not searched. Please turn on Bluetooth on the Bluetooth setting screen, then exit the setting screen with the Home button, launch the application, and connect from "Connect to FI - CON" of the application.
