Enigma Semi-Full EASY mode

Notes before purchase Enigma Semi-Full Only. Adapt model(RTF omit) SF2210 SF2230 SF2330 SF2335 SF2337 SF2339 SF2371 SF2376 SF2378 SF2380 SF2385 SF2390 SF2510

Enigma Semi-Full EASY mode exclusive operation application.

This application is for Enigma Semi-Full only. It can not be used for the conventional another Enigma series.

This application is only for EASY mode which can adjust the ignition time. There is a dedicated application in PRO mode that can set the ignition time.

This application can be downloaded for free. When it is free, you can connect with all Enigma Semi-Full, but only the tachometer screen is displayed. (Only tachometer and TPS are displayed). In order to set various functions of Enigma Semi-Full, you need to purchase the bike model corresponding to Enigma Semi-Full you have from the model selection screen.

When purchasing and selecting bike model , the following functions can be used.

• Preset a data combined. Preset data can be easily written to Enigma Semi-Full.
• • 20 / - 20 degree spark advance / delay angle can be adjusted for each engine rotation / throttle position. It is also possible to adjust the dwell time.

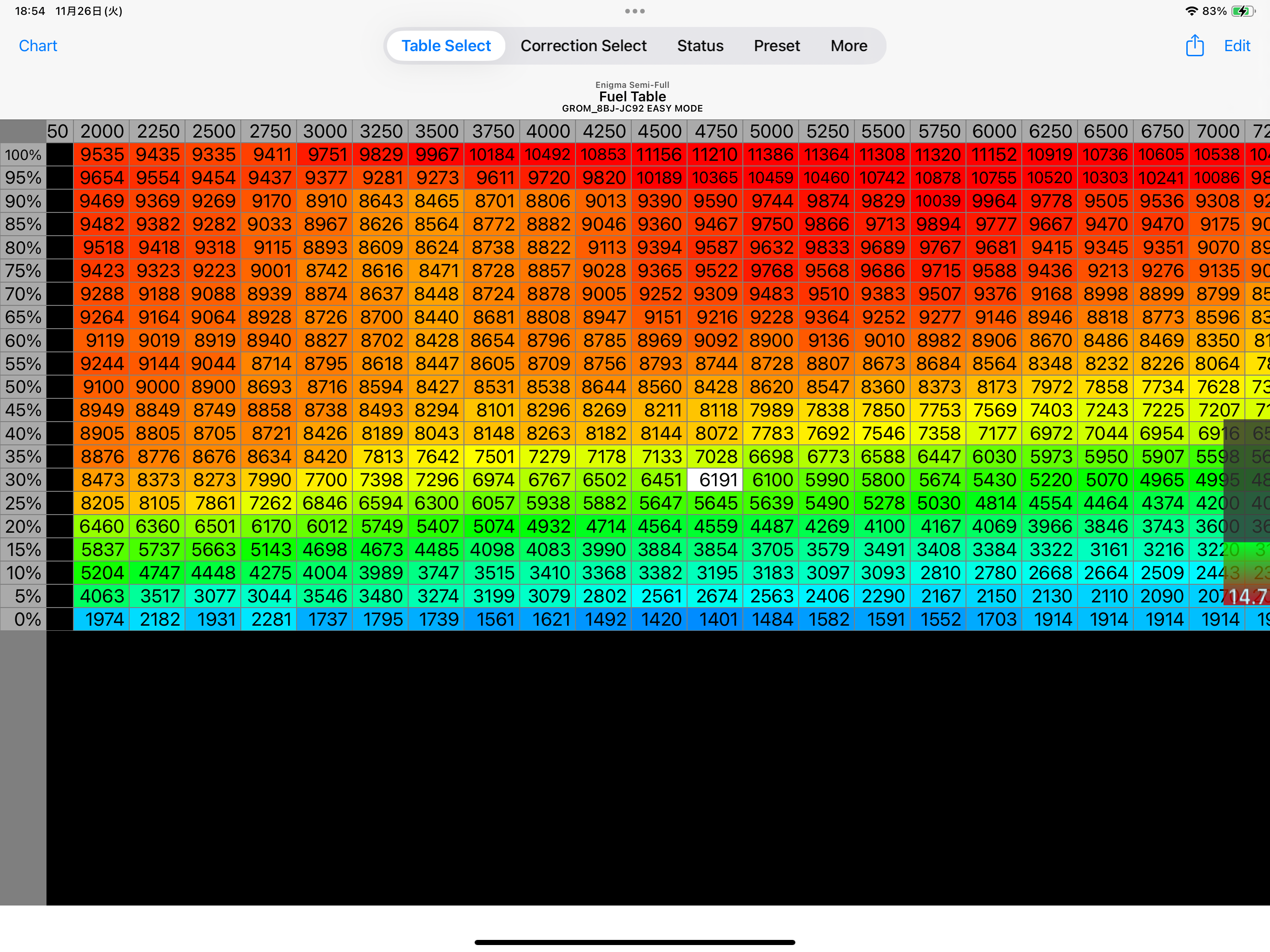

• The fuel injection amount can be set for each engine rotation / throttle position.
• Fuel correction at idling can be performed.
• Startability and idling stabilization correction function when using a big injector. (Only for compatible models)
• Adjustment of fuel injection time by engine temperature and intake air temperature is possible.
• It is possible to set injection timing at each rotation speed.

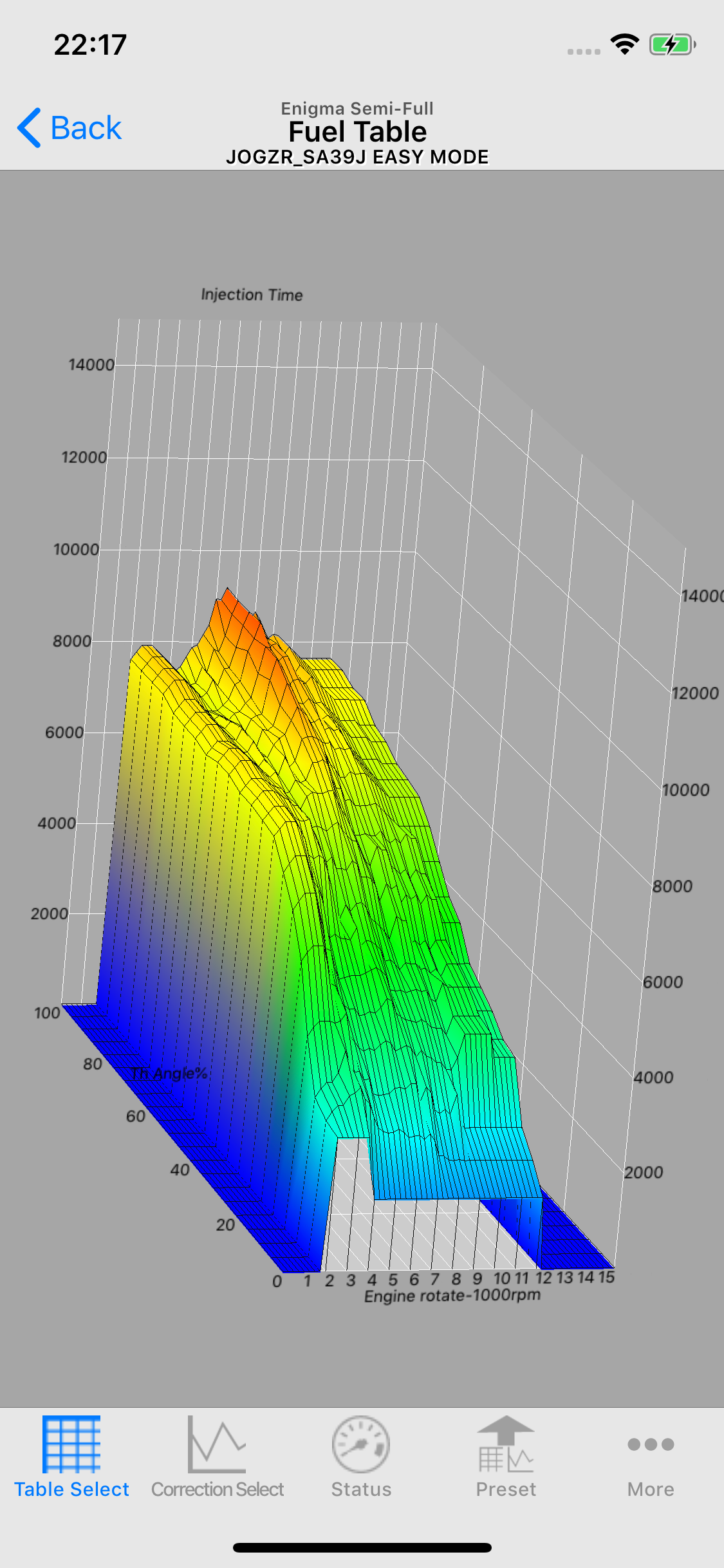

• Various maps can be displayed in 3D graph.
• Two maps can be put inside Enigma Semi-Full, and it can be switched with an external switch.
• In real time, you can display tachometer, throttle opening monitor, injector opening / closing rate, oil / water · engine temperature (depending on model),Voltage (Applicable models only),air-Fuel ratio(Applicable models only).
• Display the current engine speed and throttle position in real time in the fuel & ignition adjust map.
• Revolution Limit can be set .
• Pit-in limit can be set (Applicable model only)

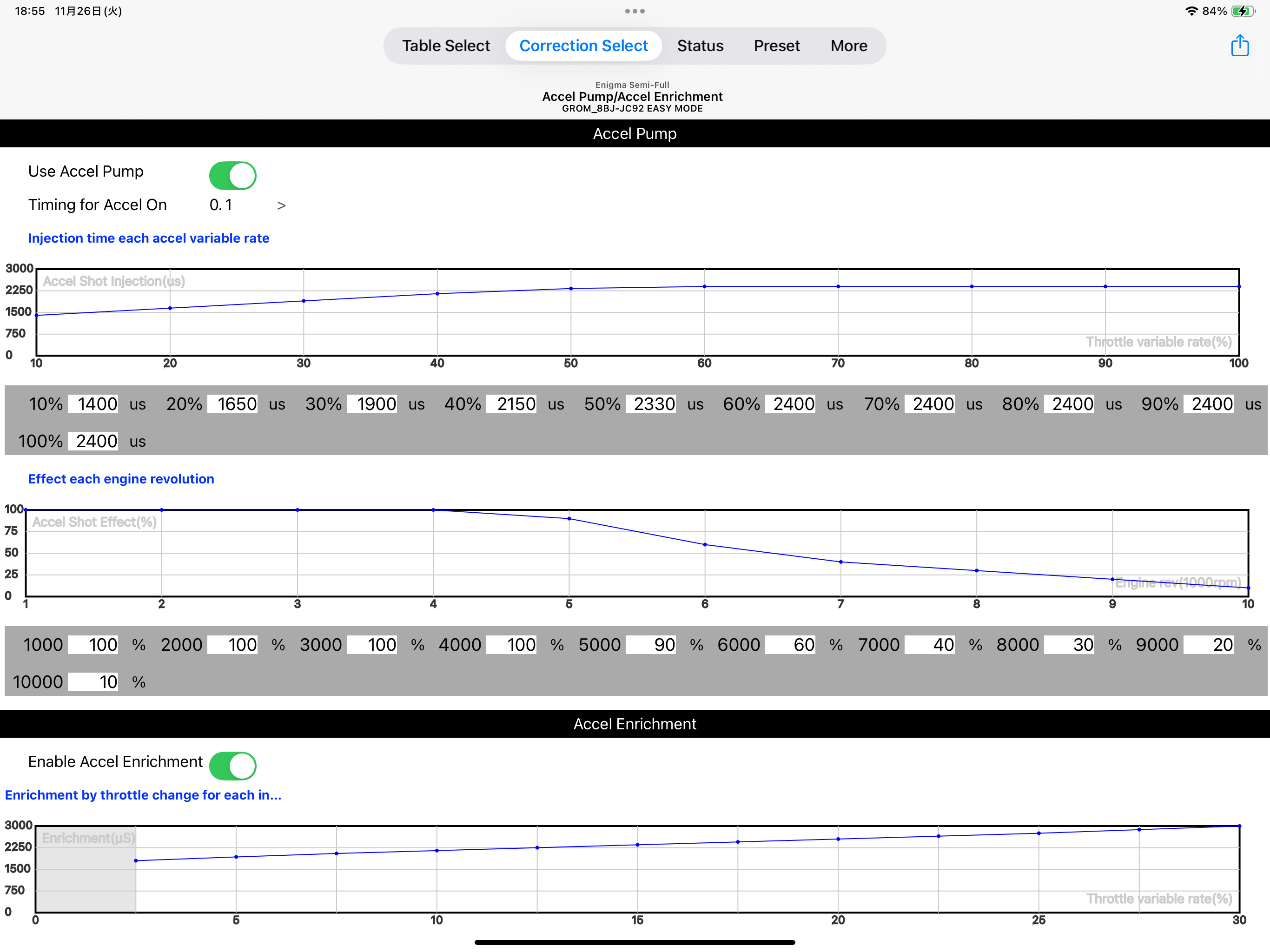

• Digital acceleration pump can be set.
• It is possible to correct the TPS sensor according to the actual machine.
• You can make several fuel data and save it, you can change it immediately when you need it.
• It corresponds to Japanese and English.

No pairing is necessary. On the Bluetooth setting screen, Enigma is not searched. Please turn on Bluetooth on the Bluetooth setting screen, then exit the setting screen with the Home button, launch the application, and connect from "Connect to Semi-Full" of the application.
