3d WLED Mapper to xLights

Create xLights models directly from your iPhone. Connect to WLED, map LEDs automatically, preview results and export in minutes.

WLED to xLights helps you turn real LED layouts into xLights-ready models without manually measuring positions or building layouts by hand. Connect to WLED, capture your display, generate a mapped model, review the results and export into xLights. Whether you're building holiday lighting displays, props, matrices or custom layouts, WLED to xLights Mapper streamlines the model creation process.

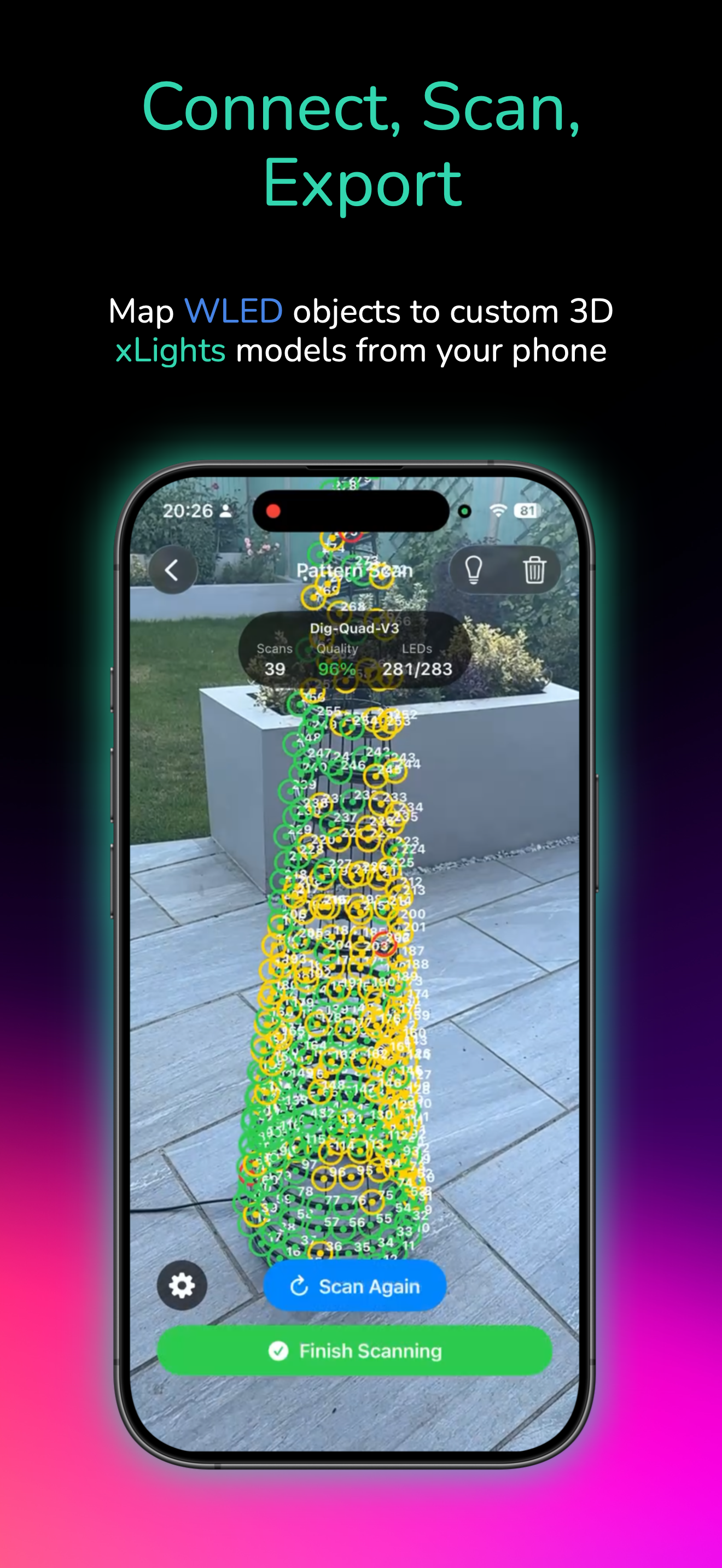

Features • Connect directly to WLED devices • Scan and map LED positions using your iPhone • View the model captured in realtime with AR overlay • Preview and review models before export • Edit mapped results when adjustments are needed • Adjust export option (model resolution, and orientation) • Generate xLights-compatible models automatically • Export and continue working in xLights • Reduce manual setup and model creation time

Simple workflow

1. Connect - Connect your iPhone to your WLED controller.
2. Scan, Move and Repeat - Perform scans from various angles to generate a model from your LED layout.
3. Export - Export and continue sequencing in xLights.

Built for lighting creators Designed for users creating custom displays and lighting layouts who want a faster path from physical LEDs to a usable xLights model.

Supports standard iPhone devices. WLED to xLights Mapper is an independent app and is not affiliated with WLED or xLights.
