Ham Mixer Mobile

Control your radio remotely from phone/tablet. Full PTT, waterfall, WebSDR mixer, CW keyer, Mic DSP, DX Cluster and QSO logging with QRZ.com. Very low-latency audio.

HamMixer Mobile turns your iPhone into a full remote control for your ham radio station. Connect securely to HamMixer Server at your home QTH and operate your transceiver from anywhere in the world -- with real-time audio, full radio control, and near-zero latency.

Designed by CT7BAC, a licensed ham operator, for ham operators.

REMOTE RADIO CONTROL

• Set frequency with a velocity-sensitive tuning wheel and haptic feedback
• Switch bands (160m-6m) with one tap and automatic band memory recall
• Change modes: LSB, USB, CW, AM, FM
• Toggle DSP controls: NB, NR, ANF, Preamp, AGC, IF Filter
• Adjust RF power, control the antenna tuner, exchange VFO A/B
• Real-time S-meter with peak hold, TX power and SWR indicators
• 7-segment frequency LCD with live band plan display

REAL-TIME WATERFALL Full-screen landscape spectrum scope with drag-to-tune, frequency snapping, adjustable contrast, and edge cycling. Native Icom scope data streamed over the network.

VOICE MEMORY & CW KEYER

• 8 customizable voice memory buttons (M1-M8) for voice keyer playback. In CW mode, buttons switch to programmable CW macros.
• Character-by-character text-to-morse keying with adjustable speed (6-48 WPM). The radio handles all timing -- immune to network latency.
• Connect a CW paddle to the BLE accessory module for real iambic keying (Mode A/B) with low-latency local sidetone. The keyer runs on your phone -- network latency does not affect your timing.

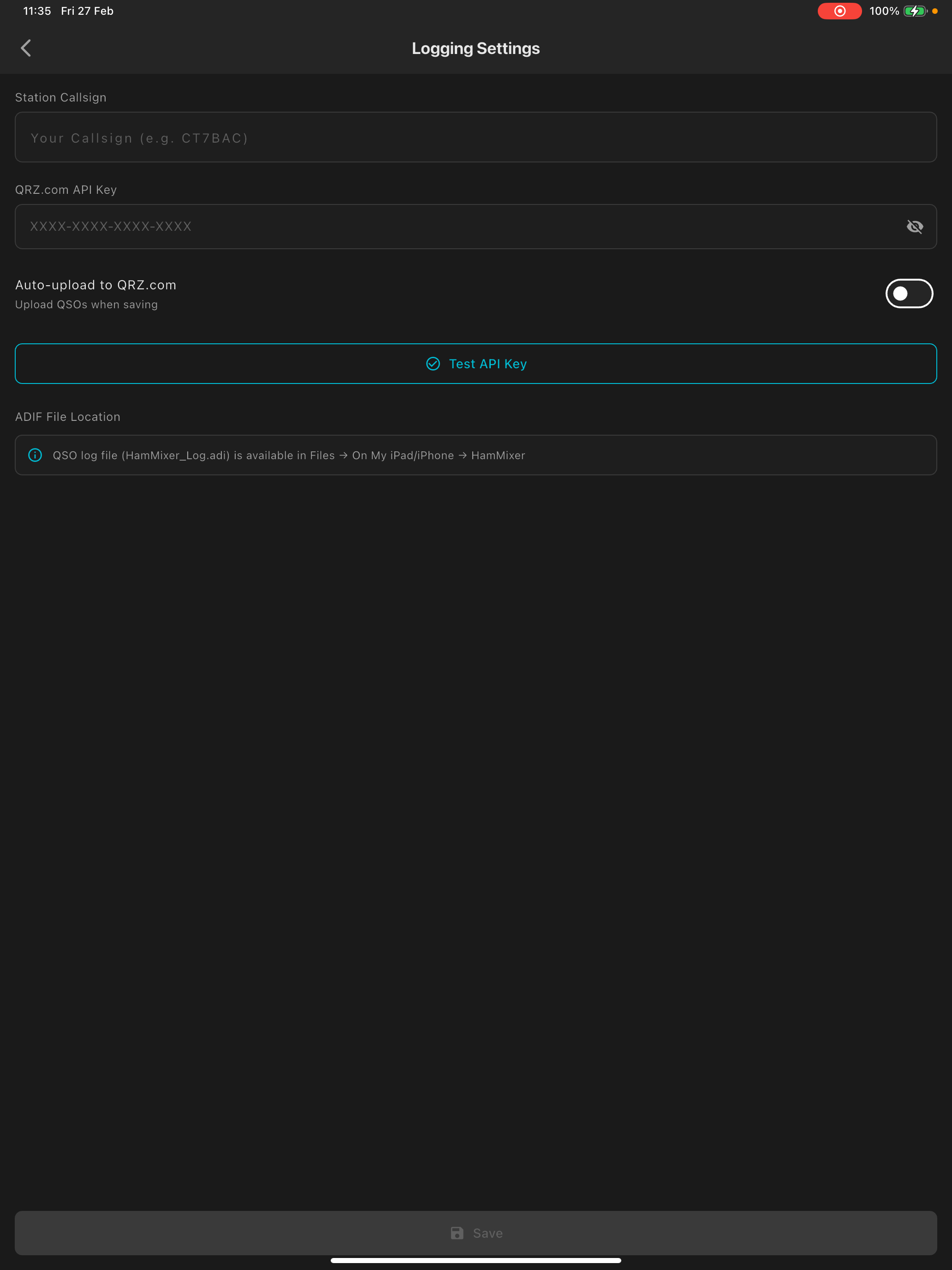

QSO LOGGING Tap the frequency display to open a dedicated log screen. Band, mode, and frequency auto-fill from live radio state. Scroll-wheel time pickers and RST selectors. Includes its own PTT button and CW entry so you can keep working the contact while logging.

• Saves to portable ADIF 3.1.4 file (compatible with Log4OM, HRD, and others)
• Optional automatic upload to QRZ.com Logbook

MIC DSP Shape your TX audio before it hits the radio:

• Mic gain (0-20 dB)
• Compressor with adjustable ratio
• Noise gate with envelope follower
• 8-band parametric equalizer (80 Hz - 3.2 kHz)
• Real-time mic level meter and test recording with playback
• Monitor button for live loopback through headphones

WEBSDR AUDIO MIXER Mix live WebSDR receiver audio with your radio audio directly on your phone:

• Stereo output: radio on left, WebSDR on right (Android)
• Independent volume and mute per channel with real-time level meters
• Adjustable delay (0-1500ms) with one-tap GCC-PHAT audio synchronization
• Automatic frequency and mode tracking — WebSDR follows your radio
• Embedded WebSDR page view with pinch-to-zoom
• Configurable WebSDR and KiwiSDR site list

DX CLUSTER

• Real-time spots
• DXCC resolution
• one-tap tune-and-log

ENCRYPTED & RELIABLE

• TLS 1.2+ encrypted control channel
• AES-128-CTR encrypted audio stream with per-session keys
• Opus codec at 48 kHz / 48 kbps for broadcast-quality radio audio
• Automatic reconnection on network drops
• Background audio keeps playing during phone calls and multitasking
• Built-in network diagnostics: latency, jitter, and UDP connectivity tests

ADDITIONAL FEATURES

• PTT lock and VFO lock to prevent accidental transmission or tuning
• Audio auto-mute during phone calls
• Settings backup & restore
• Multiple saved server profiles
• Remote radio power off
• BLE accessory module: wireless VFO encoder, PTT/TUNE buttons, and CW paddle jack (Raspberry Pi Pico W)
• Keep screen on option

SUPPORTED RADIOS

• Icom transceivers with CI-V protocol: IC-705, IC-7100, IC-7300, IC-7610, IC-7760, IC-7851, IC-9700, and more.
• Kenwood TS-590S/SG.
• Automatic model detection.

REQUIREMENTS HamMixer Server (Windows) must be running at your home station, connected to your radio via USB. The server is included in the HamMixer Full Bundle license ($39.80 one-time). The mobile app itself is free.

Visit http://www.ct7bac.com for documentation, setup guides, and a 14-day free trial of the desktop suite.
