Qu MixPad

Qu-MixPad release V1.1.4: This version is for Qu-5 / Qu-5D, Qu-6 / Qu-6D, Qu-7 / Qu-7D mixers running V1.1.* firmware. Please note: It is NOT compatible with Qu-16, Qu-24, Qu-32, Qu-Pac or Qu-SB mixers.

Qu-MixPad allows control of a Qu digital mixing console over a wired or wireless network. It can be used simultaneously and independently of the Qu surface, so it can provide supplementary local control as well as giving the engineer the freedom to move around and mix from different listening positions. Two devices running Qu-MixPad can be connected and used at the same time as using the Qu surface, giving three separate points for control of all mixes.

It provides the following:

Level and Routing Control - Send levels, panning/balance, assignments, pre/post settings and mutes from all channels to all mixes Output send levels for all mixes Send and Return levels for FX DCA and Mute Group control, including assignments

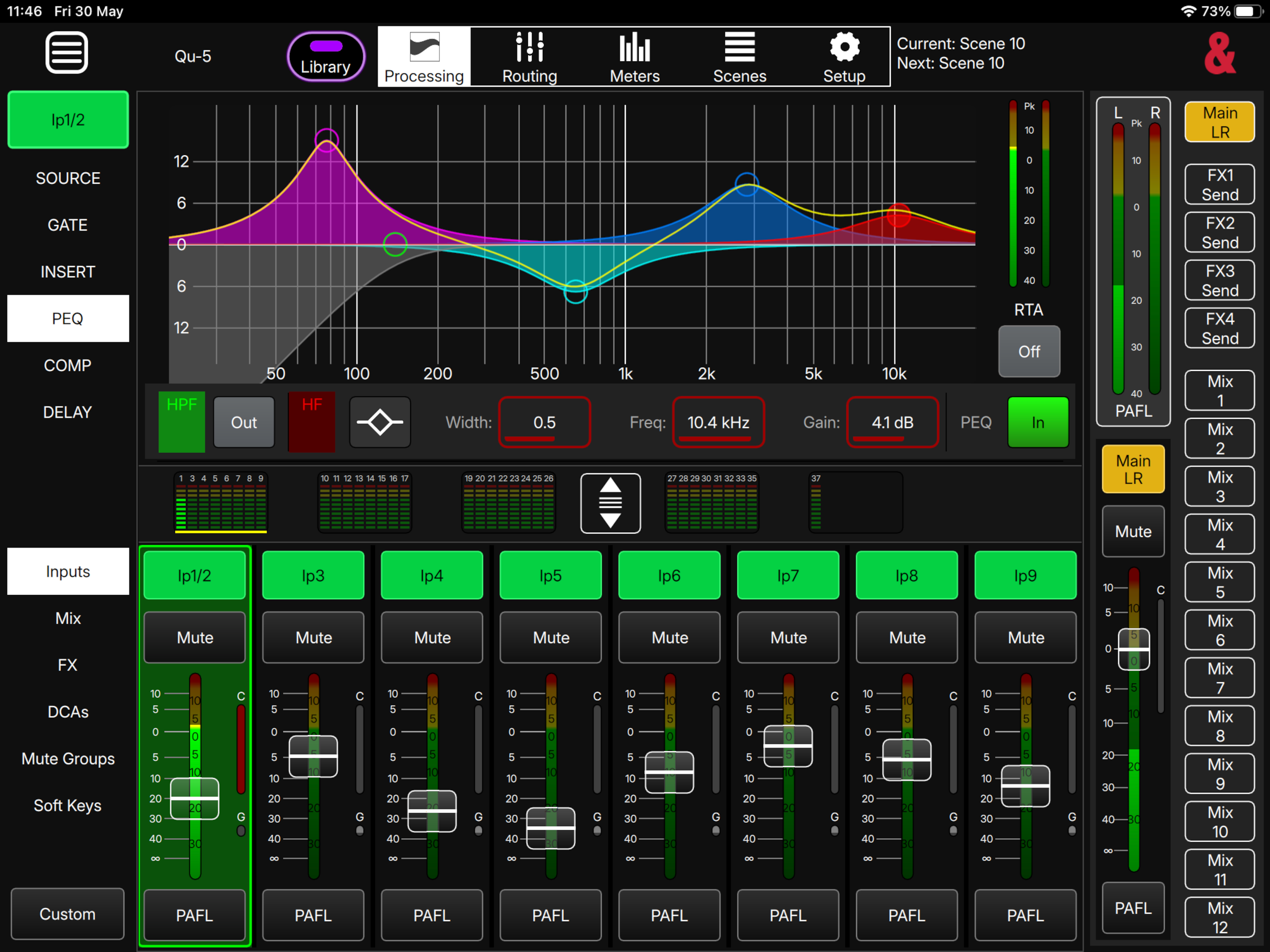

Processing Control - Input channel Preamp/DEEP Preamp Model/HPF/Gate/Insert/PEQ/Compressor Mix channel Insert/Feedback Assistant/GEQ/PEQ/Compressor DEEP compressors and GEQ’s FX Parameters and FX Return PEQ Access to all Libraries

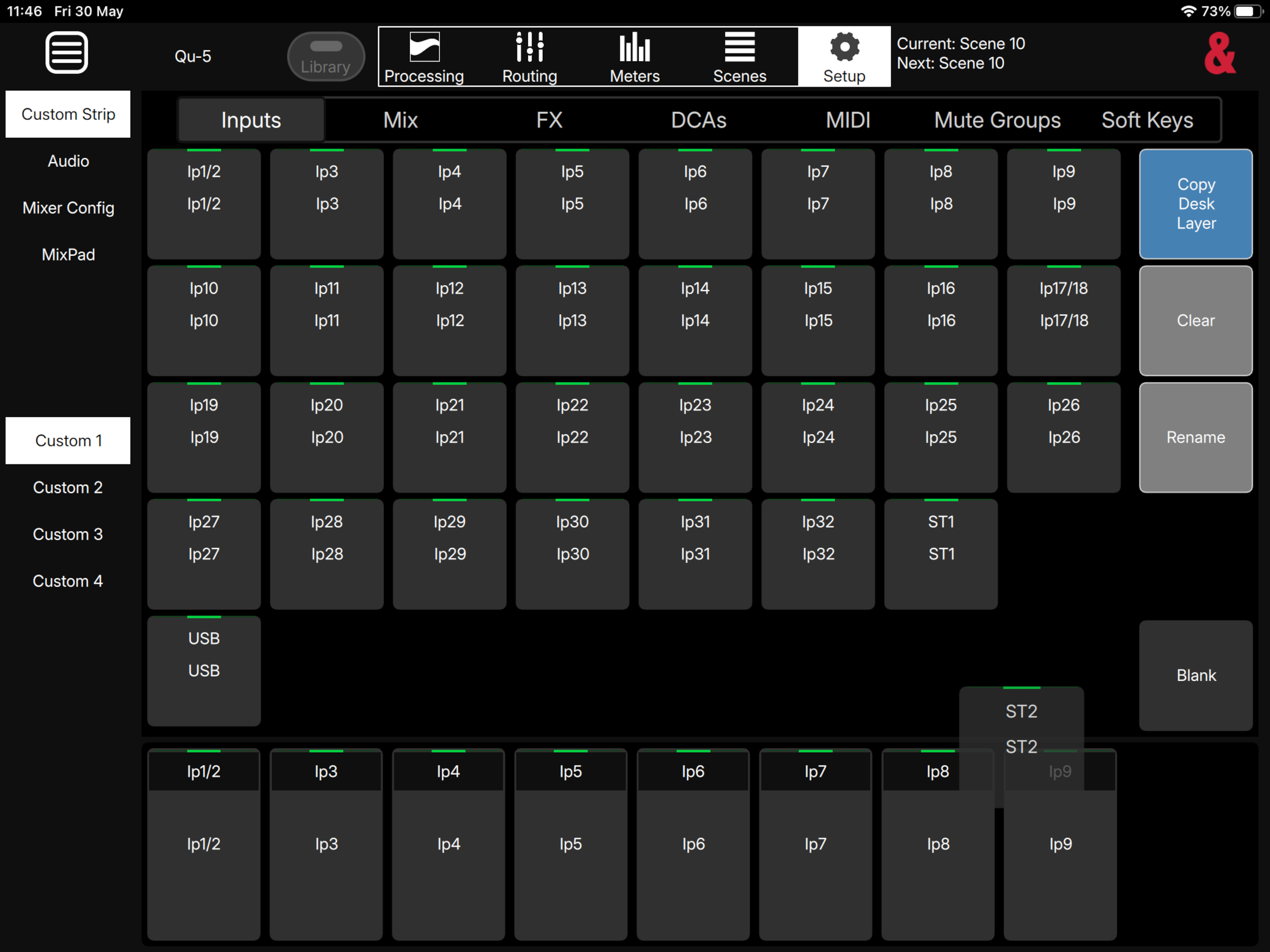

Other features include – Scene and Cue List Management Global filters, scene filters and channel safe control Works with Qu User Permissions Copy/Paste and Reset functionality Full control of Signal Generator and assignments 4 custom layers with the ability to copy or use/follow desk layers All input/output/processing metering Channel RTA Mixer config including stereo linking and mix type PAFL setup and selection Channel naming/colour SoftKey and MIDI strips setup and use Follow Channel/Mix Select option
