Qu-Control

Qu-Control release V1.93 for iOS devices. This version is for Qu mixers running V1.9* firmware.

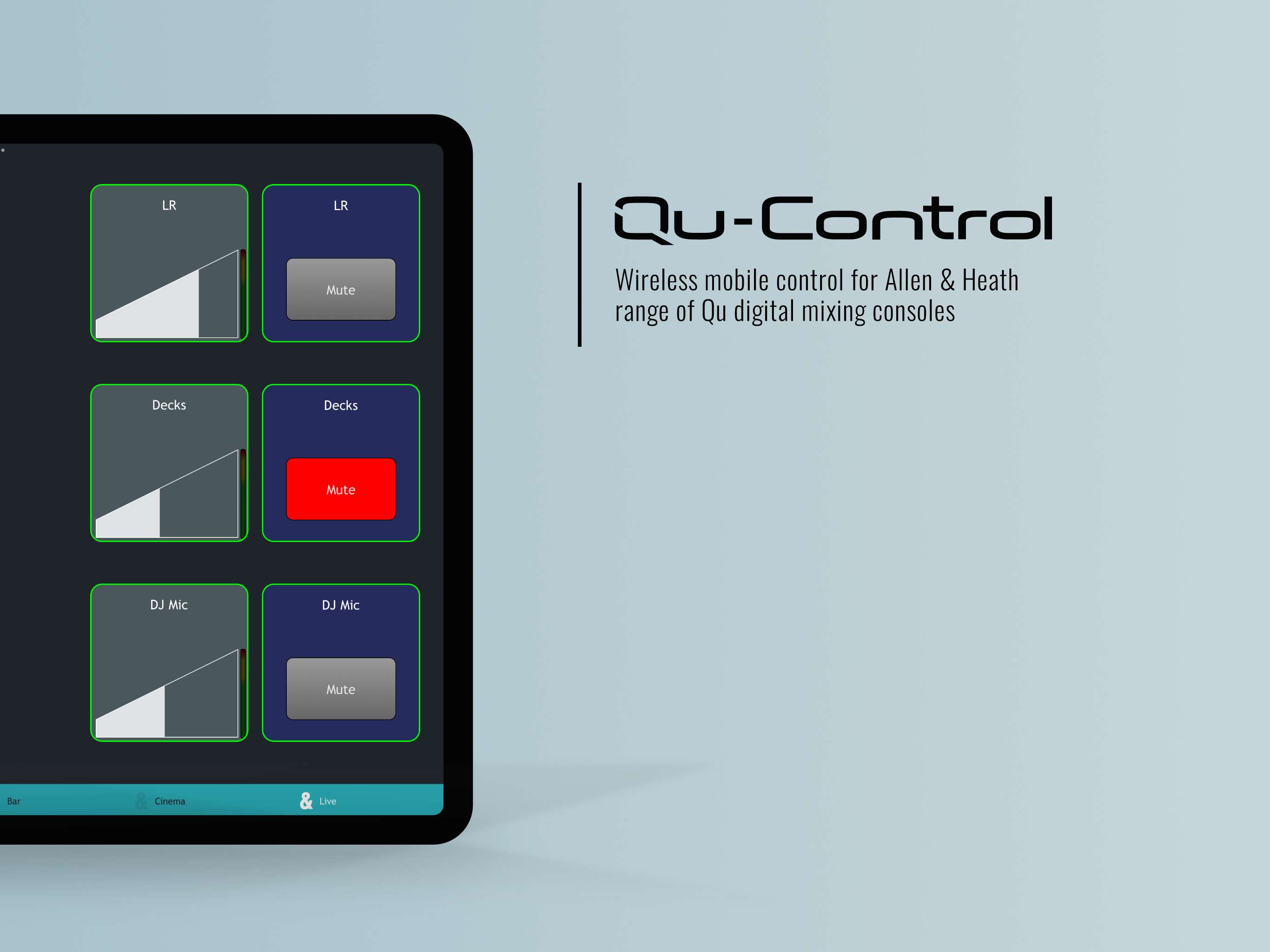

Qu-Control provides wireless mobile control for an Allen & Heath Qu digital mixing console.With simple configuration and set-up, it gives focused control of Qu consoles to those who only need access to some parameters, e.g. levels or mutes.

Qu-Control works simultaneously with Qu-Pad and the Qu mixing consoles.Complex set-up of routing, levels and processing are carried out within the mixing console or Qu-Pad by an experienced user, then Qu-Control can be configured and used by non-technical users or when only a few parameters require adjustment.

Typical applications include simple source selection to more complex venue audio management.Qu-Control can also be used to control send levels to a single mix for monitoring, recording or live streaming.

The Qu range supports simultaneous connection of up to 8 iOS devices with up to two of these running Qu-Pad (for complete control of the mixer) and the rest running Qu-Control or Qu-You apps, all of which are available free from the Apple Store.

Qu-Control allows for the following to be controlled in any Qu mixer:

• Input Faders
• LR On/Off buttons
• LR On/Off Radio buttons
• Master Faders
• Input Mutes
• Master Mutes
• Mute Groups
• Send Levels
• Send On/Off buttons
• Send On/Off Radio buttons
• Group Send Levels
• Group On/Off buttons
• Group On/Off Radio buttons
• Matrix Send Levels (not available for Qu-16)
• Matrix Send On/Off buttons
• Matrix Send On/Off Radio buttons
• Softkeys

Requirements:

An Allen & Heath Qu-16, Qu-24, Qu-32, Qu-Pac or Qu-SB mixing console running V1.9* version firmware, with a suitable wireless router (wireless access point) connected to its Network port. The Qu mixer firmware and Qu-Control app maintenance version numbers ‘*’ do not need to be identical, for example Qu-Control V1.92 will work with Qu mixer V1.94. Refer to the Allen & Heath web site for more information and to download the latest Qu mixer firmware.
