S98Player for iPhone

Now plays MDX (X68000) and FMP (PC-98) alongside S98 and PMD, each voiced for the machine it came from. The seek bar is now a waveform showing the intro and loop.

S98Player plays the FM synth music of the PC-9801 and X68000 on your iPhone and iPad.

Alongside sound logs (S98), the PMD, FMP and MDX drivers are built into the app, so you can drop the original song files straight in and play them.

Formats

• S98 (Version 1 / 3) — .s98
• PMD — .m / .m2 / .mz / .mp / .ms / .pmd
• FMP — .opi / .ovi / .ozi / .mfm / .mf2 / .m86 / .m26
• MDX — .mdx (put .pdx in the same folder for songs that use ADPCM)

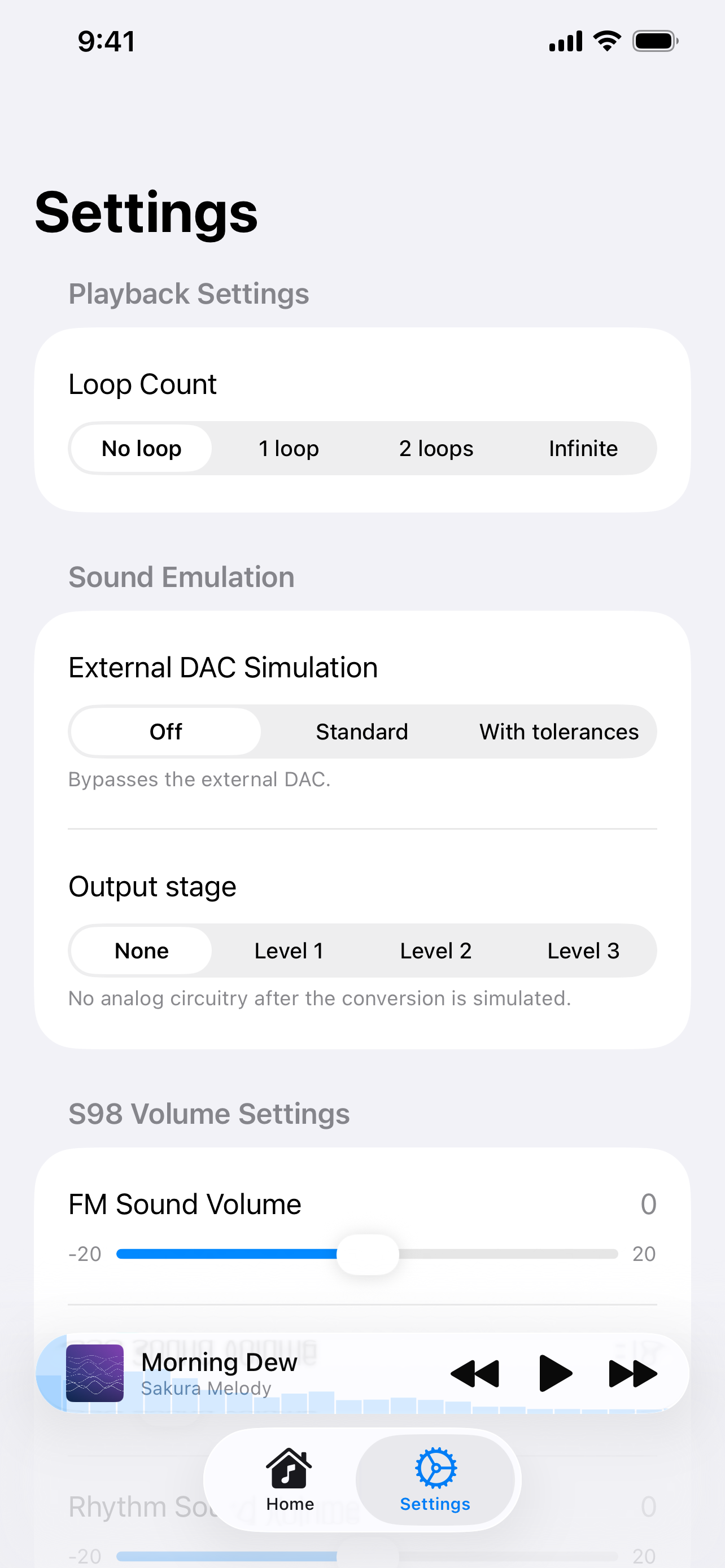

Voiced for the machine The same FM chip sounded different on each computer: the external DAC and the analogue stage after it were not the same. PC-98, PC-88, X68000 and X1turboZ each have their own DAC, output stage, cutoff and per-chip mix. The machine is chosen from the S98 system tag, and can also be set in Settings.plist.

Channel monitor Watch every channel on a piano-style keyboard while the music plays, with level meters, stereo panning, rhythm pads and a spectrum analyser. Tap a row to mute it, long-press to solo, and study each part on its own.

Waveform seek bar The seek bar is a waveform. It draws the intro and one turn of the loop, and shows which time around you are on by how dark it is. Drag it to jump anywhere.

More

• Rotate your iPhone for a two-pane view: keyboard and spectrum analyser
• Song info shows everything the file contains, unmodified
• Album and song details can be edited in the app, album art included
• You are told when a PCM file is missing
• CarPlay support
• Shuffle, and looping over an album

Rhythm samples To hear the OPNA rhythm section you need ym2608_adpcm_rom.bin, or the rhythm files (2608_BD.WAV / 2608_HH.WAV / 2608_RIM.WAV / 2608_SD.WAV / 2608_TOM.WAV / 2608_TOP.WAV). Put them in the S98Player folder under "On My iPhone" in the Files app. Song files go there too, in a folder per album.

Third-party software

• PMDWin Ver. 0.52 Copyright & Programmed by C60
• ymfm Copyright (C) Aaron Giles
• 98Fmplayer (fmdriver) Copyright (c) 2016 Takamichi Horikawa
• portable_mdx (MXDRV) Copyright (C) 2018 Yosshin (MXDRV: milk. / K.MAEKAWA / Missy.M / Yatsube / GORRY / m_puusan)
