Rectangular Beam

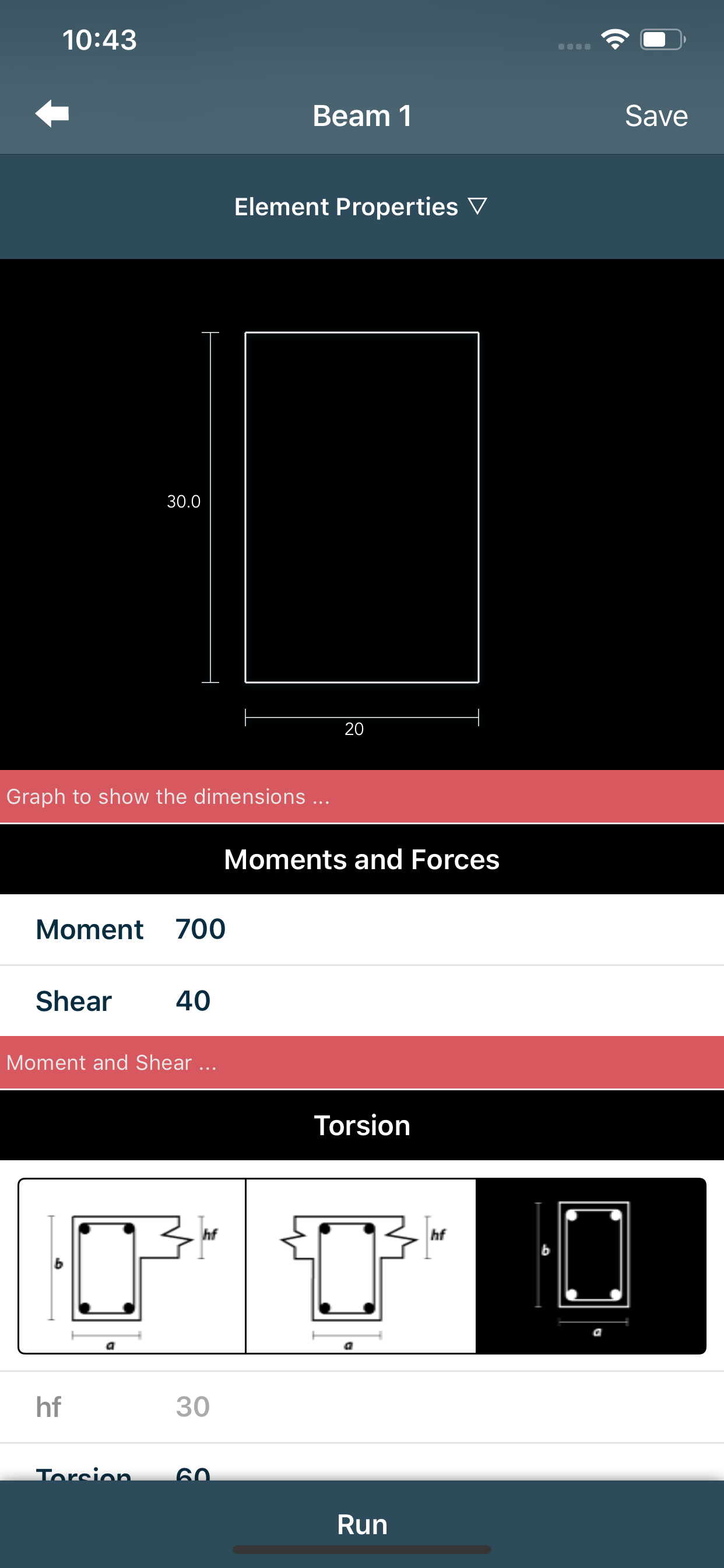

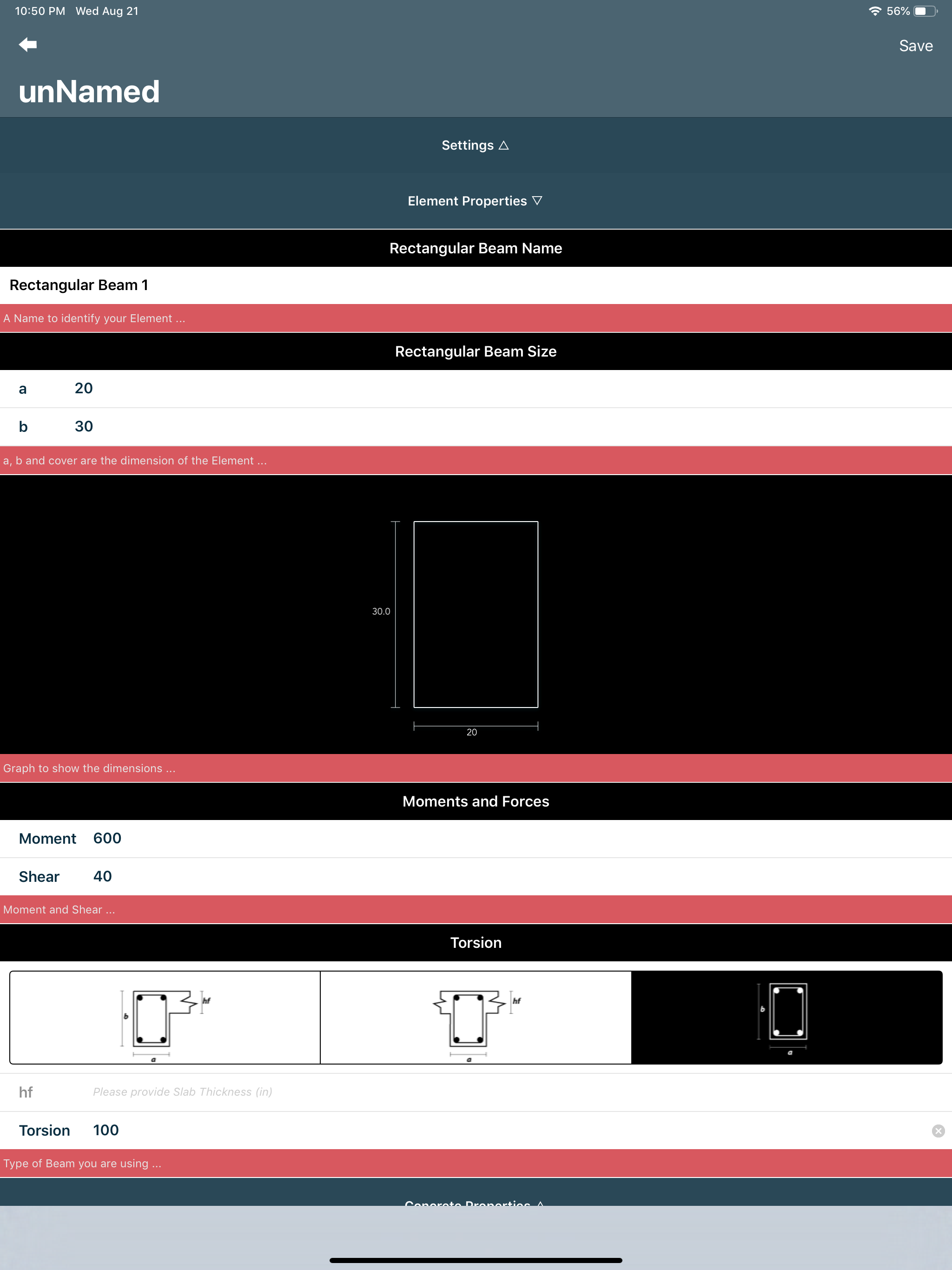

Designing a Reinforced Concrete Rectangular Beam. Applied moment and forces: Bending moment, Shear and Torsion.

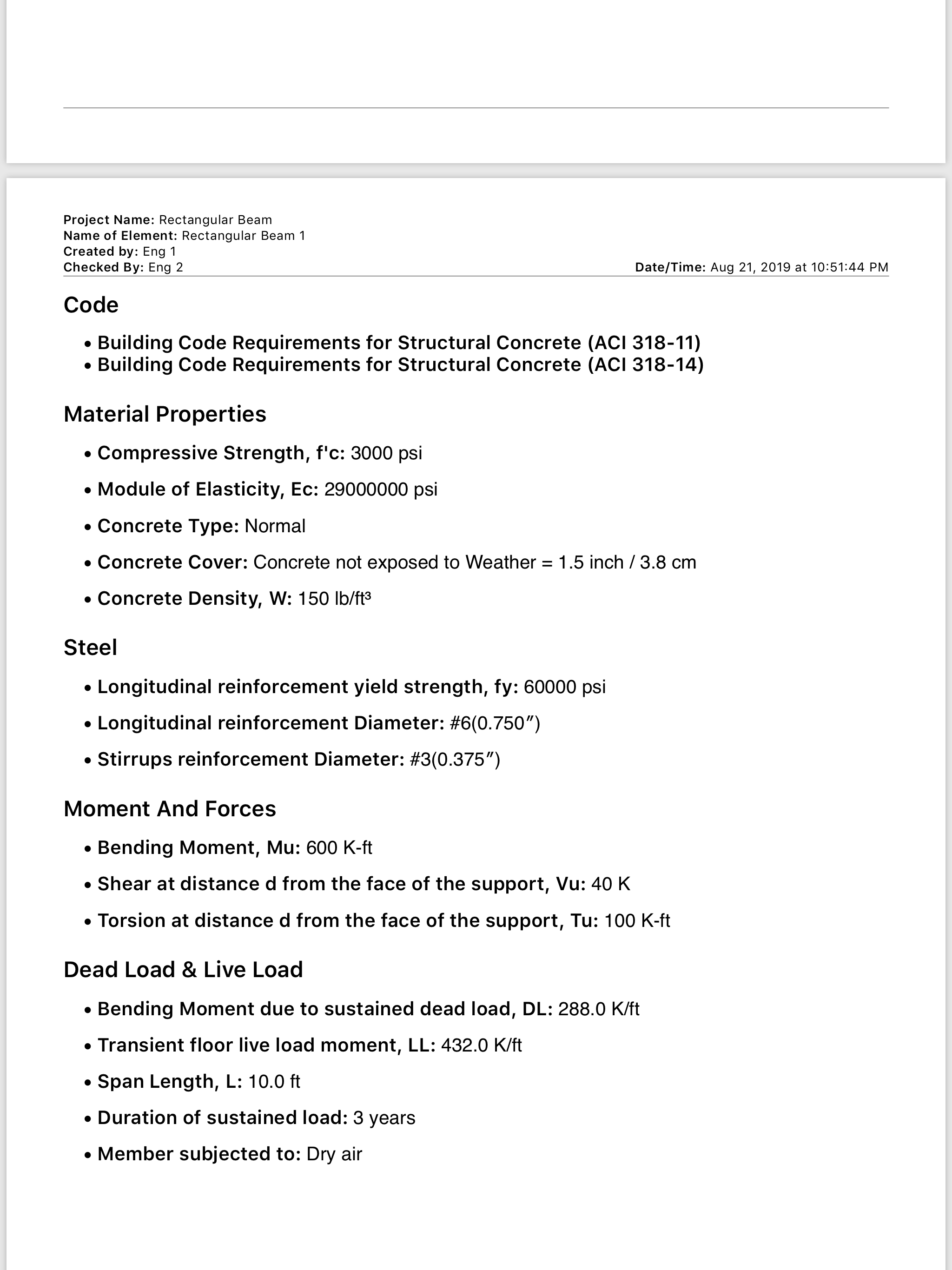

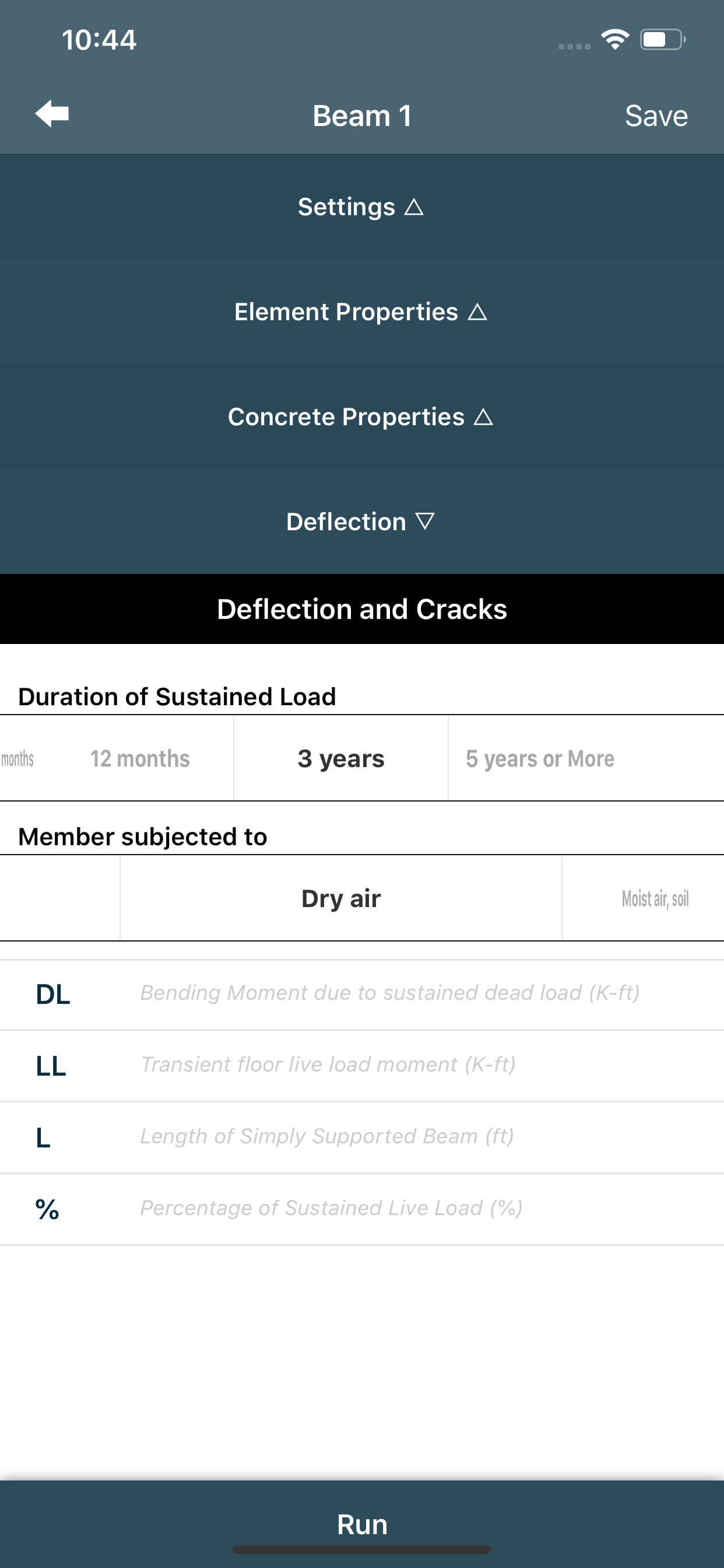

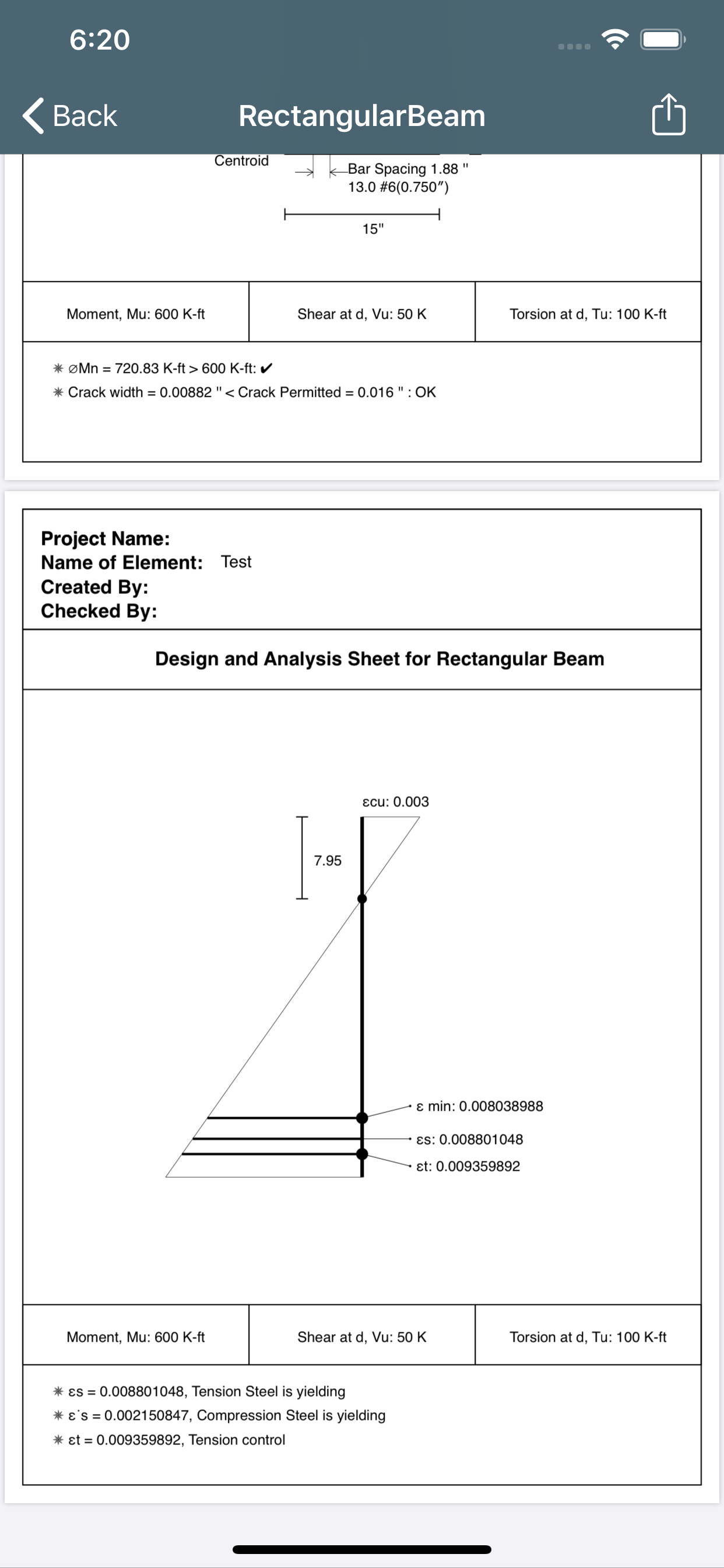

What this application can do: • Provide the required reinforcement in Tension and Compression zone. • Draw a Section of Beam with all required reinforcement. • Check how many layers required in Tension and Compression Zone. • Draw Strain Distribution Diagram and provide ε for each rebars layer. • Get the Crack width. • Get the Deflection. • PDF report.
