TechDraw AI: Technical Drawing

Photograph a product, set one real measurement, and get a dimensioned technical drawing on an ISO or ANSI sheet in seconds. Furniture, garments, parts, sheet metal.

Turn a photo into a technical drawing.

Point your phone at a product, measure it on screen, and TechDraw AI drafts a dimensioned 2D technical drawing on a proper ISO or ANSI sheet: front, top, side and isometric views, a filled in title block, and the callouts your trade actually needs.

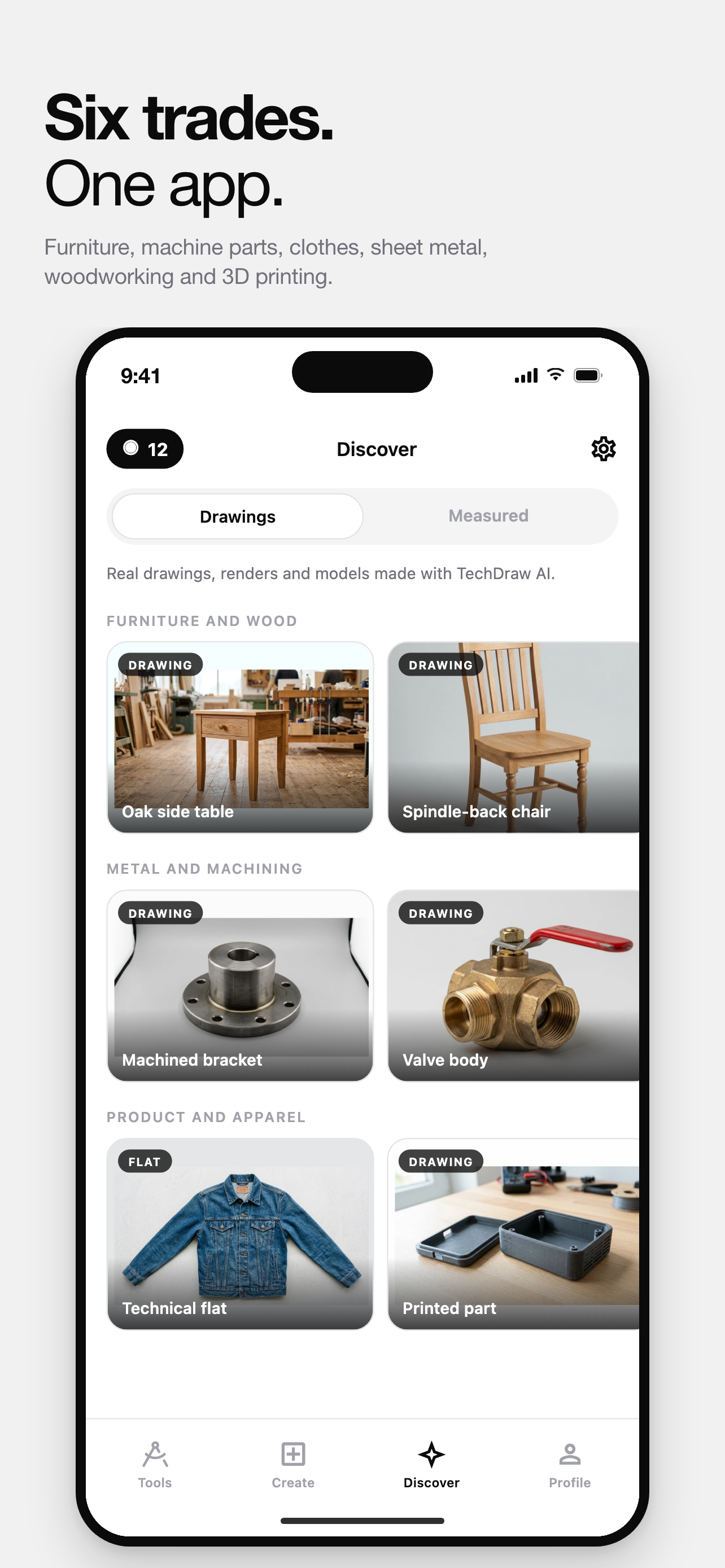

SIX KINDS OF DRAWING, EACH SET UP FOR THE JOB

Furniture. Photograph a table, cabinet or chair and get a shop drawing the bench can build from, with joinery detail at the joints and a parts list.

Clothes and Fashion. Lay the garment flat, shoot it, and get a technical flat ready for a tech pack, with seam lines and callouts at the standard points of measure.

Machine Parts. One caliper measurement anchors the scale, and the drawing comes back with tolerance callouts, hole diameters and surface finish symbols.

Sheet Metal. Brackets, panels and enclosures drawn with material thickness, bend lines, bend direction and a flat pattern showing the developed length.

Woodworking. Shelves, jigs and projects with a cut size for every part, a cut list, and small parts printable at 1:1 as a template.

3D Printing. Dimension a printed part to check it, remake it in CAD, or document the design, with wall thickness and mating clearances called out.

MEASURE ON THE PHOTO

Drag a line across any edge and type its real size. One known dimension sets the scale for the whole drawing, so everything else comes back proportionally correct. The measurements are burned into the image the model sees, and that is what makes the numbers real rather than guessed.

MORE THAN DRAWINGS

Drawing to render. Turn a technical drawing back into a photoreal product image, same geometry, real materials.

EXPORT AND SHARE

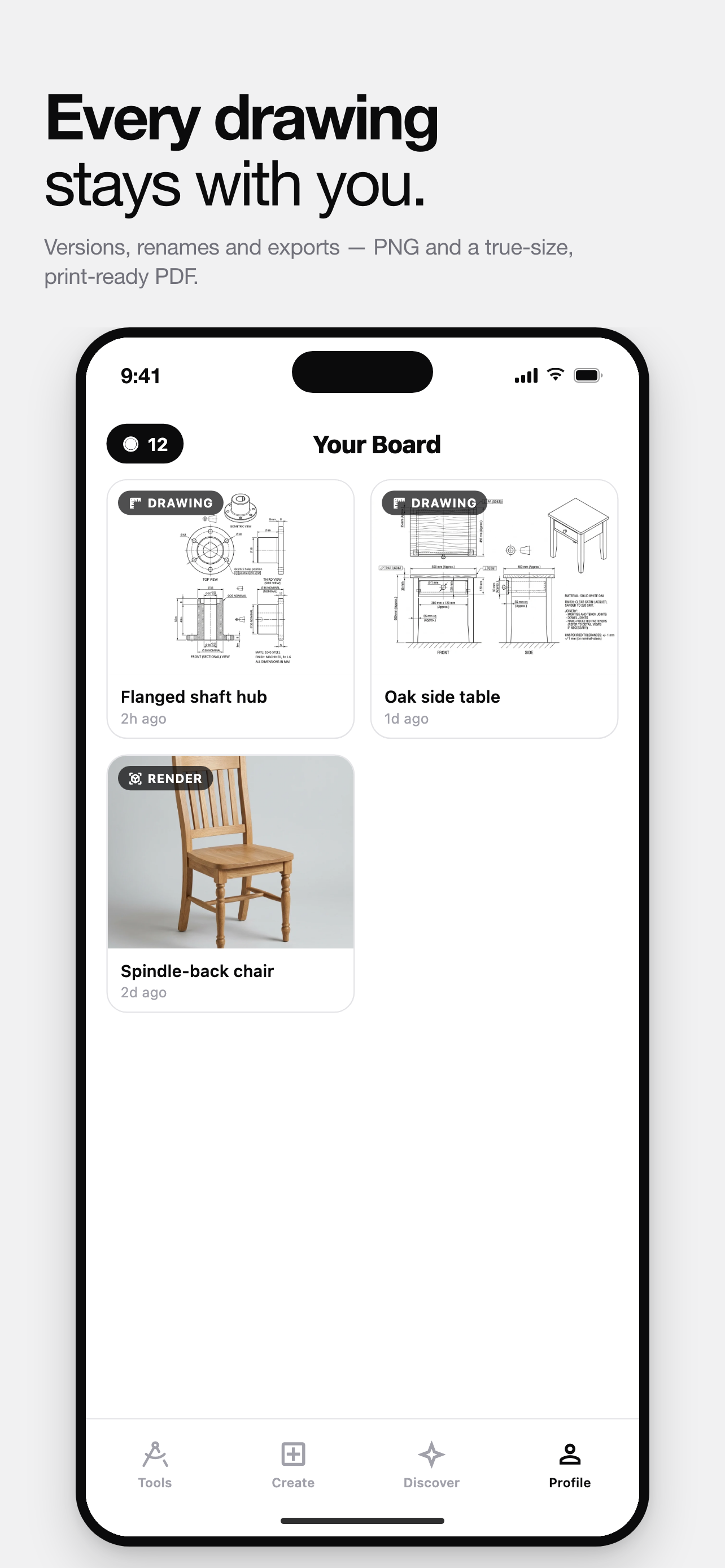

Full resolution PNG and a true size PDF you can print. Save to your photo library or share straight from the app. Need DXF or DWG? Open the same project in the TechDraw AI web workspace.

FIX A WRONG NUMBER WITHOUT STARTING OVER

Tap any dimension text that came back wrong and type the right one. The fix is saved as a new version, and the original stays there if you want it back.

WORKS IN YOUR LANGUAGE

English, German, French, Spanish, Italian, Dutch, Czech and Slovak.

NO ACCOUNT, NO SIGN UP

There is no login. Open the app and make a drawing. Nothing to remember, nothing to verify.

TECHDRAW AI PRO

A weekly allowance of drawings and renders. Sheets without a watermark, full resolution PNG and a PDF you can print at true size, and priority rendering when the queue is busy.
