DrafterPro 2D CAD

Professional 2D CAD on your iPad. Open and edit real DWG/DXF drawings, draft with Apple Pencil, dimension, hatch, and plot to PDF — all offline.

DrafterPro is a professional 2D CAD drafting app built for iPad. Draw with the precision of desktop CAD — exact coordinates, object snaps, and live dimensions — using Apple Pencil or your finger.

Open the drawings you already have: DrafterPro reads and writes AutoCAD DWG and DXF files (through the 2018 format), so your work moves between DrafterPro and the CAD tools you already use. Import PDFs as underlays and trace over them.

DRAW ANYTHING • Lines, polylines, rectangles, circles, arcs, ellipses, polygons and splines • Hatches, gradients, and filled regions • Multi-line text, single-line text, tables, and leaders • Blocks with attributes for reusable, data-rich symbols

PRECISE BY DESIGN • Dynamic input: type an exact length and angle as you draw • Object snaps — endpoint, midpoint, center, intersection, perpendicular, tangent • Ortho and polar tracking, grid and snap spacing • Live helper dimensions that ride the rubber band while you draw • Grip editing: drag endpoints, and move a shared corner on every selected object at once

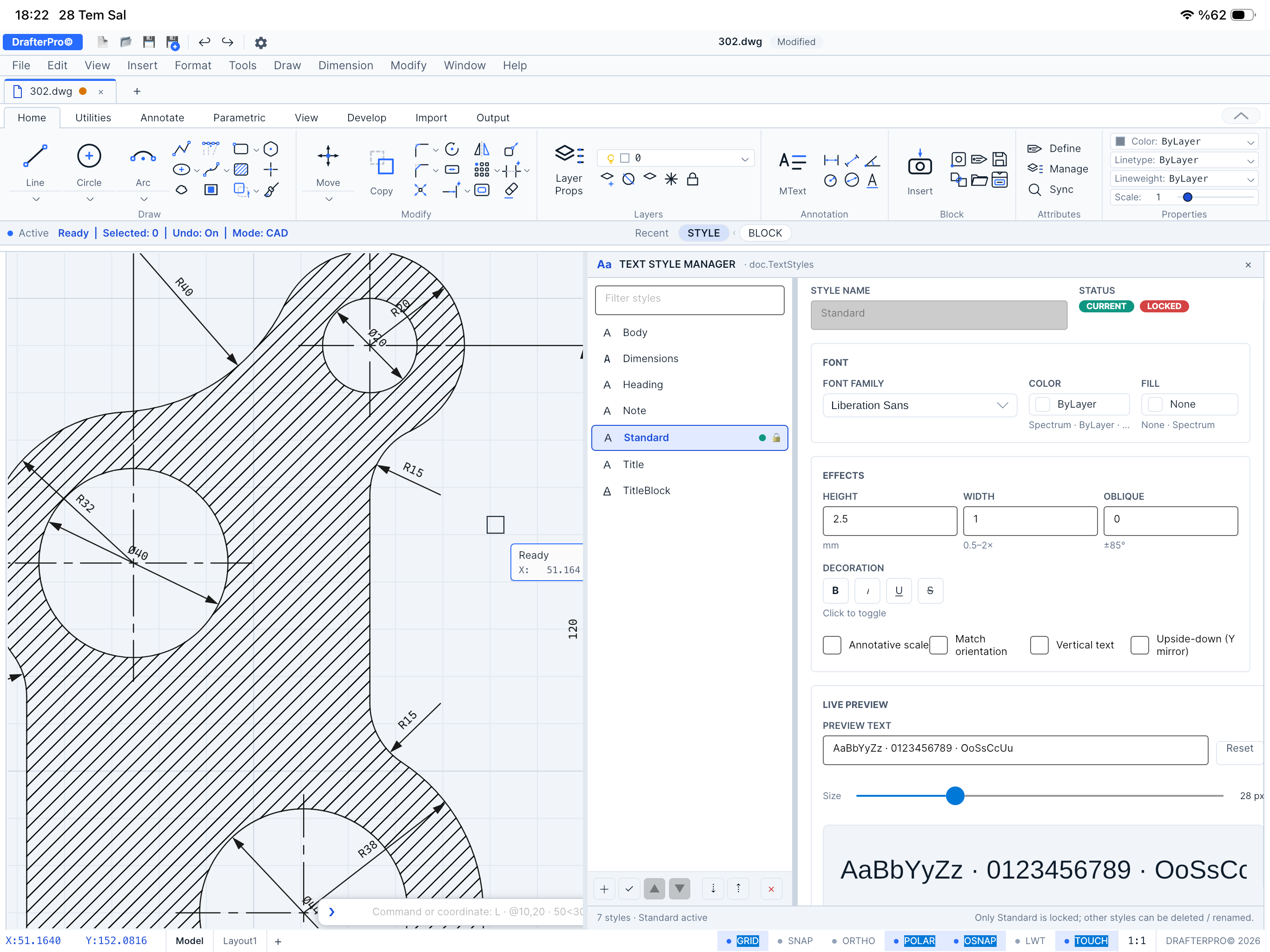

MEASURE & ANNOTATE • Linear, aligned, angular, radial, diameter, arc and ordinate dimensions • Measure distance, angle, and area — pick a closed shape, flood-fill an enclosed region, or outline points; results appear right on the input pad • Fully editable dimension styles, layers, and line types

BUILT FOR iPad • Apple Pencil pressure, hover preview, and Apple Pencil Pro squeeze actions • Palm rejection so your hand can rest on the glass • A large-target touch interface with an on-screen input pad • Split View multitasking — keep a reference open beside your drawing

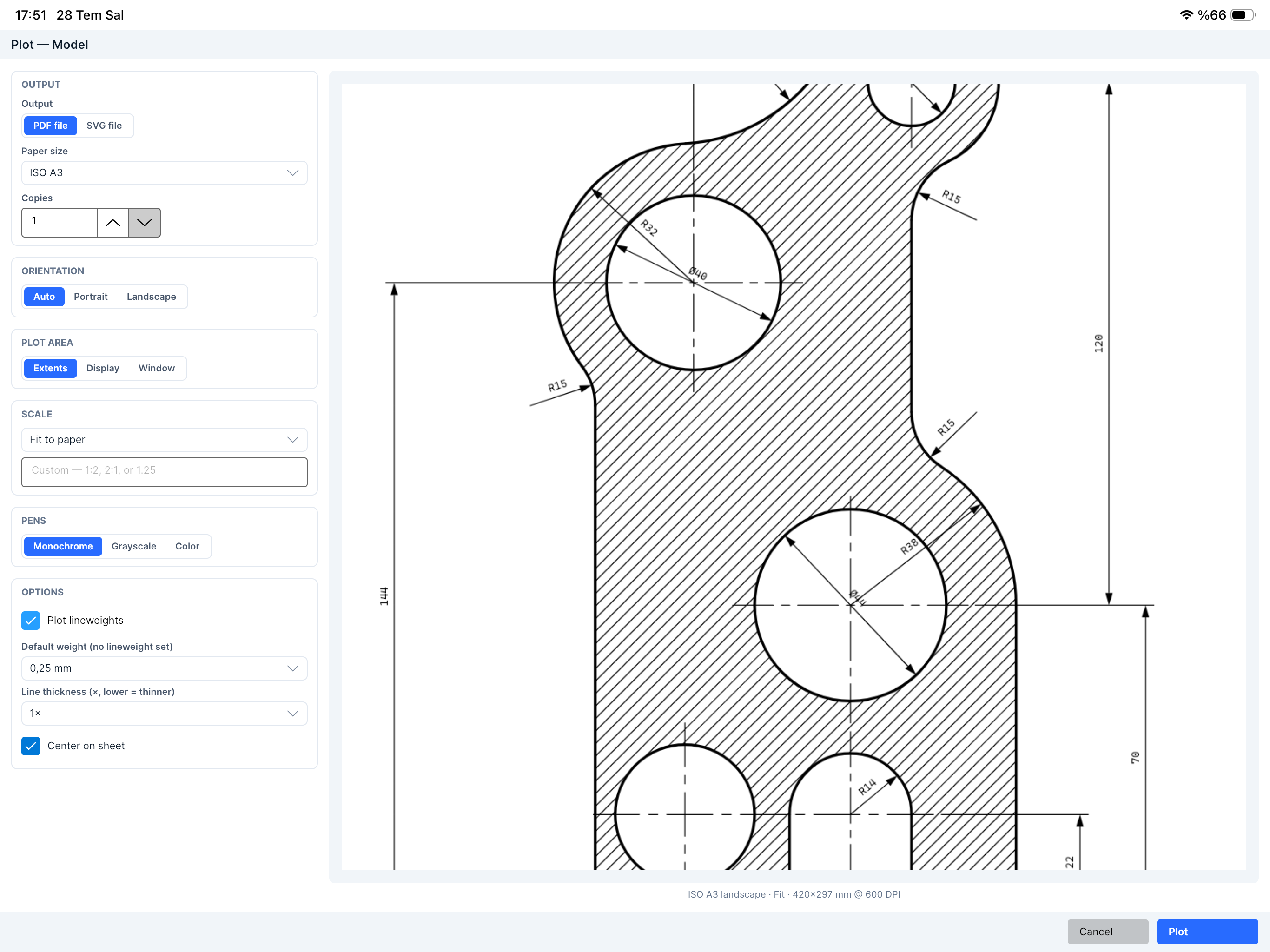

SHARE YOUR WORK • Save to DWG, DXF, SVG, or the native DrafterPro format • Export and plot to PDF

FREE TRIAL & PREMIUM Start with a 14-day free trial — draw and edit with the full toolset. Saving, exporting, and plotting unlock with DrafterPro Premium.

DrafterPro Premium is available as: • Monthly subscription — US$19.99 / month • Yearly subscription — US$199 / year • Perpetual — US$299 one-time purchase (launch price)

Payment is charged to your Apple Account at confirmation of purchase. Subscriptions renew automatically unless auto-renew is turned off at least 24 hours before the end of the current period. Your account is charged for renewal within 24 hours before the end of the current period. Manage or cancel your subscription anytime in your App Store account settings; the one-time Perpetual purchase does not renew.

Privacy Policy: https://drafterpro.com/privacy Terms of Use (EULA): https://www.apple.com/legal/internet-services/itunes/dev/stdeula/ Support: https://drafterpro.com/support
