Bandlattice: RF Planner

Coordinate generic wireless channels, import scan CSV, mark exclusions, inspect 2f₁−f₂ products, and export a venue brief.

Bandlattice is a generic RF coordination workspace for live sound, schools, houses of worship, theaters, small production teams, and technical learners.

Define a frequency window, channel step, spacing floor, and intermod guard; mark local exclusions; import frequency-and-amplitude CSV scan data; and generate candidate channels around stronger scan activity. Every plan is checked for pair spacing, exclusions, and third-order 2f1-f2 products, with conflicts explained in plain language. Name channels by role and group, reserve spares, and export a clear PDF handoff.

KEY FEATURES

• User-defined RF coordination windows
• Generic candidate generation
• Pair-spacing and third-order intermod checks

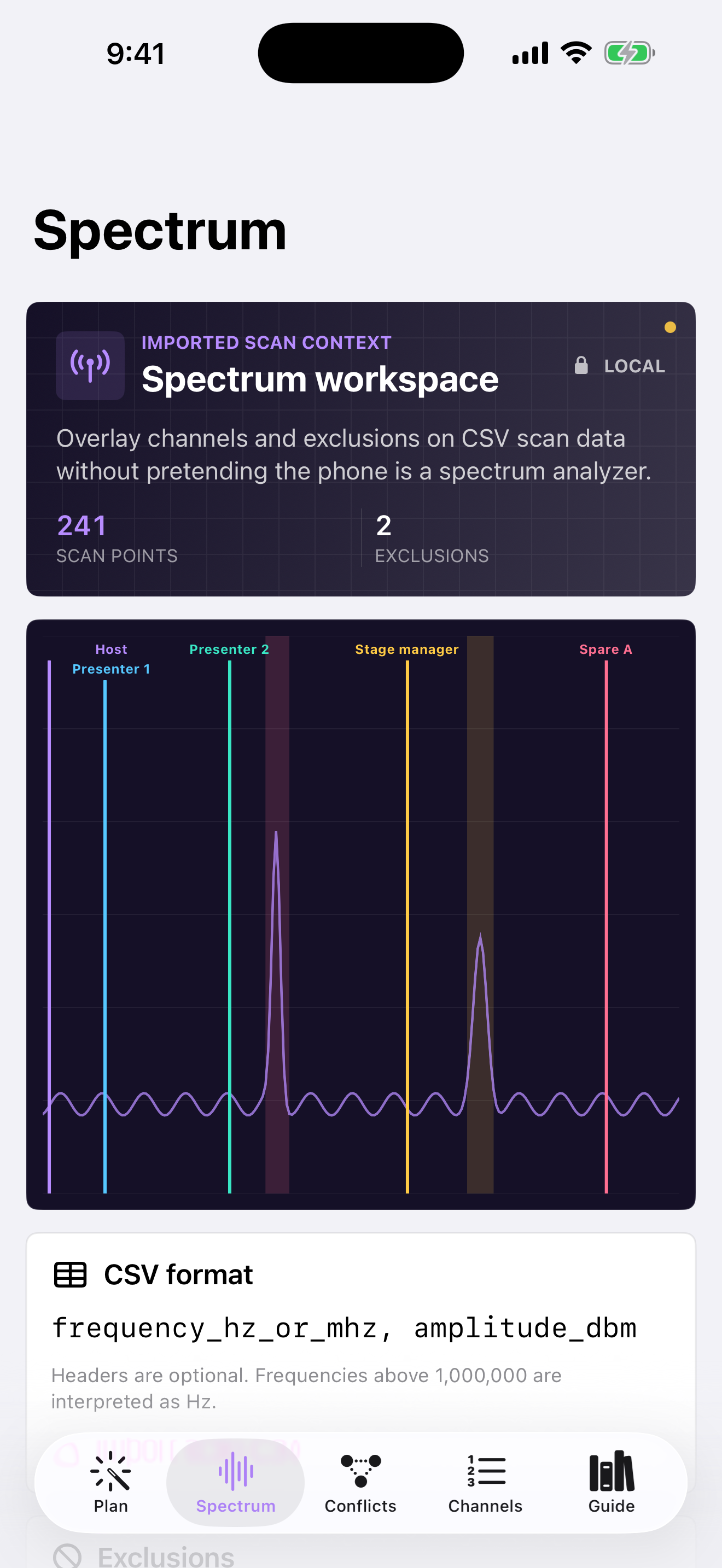

• CSV spectrum scan import and overlay
• Exclusion zones and spare channels
• Explainable conflict matrix
• Channel role, group, and color handoff
• Local PDF coordination brief
• 120 original offline reference plates
• No account, ads, analytics, tracking, IAP, or subscription

Bandlattice is a planning aid, not a spectrum analyzer or regulatory authorization. Confirm legal spectrum access, licensing, local conditions, transmitter behavior, scan quality, and manufacturer guidance before deployment.
