eighty32 Toolbox: RF & Audio

New in 1.1: offline TV-channel lookup for any US ZIP, 800+ speaker & mic specs with compare, saved shows with PDF export, iPad support.

eighty32 Toolbox is the field reference and measurement suite built for AV, RF, and live-production technicians — everything you reach for on a show day, in one fast, offline app. 30+ tools, 800+ gear specs, iPhone and iPad.

RF COORDINATION

• Generate clean, intermod-safe frequency sets for any wireless system, with manufacturer band presets (Shure, Sennheiser, Lectrosonics, Sony, Audio-Technica, Wisycom)

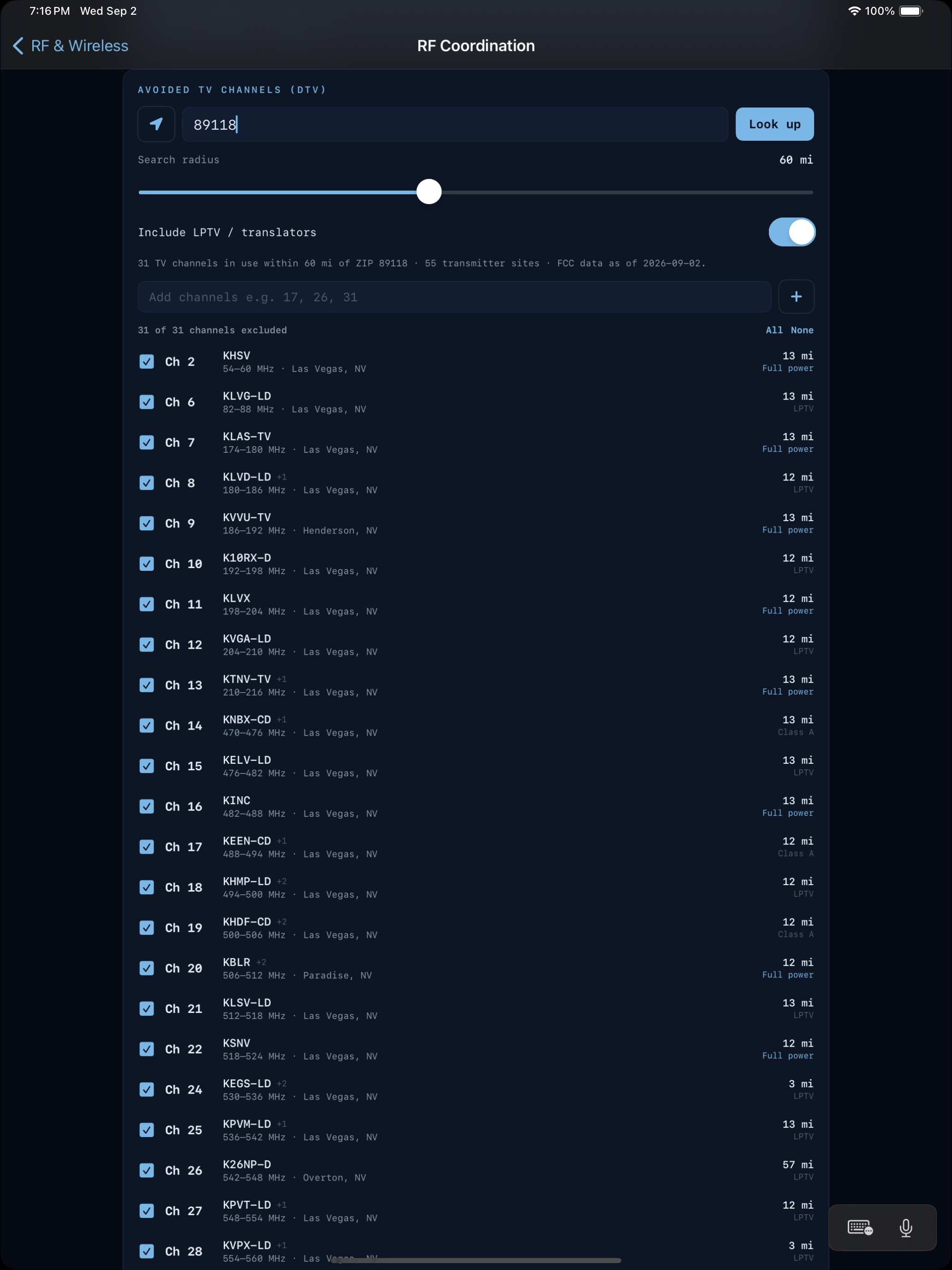

• Offline TV-channel lookup: type a US ZIP code and see every licensed TV station within your radius, sorted by distance, with callsign, city and power class. Built from the FCC licensing database, works with no signal backstage
• Automatic exclusion of channel 37 and the 600 MHz mobile block, warnings for high-power stations just outside your radius
• Scan-CSV import with a threshold slider, and a band map showing TV blocks, scan hits and your generated carriers together
• Save shows: reopen a venue's coordination next time, duplicate it for a second stage, export as PDF, text or CSV
• Intermod & spacing analysis, coax / antenna cable dB-loss calculator, SMPTE LTC generator & reader

GEAR DIRECTORIES

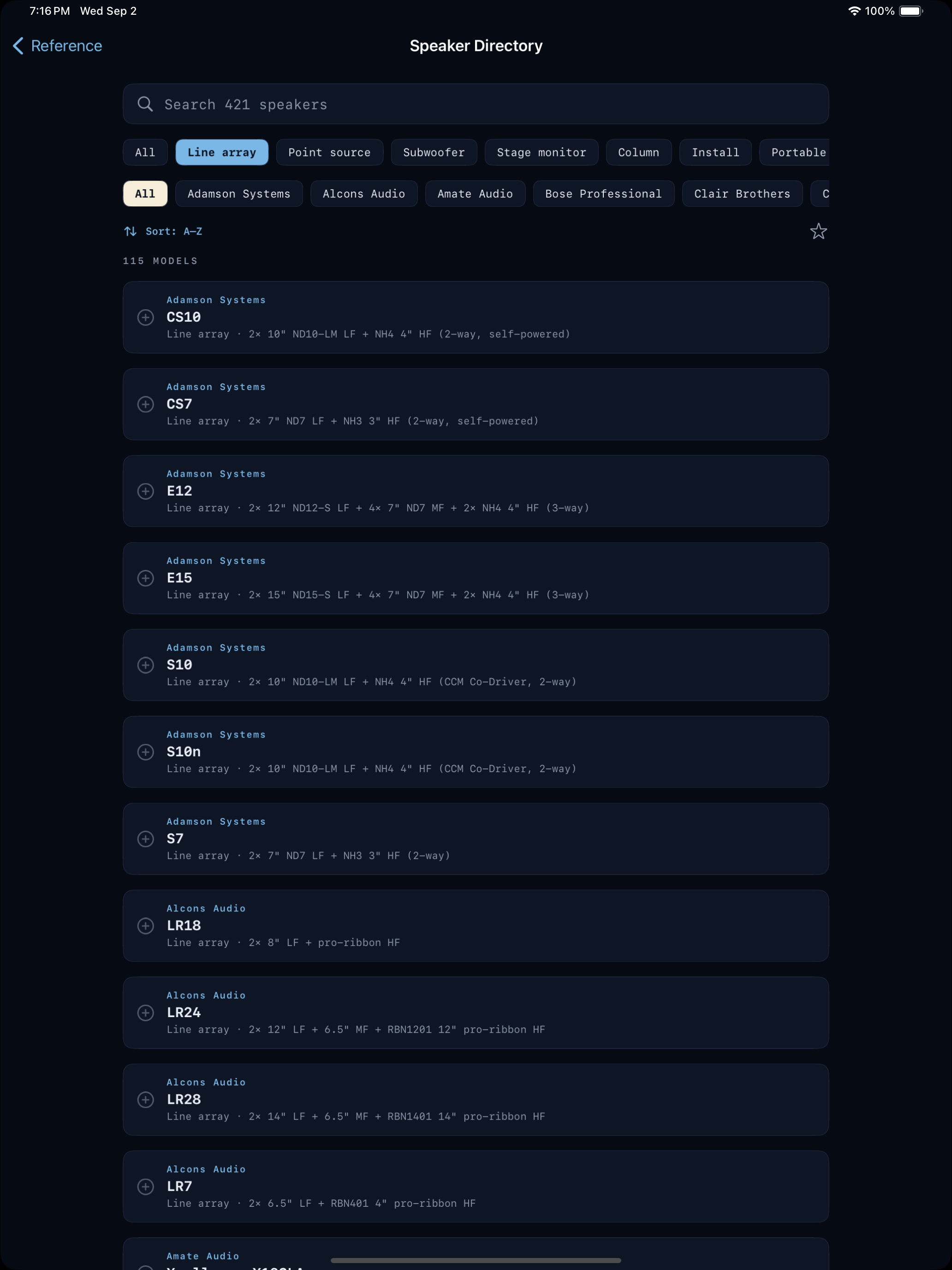

• 420+ loudspeakers and 380+ microphones: max SPL, frequency range, dispersion, weight, power, connectors, rigging, sensitivity, polar pattern
• Filter by type, form factor (handheld, capsule, lav, headset, shotgun), polar pattern and brand. Sort by SPL, low end or weight. Star favorites. Compare up to three side by side
• Capsules, lavs and headsets show which wireless transmitters they fit, one tap into that system's bands and the coordinator
• Wireless bands & blocks, SFP transceiver reference, connector pinouts (XLR, speakON, DMX, DB25 and more), resistor / fiber (TIA-598) / AC mains color codes
• Catalogs update over the air, no App Store update needed

AUDIO METERS & TOOLS (best with a 2-channel interface)

• RTA + dual-FFT transfer function with coherence
• Loudness meter (EBU R128 / LUFS)
• SPL meter, phase/polarity & phase-correlation meters
• Delay finder (reference vs. mic)
• Signal generator (sine/pink/white/sweep)
• Input-level tester and 4-wire com test
• QLab-style playback / cue tab with fades, loop & ducking

CALCULATORS

• Delay time (distance to ms), speaker & sub alignment (end-fire / cardioid)
• dB math: SPL over distance, level summing, V/W, plus a full dB scale converter (dBu/dBV/dBFS, dBA/dBC)
• Ohm's law & speaker loads, power/current draw and breaker sizing
• Timecode & frame-rate math, frequency to wavelength
• OSHA/NIOSH noise-dose exposure timer
• Pick feet/pounds or meters/kilograms and F/C once; every tool follows

Pin your go-to tools to the top of the home screen and search tools and gear from one box.

eighty32 Toolbox is free to use. A one-time Pro unlock adds RF coordination, the audio meters, and the full directories. No subscription, yours forever.

Built by working RF coordinators and A2s at eighty32 Show Tech, Las Vegas.
