Cirquanta: Circuit Simulator

Build, wire, and simulate digital circuits wherever you are. Take on 30 guided challenges, explore 60+ components, and see 0/1/X/Z signals live — offline.

Make digital logic visible.

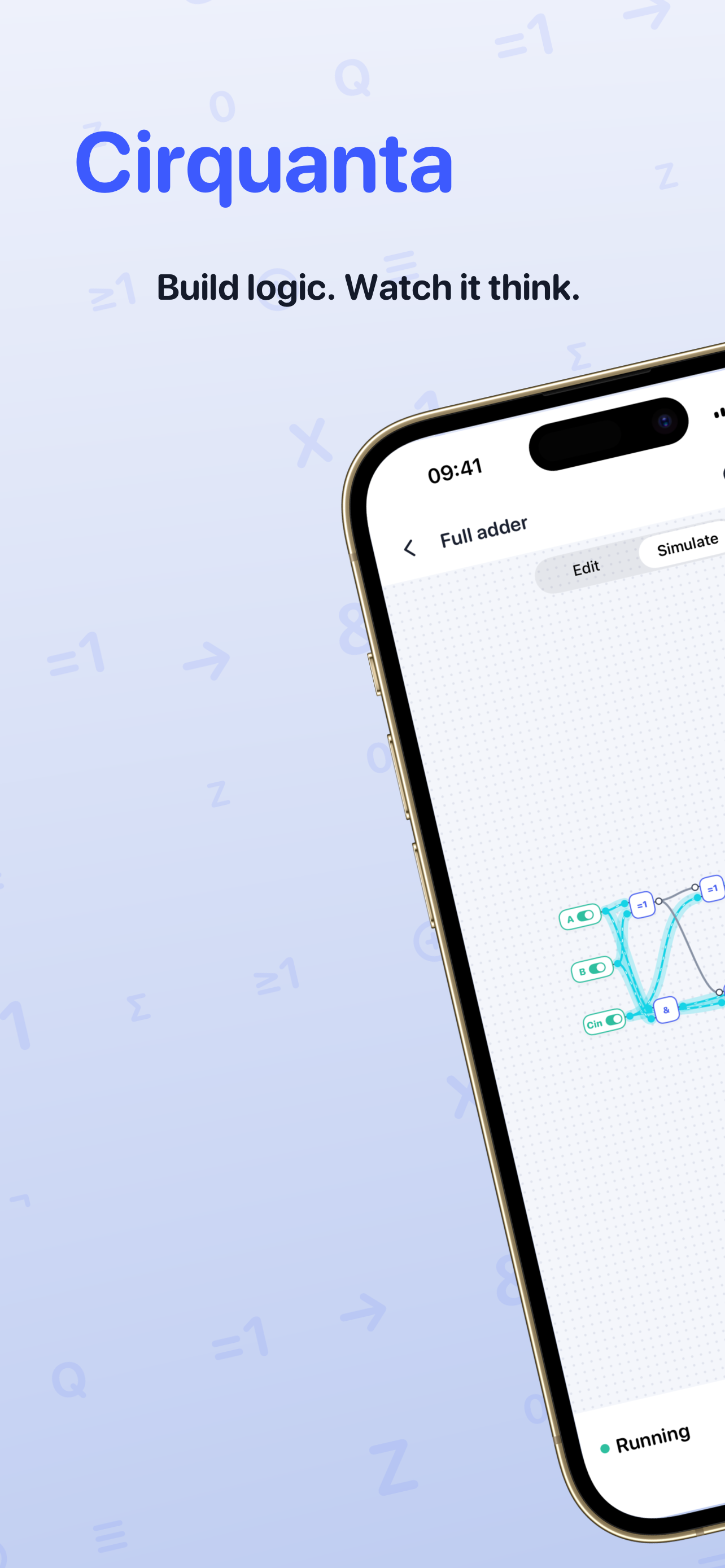

Cirquanta is a native circuit simulator for iPhone and iPad. Build clear schematics, connect components directly on the canvas, and watch every logical signal react in real time. Whether you are learning Boolean logic, teaching digital electronics, or sketching a design before HDL or firmware, Cirquanta gives you a focused workspace that works offline.

DESIGN ON THE CANVAS • Choose and place 60+ components from an organized library • Move, wire, rotate, duplicate, and configure elements with undo and redo • Select several parts at once, then move or duplicate the whole sub-circuit — wiring included • Organize larger designs with buses, zones, sticky notes, zoom, full screen, and curved or right-angle wires

SIMULATE IN REAL TIME • Toggle switches and inputs directly on your circuit • Run, pause, advance step by step, or reset the simulation • Follow color-coded signals with deterministic four-state logic: 0, 1, unknown X, and high-impedance Z

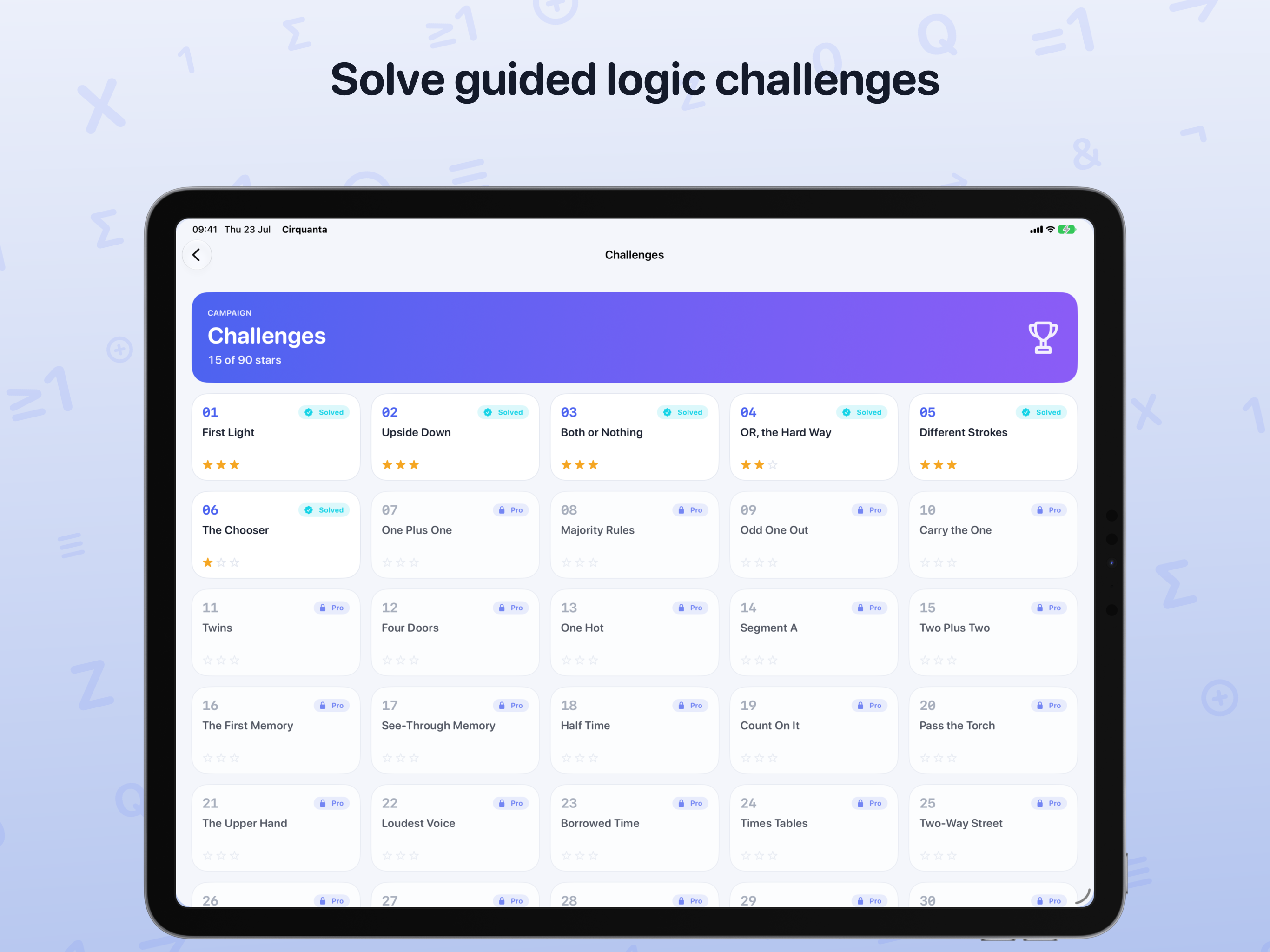

LEARN WITH CHALLENGES • Work through a 30-level campaign, from a single wire to a state machine • Follow a clear objective, with optional hints and step-by-step guidance • Earn up to three stars per challenge, graded on correctness and efficiency • Play the first six challenges free; unlock the whole campaign with Pro

GO FROM GATES TO SEQUENTIAL LOGIC Start with AND, OR, NOT, NAND, NOR, XOR, and XNOR gates. Then explore multiplexers, demultiplexers, decoders, encoders, adders, latches, D/JK/T flip-flops, registers, counters, buses, clocks, LEDs, probes, and displays.

PRIVATE BY DESIGN • No account and no sign-up — just open the app and start building • Works fully offline; your circuits are saved locally on the device • No ads, and your data is never sold; your designs stay yours • Optional private iCloud sync between your own devices with the same Apple Account (iCloud is never required)

KEEP CONTROL OF YOUR PROJECTS • Start from a blank canvas or a built-in example • Search, sort, favorite, and archive your circuits • Export a portable backup to save or share your work

Free to start with room for 3 circuits and up to 24 components each, plus six free challenges — unlock Cirquanta Pro once for unlimited circuits and components and the full challenge campaign, with no subscription.

Cirquanta is made for students, teachers, makers, and developers who want to understand or prototype digital systems. It simulates digital logic only; it is not an analog or SPICE simulator.
