PipeFit Tool Pro

Professional pipe fitting calculator for pipefitters. Offset, saddle, flange, and cut list tools — all offline.

PipeFit Tool Pro is a professional-grade pipe fitting calculator designed for pipefitters, welders, plumbers, and HVAC technicians working on commercial and industrial job sites.

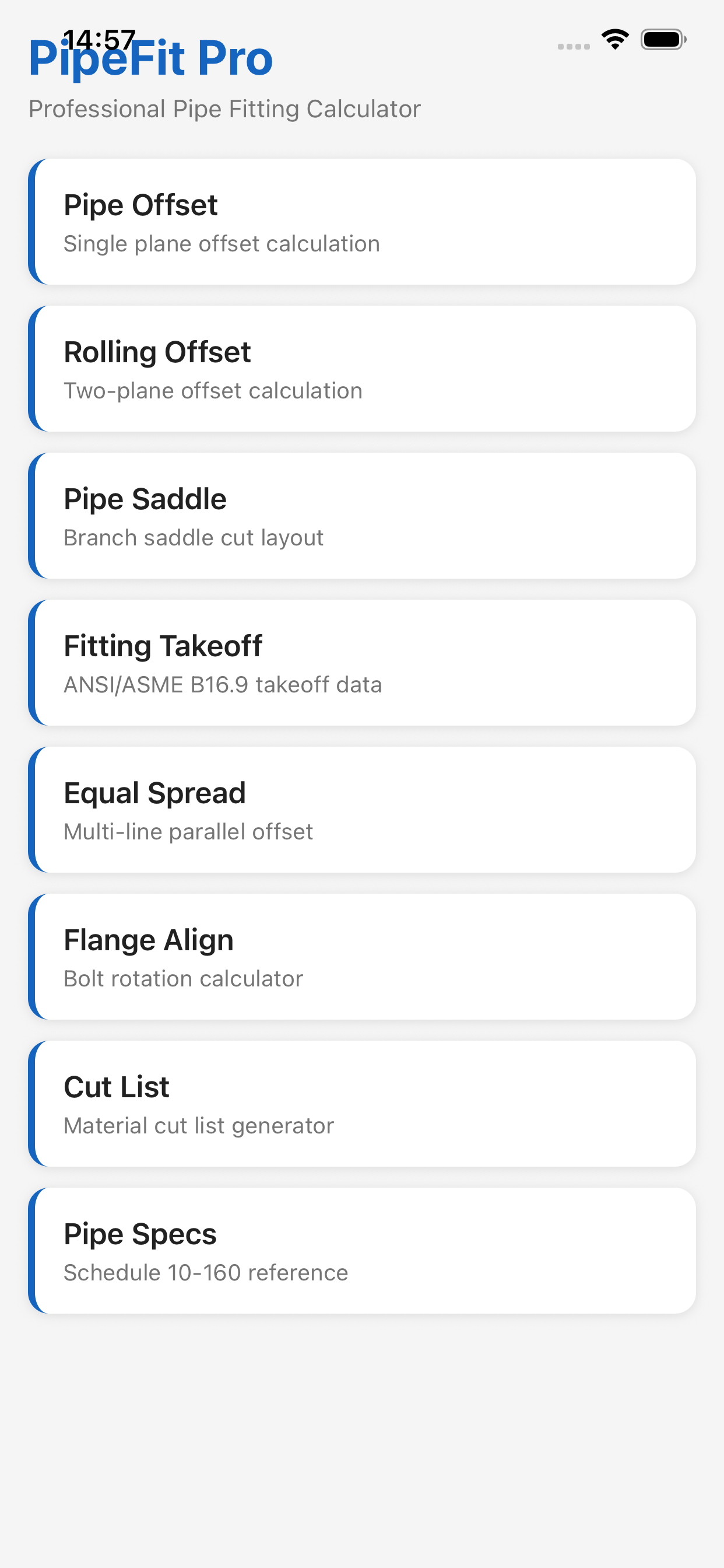

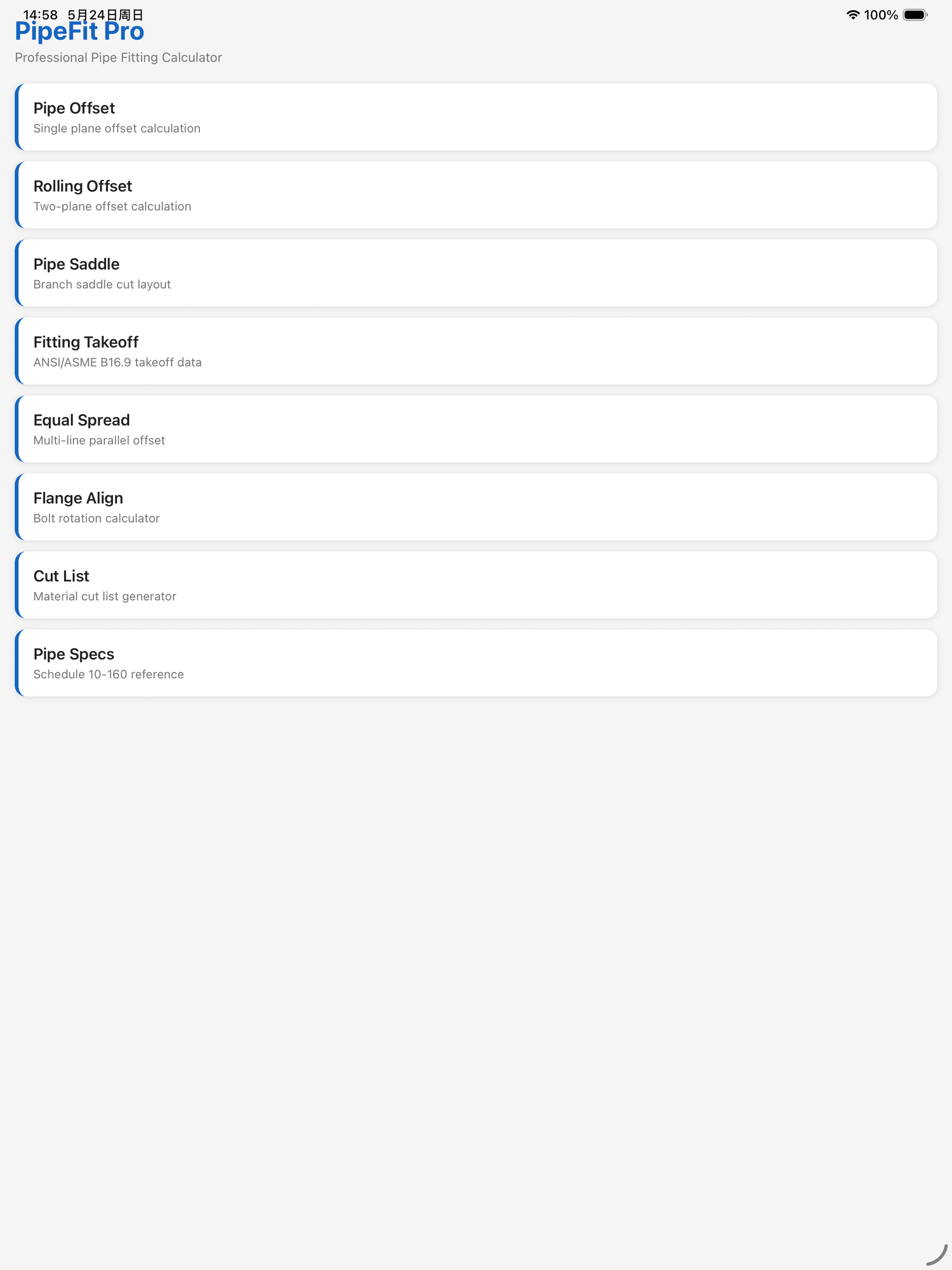

CORE TOOLS:

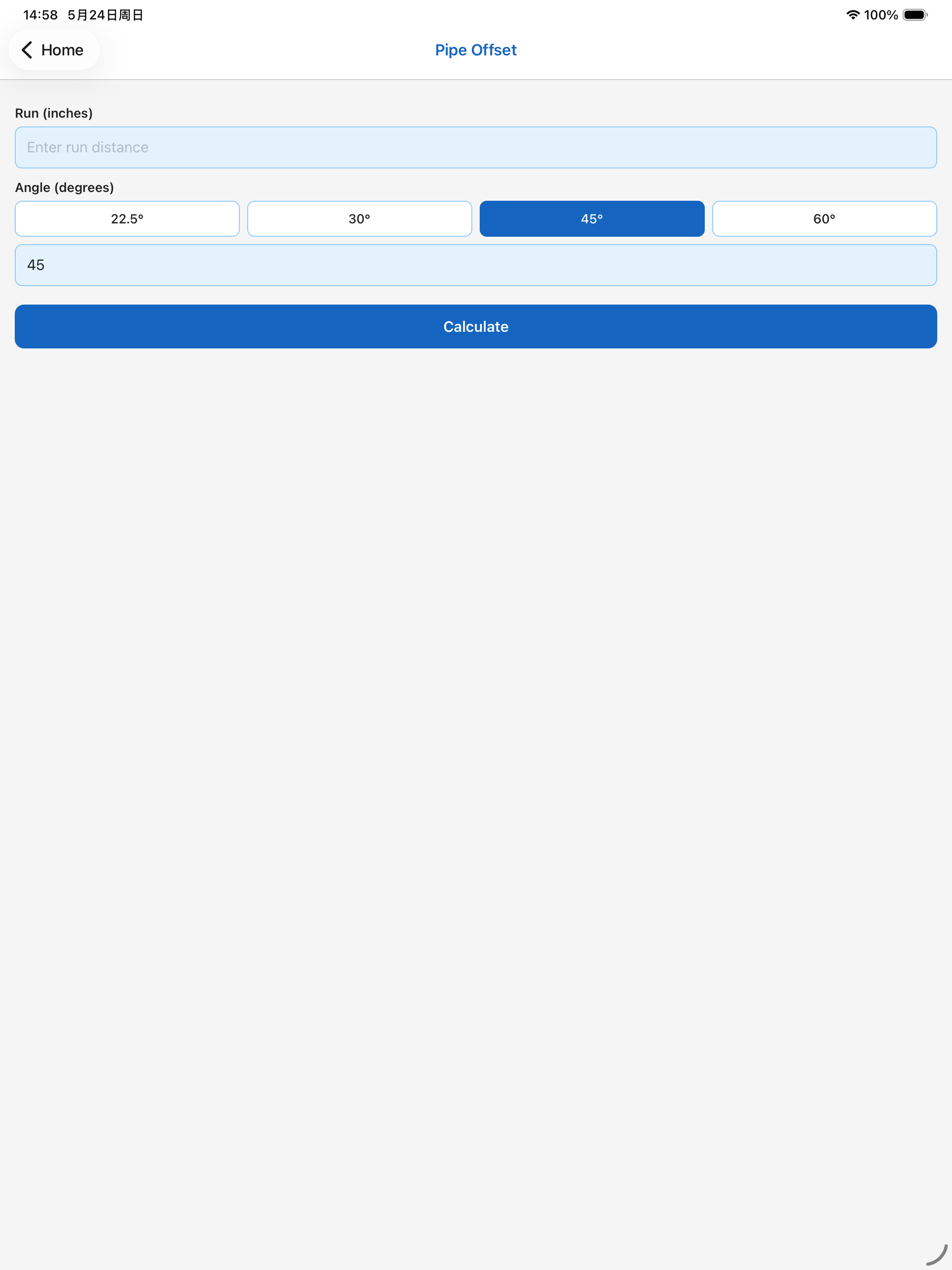

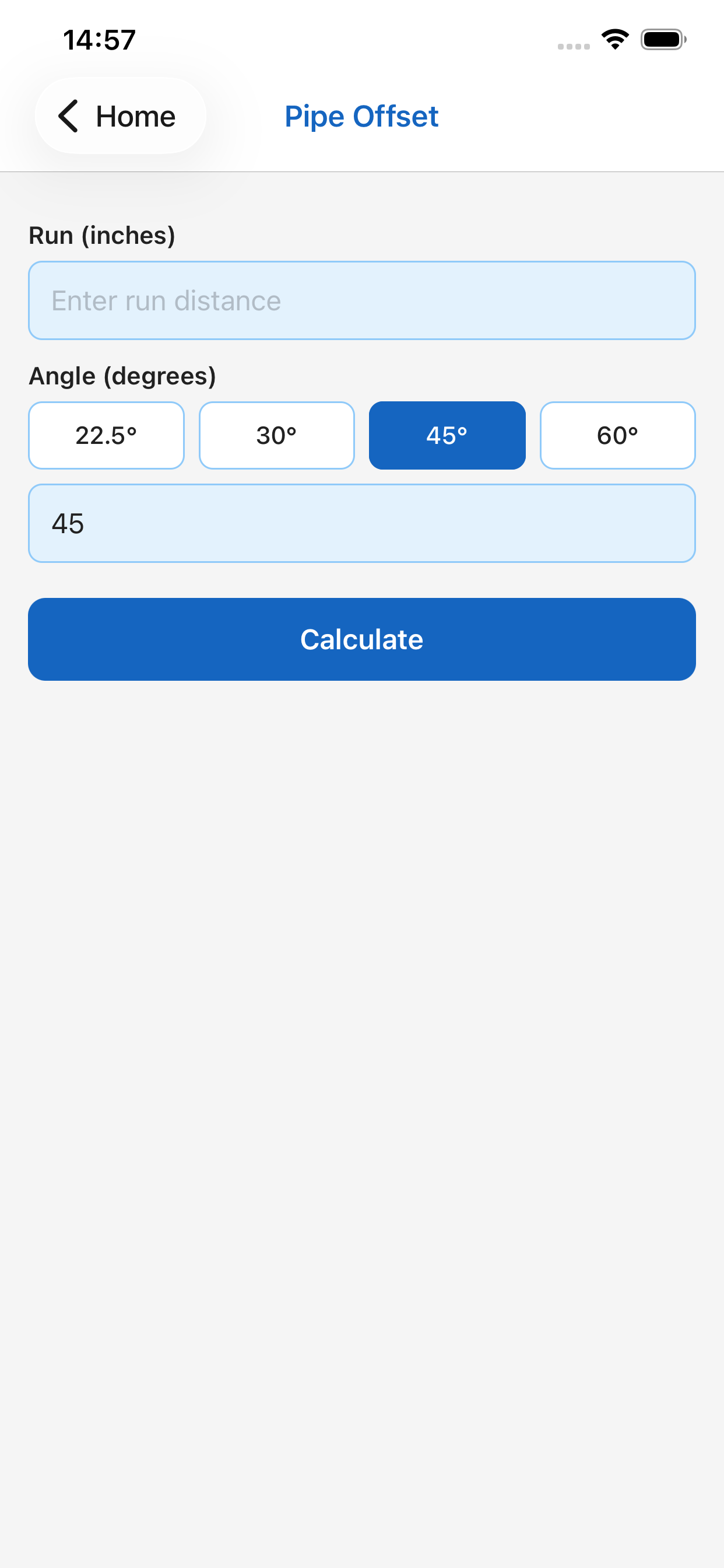

• Pipe Offset Calculator — Calculate single-plane offsets with travel, set, and cut length for any angle (22.5°, 30°, 45°, 60°, or custom angles)

• Rolling Offset Calculator — Compute two-plane offsets with true offset distance, travel, and run measurements

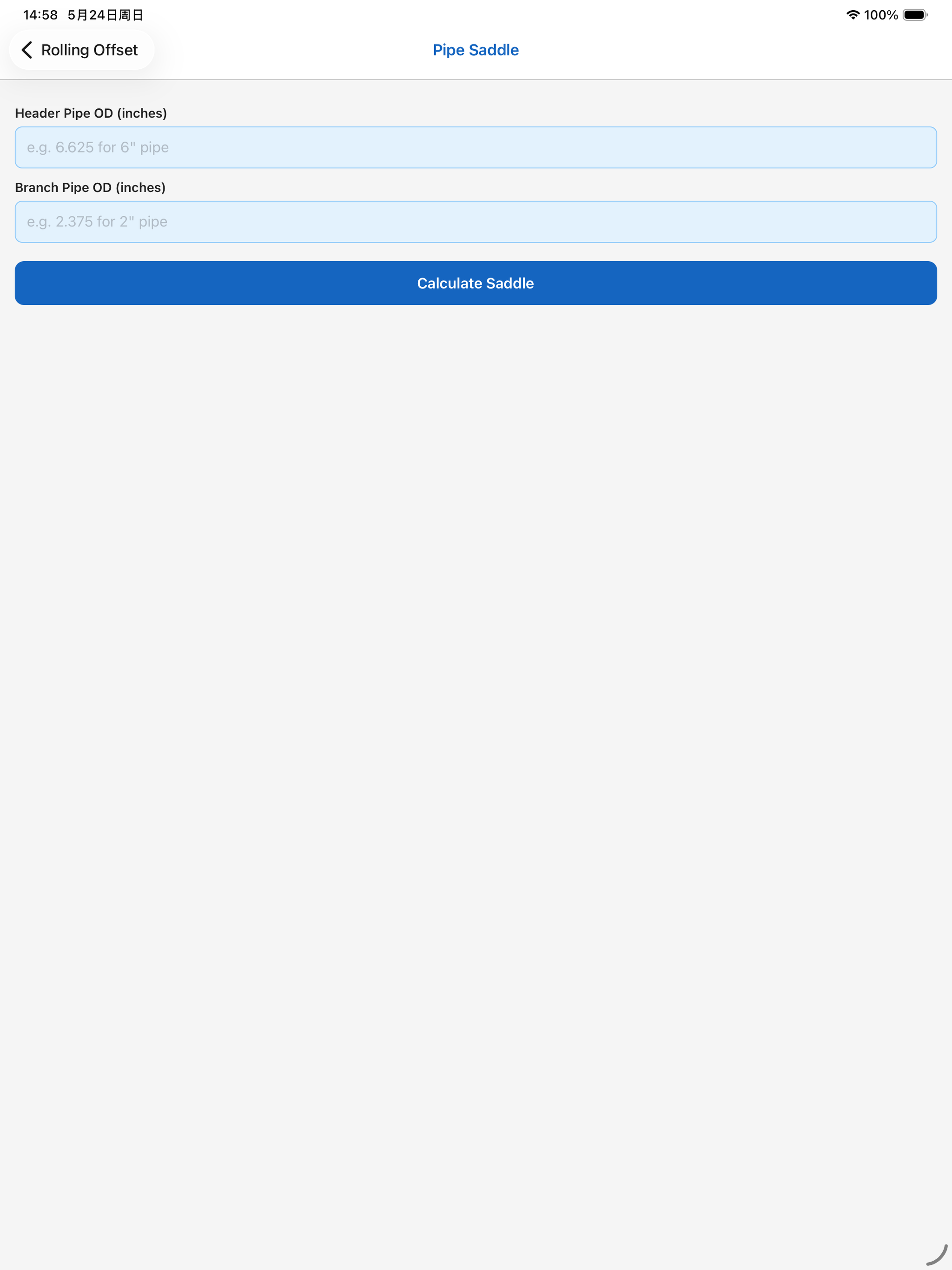

• Pipe Saddle Calculator — Generate branch saddle cut layouts with marking points for header-to-branch connections

• Fitting Takeoff Table — Instant reference for ANSI/ASME B16.9 takeoff data including LR/SR 90° elbows, 45° elbows, and tee dimensions for sizes 1/2" through 12"

• Equal Spread Offset — Multi-line parallel offset calculator with per-line travel lengths for pipe rack installations

• Flange Alignment — Bolt rotation calculator for precise flange-to-flange alignment with arc length and turns required

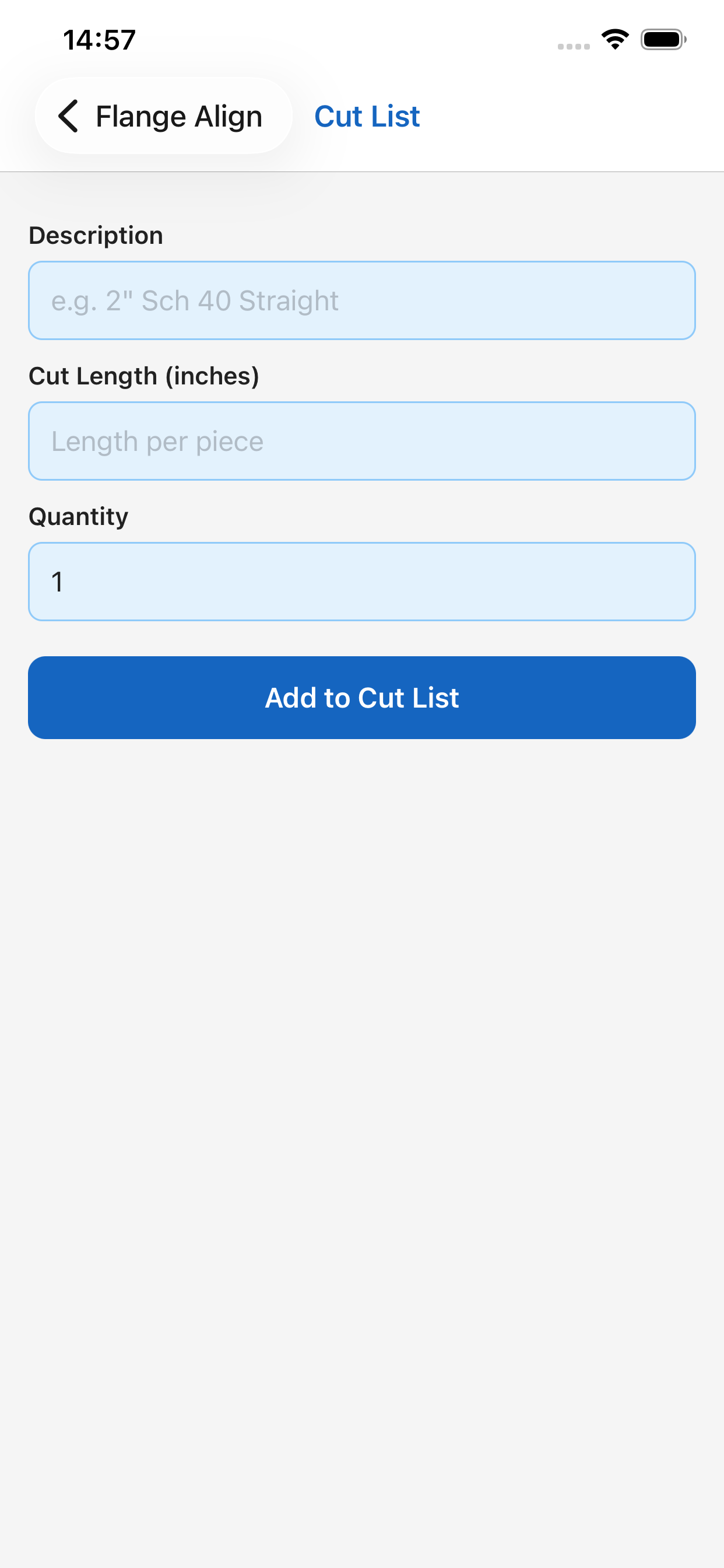

• Material Cut List — Build and manage on-site cut lists with description, length, quantity, and automatic totals

• Pipe Specs Reference — Full ASME B36.10M pipe schedule data (Schedule 40, 80, 160) including OD, wall thickness, ID, and weight per foot

DESIGNED FOR THE FIELD:

• Works 100% offline — no internet connection required • No accounts, subscriptions, or sign-ups • Professional blue-collar color scheme for outdoor visibility • Built by tradespeople, for tradespeople

Whether you are running pipe on a power plant, refinery, or commercial build-out, PipeFit Tool Pro gives you the calculations you need without reaching for a reference book. All formulas follow industry-standard pipe fitting practices used in UA pipefitter apprenticeship programs.

Supports both US customary (inches) measurements as used in North American pipe fitting trades.
