Pipefitter's Mate: Pipe Offset

Professional pipe offset calculator with multi-stick cut lists and weld gap deduction. Built for the field. Works offline. No data collection.

Pipefitter's Mate — seven pipe layout calculators for the field. Offline. No ads. No accounts.

Enter the dimensions and the numbers are already there. Cut list, ordinates and spool weight update as you type, and every result shows the method behind it, so you can check it before you cut.

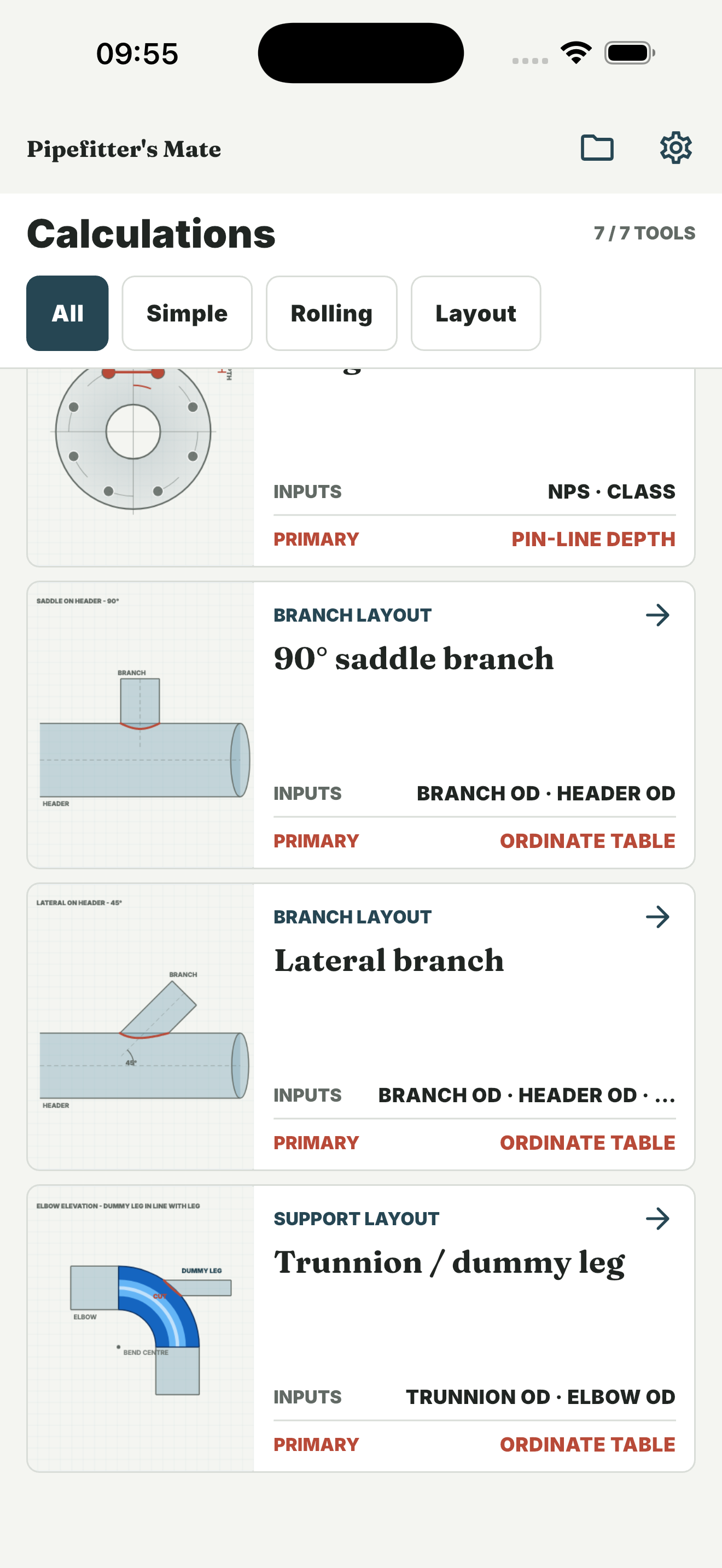

THE SEVEN TOOLS

Simple offset RUN and OFFSET in. TRAVEL, PIPE CUT, SETBACK, CUT ANGLE, INSIDE ARC and OUTSIDE ARC out.

Rolling (compound) offset Set and roll across two planes. True offset, travel and pipe cut, with the derivation shown.

Lateral branch Fishmouth ordinates for a branch meeting a header at any angle from 30 to 90 degrees.

Saddle branch Ordinates for a square 90 degree branch. The lateral tool reproduces this exactly at 90.

Trunnion / dummy leg Ordinates for a support landing on the back of an elbow, checked against published cutback data.

Equal-spread offsets Stagger a bank of two to four parallel lines so the spacing stays even through the offset.

Flange two-holing Bolt hole layout straddling the centreline, to ASME B16.5.

ELBOW ANGLES

Presets for 45, 22.5, 11.25, 30 and 60 degrees plus custom, with the run derived for you.

PIPE DATA, BUILT IN

NPS 1/2" through 40". Schedules STD, XS, XXS, SCH 40 and SCH 80. Long and short radius elbows. Wall thickness to ASME B36.10M, elbow geometry to B16.9, flanges to B16.5. Where a schedule is not standard for a given size, the app says so rather than guessing.

CUT LIST AND WELD GAP

When the pipe cut exceeds stock length, the app works out the sticks and generates a cut list, deducting your root gap per joint across elbow welds and field welds. Set stock length to match your region: 6 m, 20 ft, 24 ft, 40 ft or custom.

SPOOL WEIGHT

Pipe, both elbows and the weld beads, totalled — so you know what you are lifting before it is on the strop.

DRAWINGS

A CAD-style diagram for every tool, with dimension callouts and weld markers. Pinch to zoom and pan. Legible in light and dark.

TRADE INDEX

A built-in reference covering fabrication, geometry, measurement and pipe sizing terms.

ALSO

Save and load named spools. Switch between millimetres and inches with one tap. Screen-stays-on mode for when your hands are full. Bigger type and glove-sized targets throughout.

PRIVATE BY DESIGN

Calculations work without a network connection and stay on your device. Network access is used only to check the App Store for a newer version. No accounts, no data collection, no ads, no tracking.

Pipefitter's Mate is a tool to assist. Always verify against project specifications before fabrication.
