AntWave: Antenna & Microwave

AntWave is a professional mobile computing suite developed by a senior phased-array antenna engineer. It is specifically designed to provide convenient, in-depth, and high-efficiency analysis for antenna design/measurement, microwave system analysis, and RF engineering.

AntWave transforms complex electromagnetic theories into intuitive engineering results. All algorithms are based on International System of Units (SI) and high-precision physical constants to ensure results meet professional design standards. With 23 core modules, the app covers the entire workflow from fundamental physics to high-level system link analysis, including standard rectangular waveguide data and interactive charts for sky noise and atmospheric/rain attenuation. Complex link calculation results can be saved and shared as linear data tables or images.

[Core Functional Modules]

I. General Foundations

1. Reflection (Conversions: Refl. Coeff, Return Loss, VSWR)
2. Axial Ratio (Polarization analysis) ○ 2.1 Conversion (dB, linear, and XPD) ○ 2.2 Phase/Amp Deviation (Calculation from imbalance) ○ 2.3 Polarization Mismatch (Loss factor calculation)
3. Far-Field Distance (Minimum test distance)
4. Space Attenuation (Free Space Path Loss)
5. Doppler Shift (Frequency offset for relative motion)
6. Z Y S11 Conversion (Impedance, Admittance, and S11)

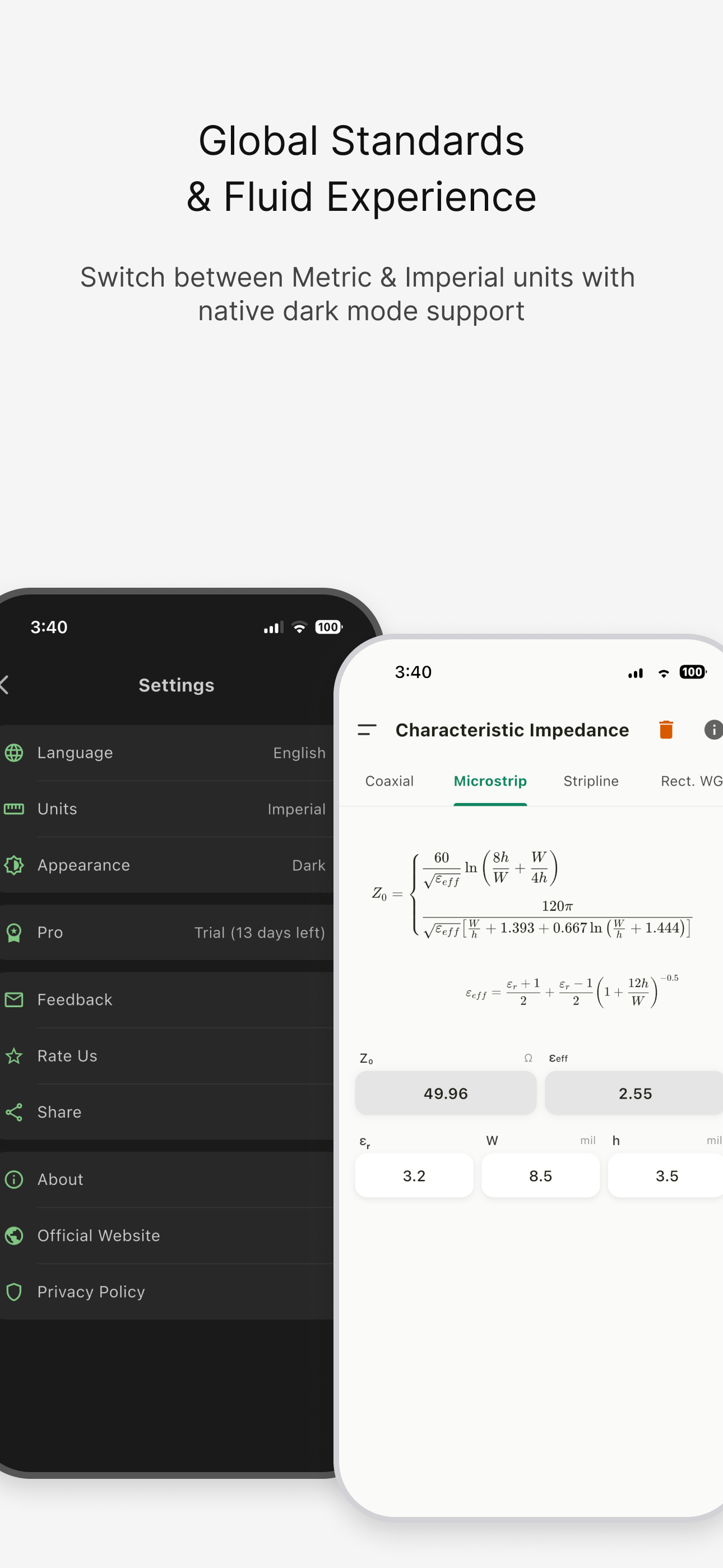

II. Transmission Line 7. Characteristic Impedance (Line analysis) ○ 7.1 Coaxial ○ 7.2 Microstrip ○ 7.3 Stripline ○ 7.4 Rectangular Waveguide 8. Skin Depth (Conductor penetration depth) 9. Waveguide Wavelength (Cutoff and Guide wavelengths) ○ 9.1 Cutoff Wavelength λc ​○ 9.2 Guide Wavelength λg 10. Standard Waveguide Data (Integrated lookup table)

III. Antenna Metrics 11. Antenna Gain (Aperture gain and directivity estimation) ○ 11.1 Circular Aperture ○ 11.2 Rectangular Aperture ○ 11.3 Directivity (Estimation from beamwidth) 12. Beamwidth (Beamwidth calculation) ○ 12.1 General Circular ○ 12.2 Uniform Circular ○ 12.3 Uniform Rectangular 13. Antenna Noise Temp (Passive antenna equivalent temp) 14. Pointing Loss (Gain loss due to alignment errors) 15. Surface Accuracy Loss (Ruze’s Equation for tolerances)

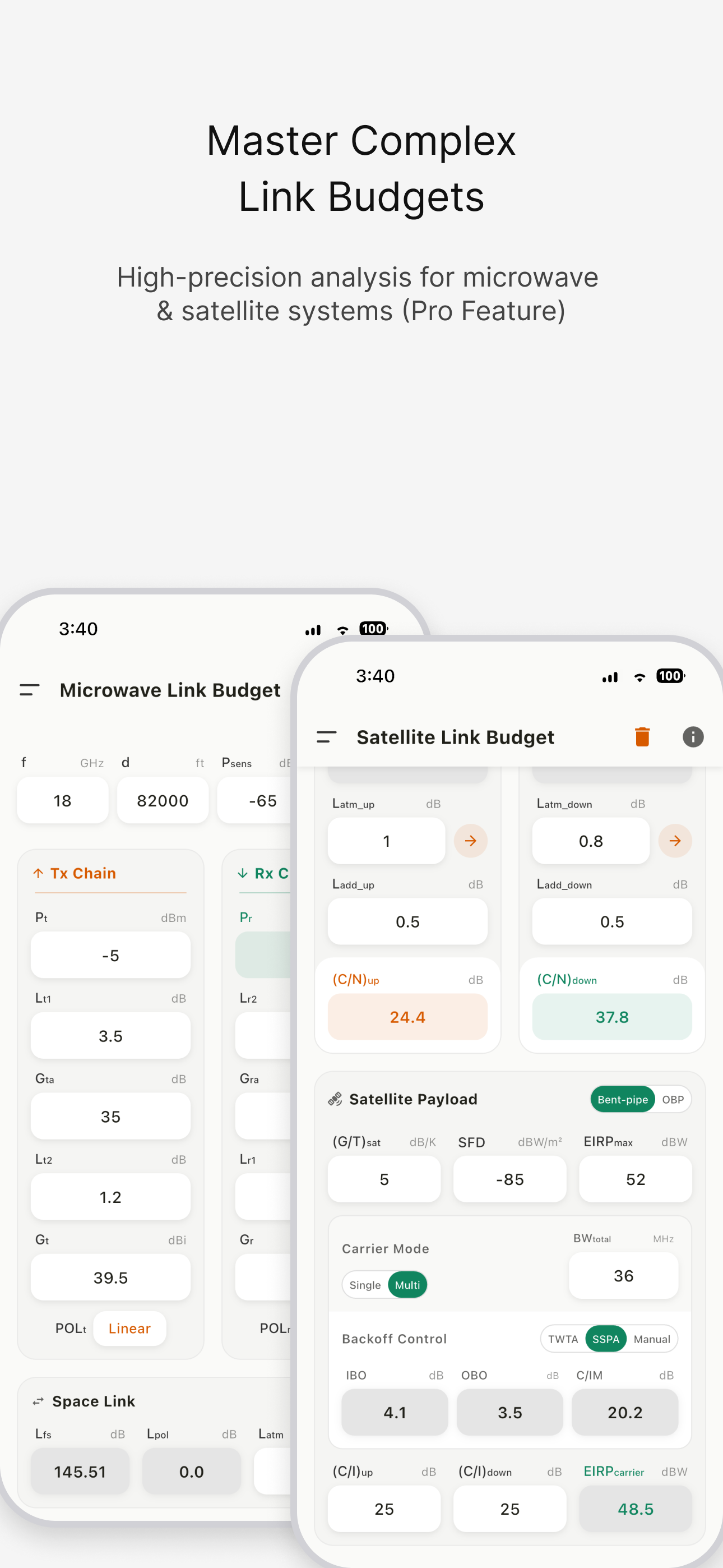

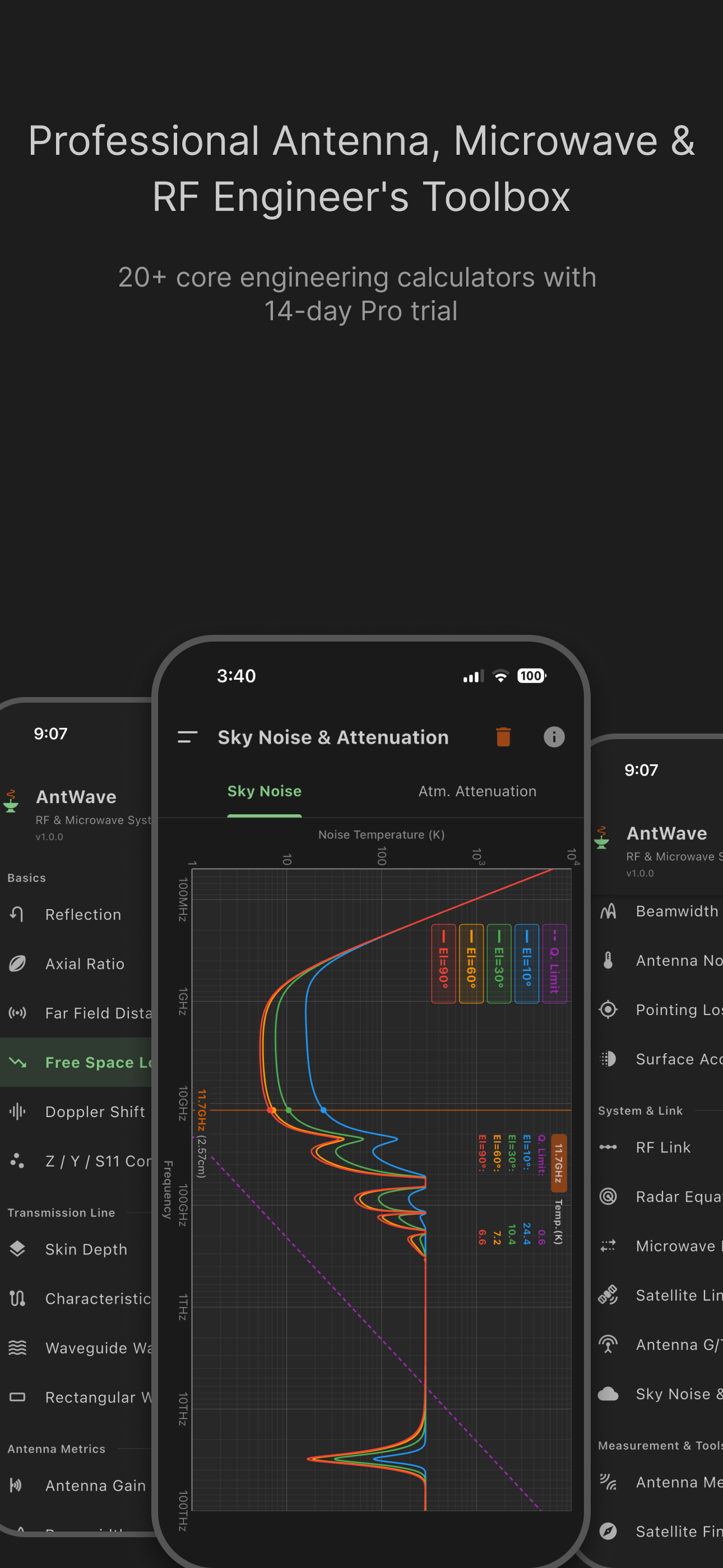

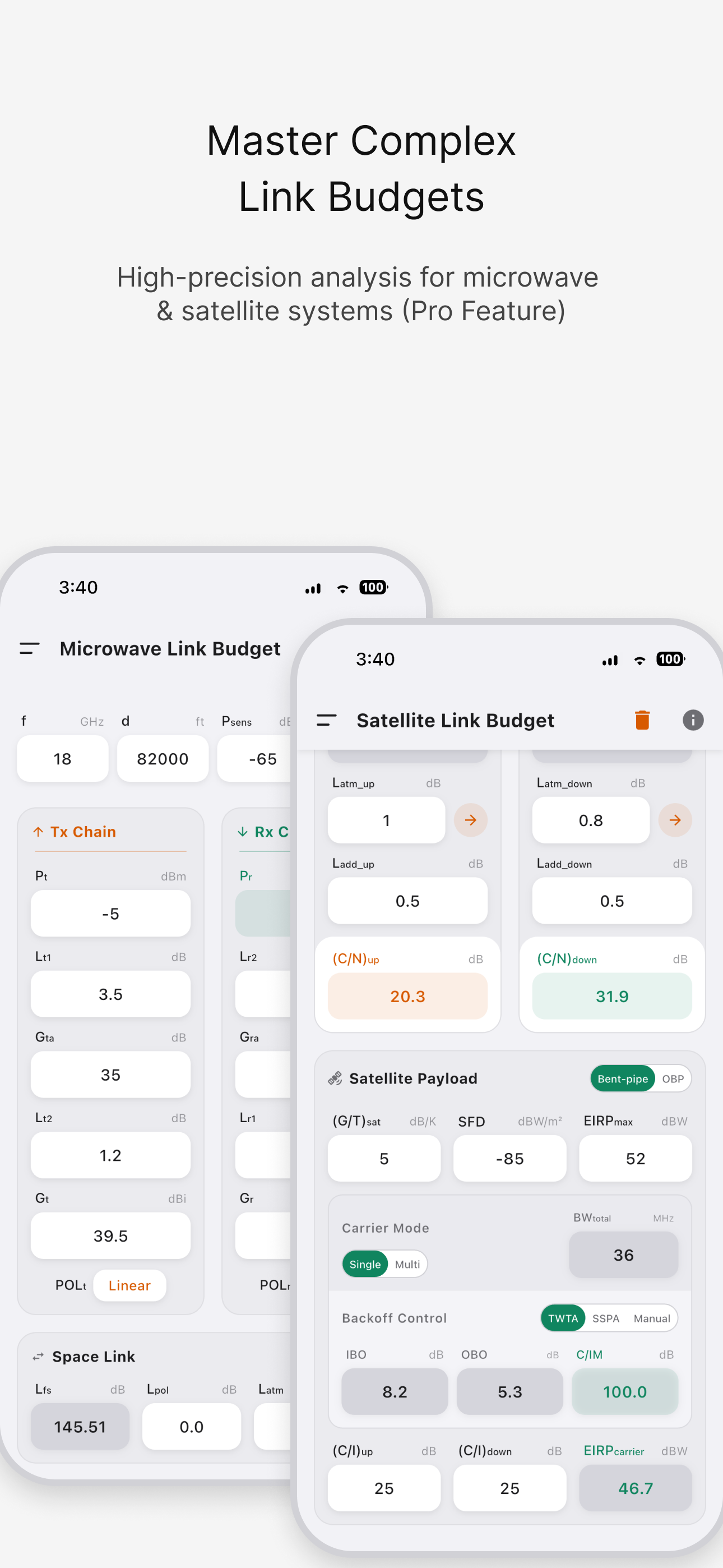

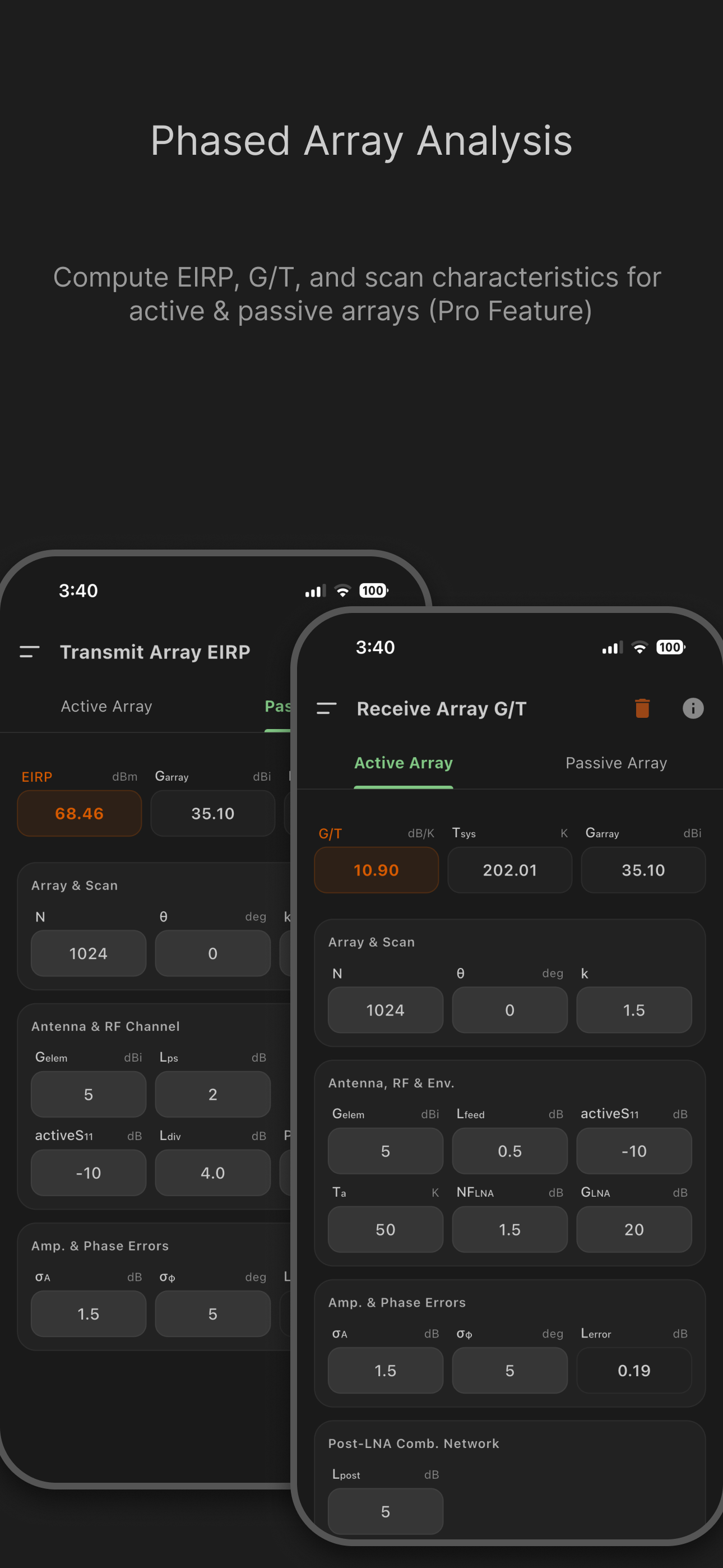

IV. System & Link 16. RF Link Analysis ○ 16.1 Receiver (Gain, NF, and Input IP3) ○ 16.2 Transmitter (Gain, P1dB, and Output IP3) 17. Radar Equation (Range, RX power, and TX power) 18. Microwave Link Budget (Terrestrial link planning) 19. Satellite Link Budget (Transparent and OBP satellites) 20. Antenna System G/T (System figure of merit) 21. Environment Attenuation ○ 21.1 Sky Noise (Interactive curves and HUD) ○ 21.2 Atmospheric/Rain Fade (Interactive frequency charts)

V. Measurement & Tools 22. Antenna Measurement (Tools for measurement) ○ 22.1 Gain (Measurement calculation) ○ 22.2 Difference Beam Slope ○ 22.3 Y-Factor (Noise temperature measurement) 23. GEO Look Angle (Azimuth, Elevation, Tilt for GEO)

[App Highlights]

Expert Visual Logic: Clean 2D design, no ads, for professional field use.

Offline Privacy: No backend servers, no data collection. Designs remain private.

Instant Feedback: Real-time parameter linkage for immediate optimization.

AntWave: Bringing precision to complex engineering at your fingertips.

** Some advanced features require a one-time Pro purchase.
