Bridle Y

Bridle Y helps riggers calculate bridles, forces, angles and hardware needs from pick point geometry and load weight. Verify all results before use.

Bridle Y is a practical bridle calculator built for the entertainment rigging industry.

Designed for working riggers, production crews and technical teams, Bridle Y helps you assess two-leg bridles quickly using pick point geometry and load weight.

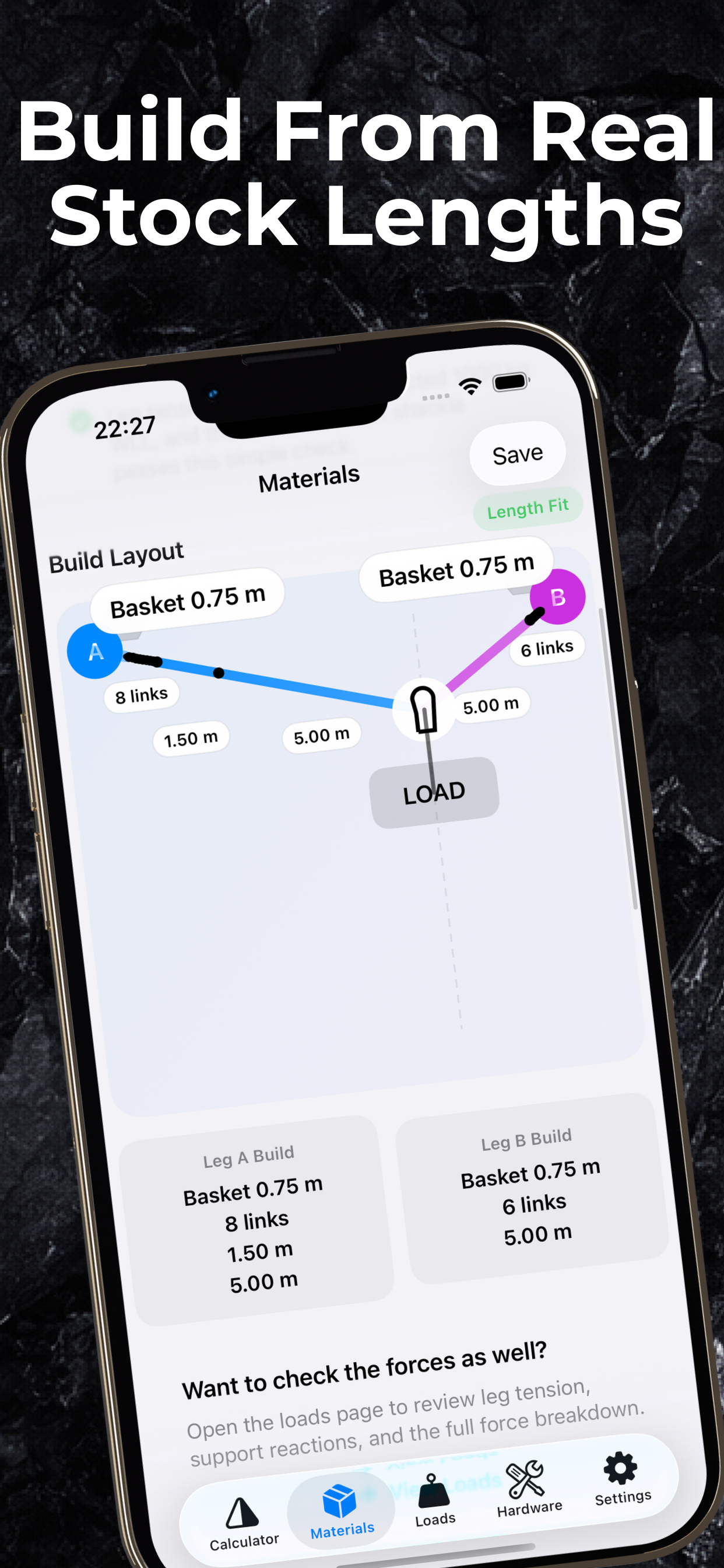

Calculate: • Bridle leg lengths • Included angle • Leg forces / tensions • Support reactions • Hardware and material guidance based on enabled stock lengths

Whether you are planning in prep, checking options during load-in, or reviewing geometry on site, Bridle X provides a clear reference for common bridle calculations.

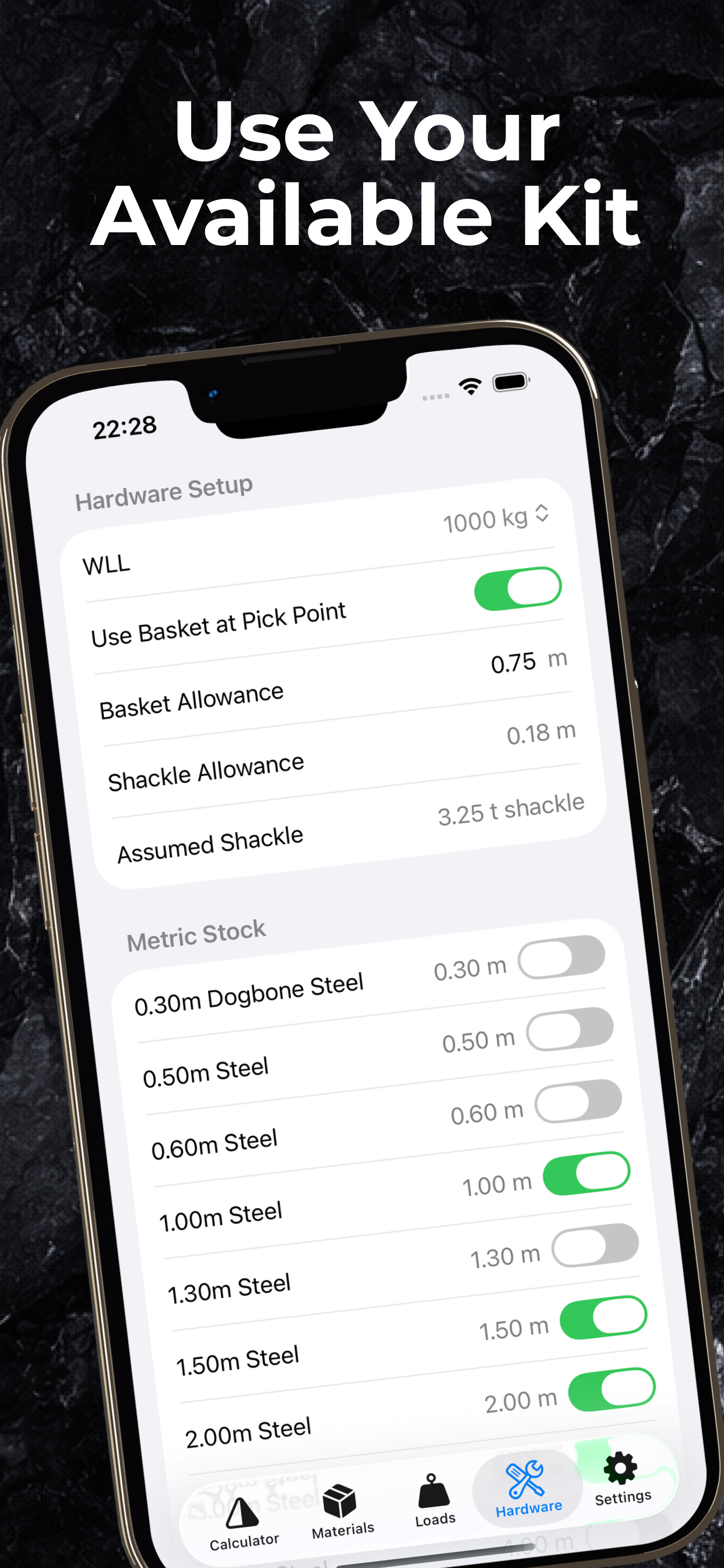

Use Bridle Y to: • Compare pick point layouts • Review how angle changes affect forces • Estimate steels or chain requirements • Match available stock lengths • Plan cleaner, more practical bridles

Important Safety Notice Bridle Y is for guidance only. It is not a substitute for competent rigging judgement, engineering approval, venue rules, manufacturer guidance or applicable regulations.

Always verify: • Measurements • Hardware selections • WLL limits • Force paths • Final installation suitability

Always follow local regulations, venue procedures, manufacturer data and qualified professional judgement before use in the field.

Terms Of Use: http://big-rig.co/terms
