Bridge Engineering Calculator

Bridge Engineering Calculator contains 58 calculators, to calculate different bridge, suspension cable and civil engineering parameters. Automatic & accurate calculations with every unit and value changes.

• Available in Metric(SI) and Imperial Units *
• Available in English, Français, Español, Italiano, Deutsch & Português *

Bridge Engineering Calculator contains following 58 Calculators: • Shear Capacity of Flexural Members • Critical Ratio • Effective Length Factor • Slenderness Ratio • Allowable Stress - Concentrically Loaded Columns (Slenderness Ratio (lesser) Critical Ratio) • Allowable Stress - Concentrically Loaded Columns (Slenderness Ratio (greater=) Critical Ratio) • Maximum Load - Compression Members • Buckling Stress (Slenderness Ratio lesser= Critical Ratio) • Buckling Stress (Slenderness Ratio greater Critical Ratio) • Q Factor • Buckling Stress (Q Factor lesser= 1) • Buckling Stress (Q Factor greater 1)

• Moment Gradient Factor • Allowable Unit Stress in Bending • Allowable Bending Stress (Compression Flange Partly Supported/Unsupported in a Bridge) • Moment of Inertia (Transverse Stiffeners) • Moment of Inertia (Longitudinal Stiffeners) • Allowable Bearing Stress for Bolts

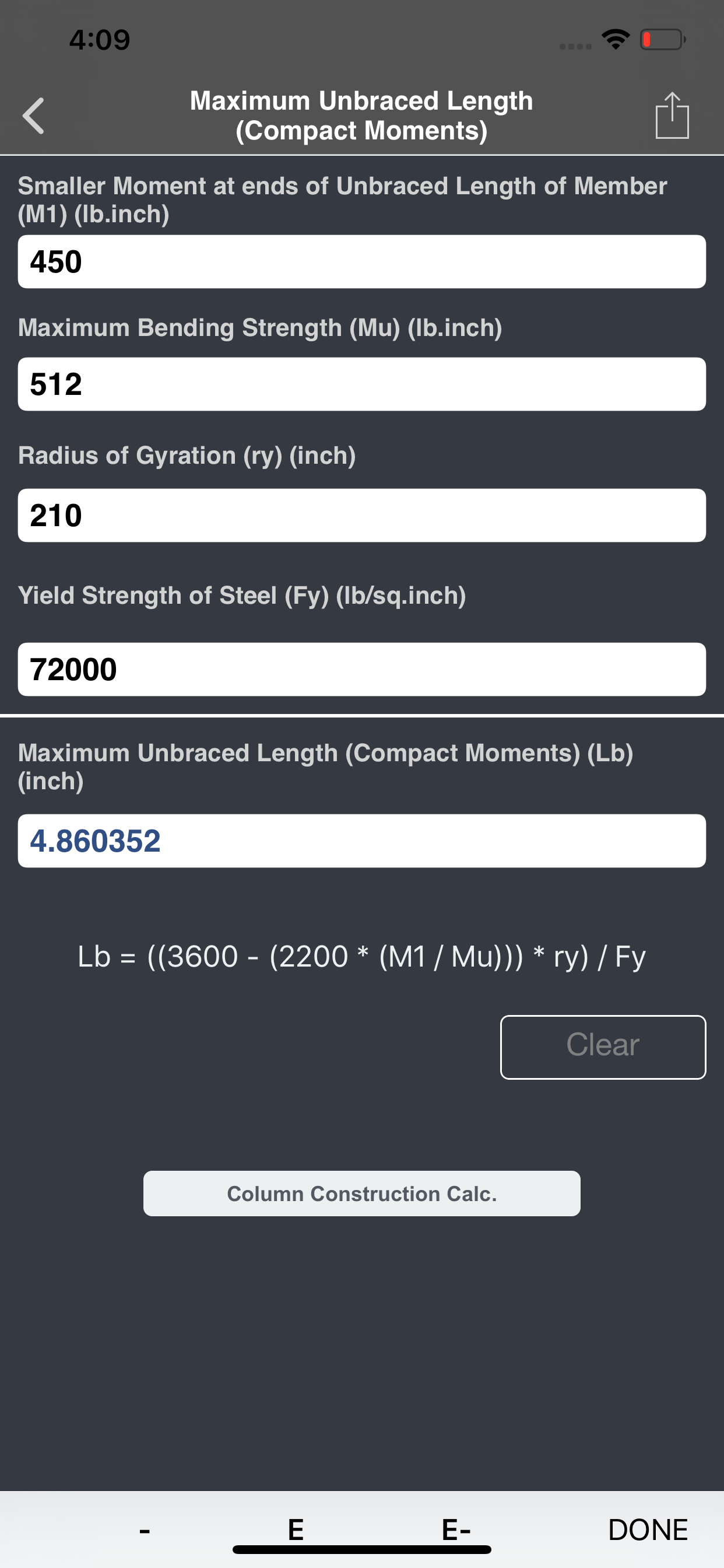

• Maximum Bending Strength (Compact Moments) • Maximum Bending Strength (Braced noncompact Moments) • Minimum Flange Thickness (Compact Moments) • Minimum Flange Thickness (Braced noncompact Moments) • Minimum Web Thickness (Compact Moments) • Minimum Web Thickness (Braced noncompact Moments) • Maximum Unbraced Length (Compact Moments) • Maximum Unbraced Length (Braced noncompact Moments)

• Allowable Bearing Stress (Milled Stiffeners) • Allowable Stress - Rollers and Rockers (Roller/Rocker Diameter lesser 25) • Allowable Stress - Rollers and Rockers (Roller/Rocker Diameter greater= 25) • Allowable Bearing Stress on Pins subject to Rotation • Allowable Bearing Stress on Pins not subject to Rotation • Unit Stress in Steel (Unshored Members) • Unit Stress in Steel (Shored Members)

• Horizontal Shear Range at the Juncture of Slab and Beam • Horizontal Shear (Allowable Range) - Channels with Fillet Welds • Horizontal Shear (Allowable Range) - Welded Studs

• Force in Slab - Maximum Positive Moment (Concrete Section) • Force in Slab - Maximum Positive Moment (Steel Section) • Force in Slab - Maximum Negative Moment

• Number of Shear Connectors • Number of Shear Connectors (Between Points of Maximum Positive Moment and Points of Maximum Negative Moment) • Ultimate Shear Strength of Connectors in Bridges (Channels) • Ultimate Shear Strength of Connectors in Bridges (Welded Studs) • Allowable Shear Stress (Highway Bridges)

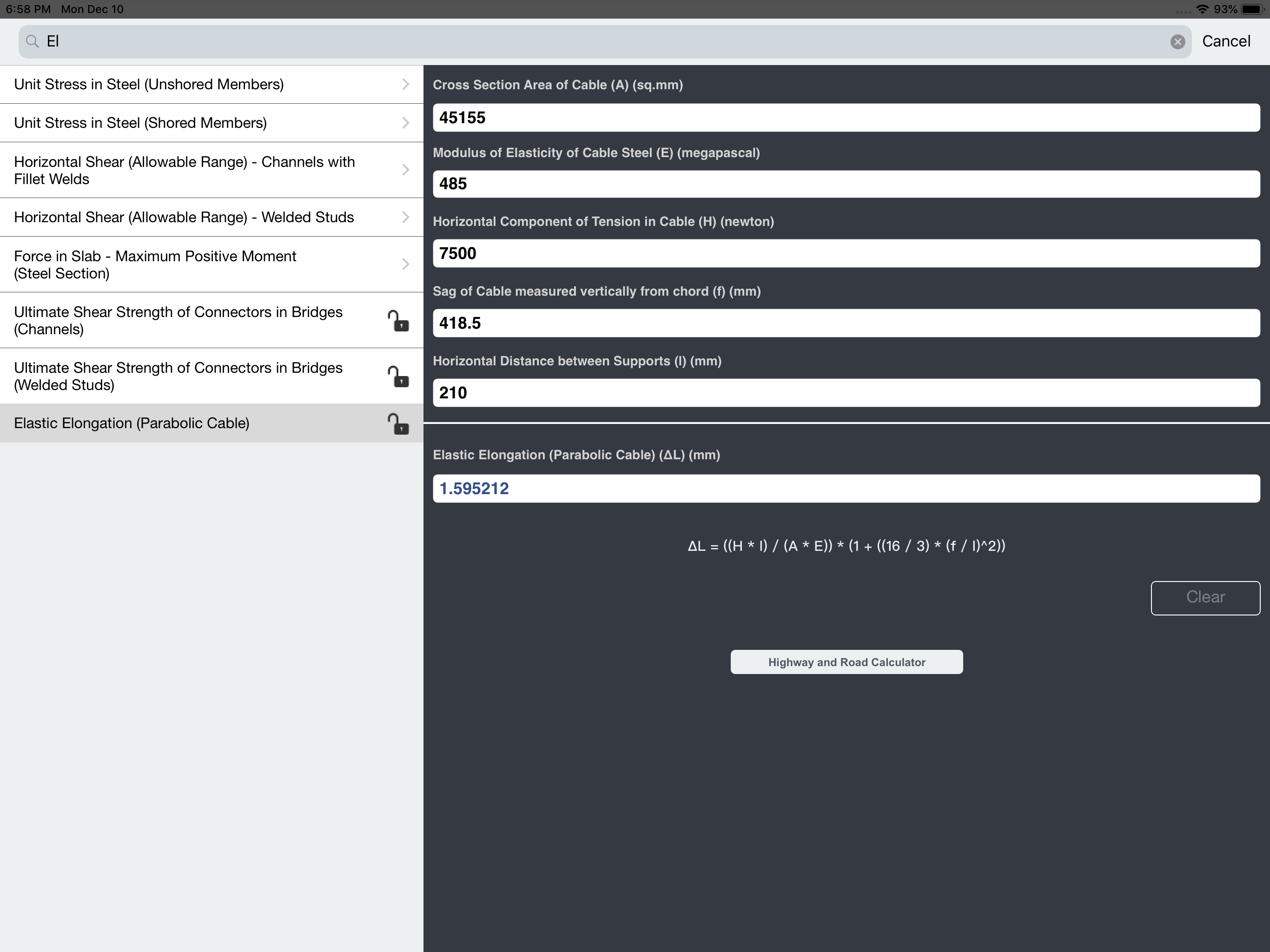

• Midspan Cable Tension • Tension at Supports of the Cable • Cable Length • Catenary Parameter • Catenary Cable Sag Distance • Span Length • Tension at any point • Elastic Elongation (Parabolic Cable) • Change in Sag • Initial Shape of Cable • Final Shape of Cable • Vertical Deflection of Cable due to Live Load • Natural Frequency of Cable • Change in Tension

Key Features: • Complete coverage of calculators in bridge, suspension cable and civil engineering parameters. • Automatic calculation of the output with respect to changes in the input, output and units. • Formulas are provided for each calculator. Most Comprehensive Bridge and Suspension Cable Calculator
