Crane Outrigger Pad Calc

12-ton outrigger on a 24x24 timber pad over fill - will it sink? Ground pressure pass/fail vs 6 soil types. Multi-load compare for 4 corners. $4.99 one-time.

Built for crane operators, lift planners, and ground crews who need outrigger pad sizing on the iron - not a dashboard you log into.

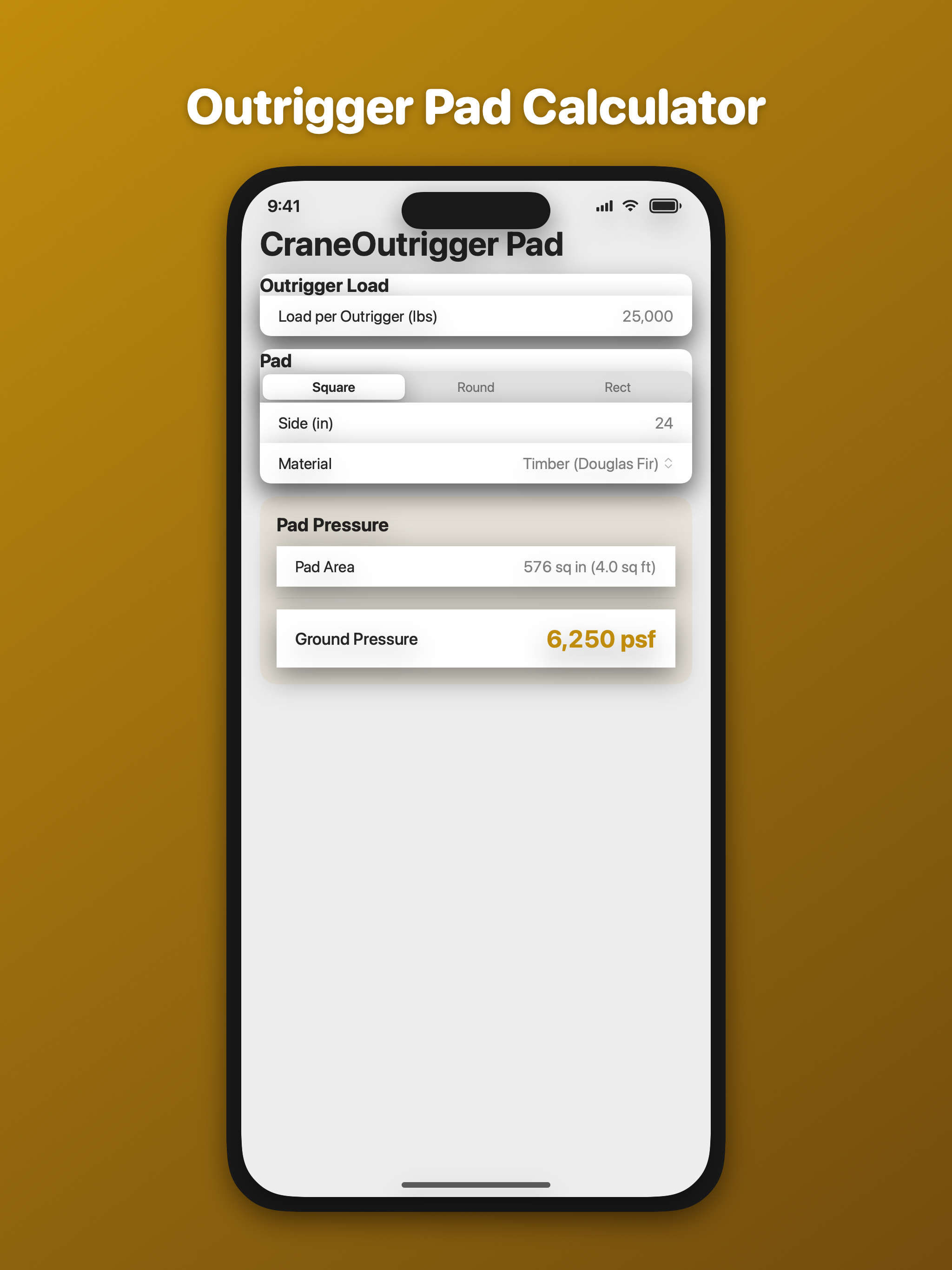

WHAT IT DOES Computes ground pressure under a single outrigger pad and checks pass/fail against the allowable soil bearing capacity and the pad material's allowable stress. Compares up to 10 saved configurations side-by-side for a multi-pick lift. Reference tables for soil types and common pad sizes are built in for quick cross-check.

INPUTS

• Load per outrigger (lb)
• Pad shape: Square, Round, or Rectangular
• Pad dimension(s) (in)
• Pad material: Timber, Oak, Steel Plate, HDPE, Composite
• Allowable soil bearing (psf)

RETURNS

• Pad area (sq in and sq ft)
• Ground pressure (psf and psi)
• Pass/fail vs. allowable soil bearing
• Pass/fail vs. pad material allowable stress
• Minimum required pad side (in) when over the limit
• Multi-load comparison rows for up to 10 configurations
• Soil bearing capacity reference table (6 soil types)
• Common pad size reference (2x2 to 6x6 ft, max load at varying soil bearing)

WHY THIS APP, NOT THE FREE ONES

• Math is shown - every result lists the area, pressure, and the limit it is compared against.
• Multi-load mode - save the four-corner configuration for an asymmetric pick and review at once.
• Works offline - yard moves, off-road sites, no cell service. Always available.
• No login. No ads. No telemetry. No subscription.

PRICING $4.99. Pay once, own it. Lifetime access on iPhone, iPad, and Mac via Family Sharing.

NOT A SUBSTITUTE FOR A site-specific ground assessment by a qualified person. A geotechnical report for soft sites, fill, or organic layers. The crane manufacturer's outrigger-pad guidance for your specific machine. This app is a quick-reference tool, not a replacement for engineered ground bearing analysis.
