Pipe Calc - Redes Hidráulicas

Pipe Calc is a hydraulic pipe network calculator. Select a predefined network, adjust properties and instantly calculate pressures, flow rates, velocities and head losses.

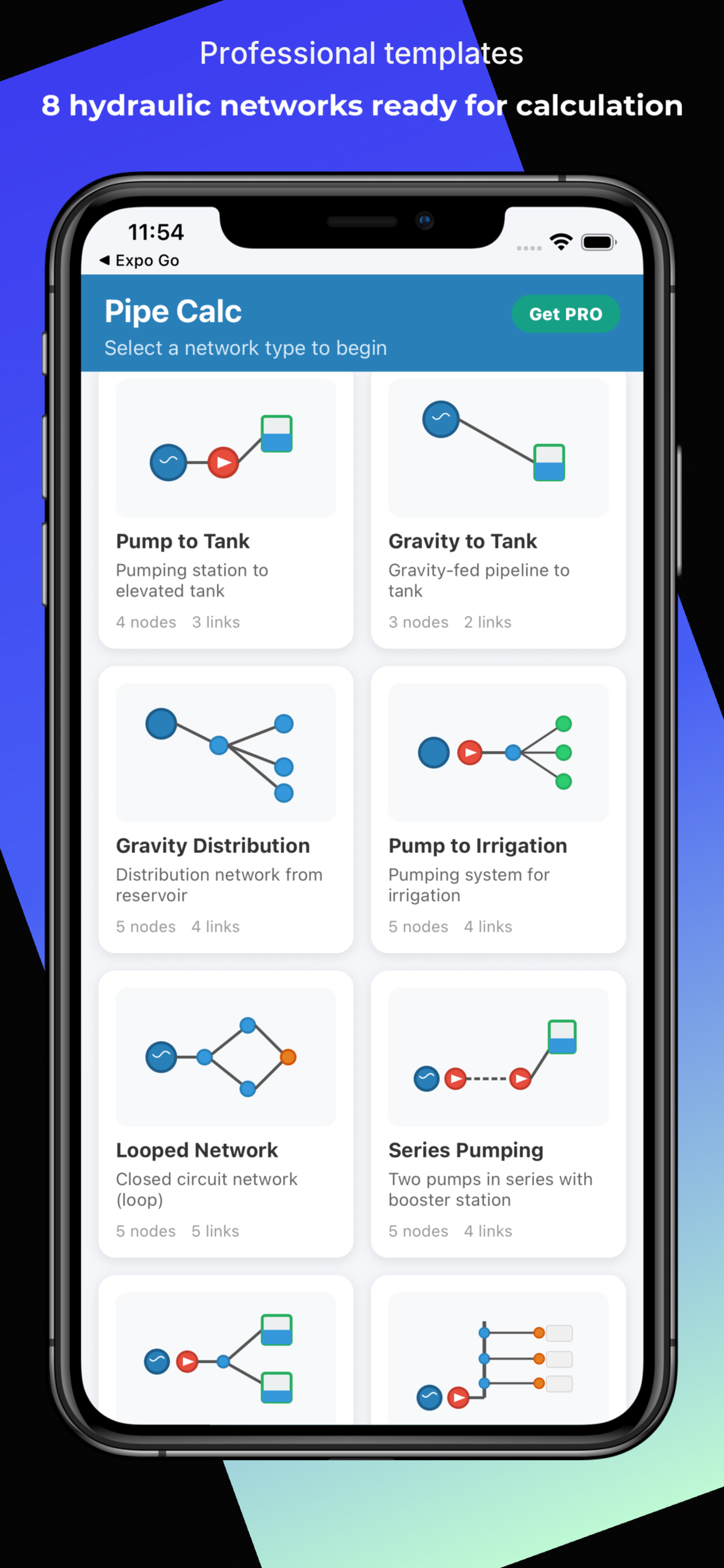

AVAILABLE NETWORKS
• Pump to elevated tank • Gravity-fed pipeline • Gravity distribution network

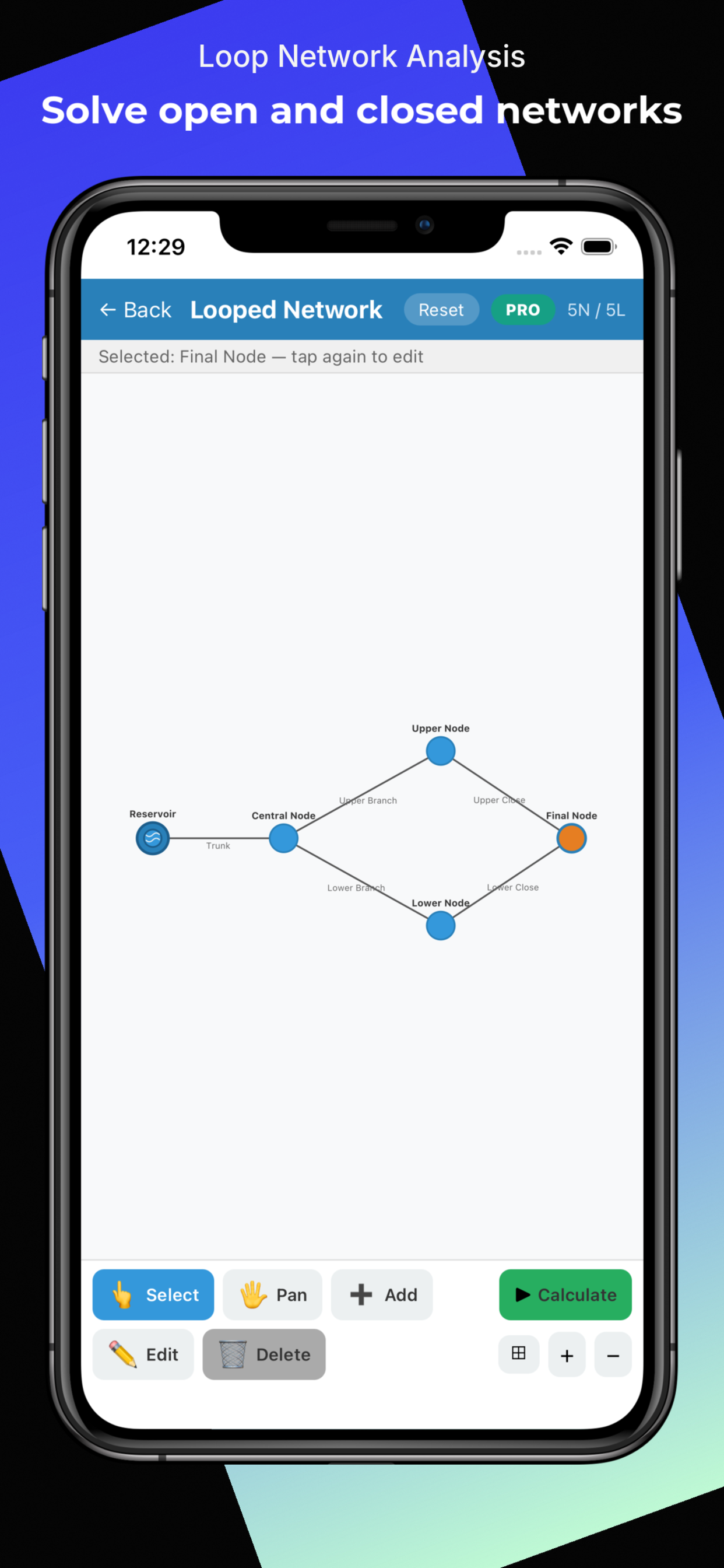

• Pump to irrigation • Looped network (closed circuit)
• Series pumping (booster) • Pump to two tanks • Building pumping (risers and laterals)

FREE FEATURES
• 8 ready-to-use hydraulic network templates • Edit properties: diameters, lengths, elevations, demands, pump curves • Full hydraulic solver (gradient method)
• Color-coded results on the network: pressures, flow rates and velocities • Auto-save changes

PRO (one-time purchase)
• Export full report for sharing • Add and remove nodes and pipes • Insert node into existing pipe • Parallel pumps • Create custom networks

Calculation engine based on the Global Gradient Algorithm (GGA) with the Hazen-Williams equation. Reliable results for both branched and looped networks.

Ideal for:
→ Preliminary design of pumping systems → Quick verification of distribution networks → Hydraulics coursework → Field technicians who need quick calculations
