PipingData

Calculation and sheet metal layout software for industrial pipefitters.

With version 2.5.0, PipingData reaches a major milestone by becoming a micro-software available in 19 languages. Discover the power of data visualization. Explore results instantly by hovering over piping accessories, combined with a flat design, an intuitive and clean interface optimized for a modern experience. Now branch connections are available with the possibility to print templates directly via the print interface and/or share these templates as PDF, with the choice of generators (4, 8, 12, 16, 24, 32).

Features:

Interfaces: Interactive elbow Interactive double elbows on the same plane Interactive oriented double elbows Interactive elbow slices Concentric and eccentric reducer Straight and inclined branch (same diameter) Straight branch (different diameter)

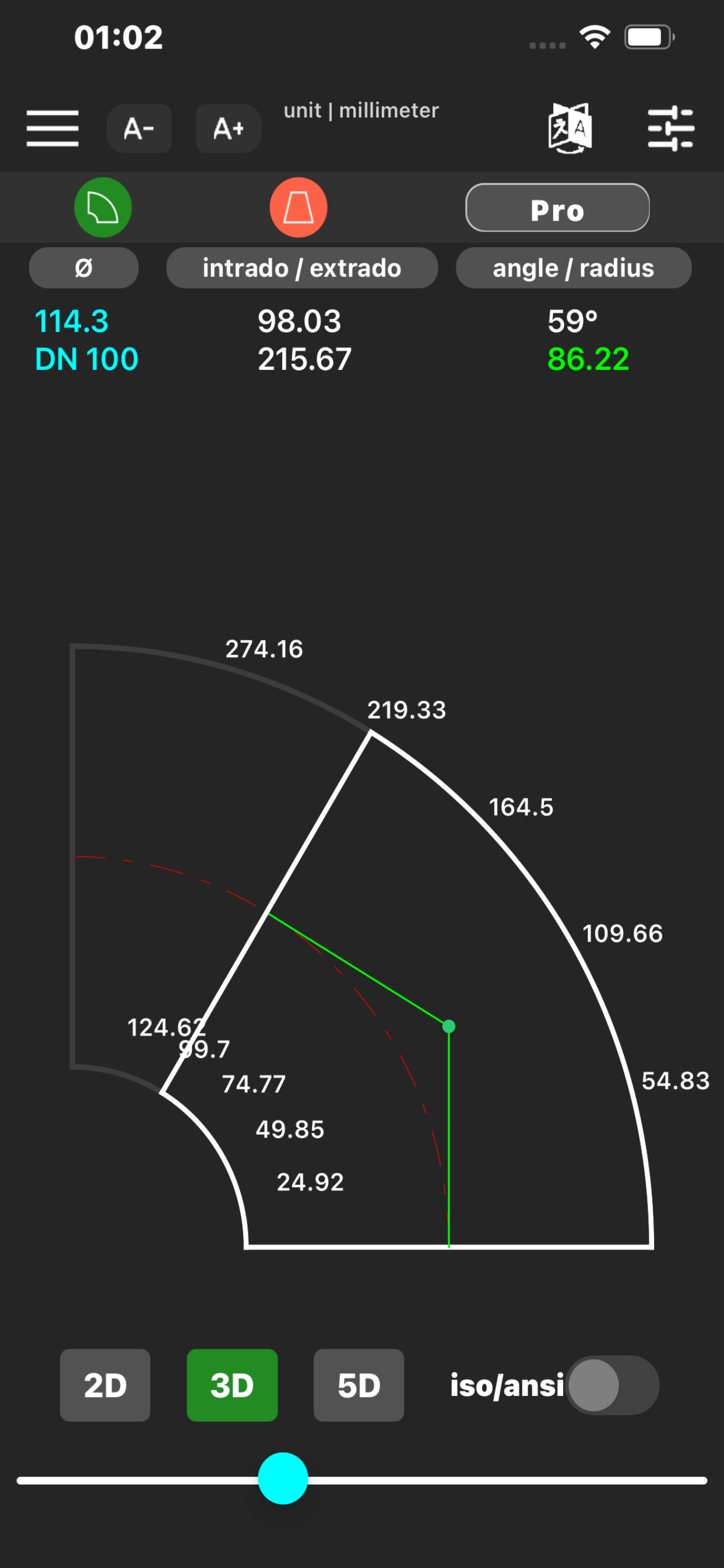

All interfaces use a flat design with data exploration by hovering over elbows. Angles are optimized based on position and hovered area. This operation is called DATA-VISUALIZATION.

Parameters: Use number-based data with one or two decimal precision, integers also for angles and data. For visual comfort, colors are subtle, with the possibility to change font sizes. Inch/mm conversion. Preferred language saving

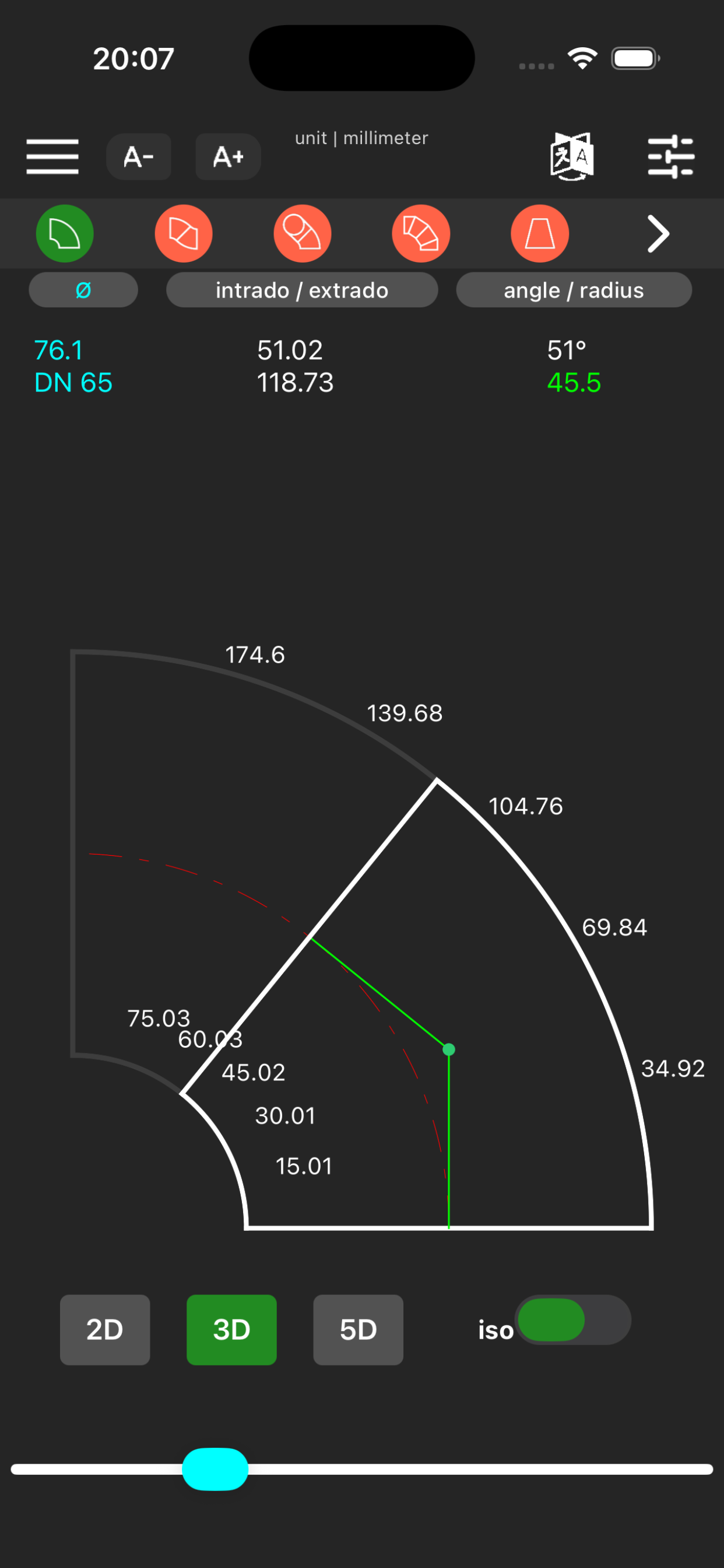

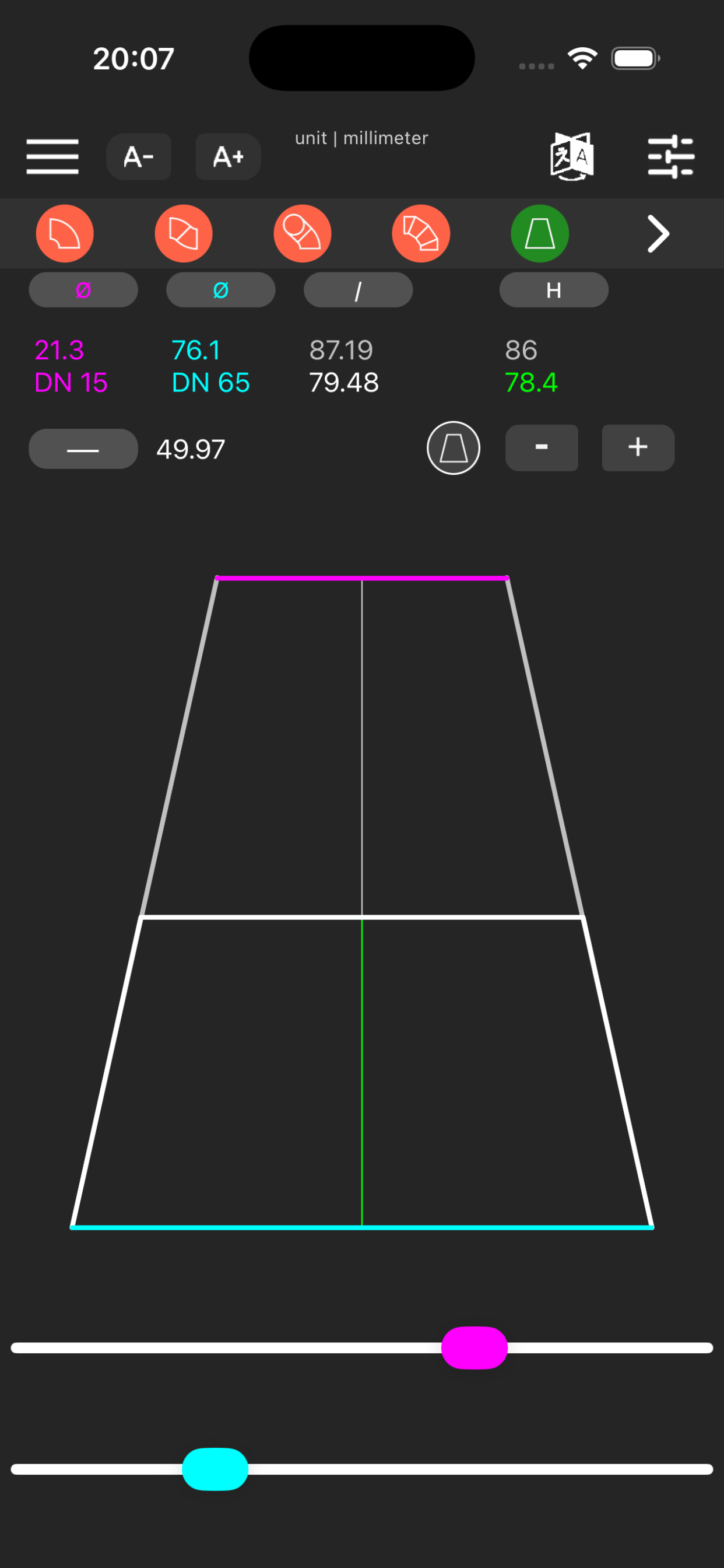

Languages: You can choose between 19 languages (Polish added), English being the default language (see screenshots).

Utilities: The Download section offers documents to download/print/share (ABAC, isometric sheets with or without nomenclature). Links to useful websites are also available.

-Added SMS diameters -Optimal layout of graphical elements -Performance improvements

This application was developed according to three fundamental principles, in order to minimize interactions for fast and optimal results: Flat design Data visualization Ergonomics

If you have suggestions or feedback about the application, you can contact support by email: contact.pipingdata@gmail.com
