Home Repair 3D - AR Design

Check out Pro version of this app "Home Repair 3D Pro" for iOS & macOS<< No special skills in 3D, you can create a project of a country house or find materials and cost estimates to repair the apartment and see it in augmented reality!

• New modes: AR (Augmented Reality) and UR.

You can import your projects into OS X app "Home Repair 3D Pro". The full version limit is 5 floors (56 rooms in each), also it contains Material editor and total Estimate.

1. Button [S]:

• Select the number of floor.
• Change the height of the ceiling (different for each floor).
• Change the number of rooms (different for each floor)

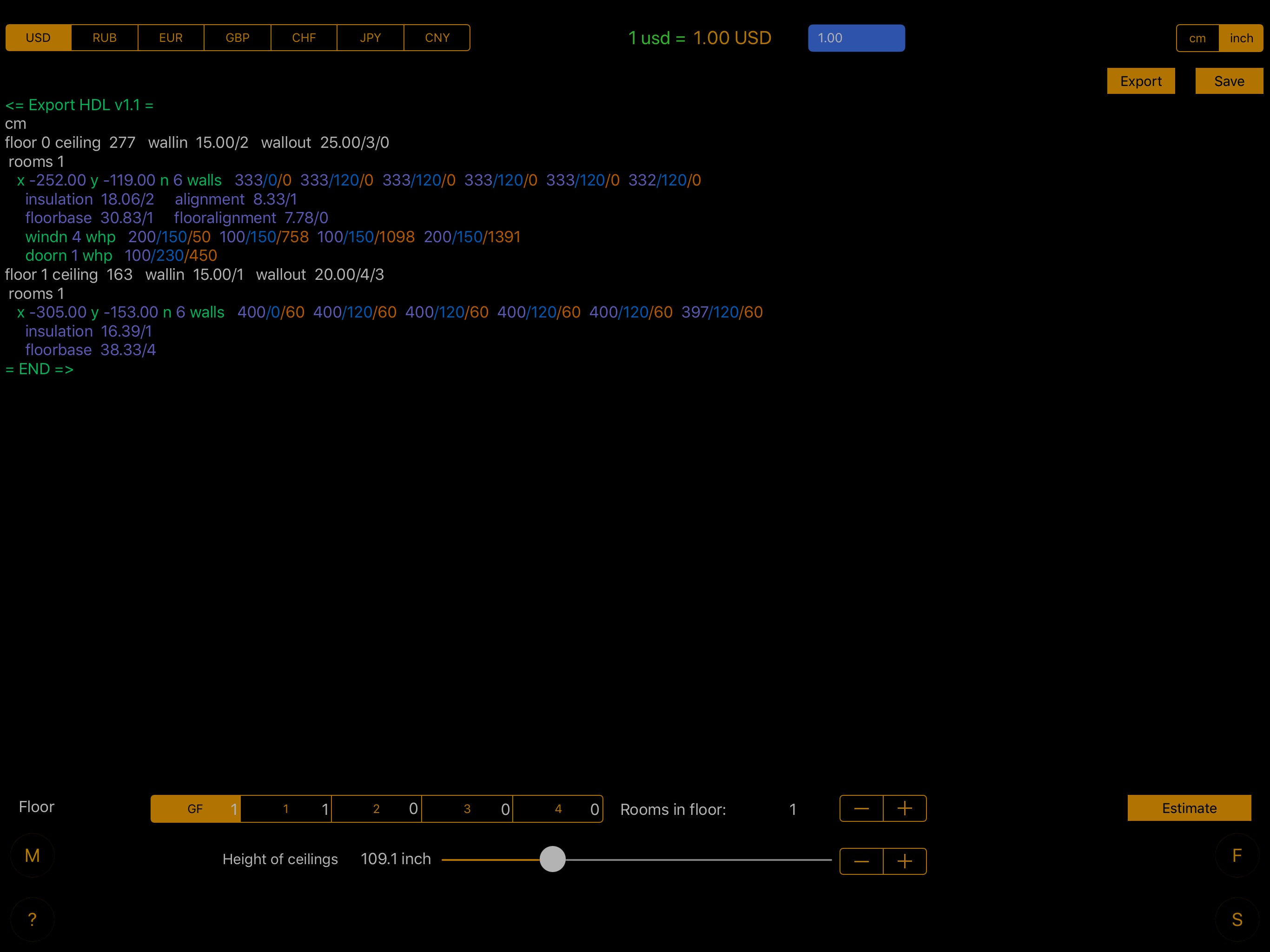

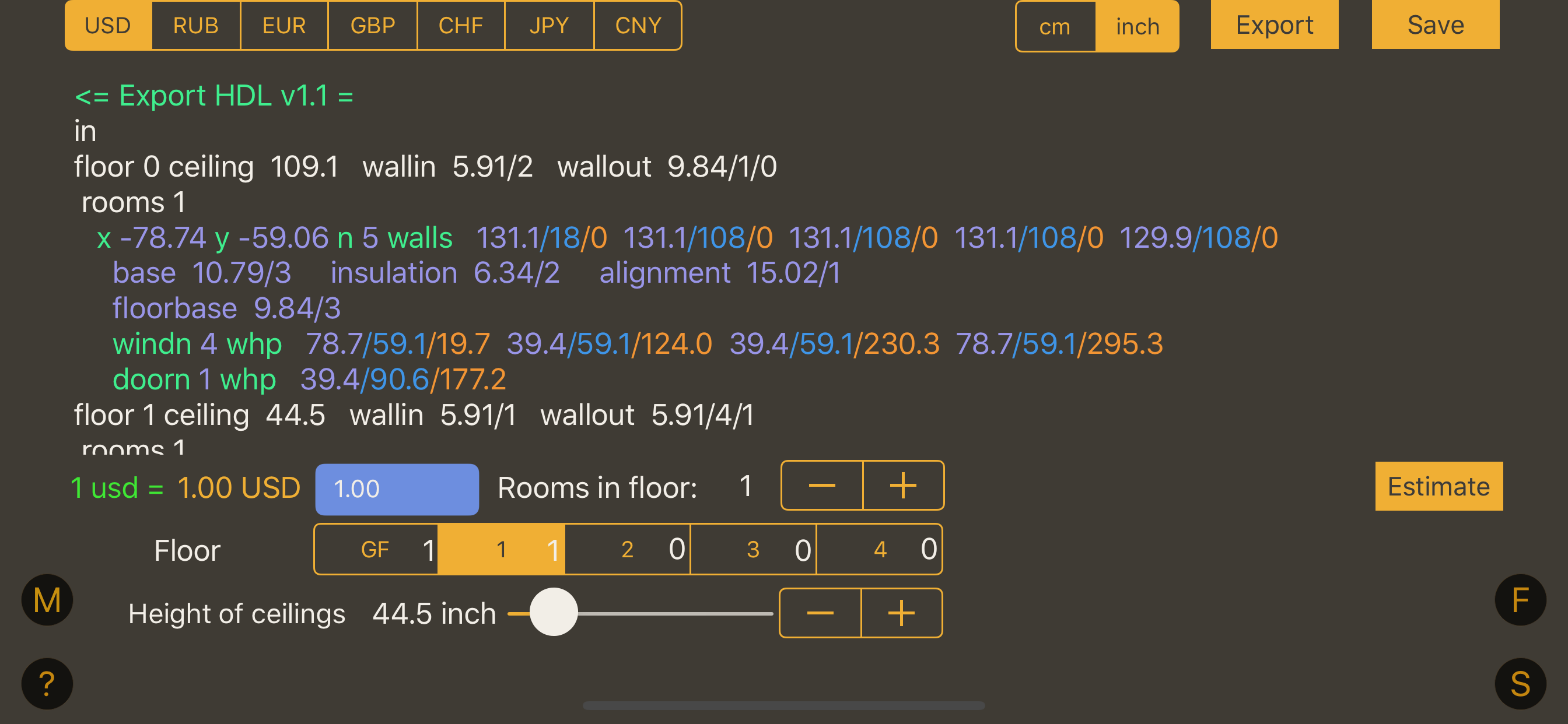

• To export your existing project into text form - tap [Export].
• If you wish to edit existing project in text form and save it - edit and then tap [Save]. WARNING: New project will replace existing one!
• To import another project - [Copy] project text from anywhere, [Paste] it to the text field and press [Save]. WARNING: New project will replace existing one! After importing another project simply go to the preview of each room which used a modified material (once in any section) to recalculate the results listed in [Estimate].

1. Button [F]:

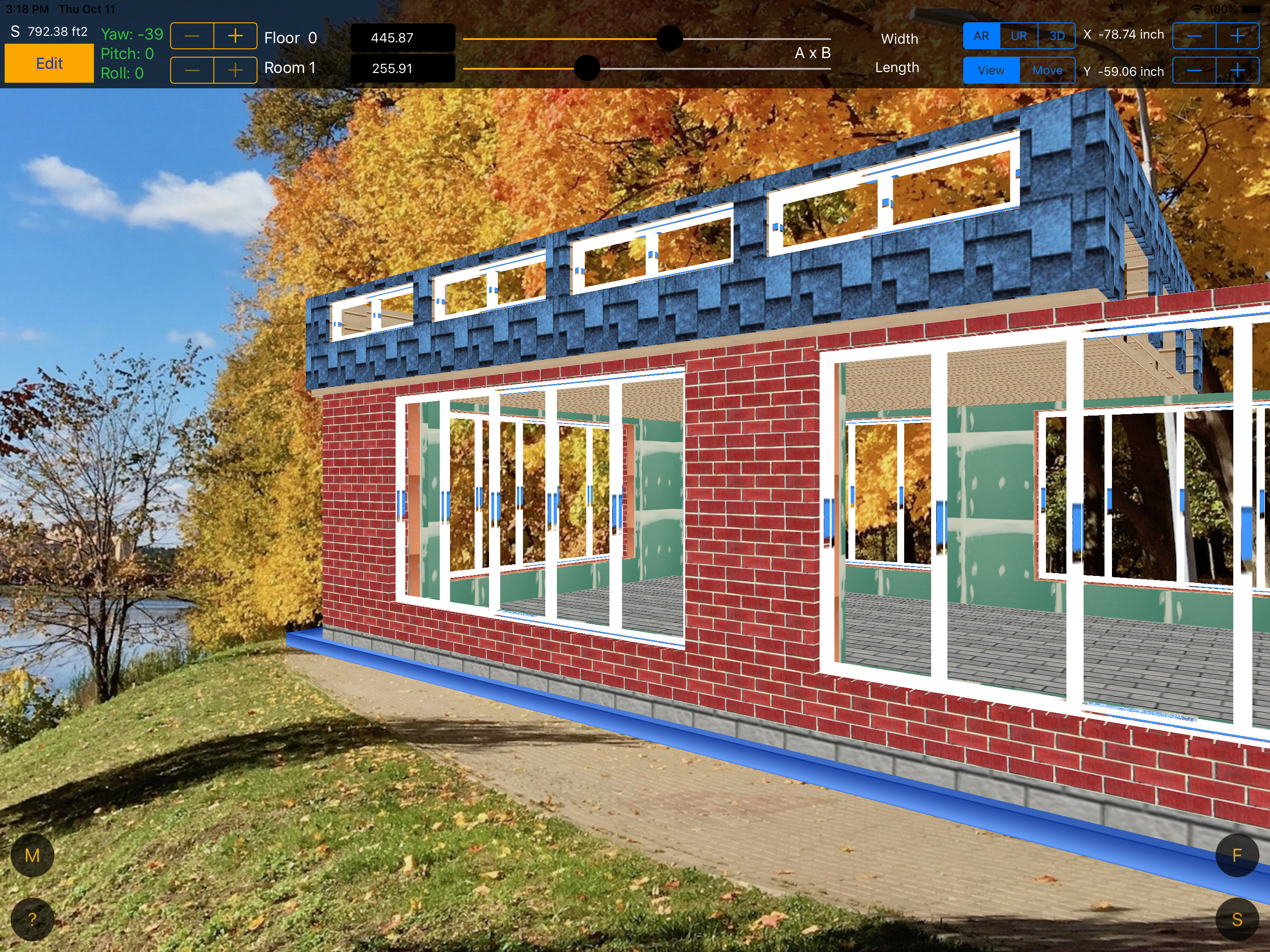

Three views: AR (Augmented Reality), UR and 3D.

You can rotate and move the view using the following gestures:

• Move the finger left or right: the view moves left or right, too.
• Move the finger up or down: the view moves up or down and turns at the same time.
• Pinch-in and pinch-out gestures are used to zoom the view in or out, correspondingly.
• Turn two fingers clockwise and counter-clockwise: the view turns.

For each room selected via floor & room selectors:

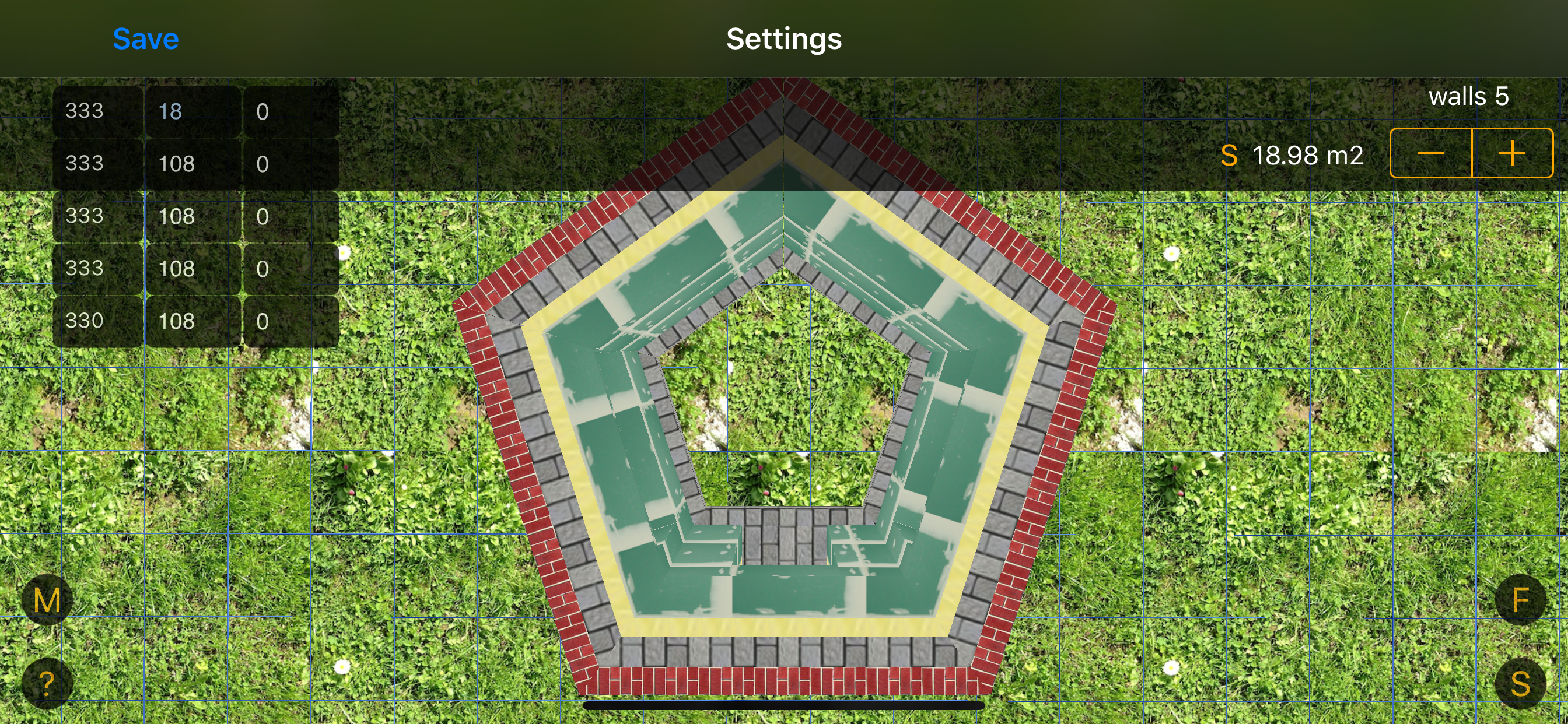

• Set the size of room (width & lenght); using the [Edit] button, you can adjust the number of walls (from 3 to 7).
• Adjust X, Y position of room in floor plan.
• To save your changes - go to the Edit section or change floor or room.

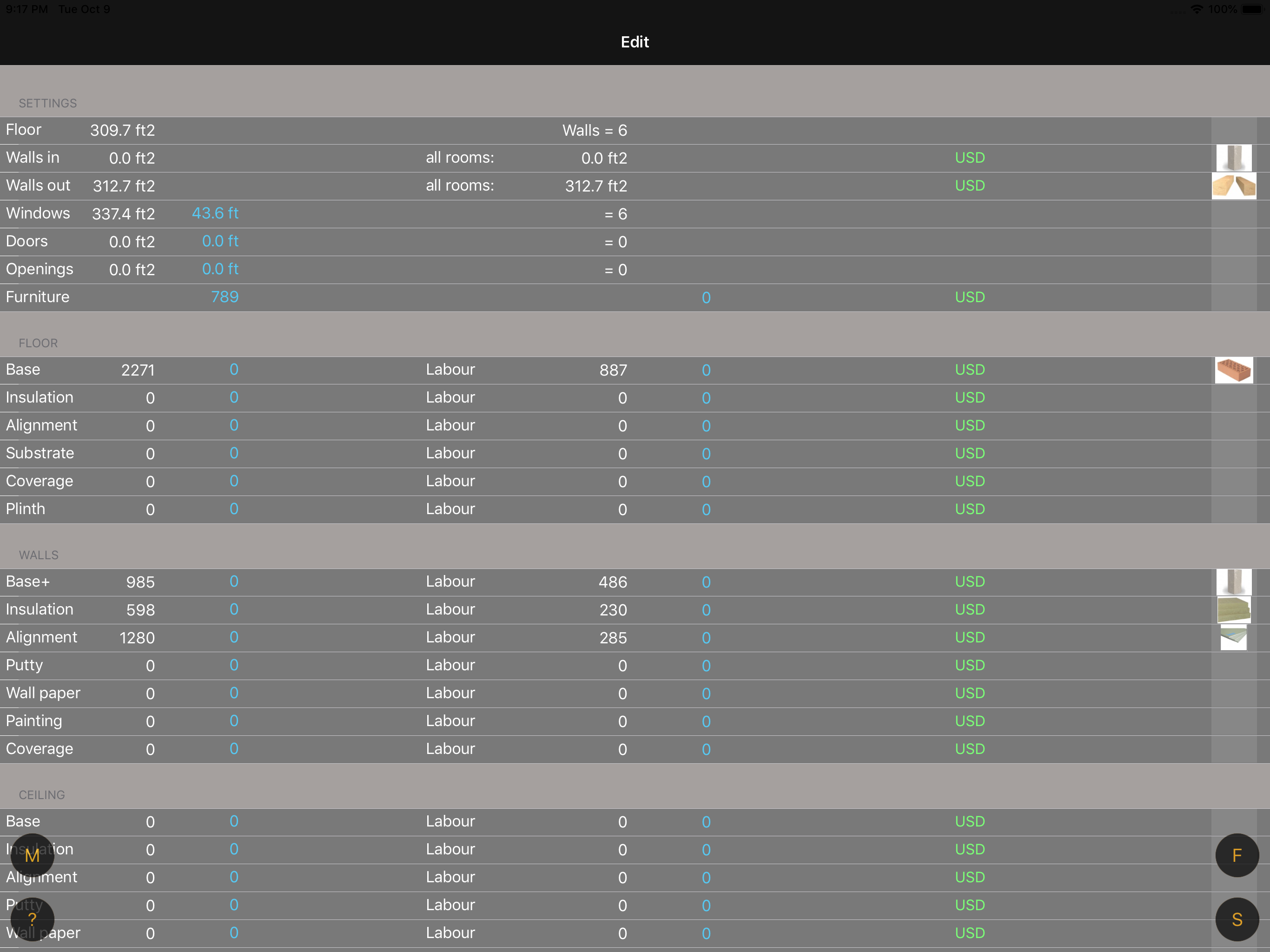

1. If you wish to add openings, doors, windows & materials - tap [Edit]:

• Set the thickness & material of walls in (it is equal for all rooms in one floor).
• Set the thickness & material of walls and roof out (it is equal for all rooms in one floor).
• Add openings, doors, windows in room two modes: auto placement and manual.
• In the base section of FLOOR category select thickness & material of floor.
• If you add any layers of material the S, Volume, cost of this material & labour parameters are calculated automatically (using average prices).
• Gradually you can fill the actual expenditure.

1. Tap [F] to select next room or floor...

2. If you want to see total estimate - tap [S] and then [Estimate].

The app calculates automatically the area of openings, doors, windows, slopes and amount of materials needed.

Instead of the average price, you can specify a custom using [M] section. If you enter a value bigger than 0, then the calculation is carried on it. After the price change, simply go to the preview of each room which used a material with modified price (once in any section) to recalculate the results.

All parameters (currencies, cm-inch) can be changed on the fly. Accuracy of input prices is $0.01 (or the equivalent in other currencies), for input parameters it is 0.01 cm or 0.01 in.

• You can see trailer on YouTube or on support website.
• Custom price for materials & labour.
