Springulator Spring Calculator

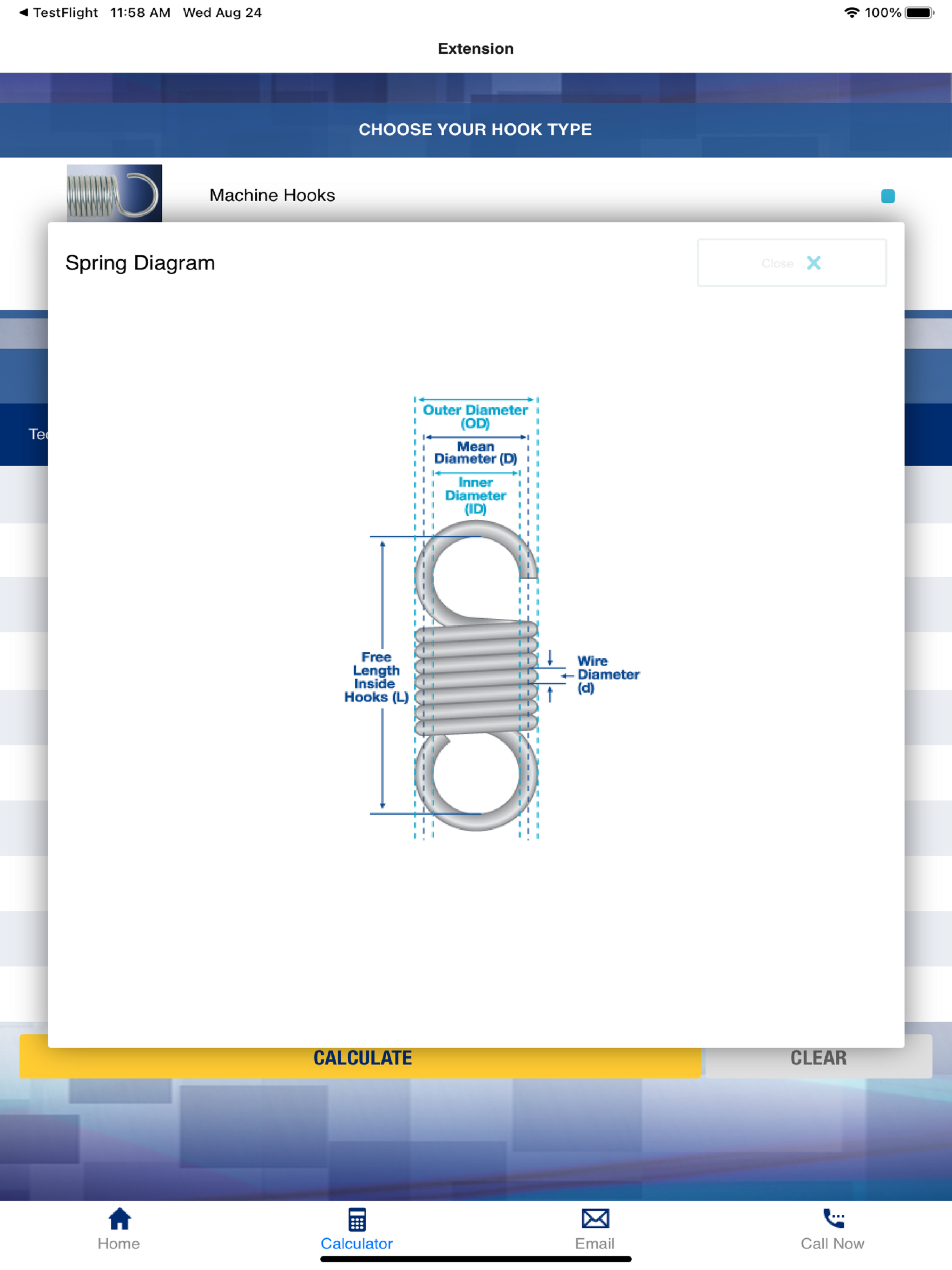

Springulator® is a robust spring calculator that features easy-to-use functions, reference diagrams and stress charting for: • Compression Springs – One-Load, Two-Load, Rate-Based & Dimensional • Extension Springs • Torsion Springs

Created for engineers, purchasing agents and designers, the Springulator allows users to calculate an array of information with minimal data input. With only a few fields of data entered, the Springulator provides information to check the stress of a design, calculate spring functions and test spring capabilities.

Springulator calculations include: • Stress, corrected stress & stress at load height • Tension, free length, solid height, load at solid height, total number of coils, active coils, rate, deflection, index, Wahl factor, torsional movement & part weight • Spring stress charts with material tolerance guidelines • Calculations based on selected materials • English and metric measurements • Adjustable initial tension for extension springs • Emailable and quotable results
