pippyg

Configure your pippyg static bat detector to make recordings. Works with self-build and commercial Apodemus devices.

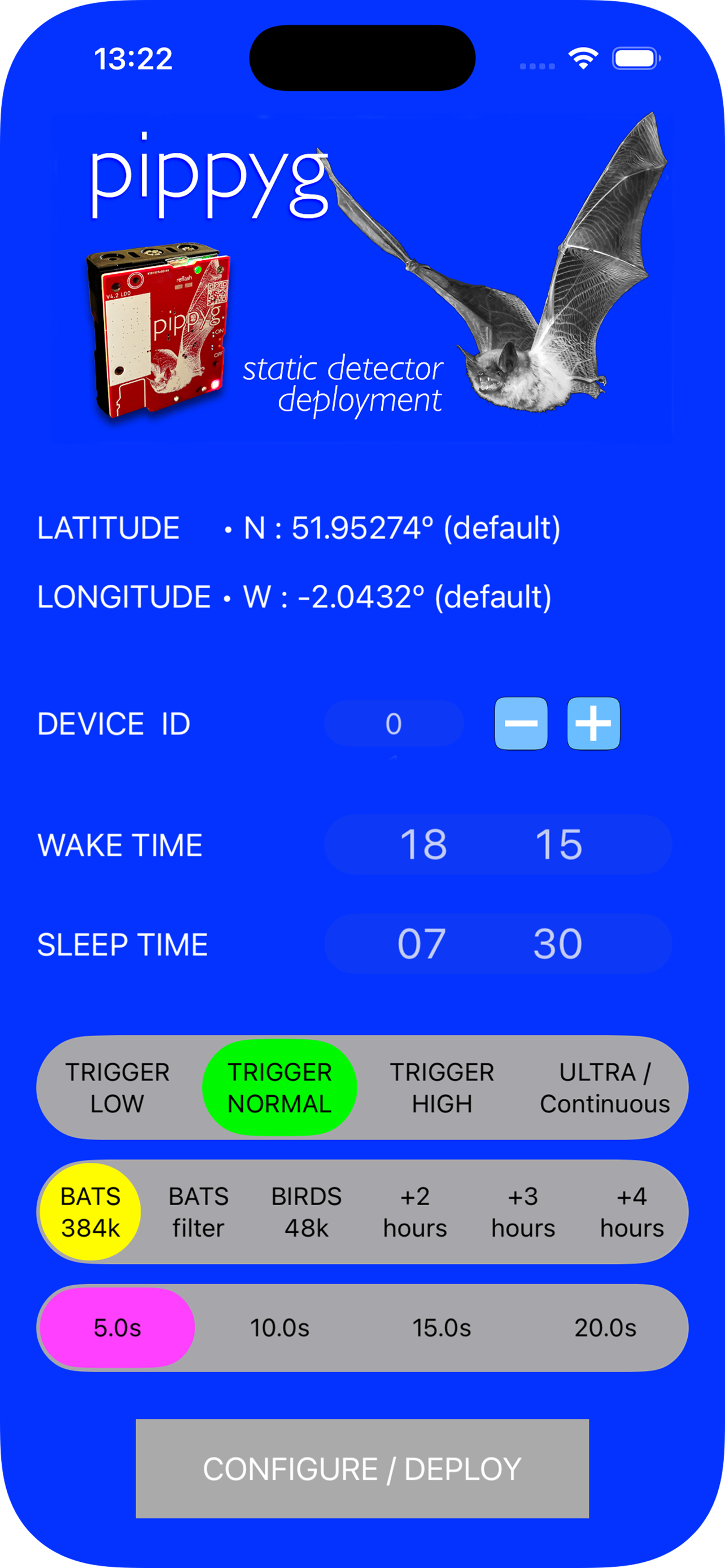

This tool gives you a convenient and reliable method to set the real-time clock, device ID, deployment latitude and longitude, and wake and sleep times for the PIPPYG bat recorder bat detector, in the field, using just your phone and the PIPPYG's onboard microphone.

To use the app, set up the configuration you want in terms of Device ID and sleep/wake times, turn your phone volume up to between 1/4 and 1/3 full volume and place your phone's speaker about 4 - 6 inches your PIPPYG's microphone. Now press the Configure / Deploy. SInce the PIPPYG red LED responds to sound after power-up, it flash when your phone makes the "triple chirp" sound. If the LED flashes just when it is responding to the sound, the PIPPYG did not successfully decode the data packete encoded into the chirp, so you need to try again - try changing the phone volume (typically quieter is better), adjust and the distance from the microphone, or positioning the phone more carefully relaive to the PIPPYG - it helps if you point the phone's bottom speakers right at the microphone hole, from a few inches away. If the PIPPYG's red LED flashes 8 times in rapid succession, you have successfully programmed your device, and it will enter a wake/sleep cycle, recording bats (or birds) when it is awake.

Note that this app works with both self-build PIPPYG units and with commercially-produced Apodemus PIPPYG and PIPPYG2 devices.
