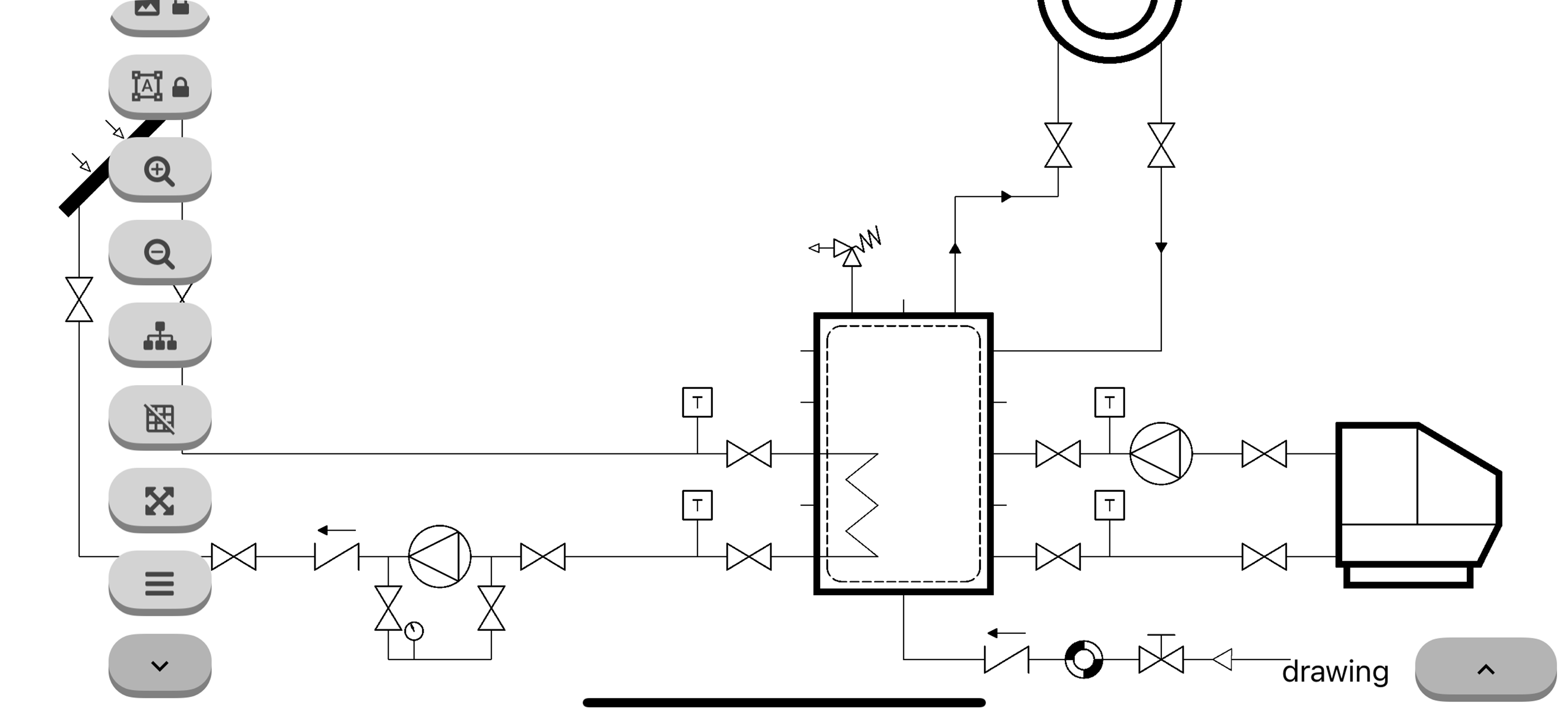

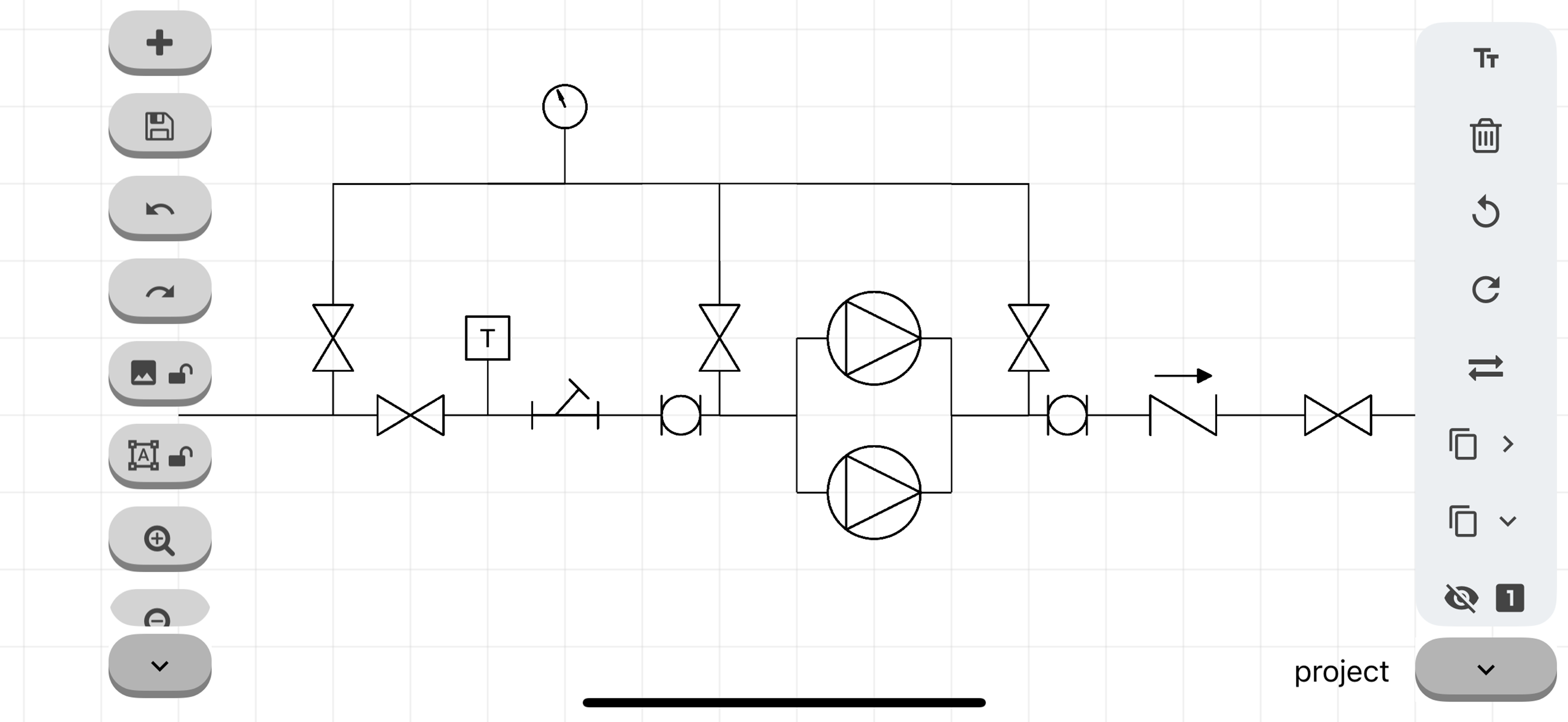

This tool will allow you to create your own hydraulic scheme (heat, cold, air conditioning) quickly and easily, you simply have to select the symbol you want to use, drag and drop it in the desired position.

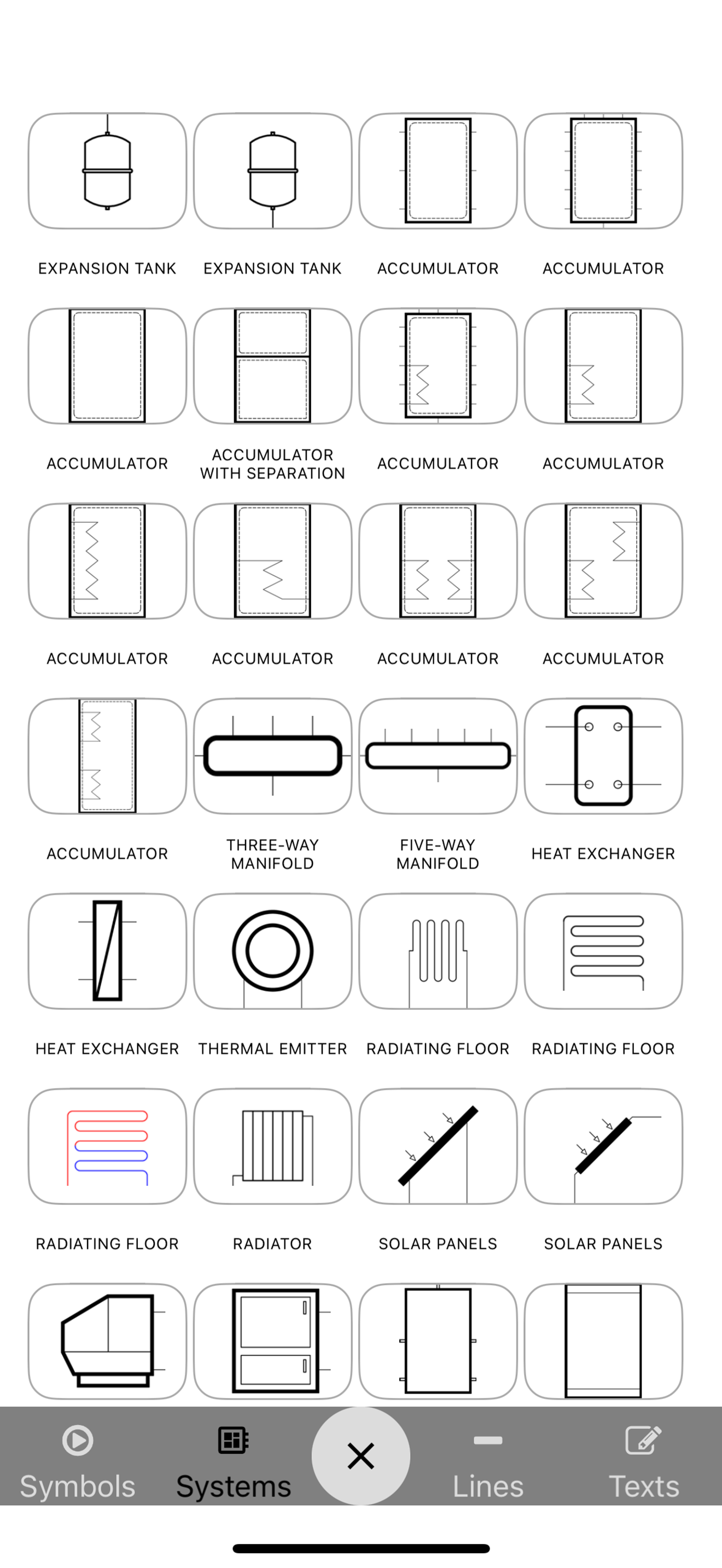

Symbols: Valves: 2, 3 and 4-way, mixing, control, balancing, butterfly, gate, safety, overflow, non-return, thermostatic, pump, flowmeter, meter, flow switch, pressure gauge, air and dirty separator, drain, temperature probe, boiler, heat pump, indoor and outdoor unit, accumulator, inter-accumulator, heat and cold exchanger, collector, thermostat, radiator, underfloor heating, pressure reducer, filter, resistor, sleeve, tap, buffer tank, gas, solar panels, coil, oven, swimming pool, emitters.

BASIC Version

• You can create your scheme with the same symbols as the Version PRO
• You can only work with a scheme although you can share it as an image, pdf or file
• Once you create a scheme you will no longer be able to open another (they are not saved)

PRO Version # (1 - In-App Purchases)

• You will be able to open, edit and save a scheme
• Open in the following examples (link)

• More examples: https://drive.google.com/drive/folders/1W6HFnDNsZAZonUlPn5tEPEnbZOuACjxN?usp=sharing
