Hydraulic ToolKit

Designing infrastructure that conveys and stores water relies on sound hydraulic calculations to determine where the flow goes, how deep it is, and how fast it’s moving for safe and efficient operations. From pipes and channels to weirs, orifices, and watersheds, engineers routinely apply hydraulic equations to size components and verify performance. Developed by Wade Trim engineers, the Hydraulic ToolKit app allows users to perform everyday hydraulic calculations anytime, anywhere.

While software and spreadsheets are typically used to perform hydraulic calculations, the process often takes place using a computer in the office. This free app is a simple and portable tool to make quick calculations more convenient. Hydraulic coefficients required to perform the calculations can also be referenced. Common uses include verifying a basic hydraulic understanding during a meeting for a school or work project, or checking performance in the field during site observation or startup.

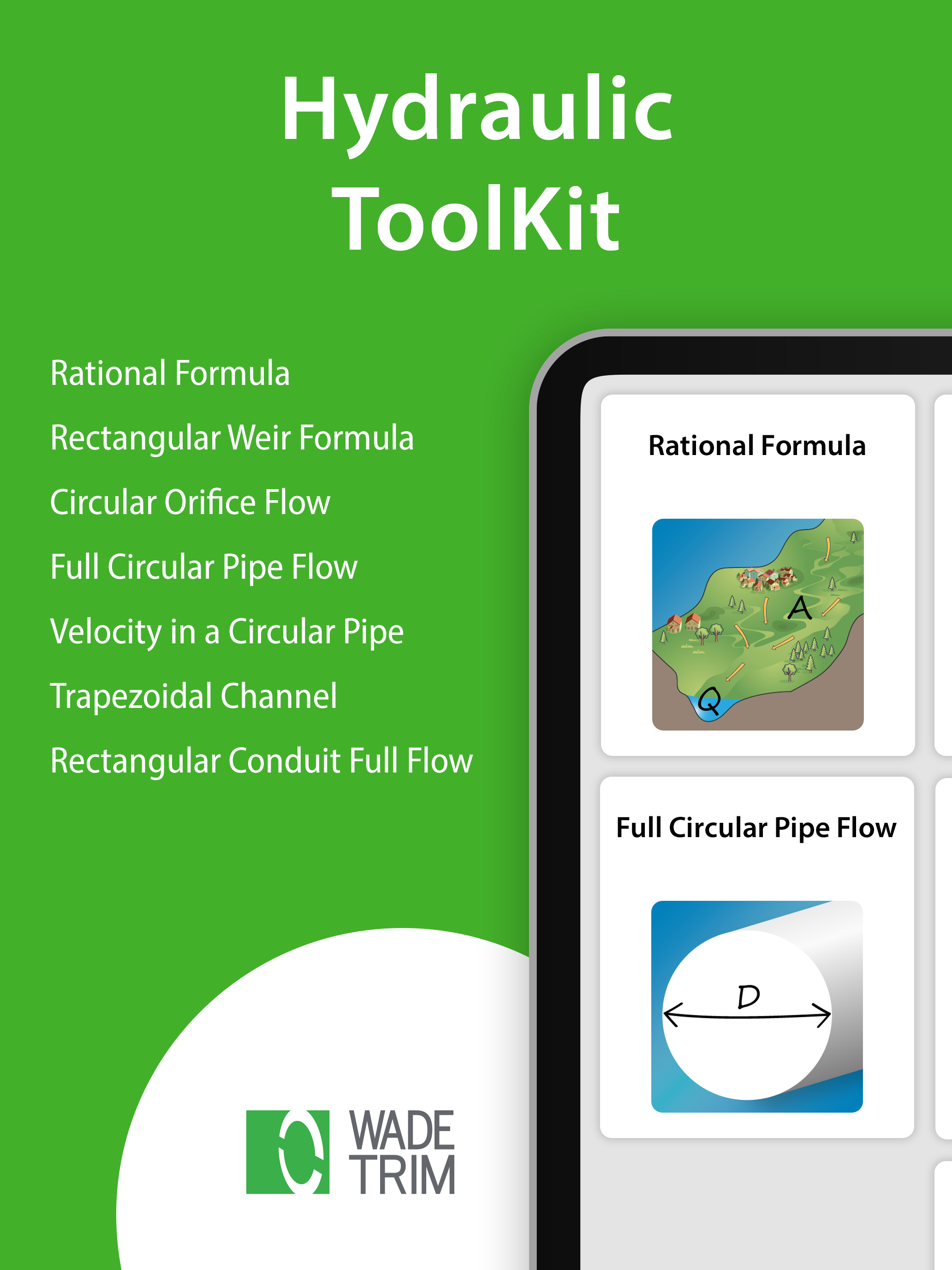

Seven hydraulic formulas (Rational Formula, Rectangular Weir Formula, Circular Orifice Flow, Full Circular Pipe Flow, Velocity in a Circular Pipe, Trapezoidal Channel, Rectangular Conduit Full Flow) can be calculated using the imperial or metric system. The Hydraulic ToolKit app is intended for quick and basic calculation checks that do not replace detailed design analyses.
