VAG Virtual Cockpit ELM327 OBD

Diagnostic of engine TSI/TFSI/FSI/MPI, turbine, transmissions DSG7/6, AWD.

The VAG Virtual Cockpit shows important diagnostic parameters of your car. You only need an ELM327 adapter.

Version 3.3 shows the next parameters.

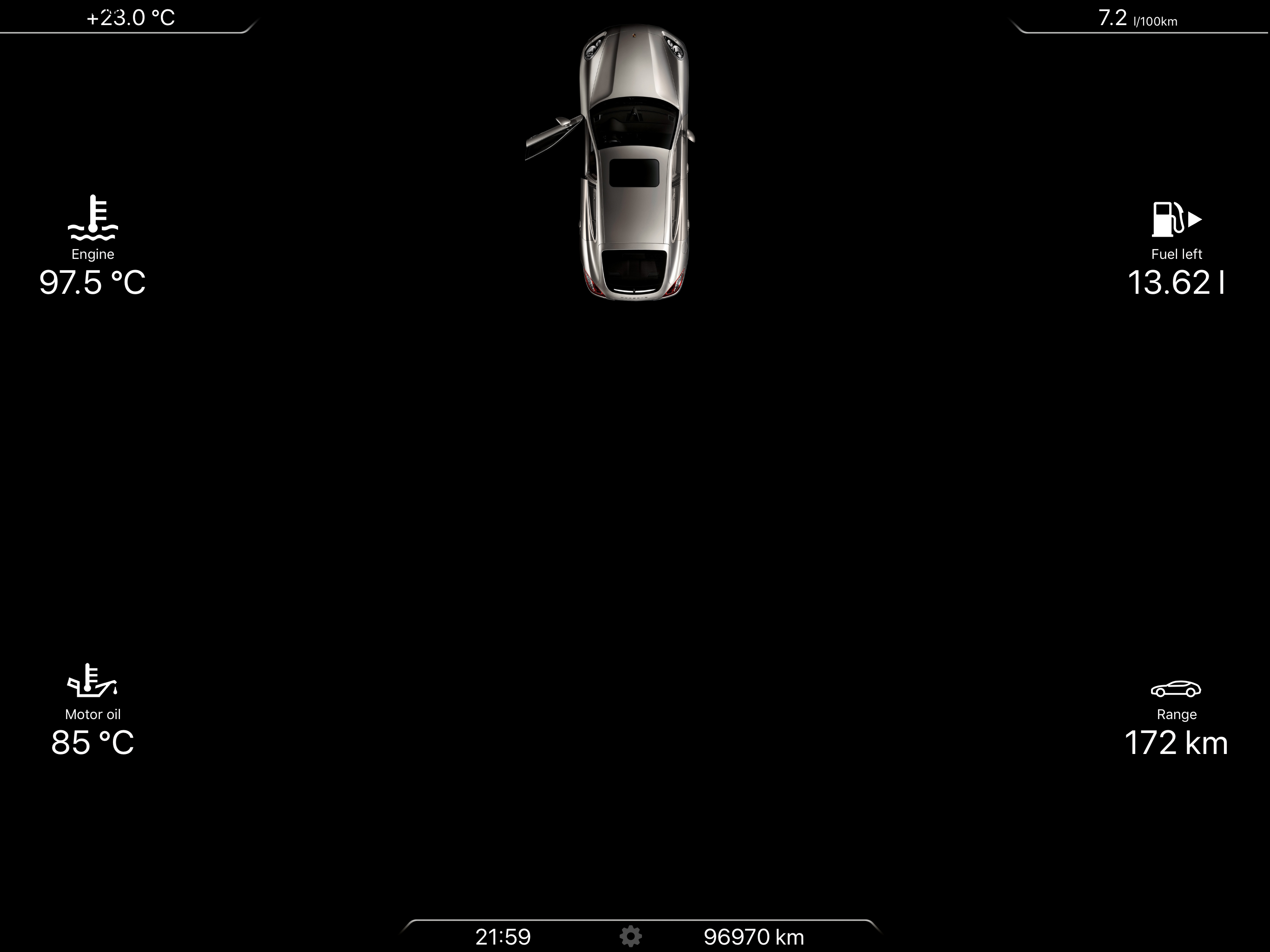

Virtual Cockpit

1. Opened doors
2. Speed
3. RPM
4. Oil temperature
5. Coolant temperature
6. Fuel in the tank in litres
7. Range in kilometers
8. Average consumption
9. Time in the machine
10. Odometer
11. Outside temperature
12. Voltage

Engine control unit

1. RPM
2. Mass Air Flow Sensor (G70)
3. Intake Air Temperature (G42)
4. Exhaust Temperature Projection
5. Oil Warning Threshold
6. Oil Level
7. Boost Specified
8. Boost Actual
9. Misfire Counter
10. Ignition Angle Delay
11. Oil temperature
12. Valve N75

Transmission control unit

1. ATF Temperature (G93) - AISIN
2. Temperature Transmission Fluid (G93) - DSG6
3. Temperature Control Module (G510) - DSG6
4. Temperature Clutch Oil (G509) - DSG6
5. Temperature Control Device (G510) - DSG7
6. Temperature Microprocessor - DSG7
7. Clutch Temperature - DSG7

Battery control unit

1. Battery voltage
2. Battery current
3. Battery temperature
4. Battery state
5. Battery aging
6. Internal battery resistance
7. Alternator current
8. Alternator power

AWD unit

Haldex 3/4

1. Oil temperature
2. Oil pressure
3. Torque
4. Pump current
5. Supply voltage (Terminal 30)

Haldex 5

1. Oil temperature
2. Pump current
3. Supply voltage (Terminal 30)
4. Pump voltage
5. PWM signal of pump
6. Temperature of the control unit
7. Temperature of friction discs

Long hold of the TRIP switch changes the view style of the parameters.

Supported next ELM327 adapters:

• Viecar BLE 4.0
• Konnwei BLE 4.0
• Vgate vLinker MC+
• OBDLink MX+

The application has been tested with Skoda Octavia A5 2011 release. Partially or fully supported by other auto brands of the VAG group: Volkswagen Skoda Seat Audi Porsche

If the parameters are not displayed correctly or not completely, please contact with me by Email: vagvirtualcockpit@ya.ru.
