Fittings App ANSI

Nominal diameter NPS 1" - 40" / DN 25 - 1000 American Standard ASME B36.10

Functions:

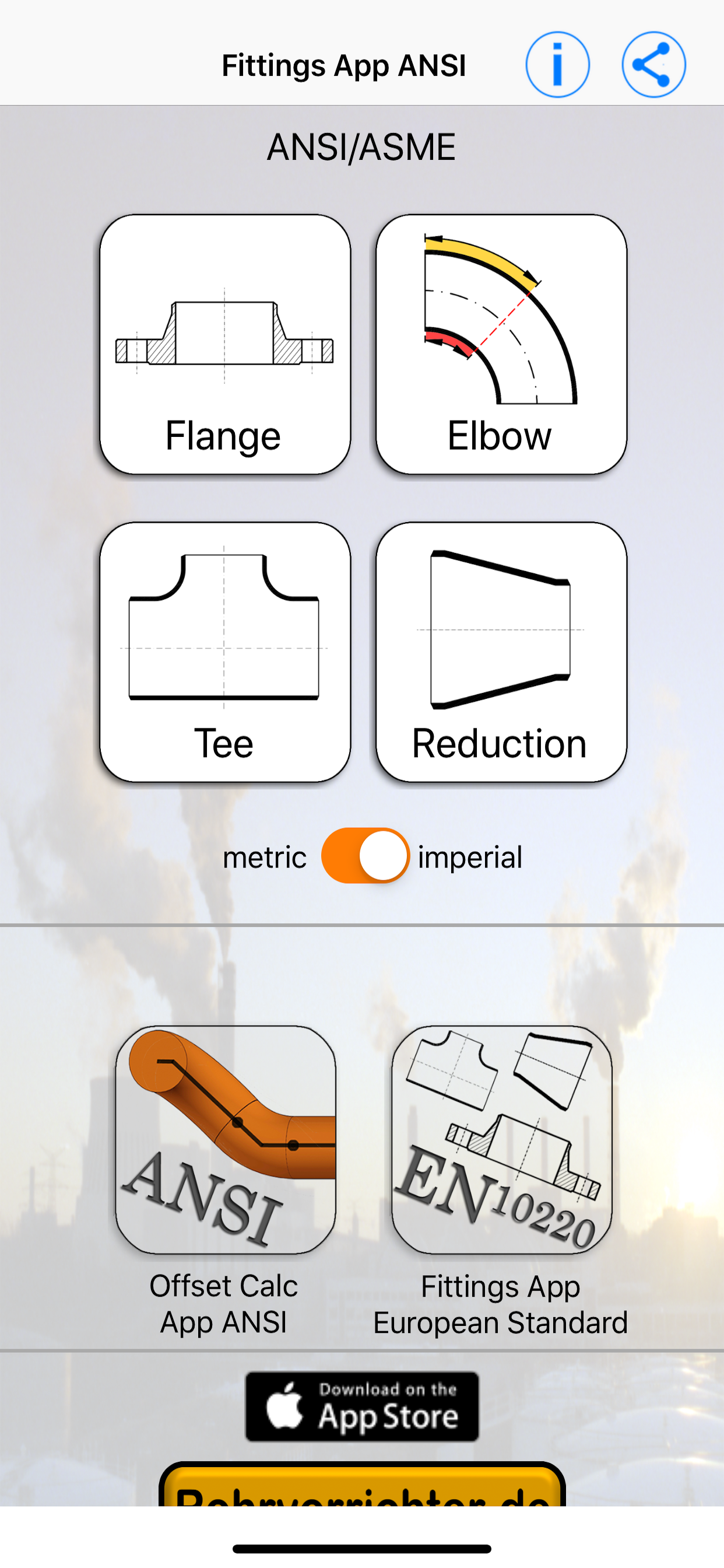

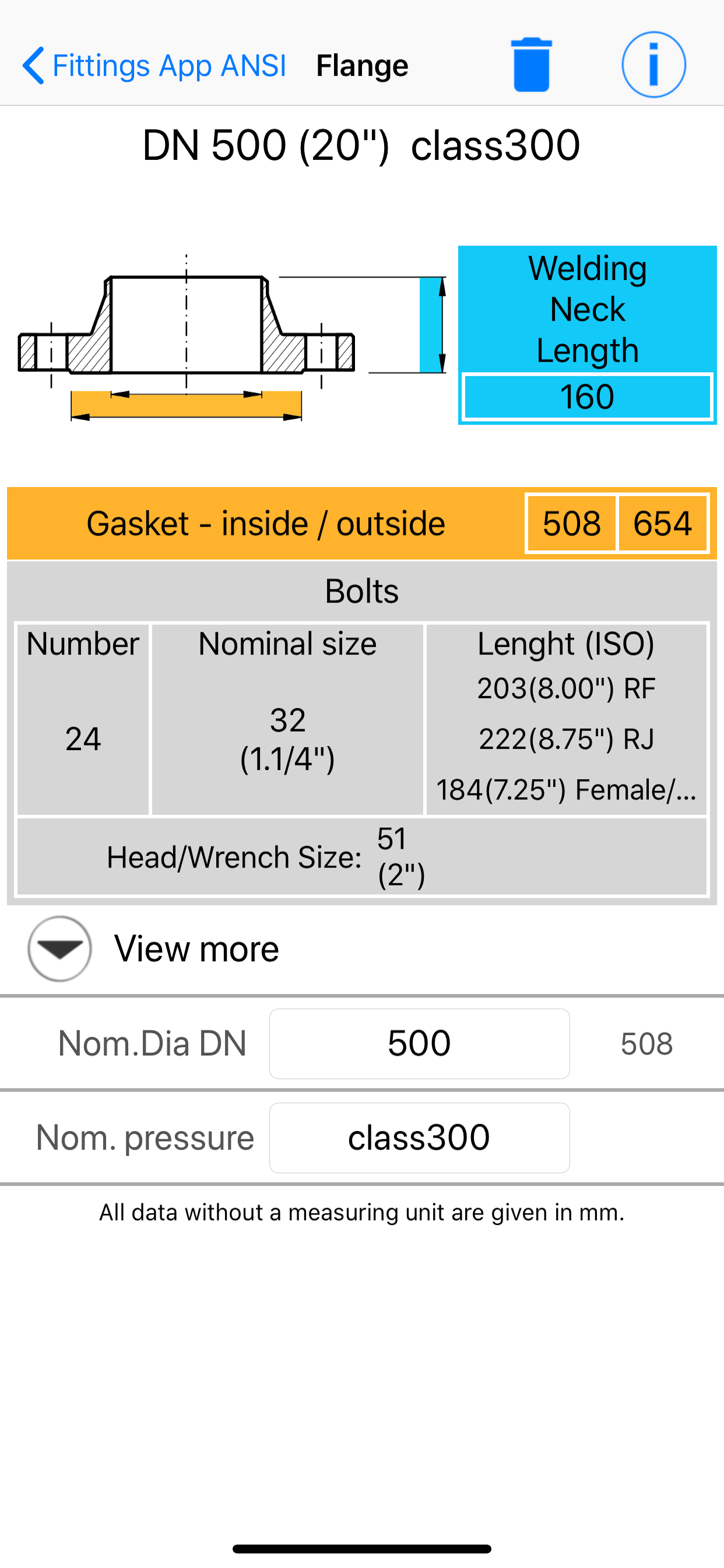

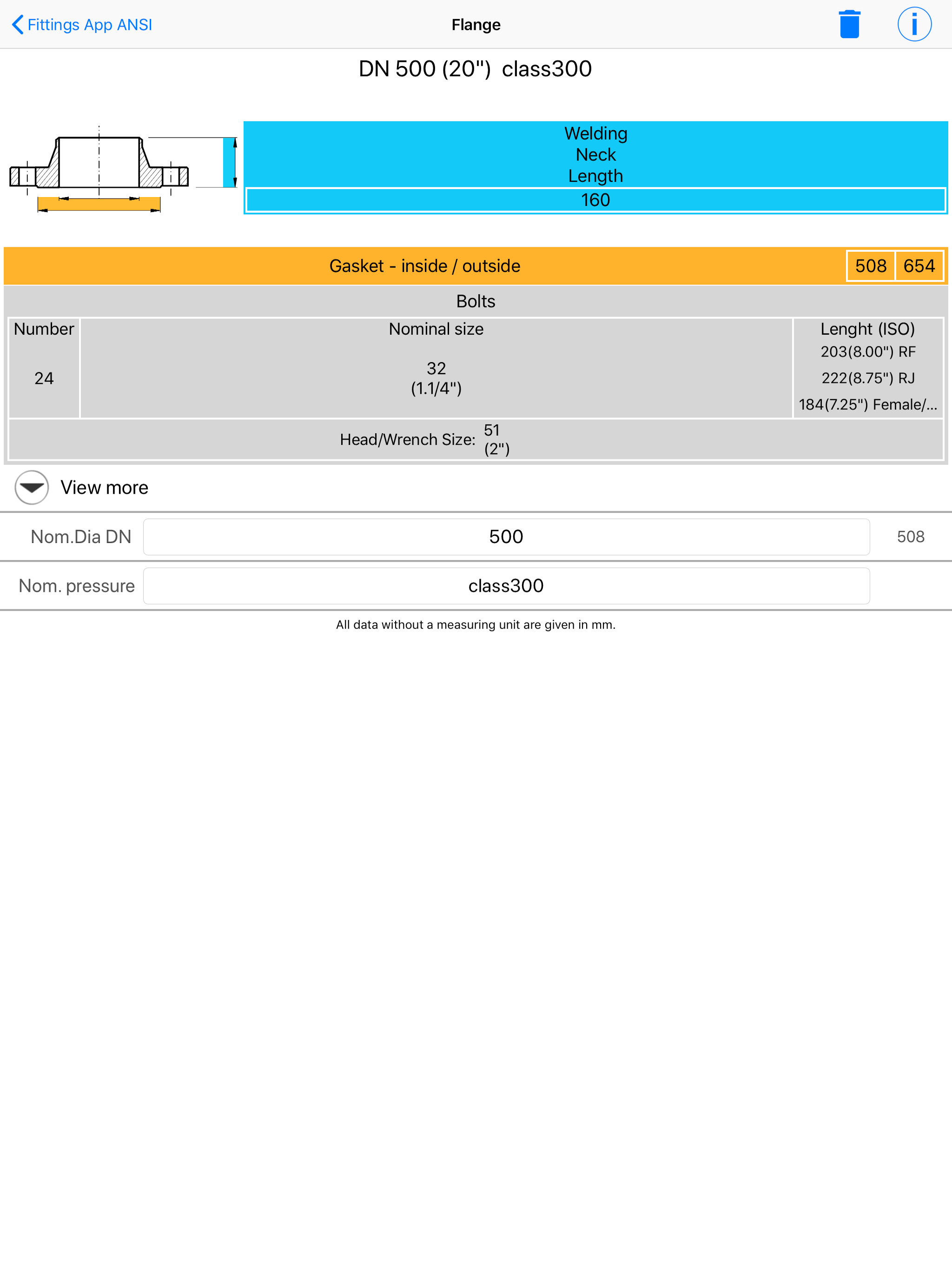

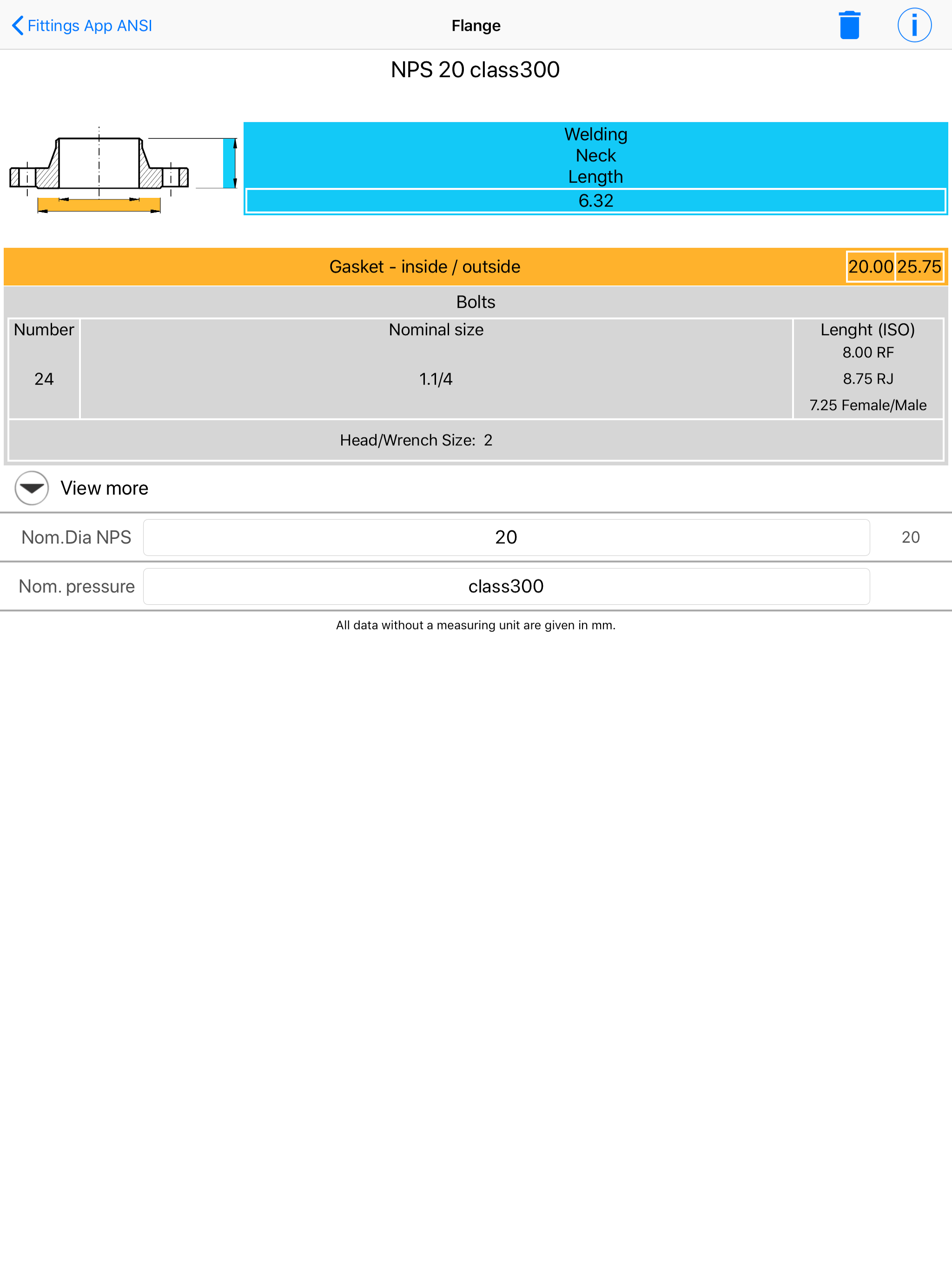

• Measure of flange class 150-900: ANSI/ASME B16.5/B16.47(A)

• welding neck lenght,

• gasket measure inside/outside,

• hex bolts, number, nominal size, lenght(RF, RJ, masch.),

• bolt circle,

• flange outside diameter,

• flange thickness,

• hex nuts thickness.

• measurements of the elbow with 2 types or manual input: ANSI/ASME B16.9

• elbow radius ,

• calculate the cutting mesurements of the elbow,

• take off, chord,

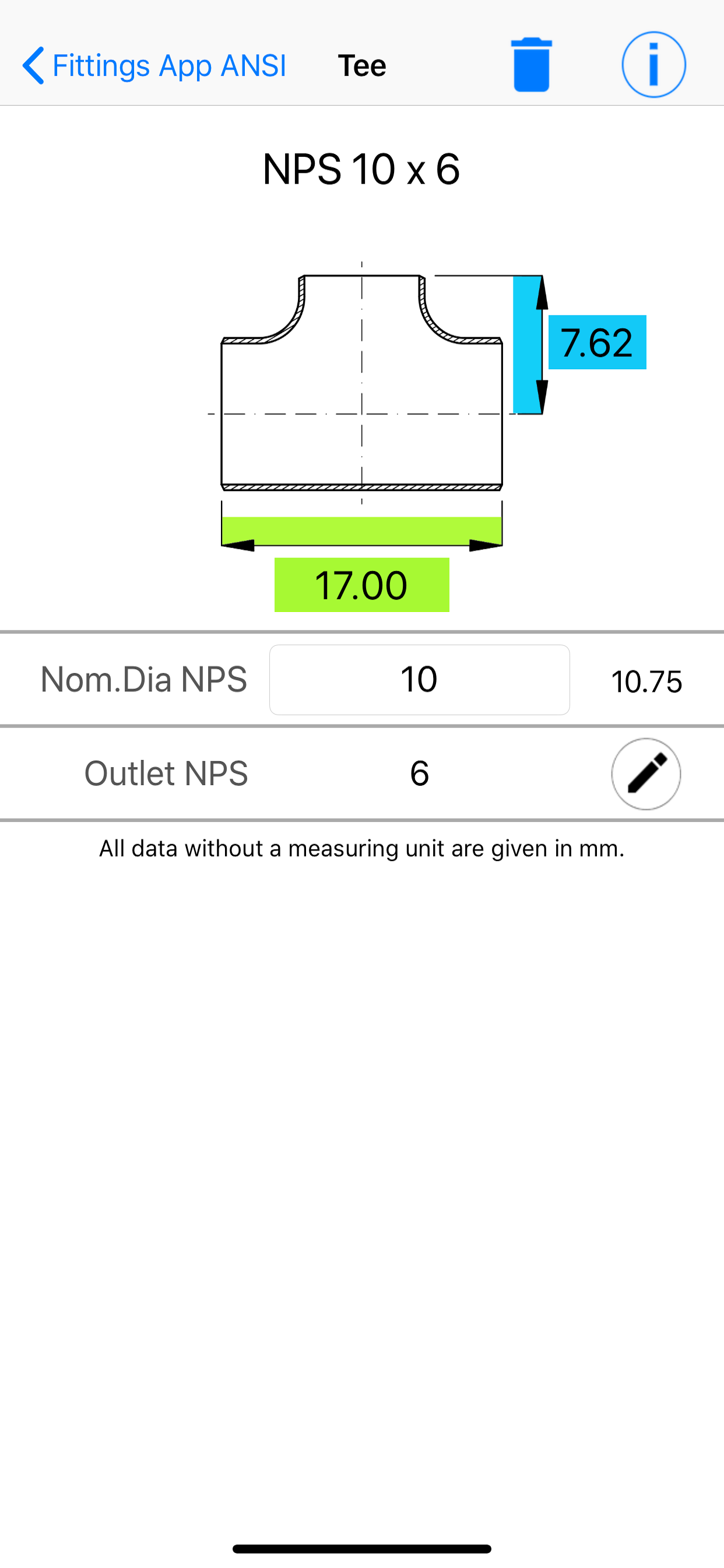

• tee with different outlet diameter,

• reduction.

-Extensive help and explanations
