Pipe Data

Pipe data provides quick and convenient access to comprehensive dimensional, weight, and piping design data for 72 common ASME piping components.

Pipe data provides quick and convenient access to comprehensive dimensional, weight, and piping design data for 72 common ASME piping components. Known for its accuracy and up-to-date information since its inception in 1996, Pipedata has become a trusted resource for individuals and corporations worldwide.

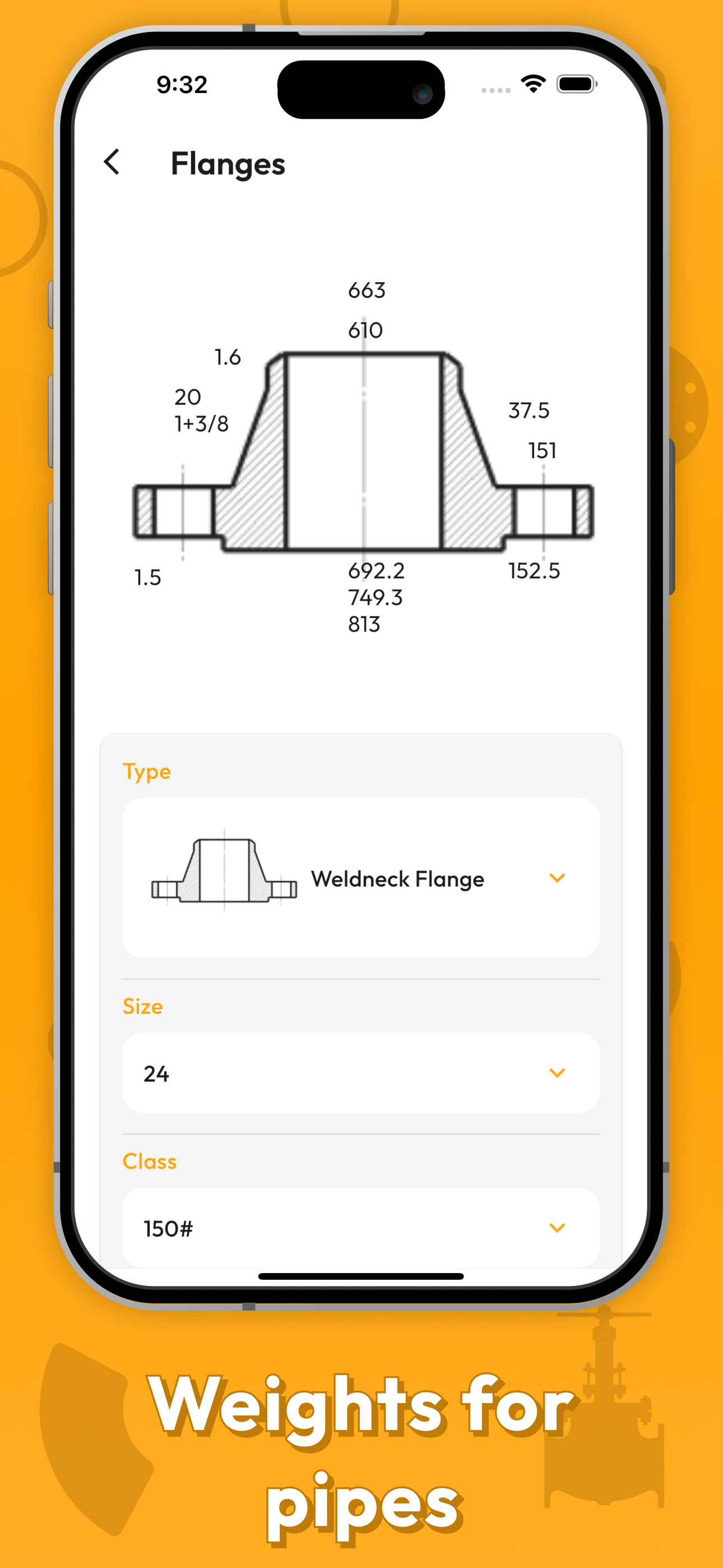

It offers detailed specifications based on the latest ASME standards, covering Metric, U.S. Customary Units, and Inch Fractions for NPS and DN pipe sizes. The platform includes weights for pipes, valves, flanges, and other piping components, ensuring a complete resource for engineering needs.

Key Features:

Extensive ASME specifications, including pipe dimensions (ASME B36.10M/19M-2004), flanges (ASME B16.5-2013), and fittings (ASME B16.9-2007).

Supports welded, threaded, and socket-welded fittings.

Provides detailed valve dimensions and weights (e.g., gate, globe, butterfly, check, and control valves).

Incorporates non-metallic rings, spiral wound gaskets, and RTJ rings for various flange types.

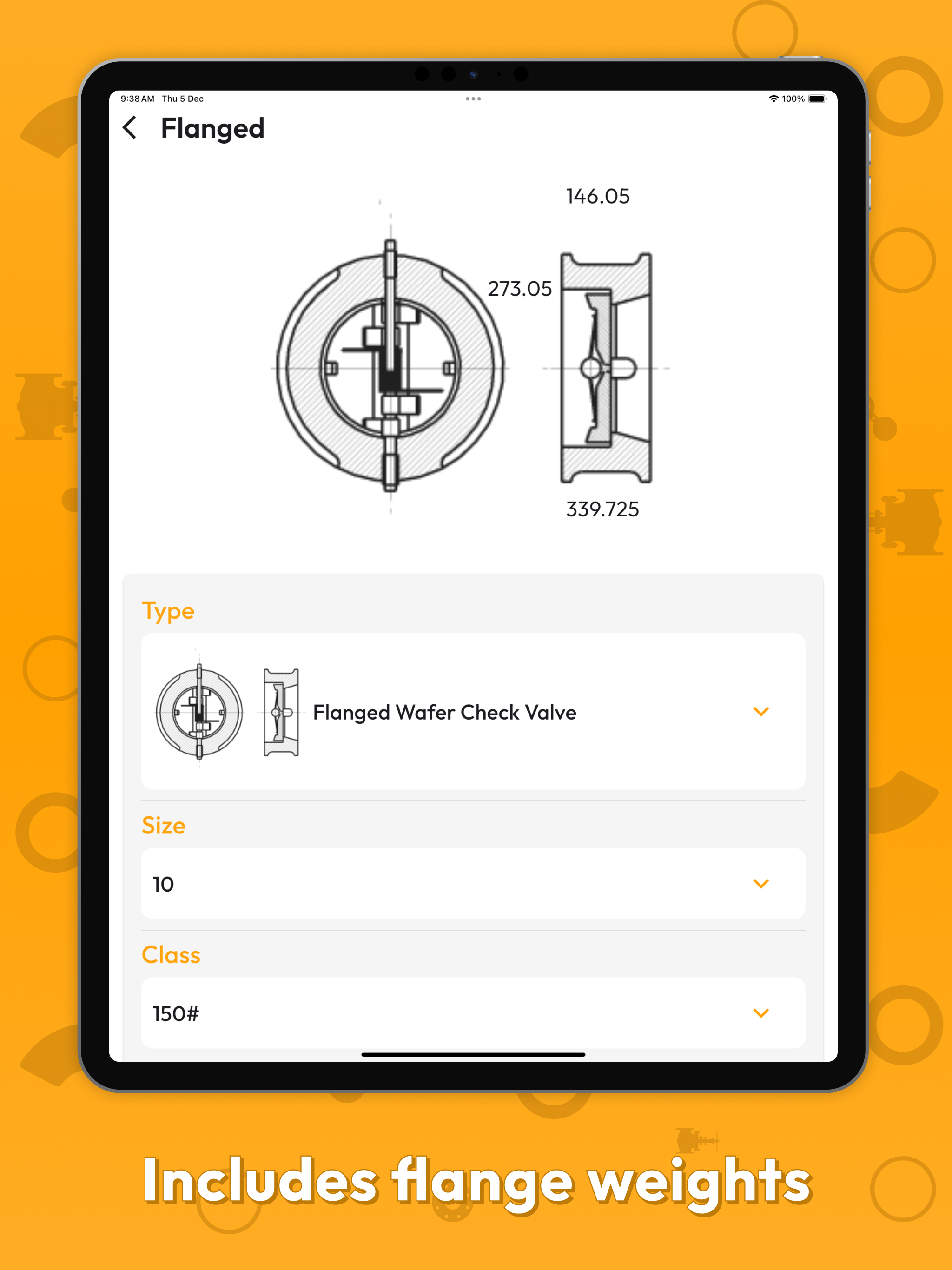

Includes flange weights, pipe weights, and detailed valve dimensions for multiple configurations.

Pipedata is an essential tool for professionals in the piping industry, combining accuracy, efficiency, and versatility in one intuitive interface.
