Wiring Harnesser

Whether making a project car wiring harness or documenting an electrical closet, Wiring Harnesser is a must-have app for the 21st century technician. When you're elbow-deep in wires, and you just want to know, "What wires go to this connector?", don’t fight with expensive tools or cryptic diagrams: Wiring Harnesser is in your pocket to help. It’s a powerfully simple wiring diagram replacement or supplement that can be used from anywhere in the shop or the field, rather than just at a PC. It includes:

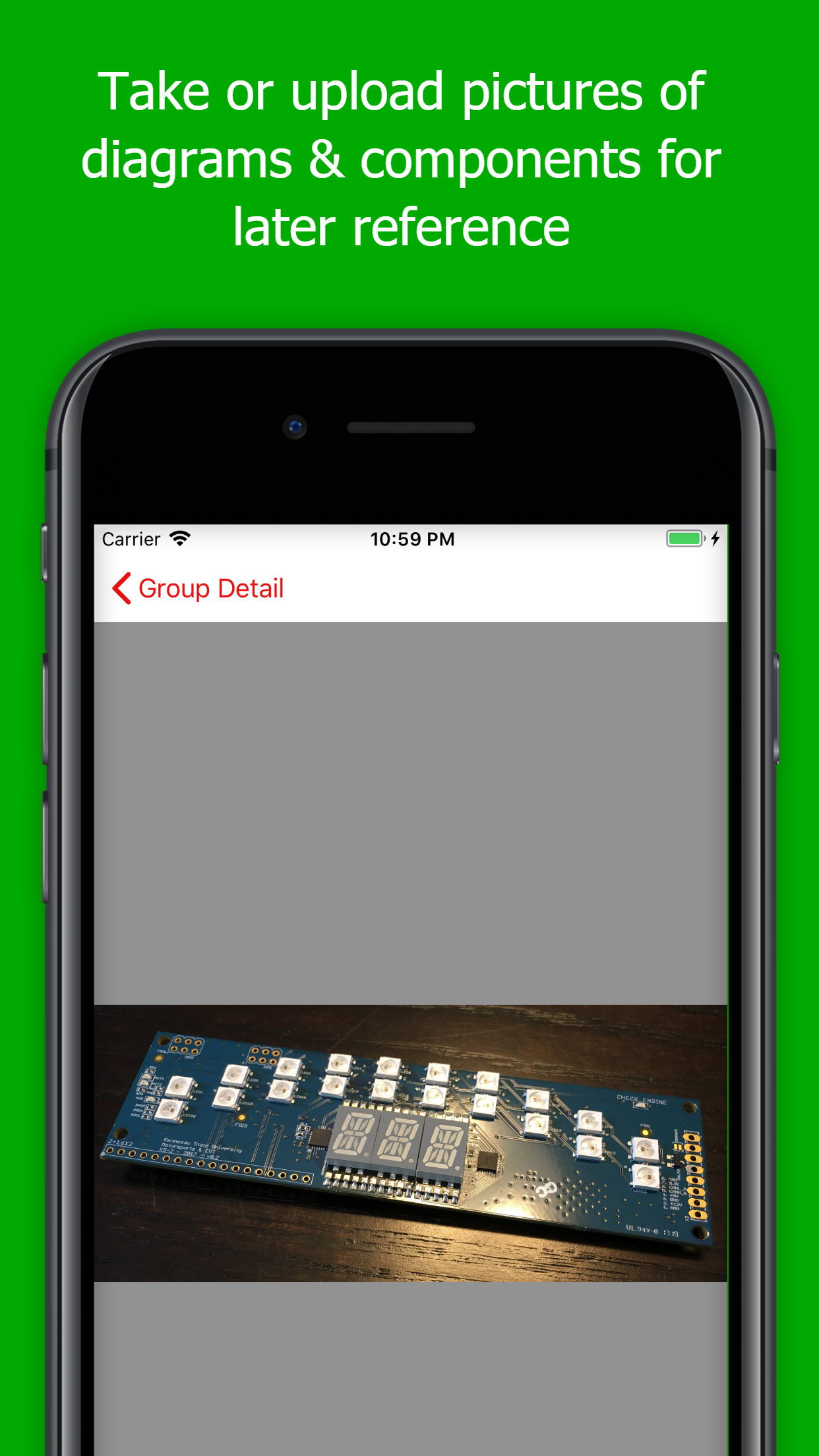

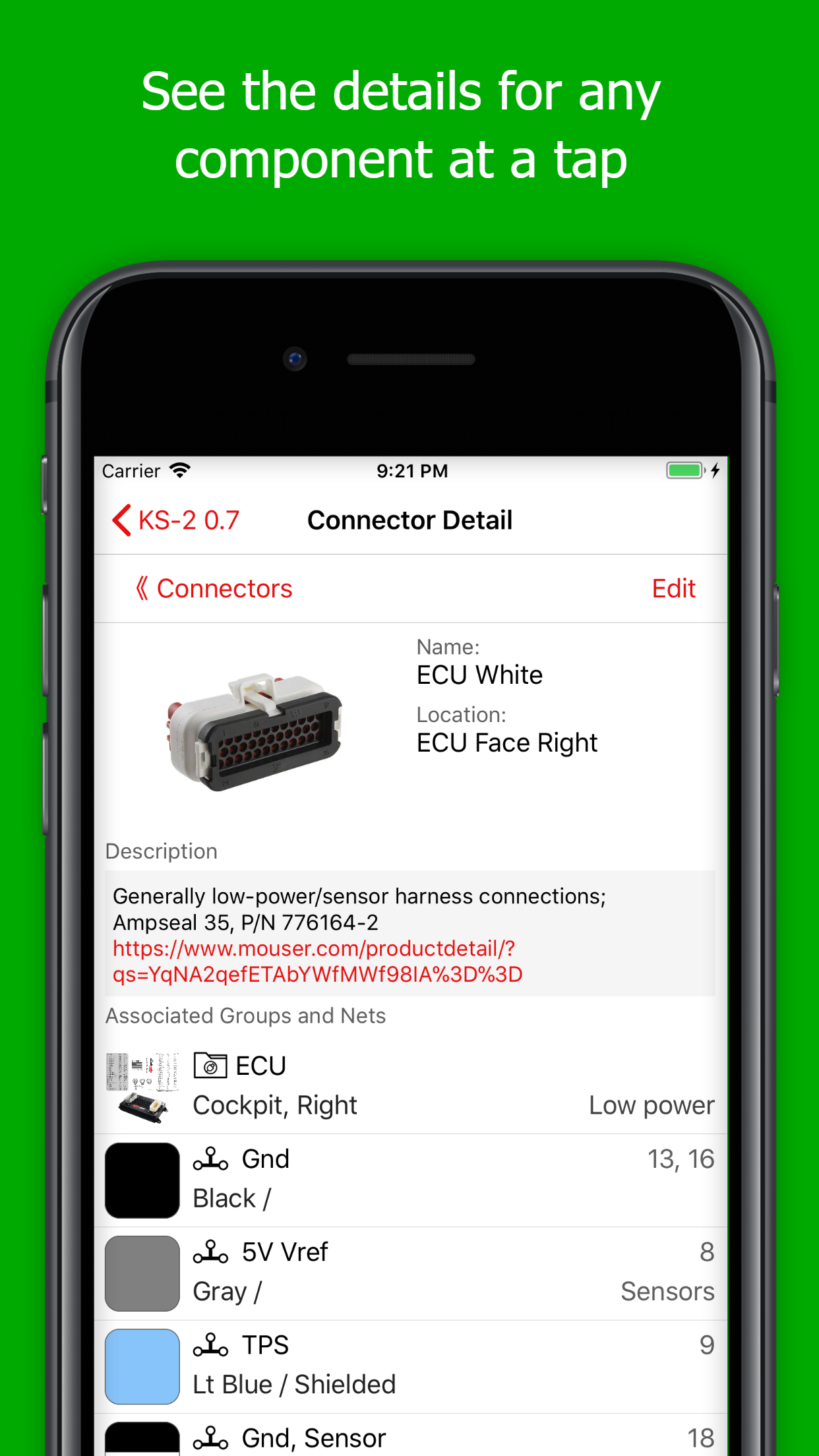

• Tools to input Groups, Connectors, and Nets to document how everything is connected (you can think of Nets as either one wire or a set of electrically common wires): ◦ The ability to ‘associate’ Connectors into Groups, and Connectors with Nets. ◦ A detail page for each type, allowing you to see what each pin of a connector does at a glance, or see which connectors go with which groups, or which exact pin that sensor wire goes to. ◦ Tap to navigate between associated detail pages, allowing you to follow the logical connections through a harness. • Upload renderings or existing wiring diagrams, or take your own pictures of connectors or groups. When you need to reference something in the image, such as embossed pin numbers on a connector, you can tap to open the picture and zoom in to see the details. • Wire gauge equivalency calculation, between mm2, AWG, and circular mils. Input any of them to see the other two. • Harness file importing and exporting including via AirDrop, Email, or cloud file sharing apps.
