BimmerWire

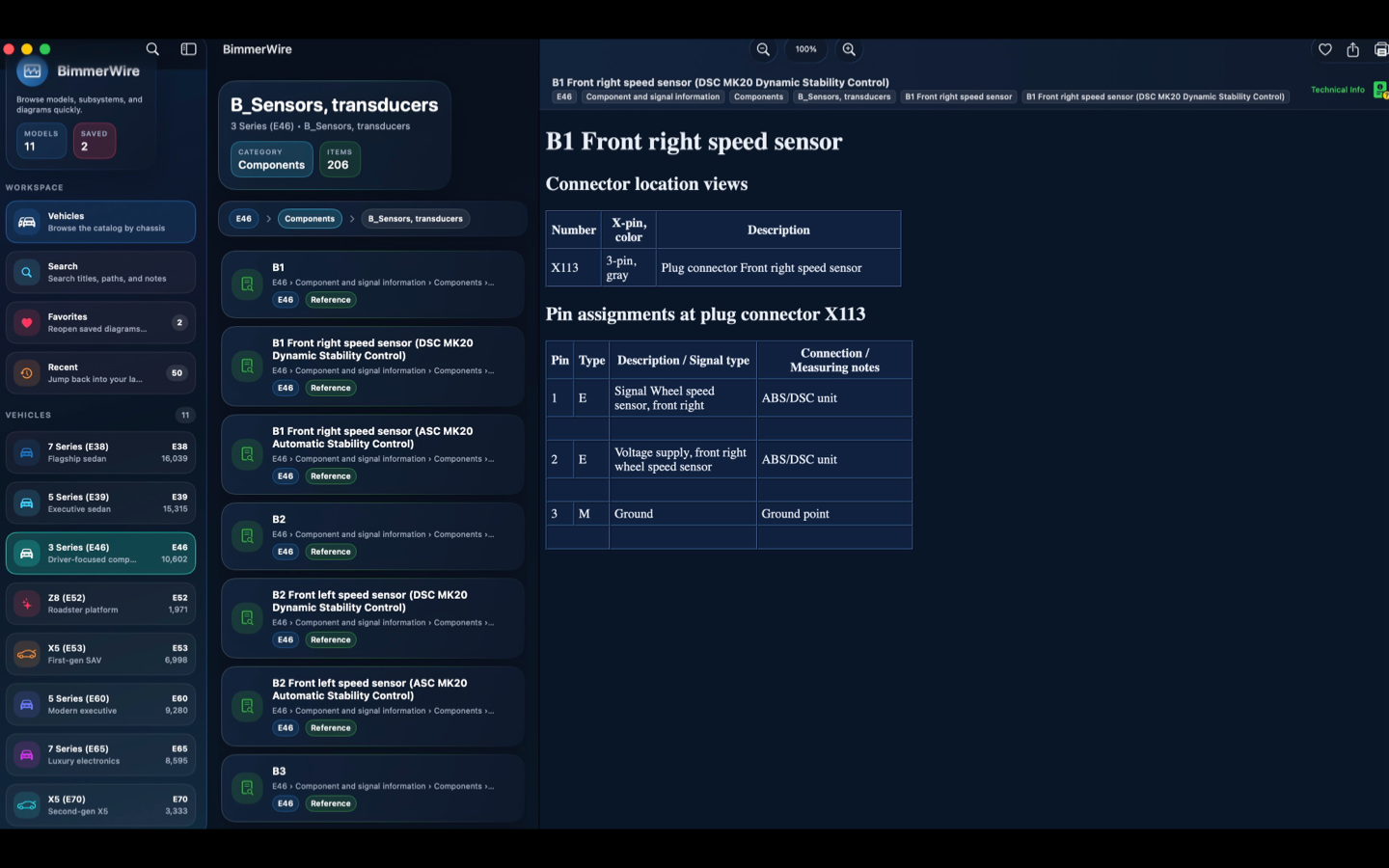

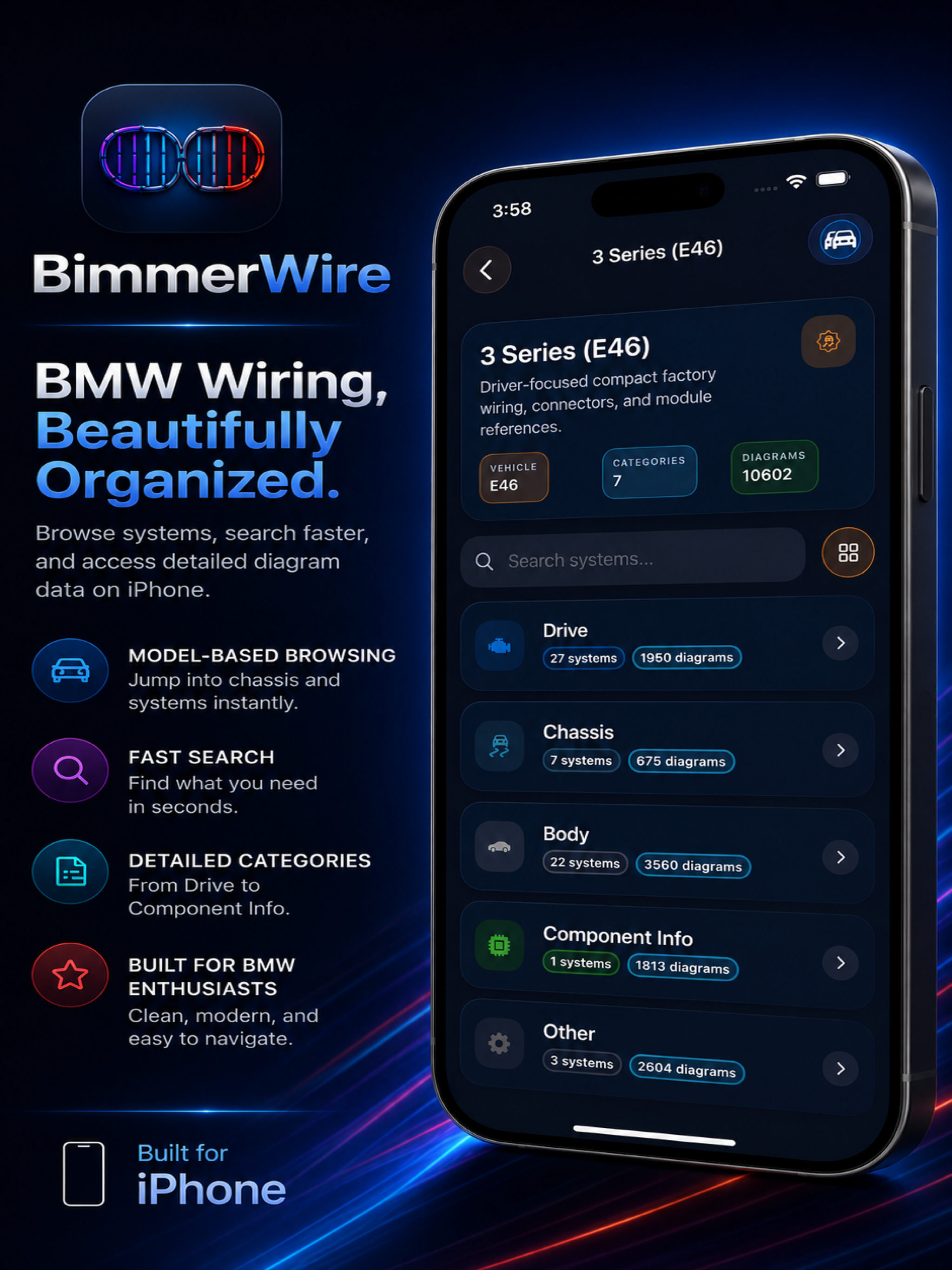

BMW Wiring Diagrams have come to iOS, macOS & visionOS. Categorized by vehicle, components, and subcomponents. Information + Diagrams. Perfect for DIYers and mechanics.

Repair and diagnose electrical components right from your pocket. Features complete diagrams for supported vehicles.

Supported Chassis: • 3-Series: E46, E90 • 5-Series: E39, E60 • 7-Series: E38, E65 • X-Series: E53 (X5), E70 (X5), E83 (X3) • Z-Series: E52 (Z8), E85 (Z4) • 1-Series: E87 • MINI: R50

Note: Other vehicles are not currently supported.

Disclaimer: This app is intended for educational purposes only. Always consult with the Original Equipment Manufacturer's (OEM) repair and diagnostics software or instruction manuals. This app is not affiliated with Bayerische Motoren Werke Aktiengesellschaft, BMW AG, BMW Group, or Bavarian Motor Works.

For official software, documentation, and diagrams for all vehicles, visit: • North America: https://bmwtechinfo.bmwgroup.com • International: https://aos.bmwgroup.com
