CombiTac Configurator

Modular connector system CombiTac
Our modular connector system allows the individual combination of various contact types such as power, signal, data, thermocouple, coaxial, fiber optic, pneumatic, hydraulic and bus connections in a compact frame or housing. Electrical contacts are equipped with our proven MULTILAM Technology, and are available with crimp, screw or flow-solder termination. The connectors are suited for a broad range of applications including module technology, telecommunications, computer technology and machine control systems. CombiTac connectors are 100% customizable and feature highest reliability.

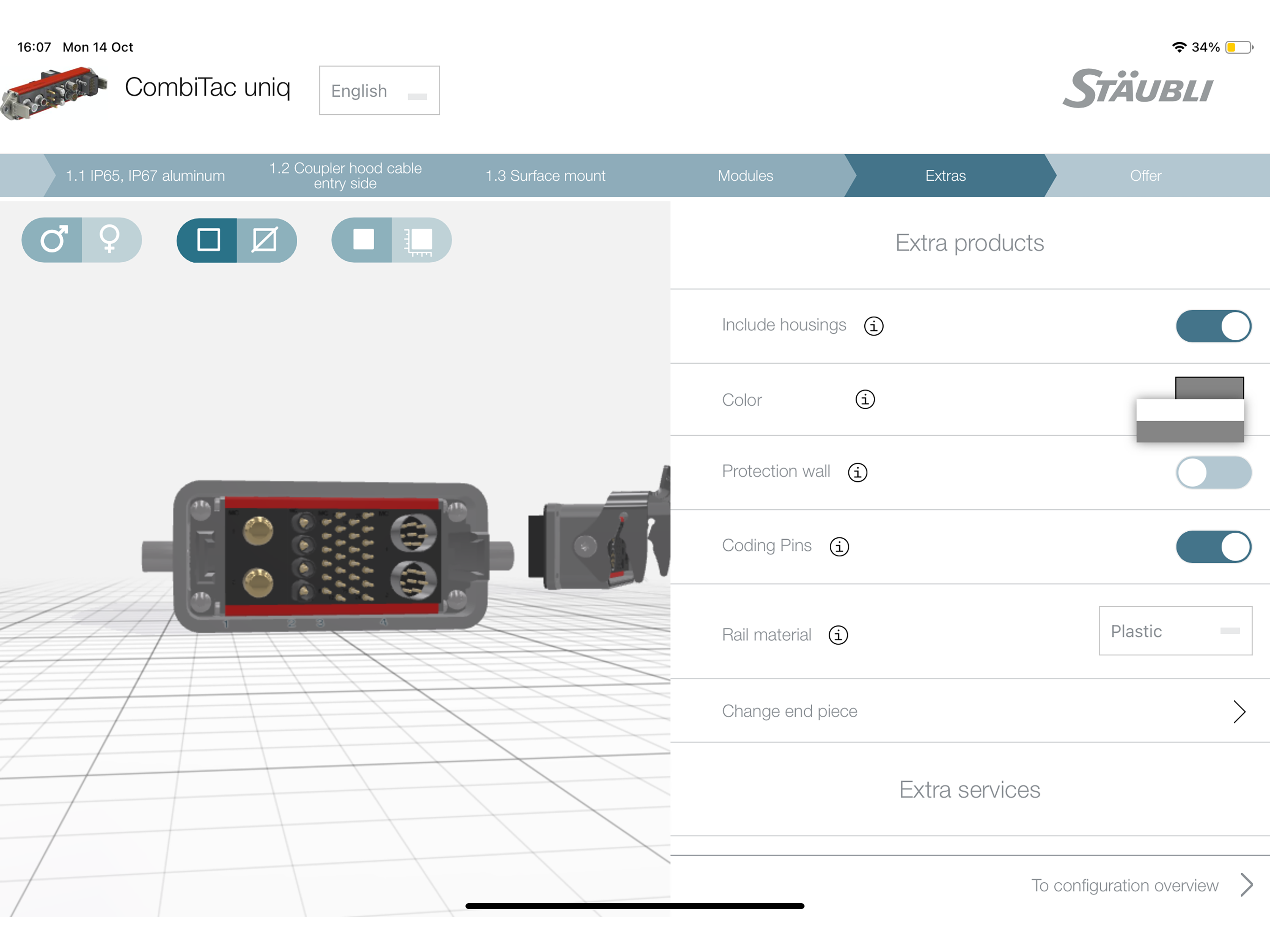

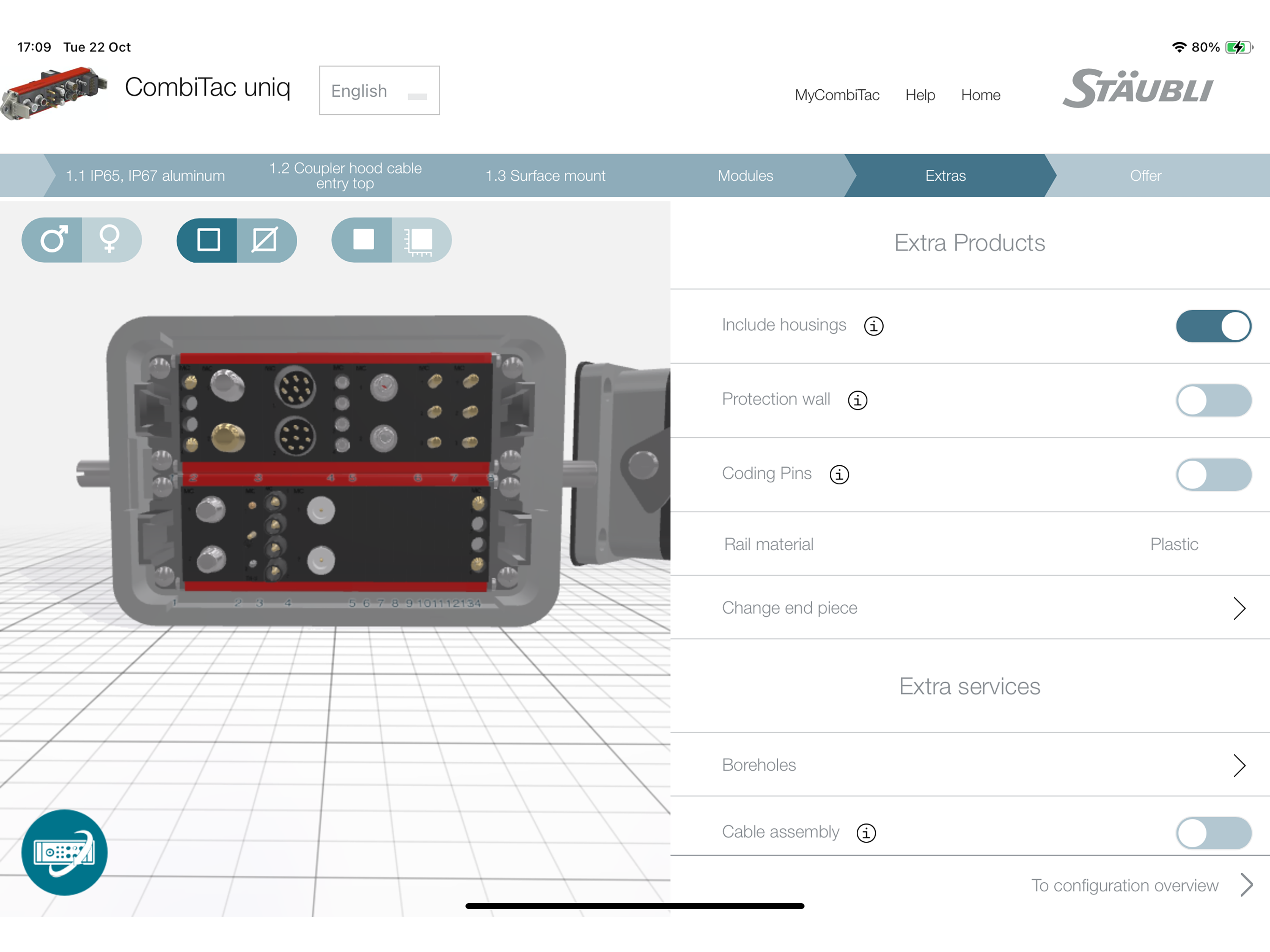

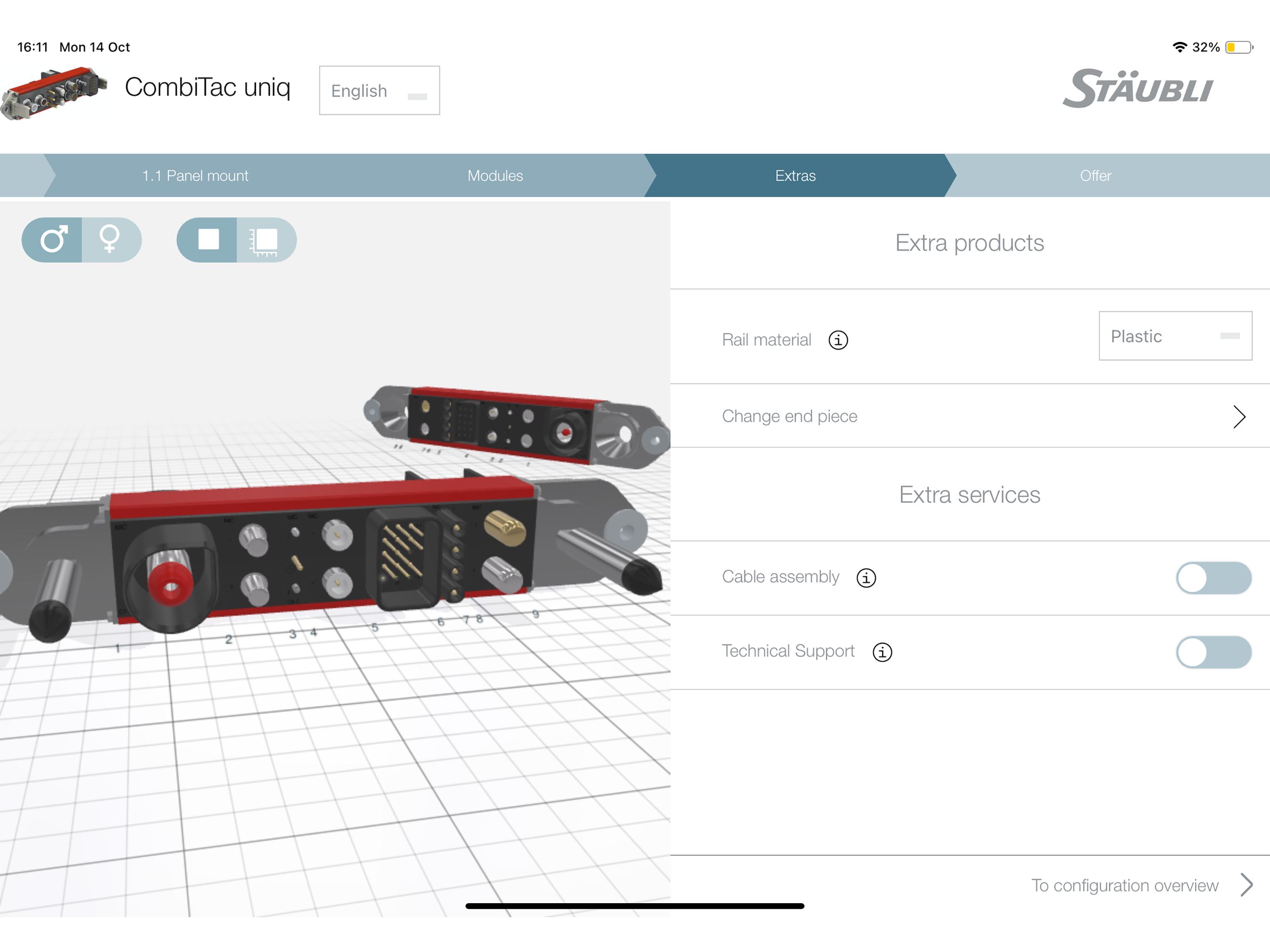

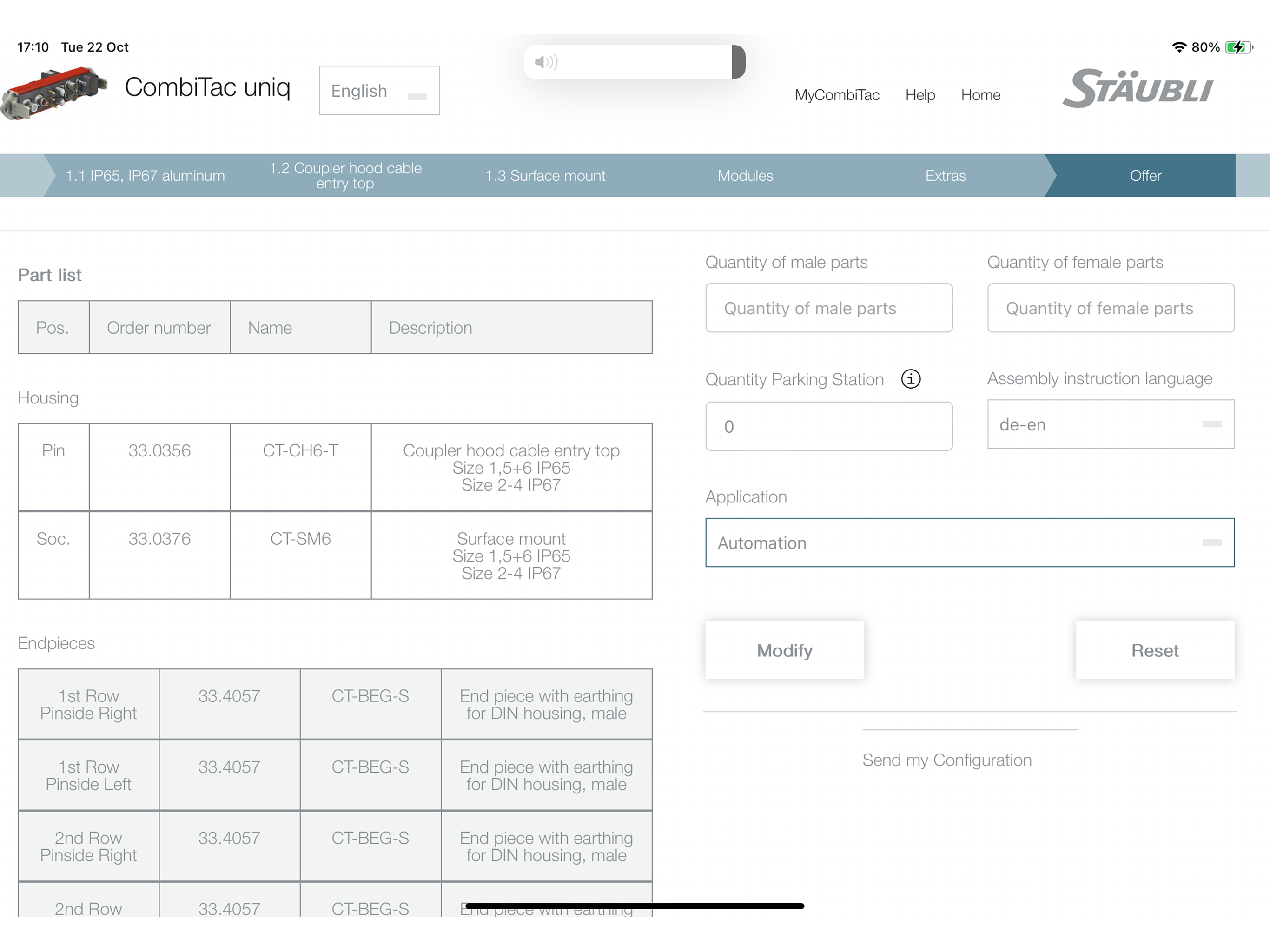

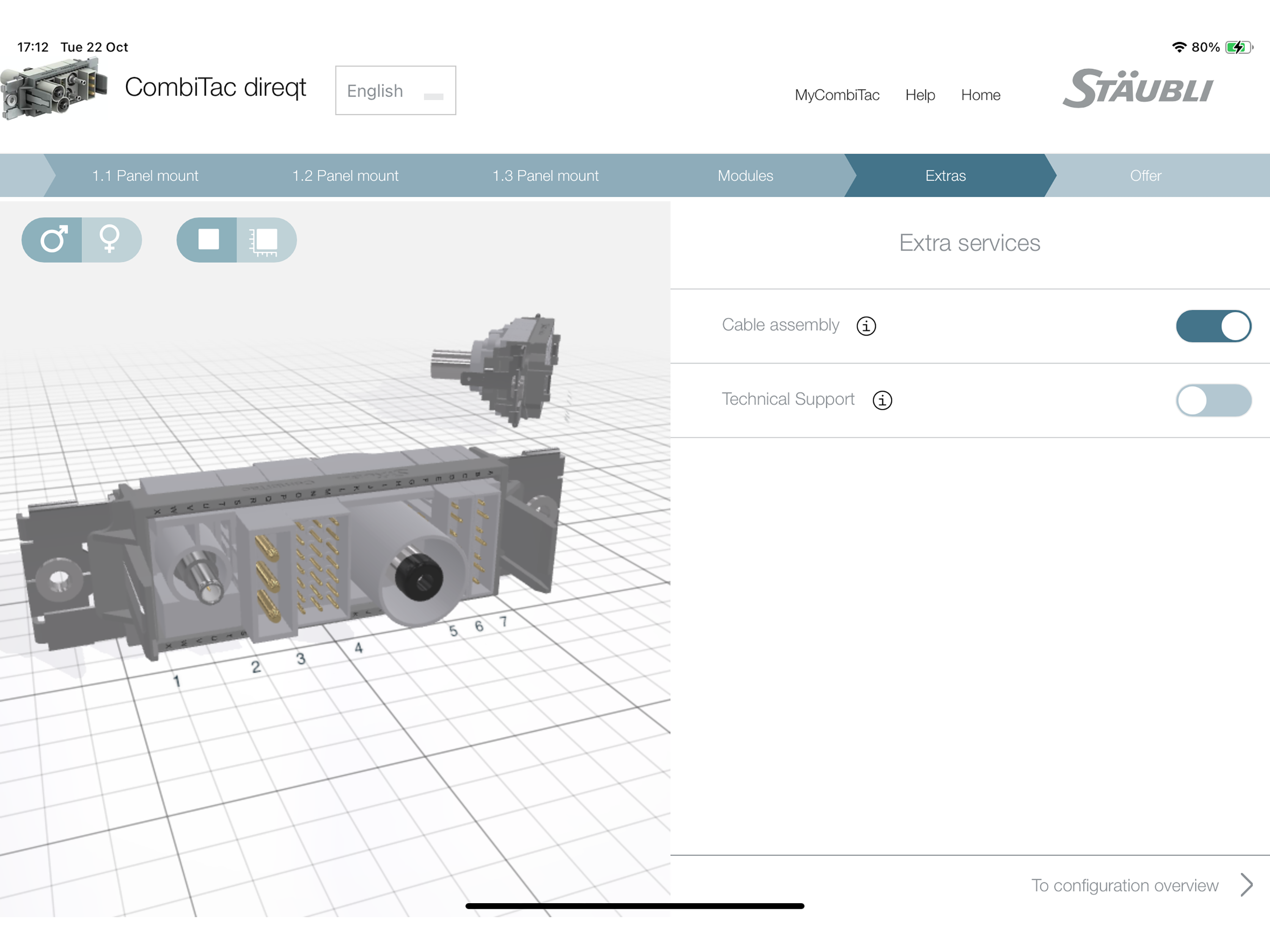

CombiTac Configurator for mobile devices • "Easy-to-use" function (intuitive configuration without catalog) • Component selection in a manageable cluster • All relevant data can be called up at any time (for example with Tooltip) • Drag-and-drop function • Realistic 3D preview • Easy and fast zoom and rotate function • Ongoing monitoring is possible, accessible space requirements • Transparent view (housing) enables easy monitoring of the cable connections • 3D step data files and parts lists
