Bring 3D BIM & CAD models directly onto your construction site in AR. Auto-align in seconds with Alignment Targets, inspect with LiDAR, and measure in 3D.

OnsiteBIM: AR Field Instrument for Architecture, Engineering & Construction (AEC)

OnsiteBIM transforms your iOS device into a sub-centimeter Augmented Reality (AR) field instrument. Overlay 3D BIM blueprints and CAD models (IFC, GLB, GLTF, USDZ, OBJ, STL) directly onto physical job sites with 6-DOF Alignment Target auto-alignment, LiDAR wall occlusion, 3D tape measurement, and 100% offline capability.

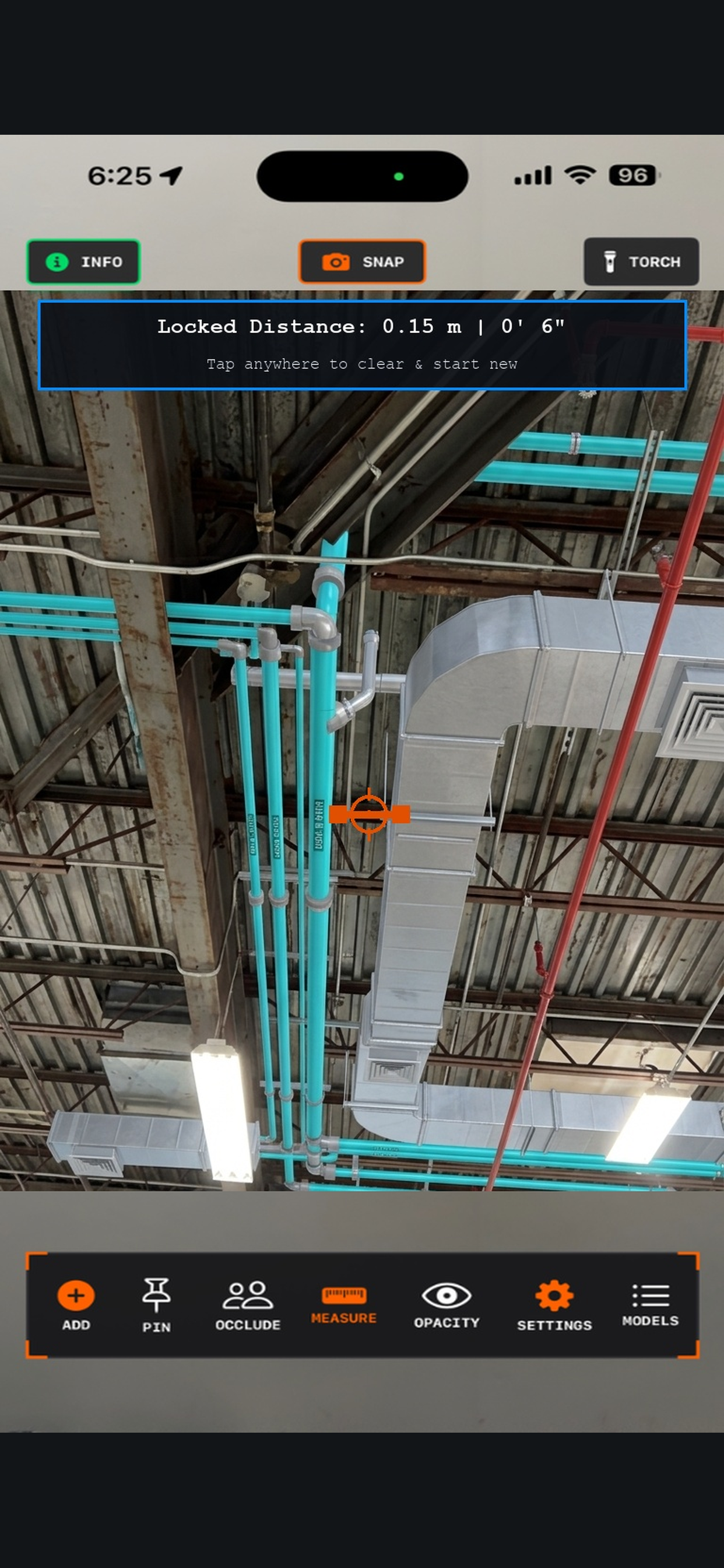

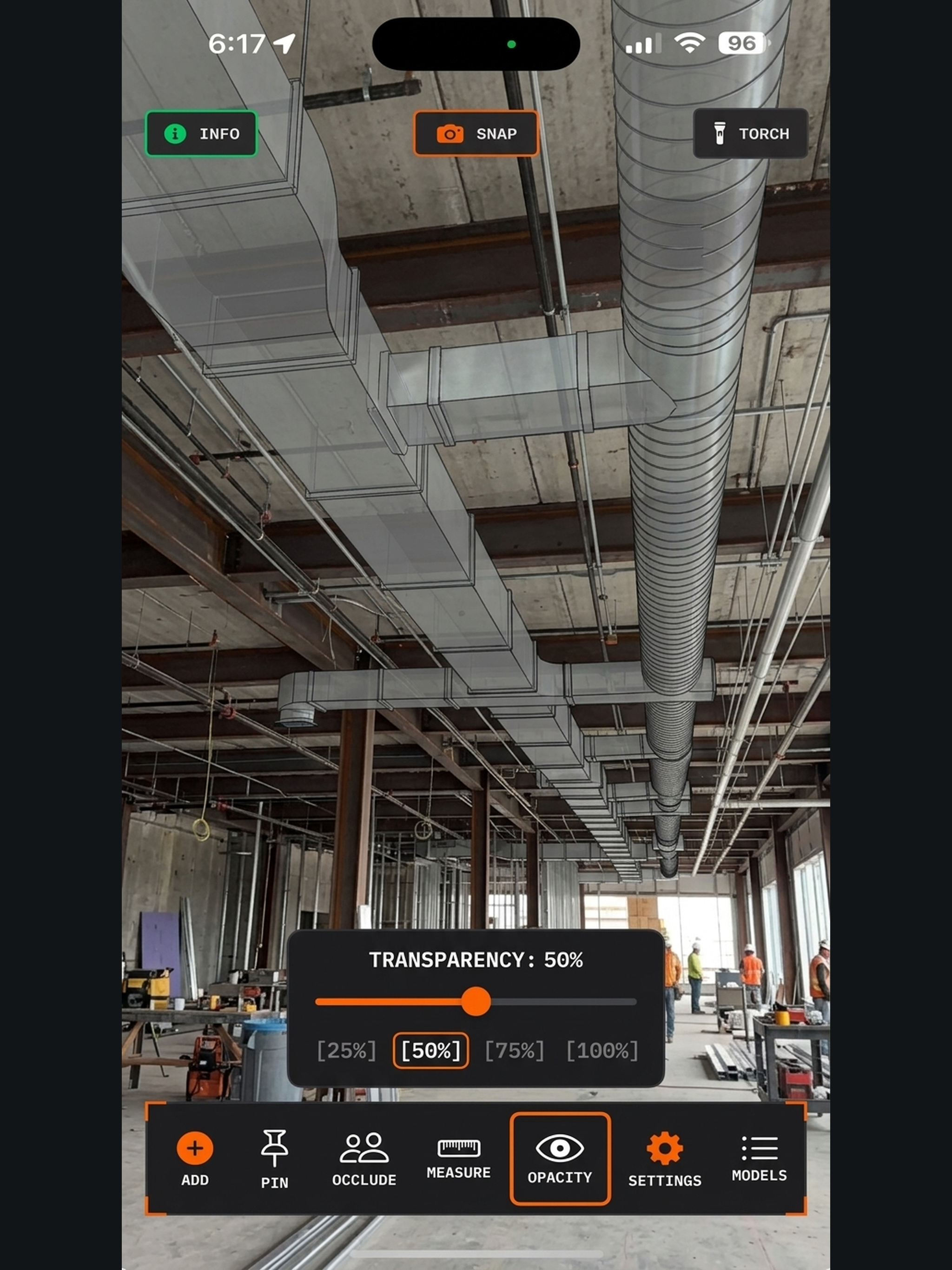

KEY FEATURES: • Sub-Centimeter Alignment Target Auto-Alignment: Automatically lock 3D building models onto physical site Alignment Targets in full 6-DOF precision in under a second. • Multi-Format BIM & CAD Support: Direct on-device parsing for IFC (.ifc) with exact Revit material colors, binary glTF (.glb, .gltf), Apple USDZ (.usdz), and CAD meshes (.obj, .stl) with custom unit scaling. • Interactive 3D Sample Catalog: Test features instantly with bundled architectural and mechanical sample models without needing your own files. • LiDAR Wall Occlusion & X-Ray Mode: Hide digital geometry behind physical concrete walls and columns in real time, or toggle X-Ray mode to inspect MEP conduits before closing drywall. • Live Blueprint Opacity Slider: Smoothly fade digital plans over the live camera feed (0% to 100%) to verify installed ductwork and structural alignment against design specs. • Surface-Aligned 3D Spatial Tape Measure: Take real-world clearance measurements with a surface-locking 3D reticle and instant dual readouts in meters and feet/inches. • 100% Offline Capable: Zero network requirement on remote or subterranean job sites. All spatial tracking and geometry parsing happen locally on your device. • Rugged Industrial UI: Glove-friendly 48pt touch targets, high-contrast HUD, and camera-oriented 2D joystick navigation built for harsh field environments.
