CreamAudio Analyzer

A professional audio analyzer in your pocket: oscilloscope, function generator, spectrum/spectrogram, frequency response, THD and wow & flutter — all on-device.

CreamAudio turns your Mac, iPad, or iPhone plus a class-compliant USB or Thunderbolt audio interface (such as a Focusrite Scarlett 2i2) into a complete professional audio measurement bench. The interface's analog inputs become the front end; its outputs drive the built-in signal generator. Multiple precision instruments share one calibrated signal path:

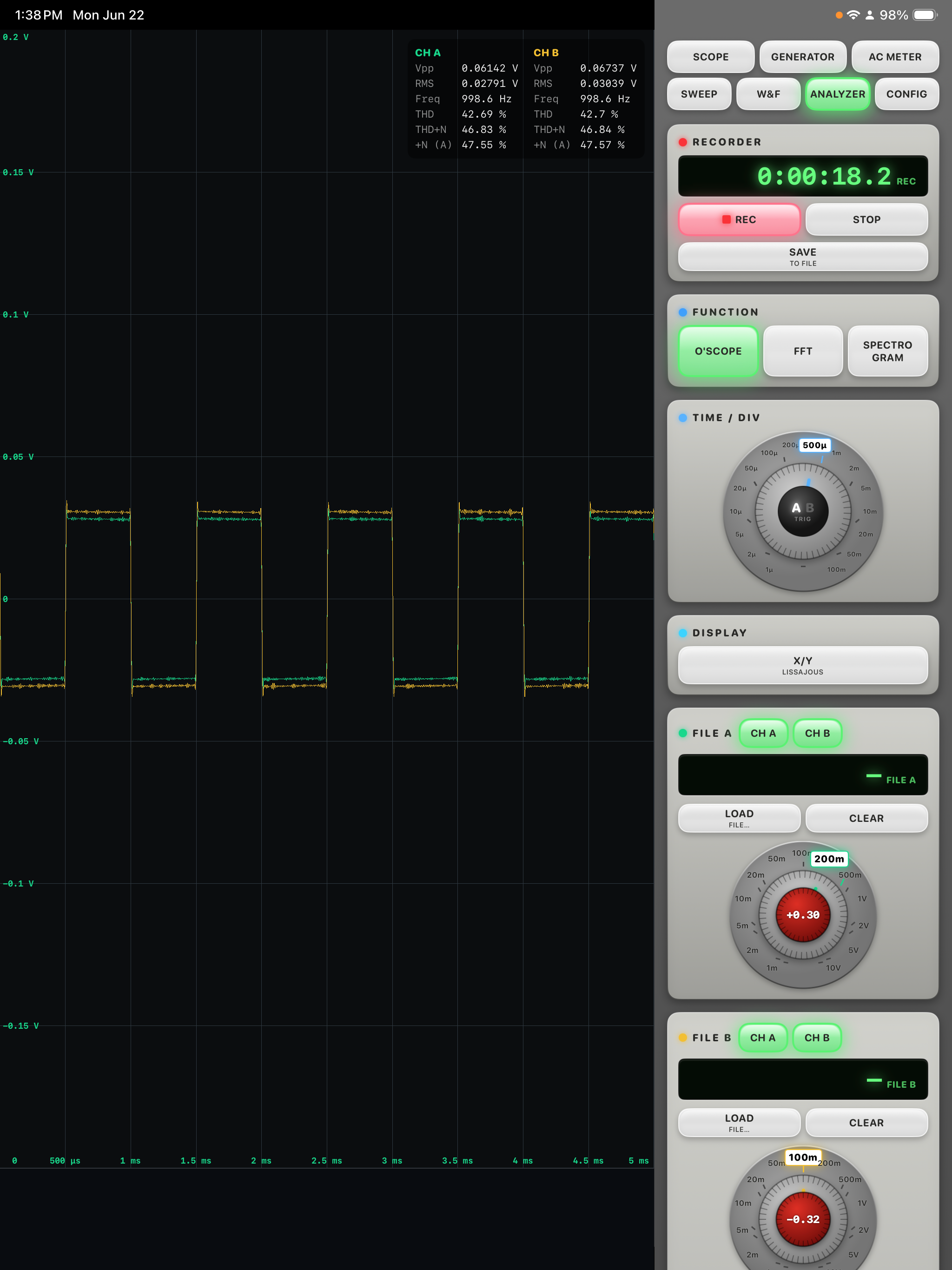

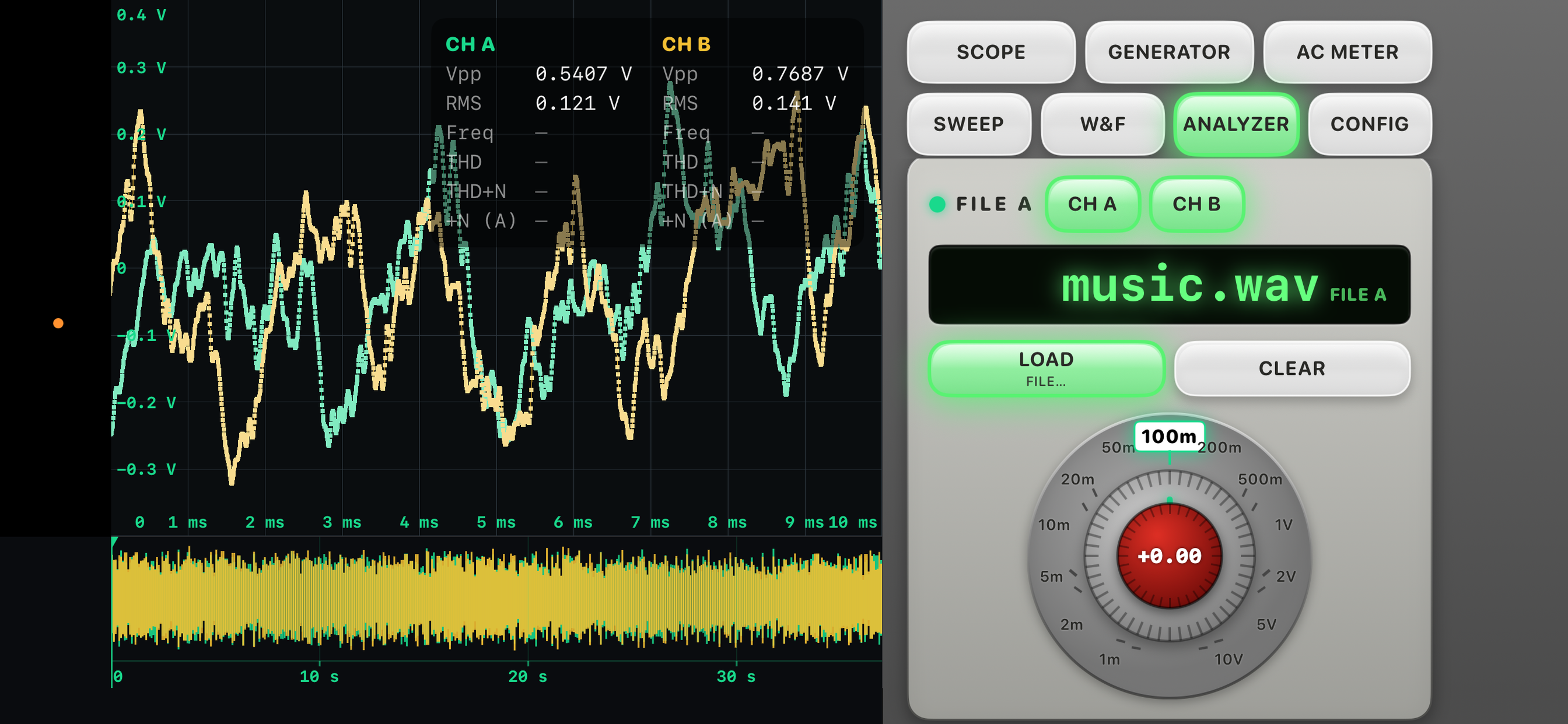

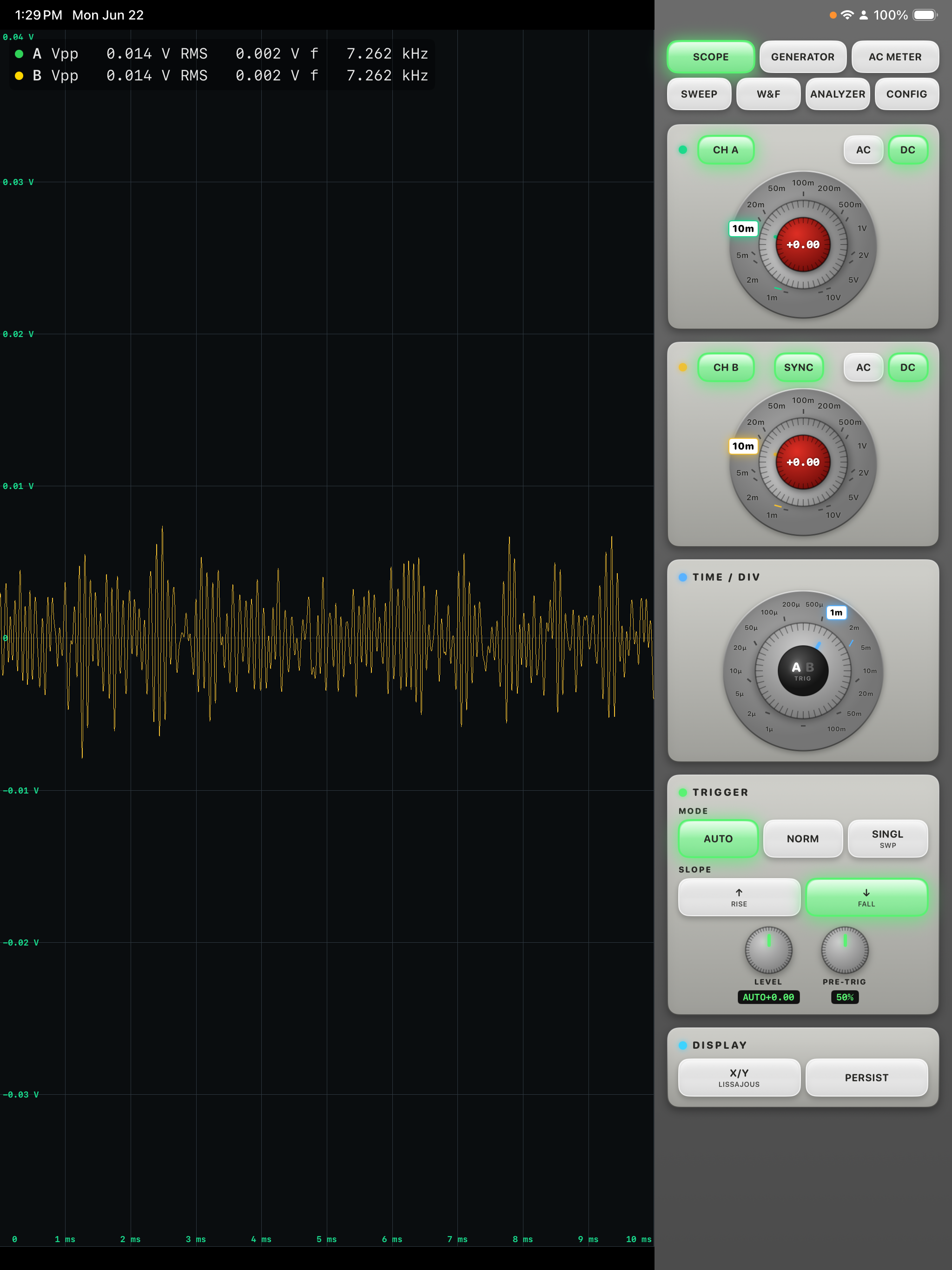

OSCILLOSCOPE • Live two-channel display in normal (Y-t) and XY (Lissajous) modes • Adjustable volts/division and time/division with pinch and scroll zoom • Edge triggering with Auto / Normal / Single modes and single-shot capture • Graticule with division labels and live Vpp, RMS, frequency readouts • Per-channel DC/AC coupling and vertical offset

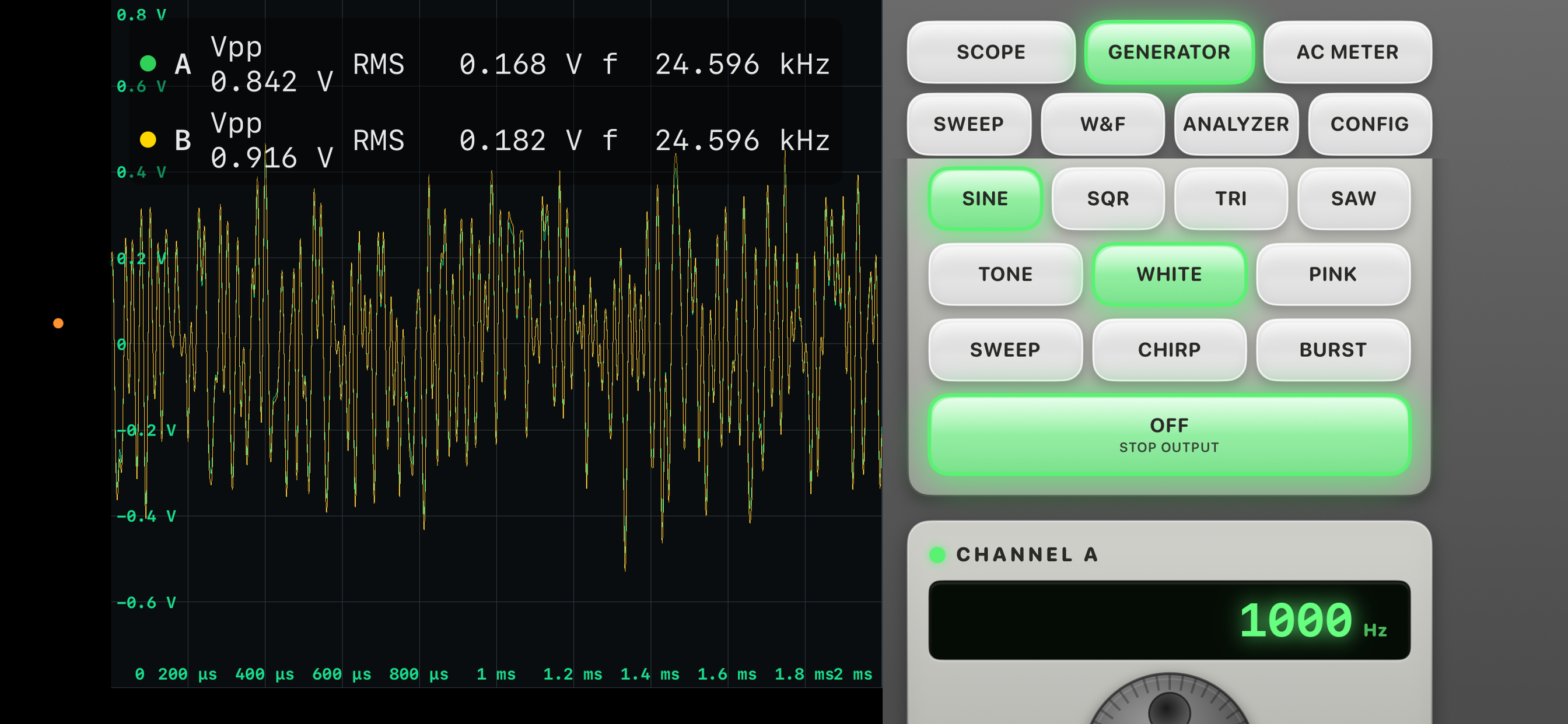

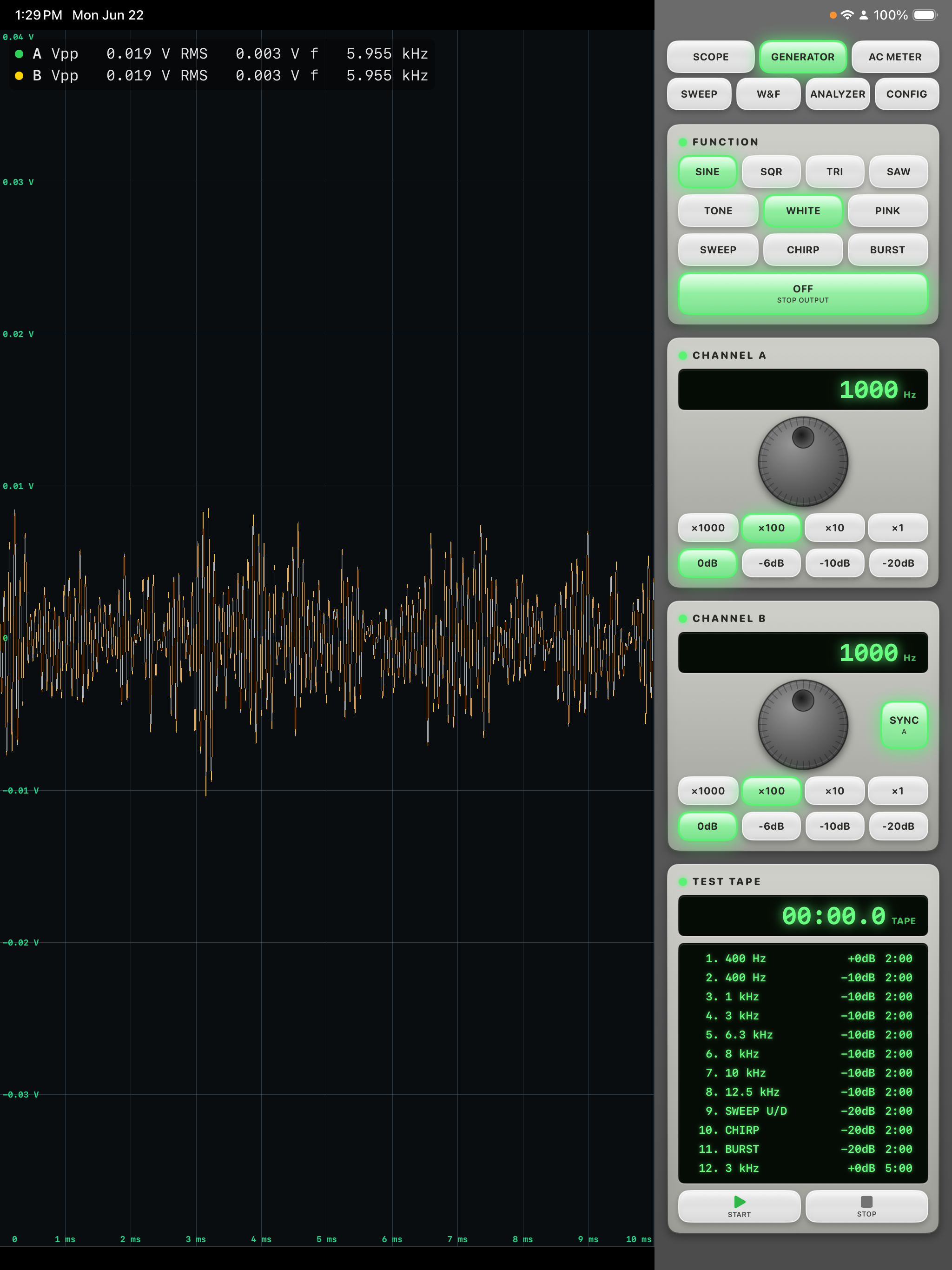

FUNCTION GENERATOR • Sine, square, triangle, sawtooth, white and pink noise • Per-channel frequency, amplitude, offset, phase, and duty cycle • Sweep, chirp, and burst programs • Test Tape: an automated alignment-tape sequence (reference tones 400 Hz to 12.5 kHz, sweep, chirp, burst, flutter tone) to record onto a deck and measure back • Route to the same interface (loopback) or a separate output device

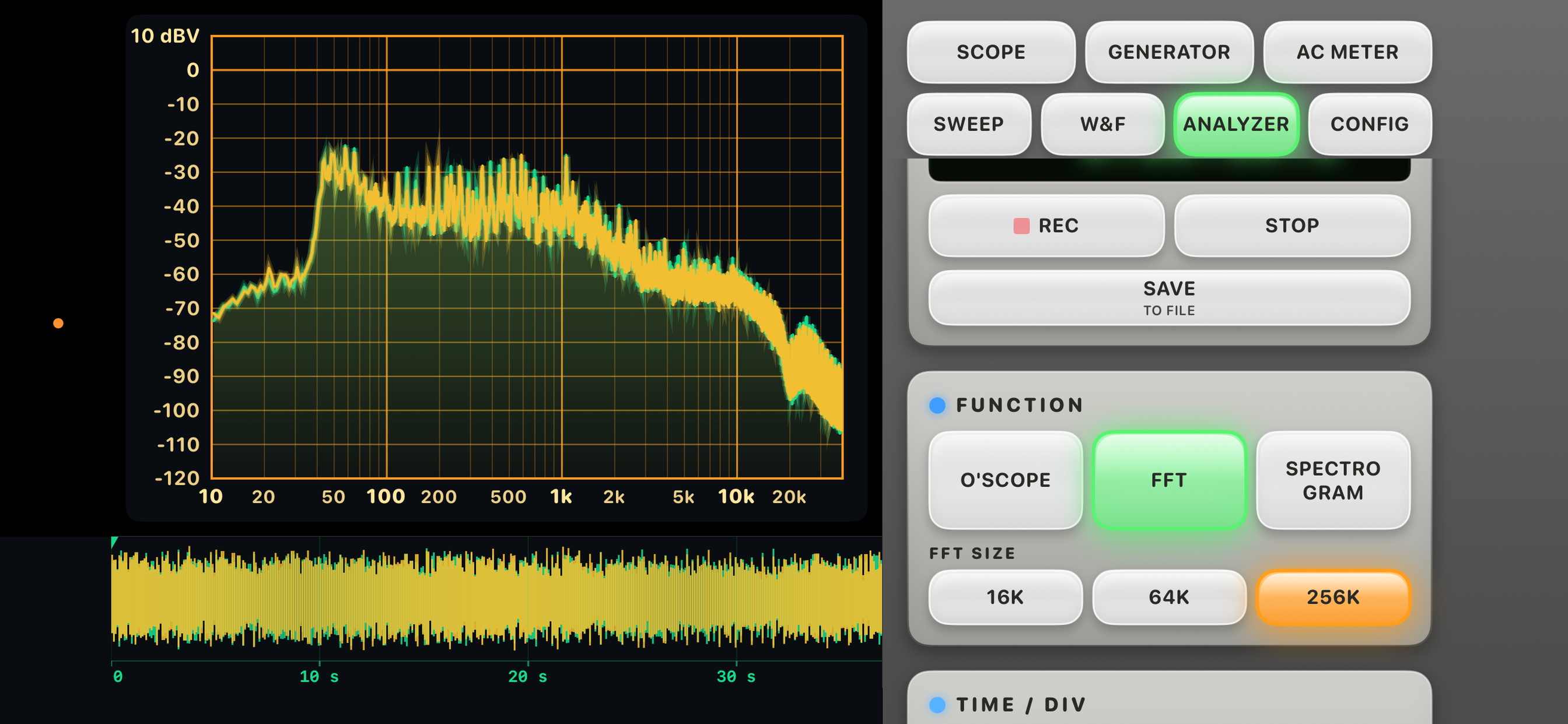

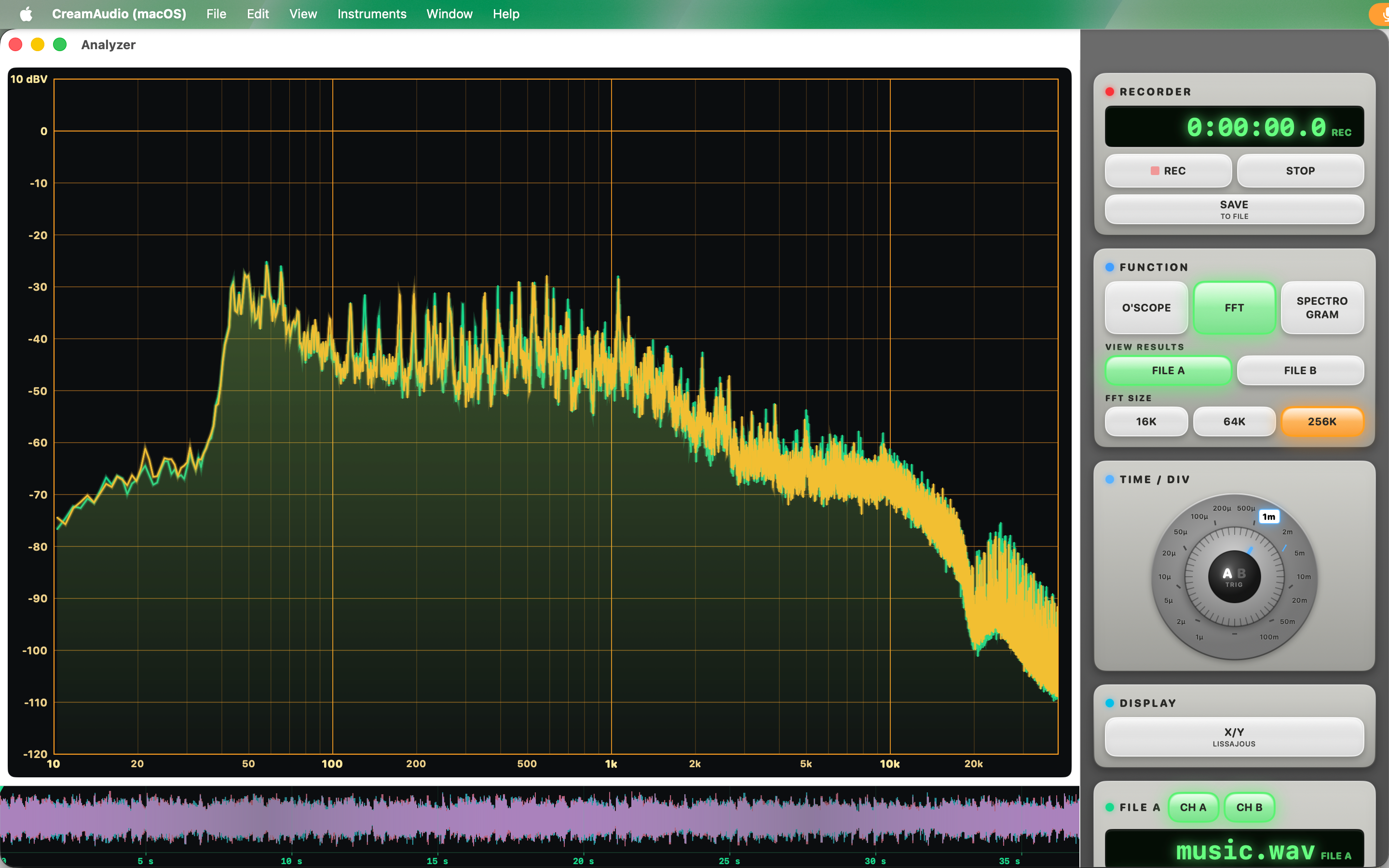

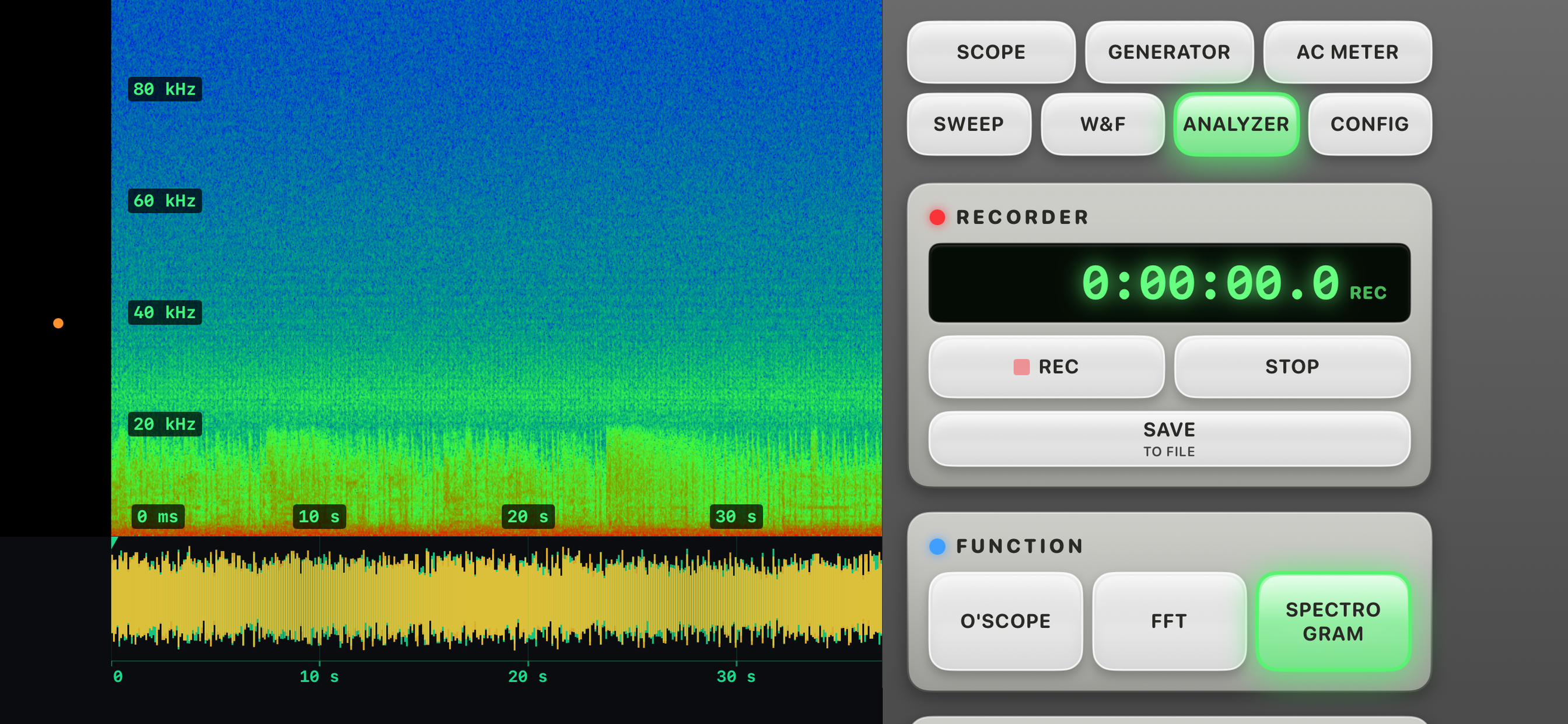

SPECTRUM & SPECTROGRAM • Real-time FFT spectrum with selectable size and windowing, log/linear axes • Spectrogram heatmap across the recorded timeline

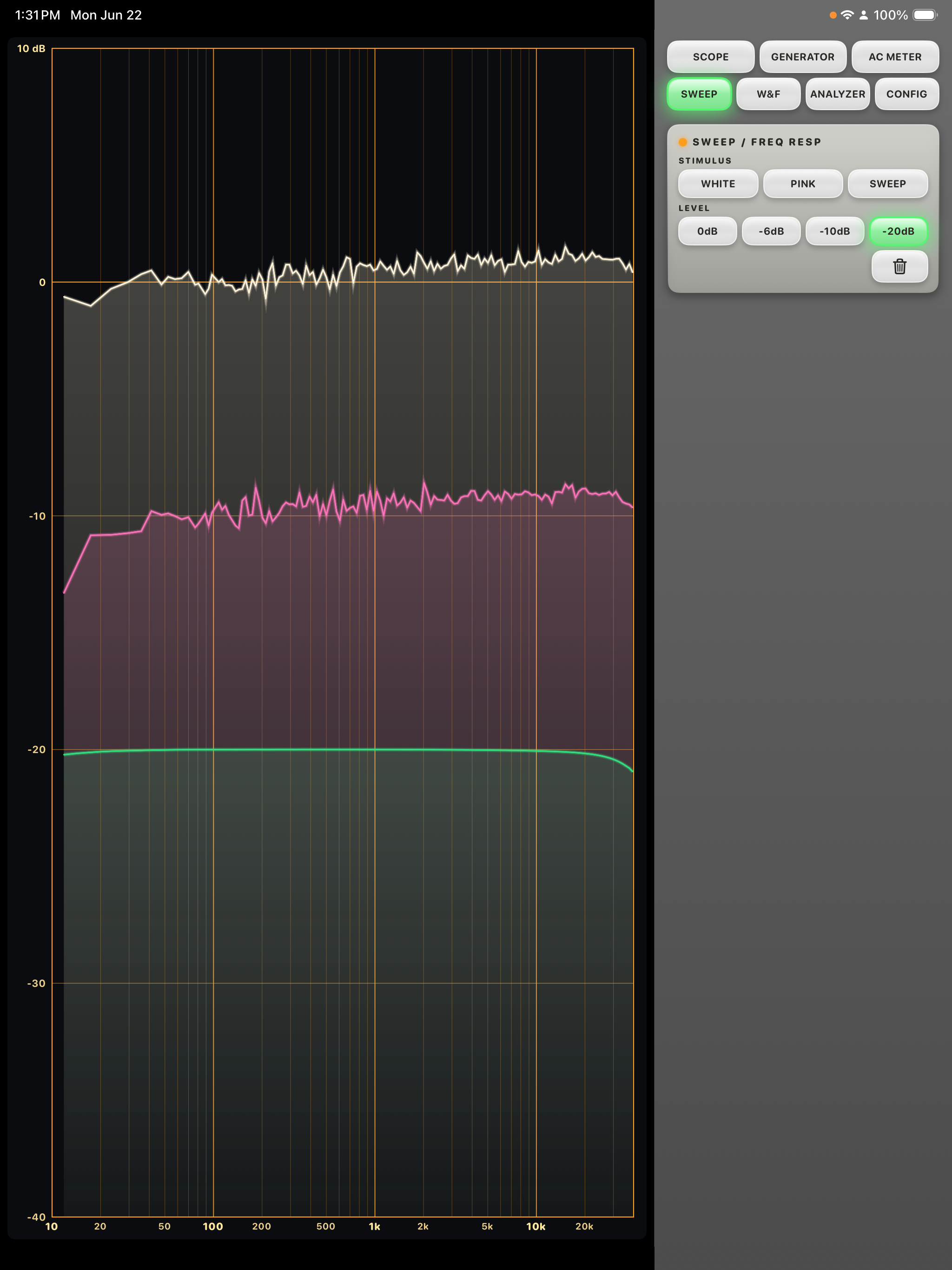

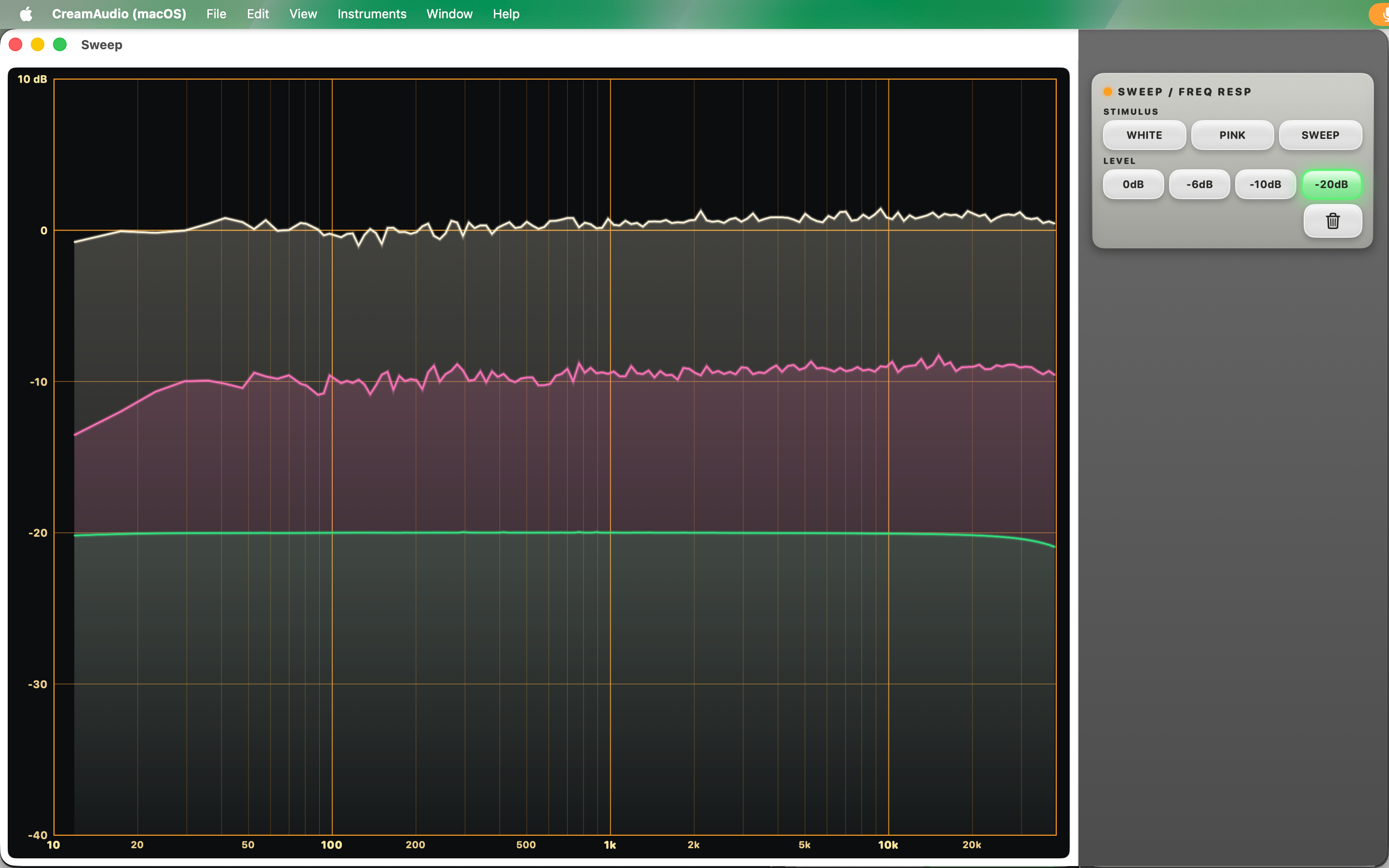

FREQUENCY RESPONSE • Measure response with white / pink / swept stimulus that drives the generator automatically; curves accumulate for easy comparison

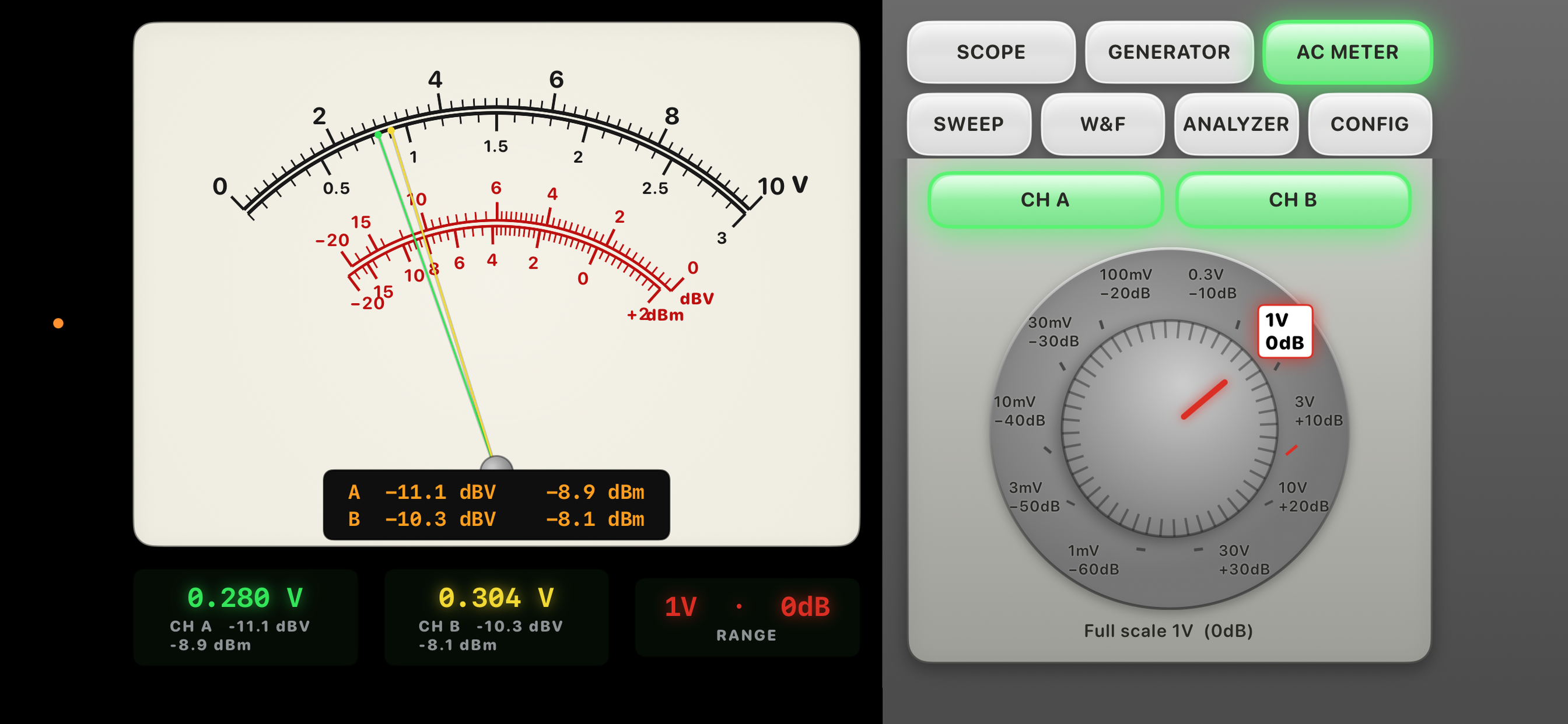

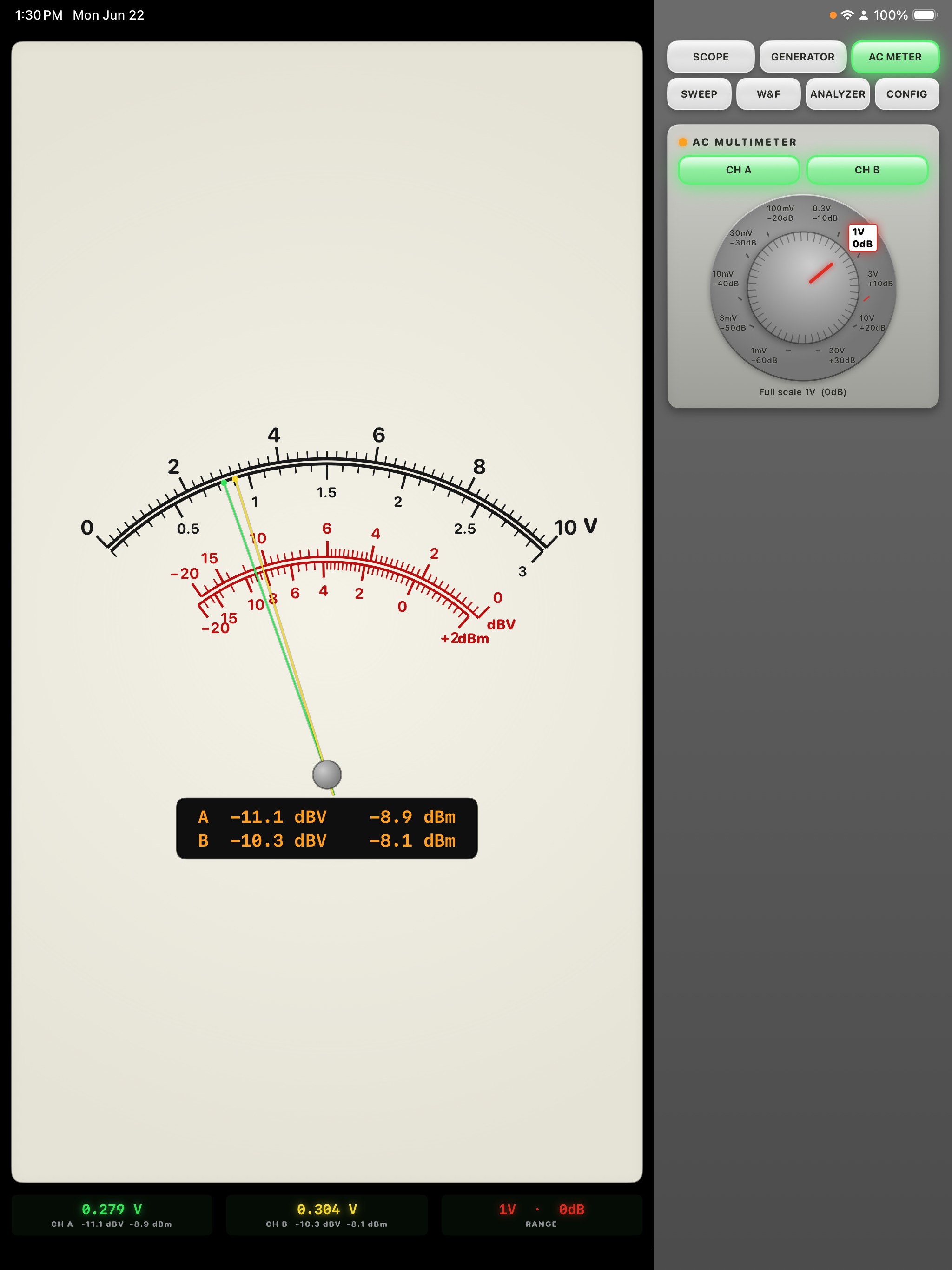

DISTORTION & LEVEL • Automatic THD, THD+N, and SNR measurement • Vpp, Vrms, mean, frequency, period, and duty-cycle readouts • Built-in analog-style AC millivoltmeter (1 mV to 30 V, dual volt/dB scales)

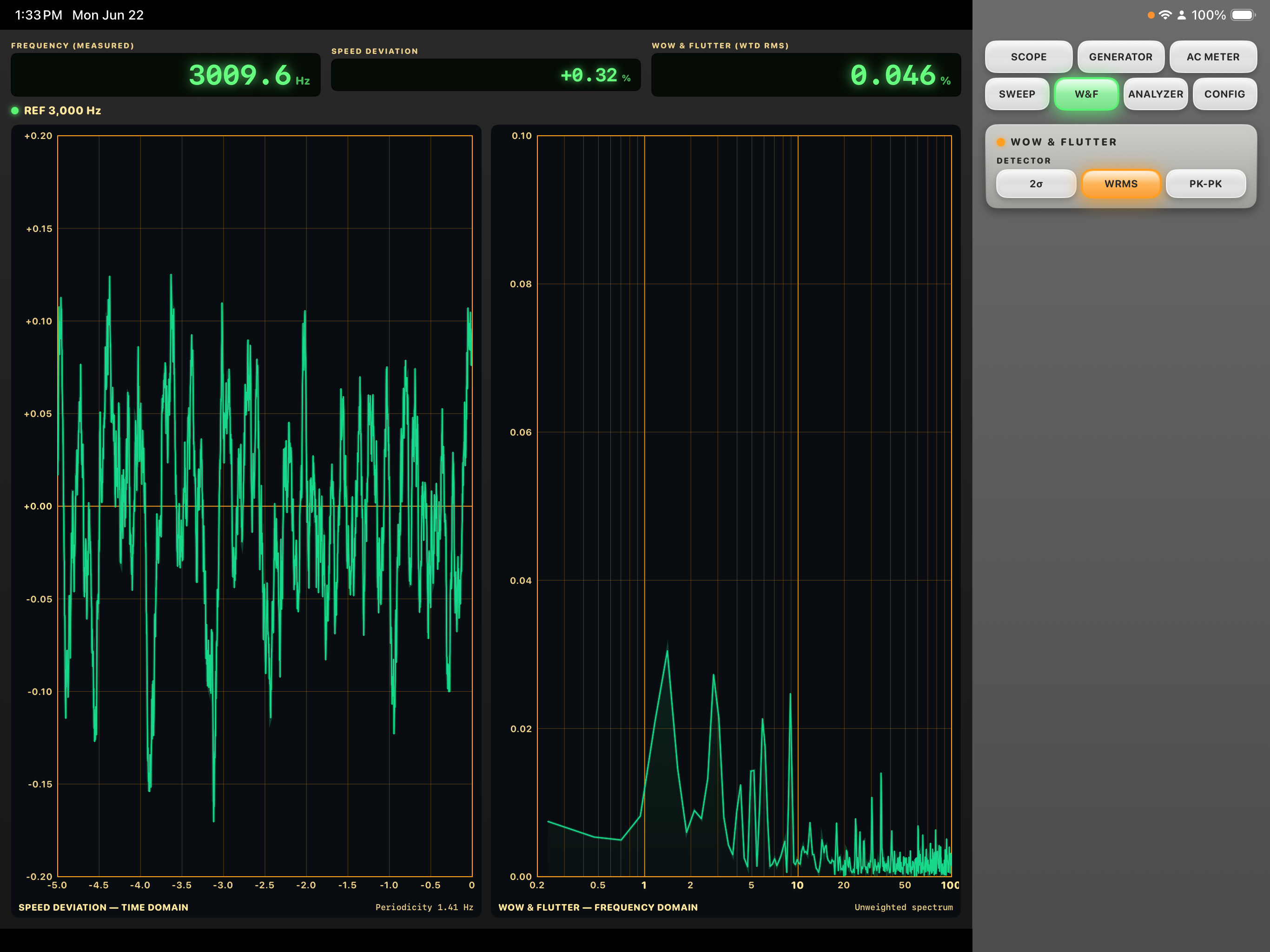

WOW & FLUTTER METER • Speed-stability analysis for turntables, cassette, and reel-to-reel tape • DIN / IEC 386 (3150 Hz) and JIS (3000 Hz) reference tones with auto-detect • WRMS, DIN 2-sigma quasi-peak, and unweighted readings; deviation waveform

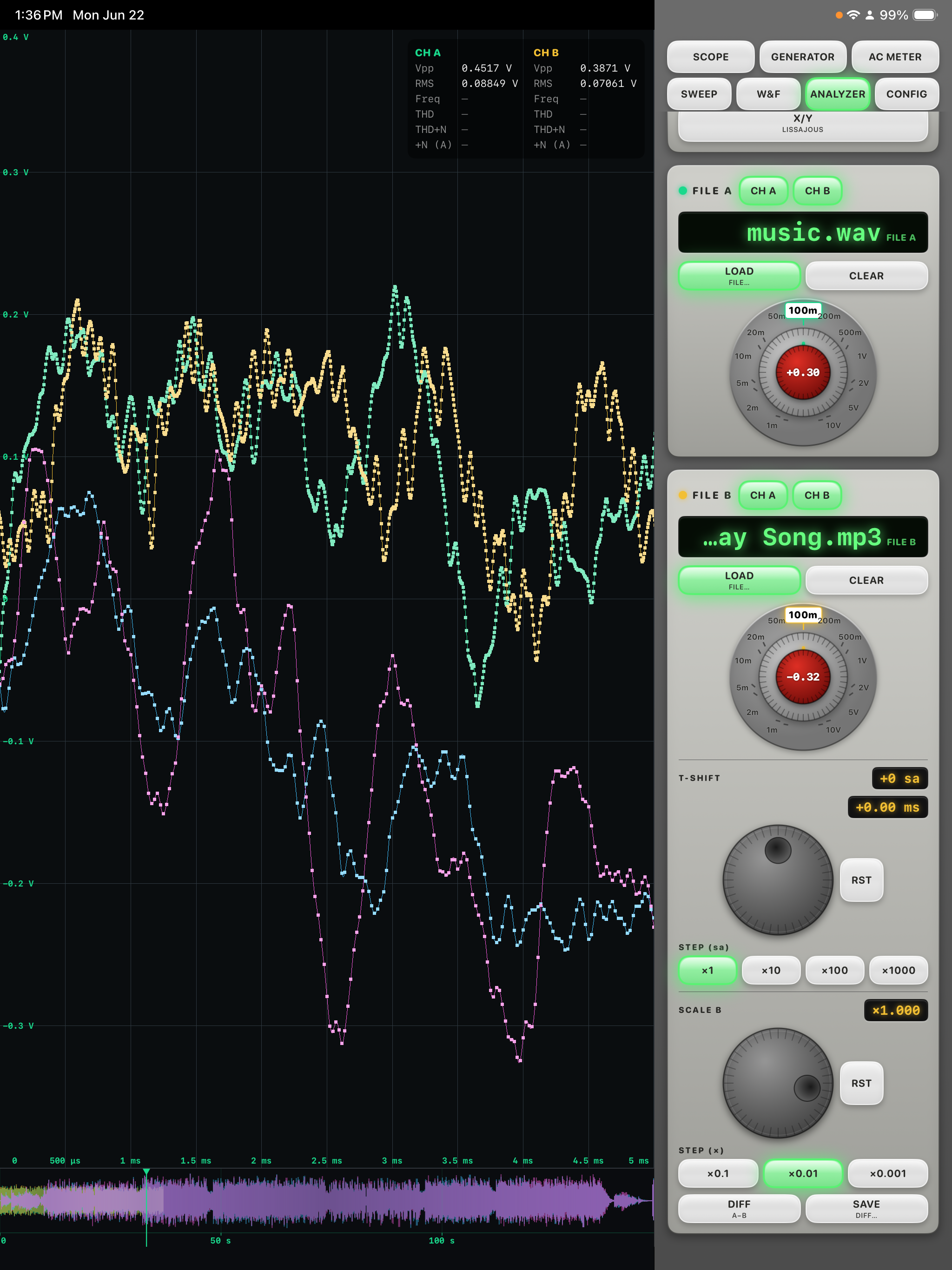

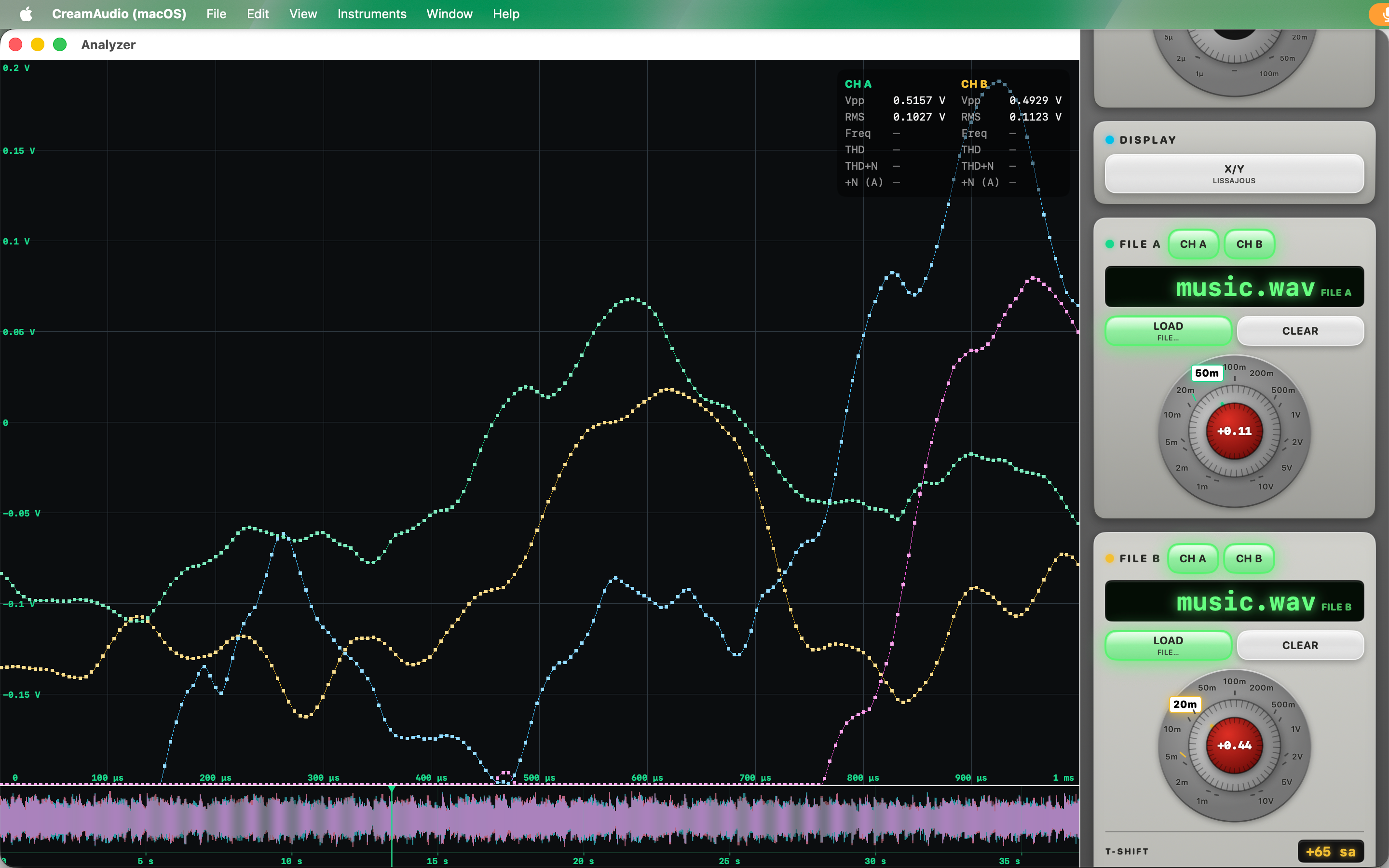

RECORD, SCRUB & EXPORT • Record the raw two-channel stream and scrub the timeline to find transients • Re-run any analysis offline on a selected window • Save recordings to WAV (lossless) or AAC (.m4a)

CALIBRATION • Map normalized samples to real volts with manual entry or a guided reference solve, so every reading is in true voltage units; profiles persist per device

Sample rates up to 192 kHz where the interface supports them. Everything runs locally on your device — no account, no network, no data collection.

Requires a Metal-capable device. An external audio interface is recommended for real measurement work; the built-in microphone can be used for casual signals.
