Kaleidoscope: Floor Plans

One floor plan, many tools. Draw it, scan it, see it in 3D, then layer fire-safety, CCTV, WiFi and network plans onto it without redrawing. Offline. iPhone, iPad, Mac.

One floor plan. Every tool.

Kaleidoscope is a serious floor-plan app that stays out of your way. Draw a building, scan a real room with LiDAR, or turn a photo into an editable plan - then layer seven specialist tools onto that single drawing without ever touching the original.

Everything reads the same live plan. Edit a wall and your 3D view, fire-escape routes, CCTV cones and WiFi heatmap all follow. One drawing, many deliverables - no redrawing, no learning CAD.

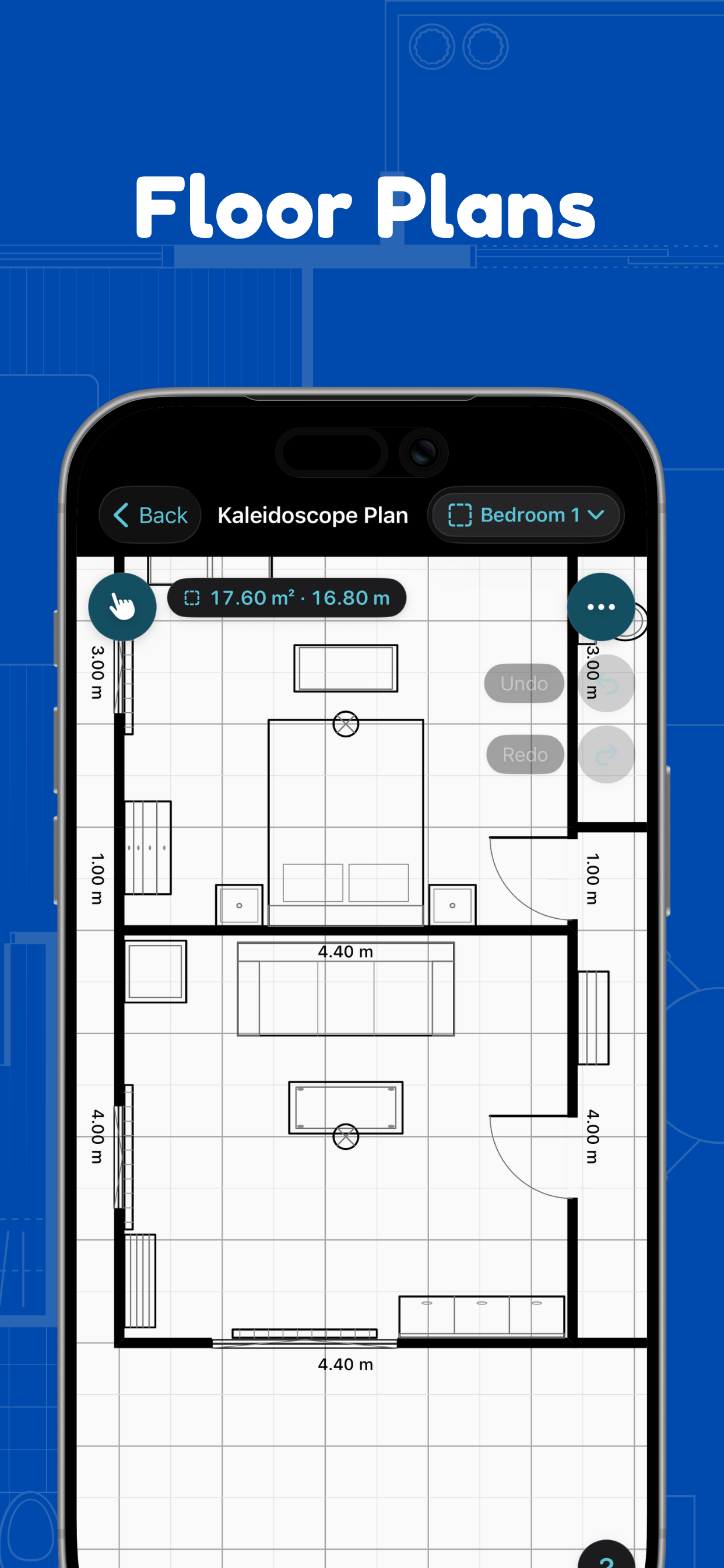

DRAW & SCAN

• Rooms, layered walls, doors, windows, openings, lights and radiators, in real metres
• Draw a whole building floor by floor, with shared walls that snap and connect
• Scan a room with Apple RoomPlan on a LiDAR-equipped Pro iPhone or iPad - processed on-device and tidied into a clean, editable plan (importing scans works on any supported device)
• Smart Draw turns a photo, PDF or plan into editable rooms, walls, doors and windows on-device - you tick the rooms you want. Generated drawings are drafts; check key dimensions in the app.

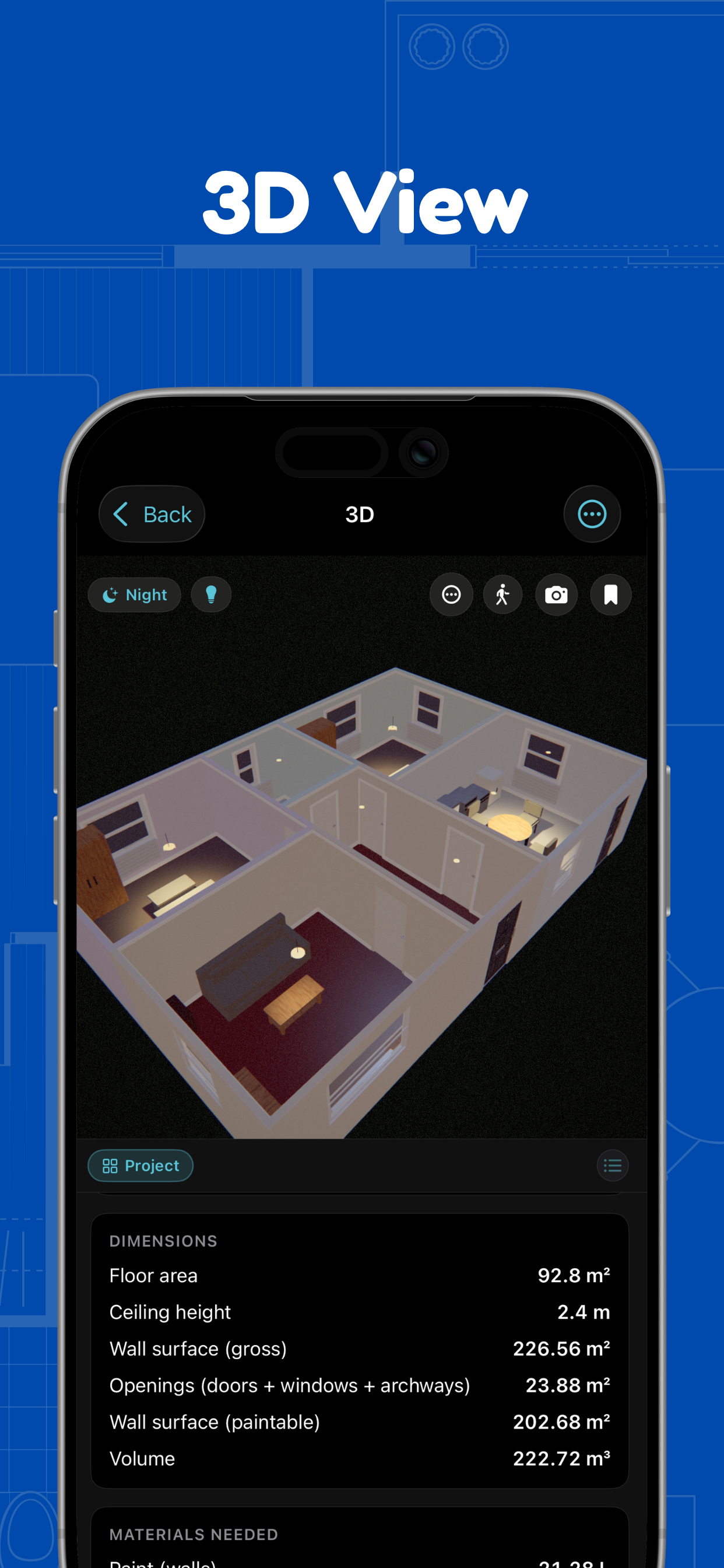

SEE IT IN 3D

• A lit 3D model built straight from your 2D plan - real wall thickness, doors, windows, floors, furniture and lights, with no modelling
• Walk through it in first person before anything is built

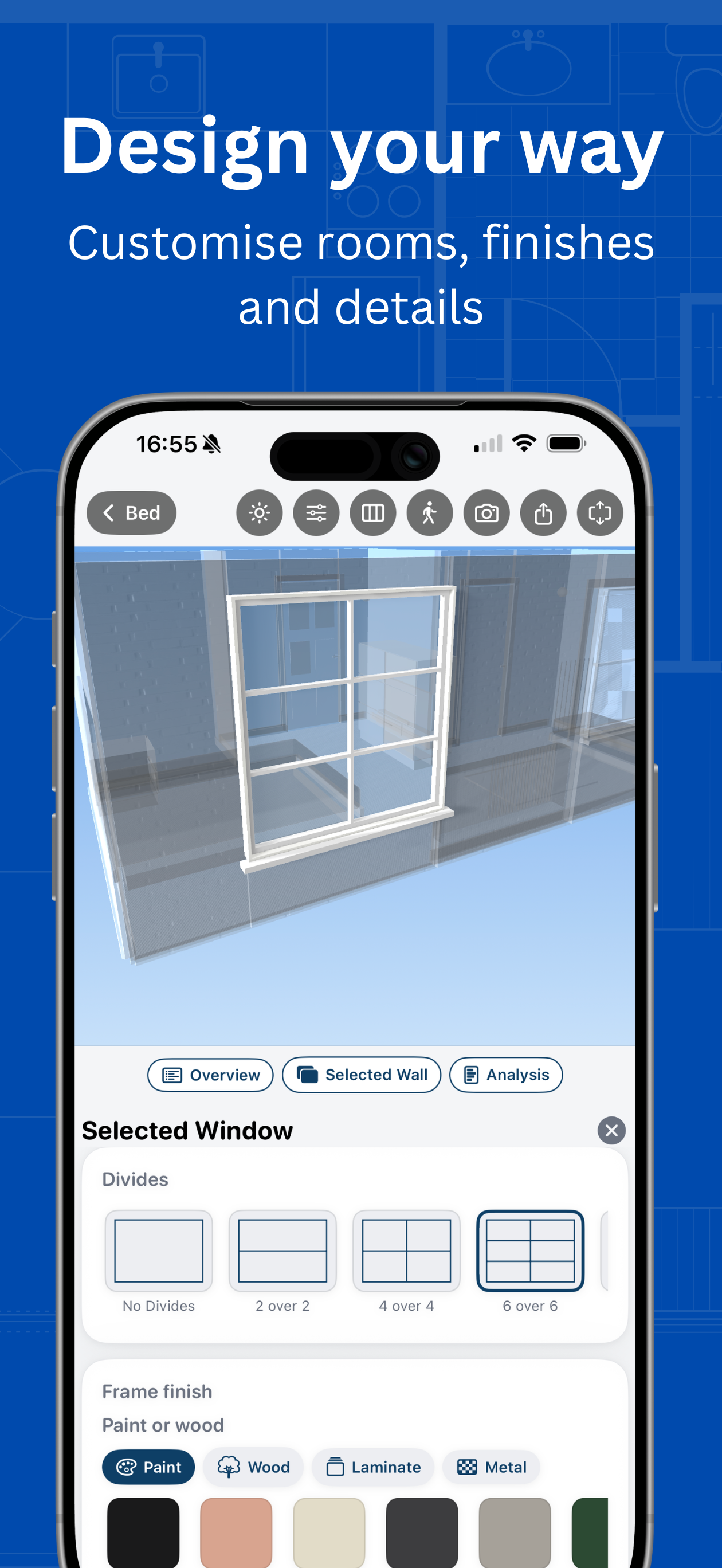

• Realistic materials, a time-of-day sun, plus 20 door and 24 window styles

SEVEN OVERLAYS, ONE PLAN Every tool reads your live drawing, follows your edits and leaves the clean plan untouched:

• Fire Escape - lay out escape routes, exits and signage using familiar safety symbols (in-house recreations based on the international ISO 7010 set) for an advisory per-floor PDF
• Fire Alarm Zones - colour rooms by detection zone and place common fire-detection device types onto loops, with panel markers
• CCTV & Security - position cameras and devices with indicative line-of-sight coverage cones that stop at walls and pass through glass

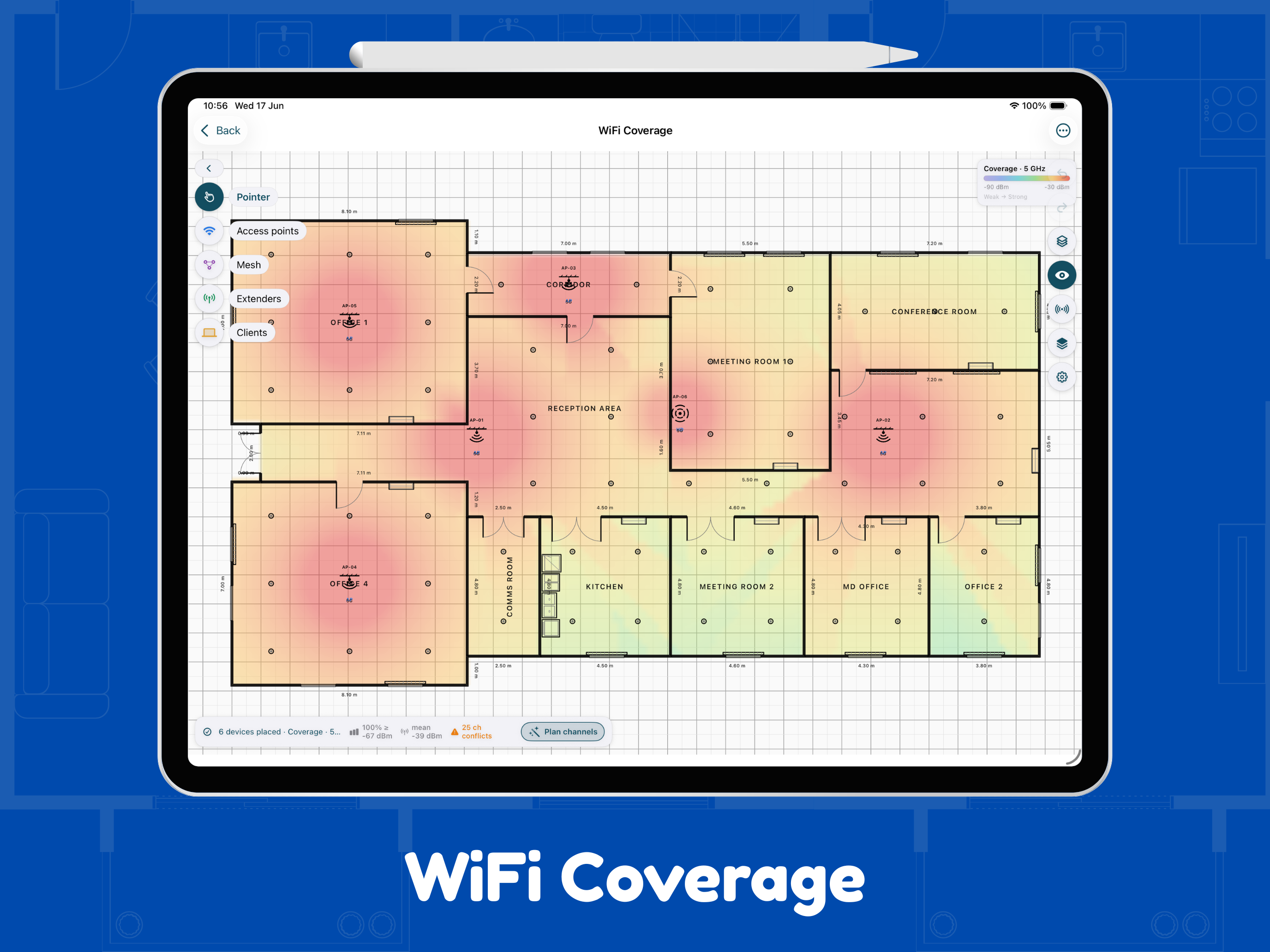

• WiFi Coverage - a material-aware coverage estimate across 2.4/5/6 GHz; a modelled estimate, not a measurement, so survey critical areas on site
• Network & IT - map outlets to patch panels, switches and VLANs, with cable runs, rack elevations and CSV reports
• 3D - the lit, walk-through model described above
• Marketing - drag-to-arrange brochures with a Brand Kit, photos and Apple Pencil notes

SURVEY & EXPORT

• Versioned Survey mode: snapshot a drawing and log numbered, photo-backed observations across repeat inspections, without losing history
• Vector PDF, high-resolution PNG and JPEG, plus DXF and CSV reports
• Around 265 fixture and furniture symbols and a per-room materials list (paint, tiles, flooring, skirting, areas)
• Shareable, self-contained project files via the share sheet, AirDrop or Files

UNIVERSAL & PRIVATE

• One native app across iPhone, iPad and Mac, with Apple Pencil and full Mac keyboard shortcuts
• Region-aware (UK, US, EU, AU): symbols, colours, page size, units and WiFi channels all follow one setting
• Fully on-device and offline - no account, no tracking, nothing uploaded. Open it in aeroplane mode and it all still works.

The safety, security and WiFi tools are advisory planning aids, not a legal guarantee, survey or certification. The responsible person confirms the plan and the applicable edition of any standard.

PRICING Draw up to five projects free; exports are watermarked. One credit removes the watermark from a drawing forever. Unlock everything with a subscription or a one-time lifetime licence, or pay per drawing with credits. DXF and CSV need full access.
