VU Meter Pro

Version 1.6 is here. One-tap loudness presets for broadcast and streaming (ARIB, EBU R128, ATSC A/85, Spotify and more), plus LED bar colors and a True Peak indicator.

VU Meter Pro is a professional audio metering app for broadcast, streaming, and live sound.

It combines an analog VU meter with a loudness meter, phase meter, LED bar meter, and waveform display. Arrange the meters you need on screen to match each on-site workflow.

Connect any USB class-compliant device (audio interface, mixer, recorder, or the audio output of a camera or switcher) with a single USB cable and start measuring right away. Use it as a portable meter in the field, or as a fixed tool in the studio.

Works on both iPhone and iPad.

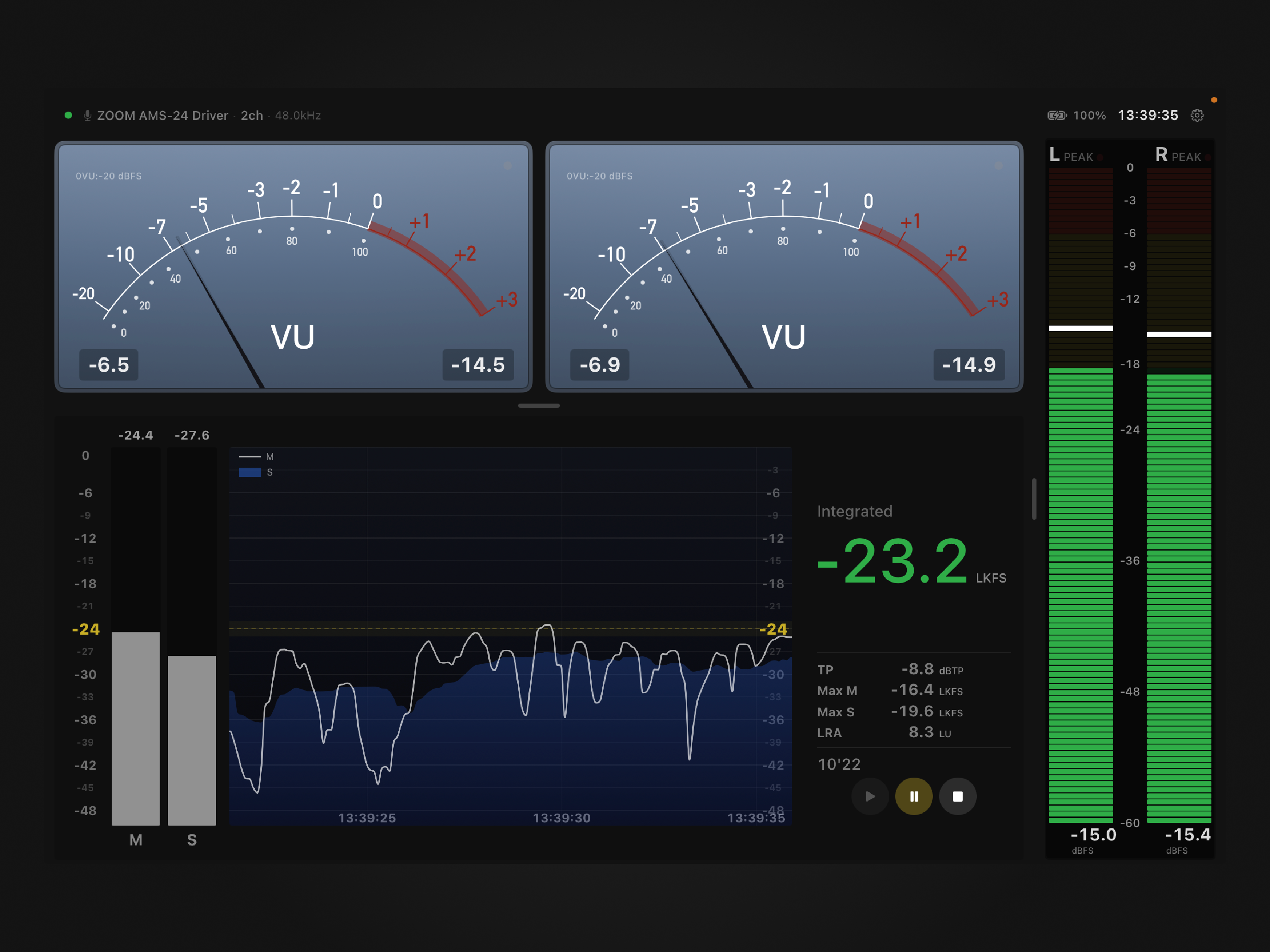

What it measures · Audio level (analog VU meter / LED bar) · Loudness (Momentary / Short-term / Integrated / True Peak / LRA) · Loudness history (graph display, up to 24 hours) · Waveform (Waveform Scope, up to 30-minute history, pinch-to-zoom) · Phase (Lissajous + correlation meter)

Standards-based measurement Loudness measurement follows ITU-R BS.1770 and conforms to EBU R128 / EBU Mode (Tech 3341 and 3342) and ARIB TR-B32, at 48 and 96 kHz. Measurements are verified against reference signals.

ITU-R BS.1770 is the measurement standard widely adopted by national broadcast loudness practices such as ATSC A/85 (US) and OP-59 (Australia), which target −24 LKFS.

Loudness presets set the target and the True Peak limit in one tap: ARIB TR-B32, EBU R128, ATSC A/85 and OP-59 for broadcast, plus Spotify, YouTube and Apple Podcasts for streaming.

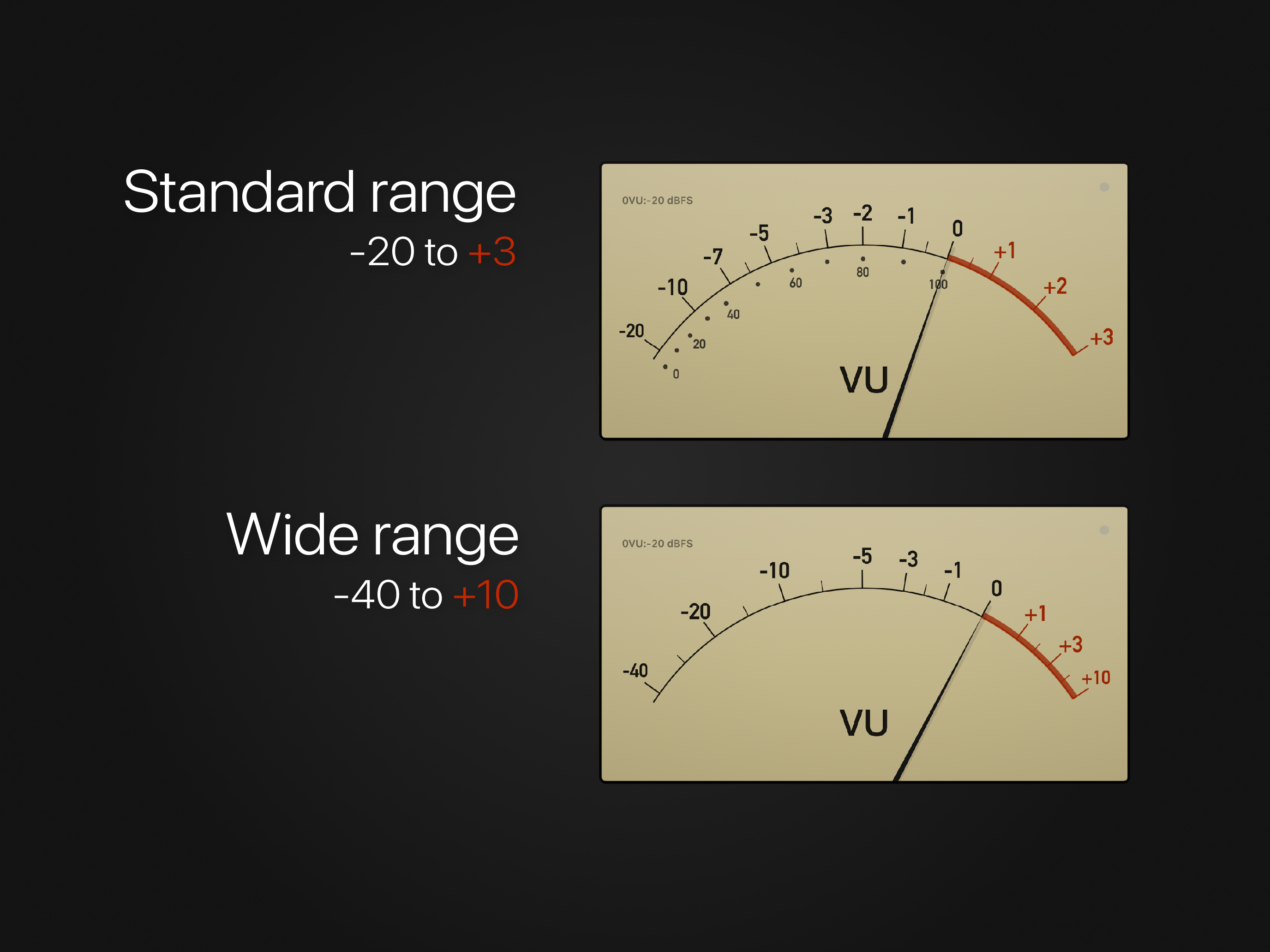

Built for the field · Responsive, real-time metering · Standard and wide-range VU scales (−20 to +3 / −40 to +10) · Seven meter themes for different lighting conditions and preferences · LED bar colors: four presets, or set your own three zone colors · Peak Indicator with an adjustable True Peak threshold, so you can tell at a glance whether a peak occurred · Input Trim (±5 dB) for level calibration · Peak-hold readouts for easy reading at a glance

Launch and measure. No setup required.

This app is built and maintained by a working engineer in radio, audio, and video production, for use in the field. Visibility and operational reliability are the top priorities.

Use with an external audio interface. The built-in microphone is not suitable for accurate measurement.
