Blueprint: Cabinet Design

Plan the room, design the cabinets, and get dimensions and cut lists you can actually build from — all in one place.

Cabinets and kitchens are expensive to get wrong. Blueprint lets you plan the whole thing — the room, every cabinet, every dimension — before you spend a cent on materials or a quote. Draw the floor plan, place cabinets in 3D, design each one down to the panel, and get a real cut list. Build it yourself, or hand the plan to someone who will — either way, you know exactly what you're getting before you commit.

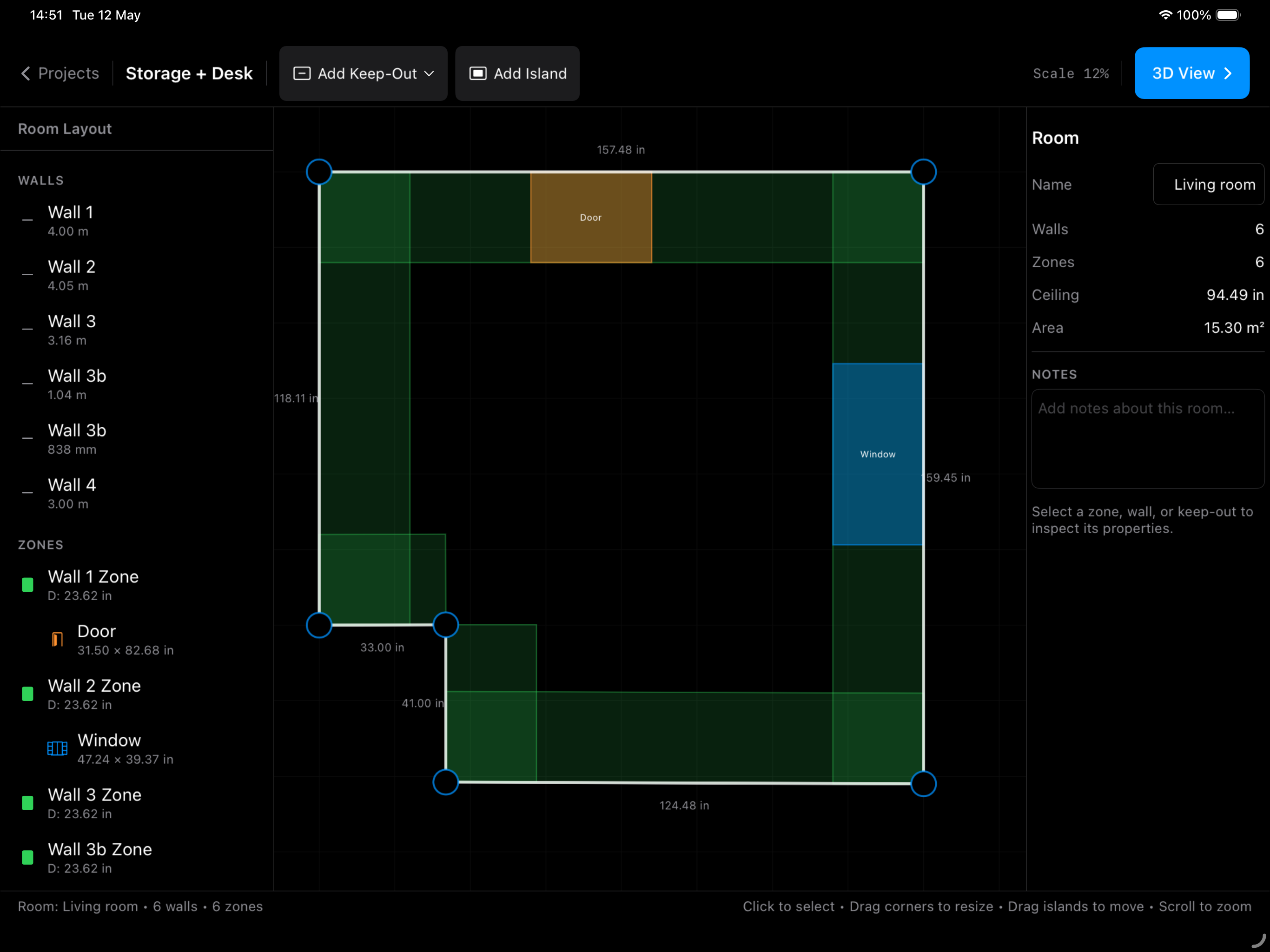

Floor plan editor Draw rooms with walls, doors, and openings. Set exact dimensions in millimeters, centimeters, or inches. Adjust zones and wall layouts before moving into 3D — reflected instantly.

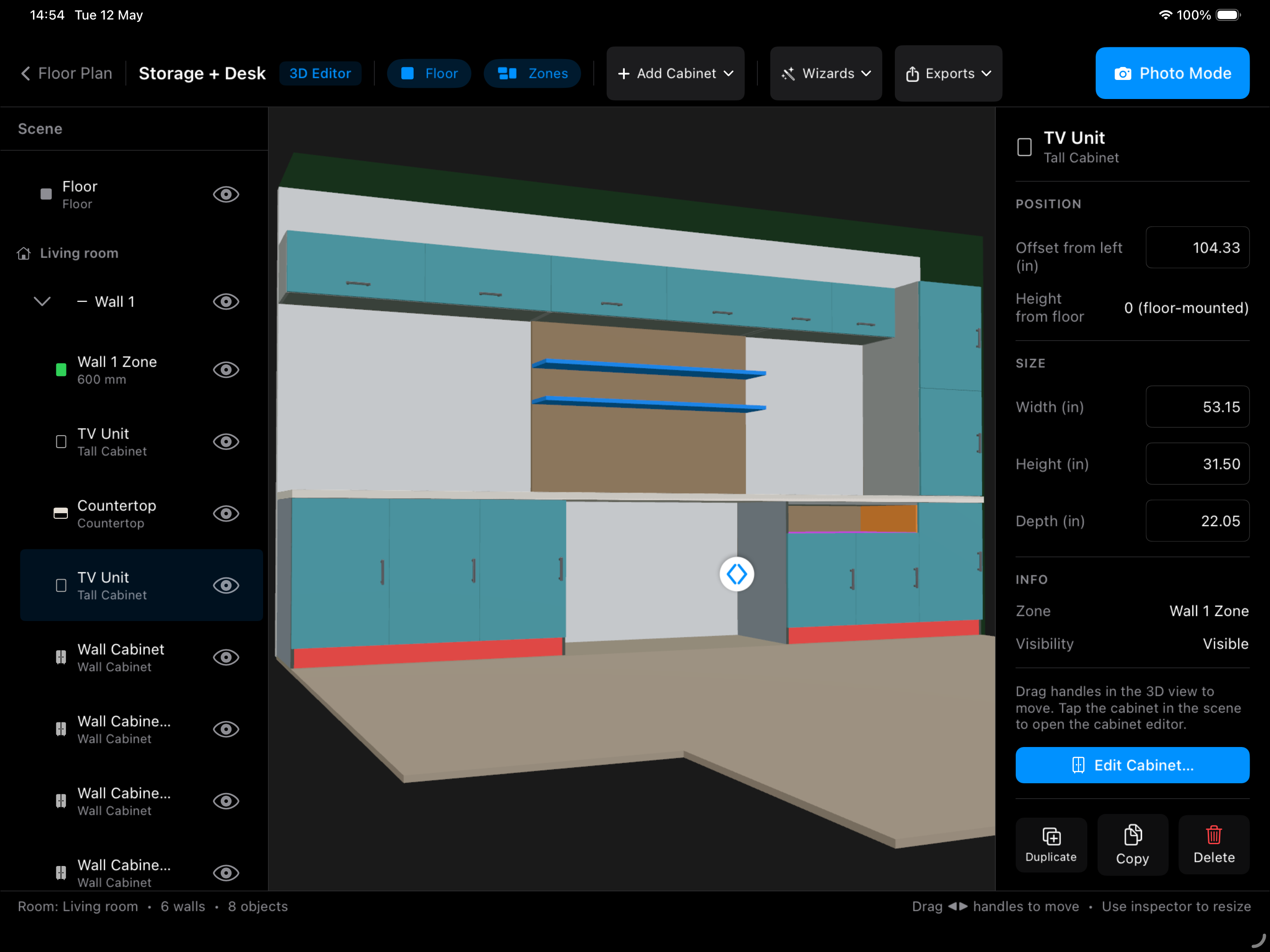

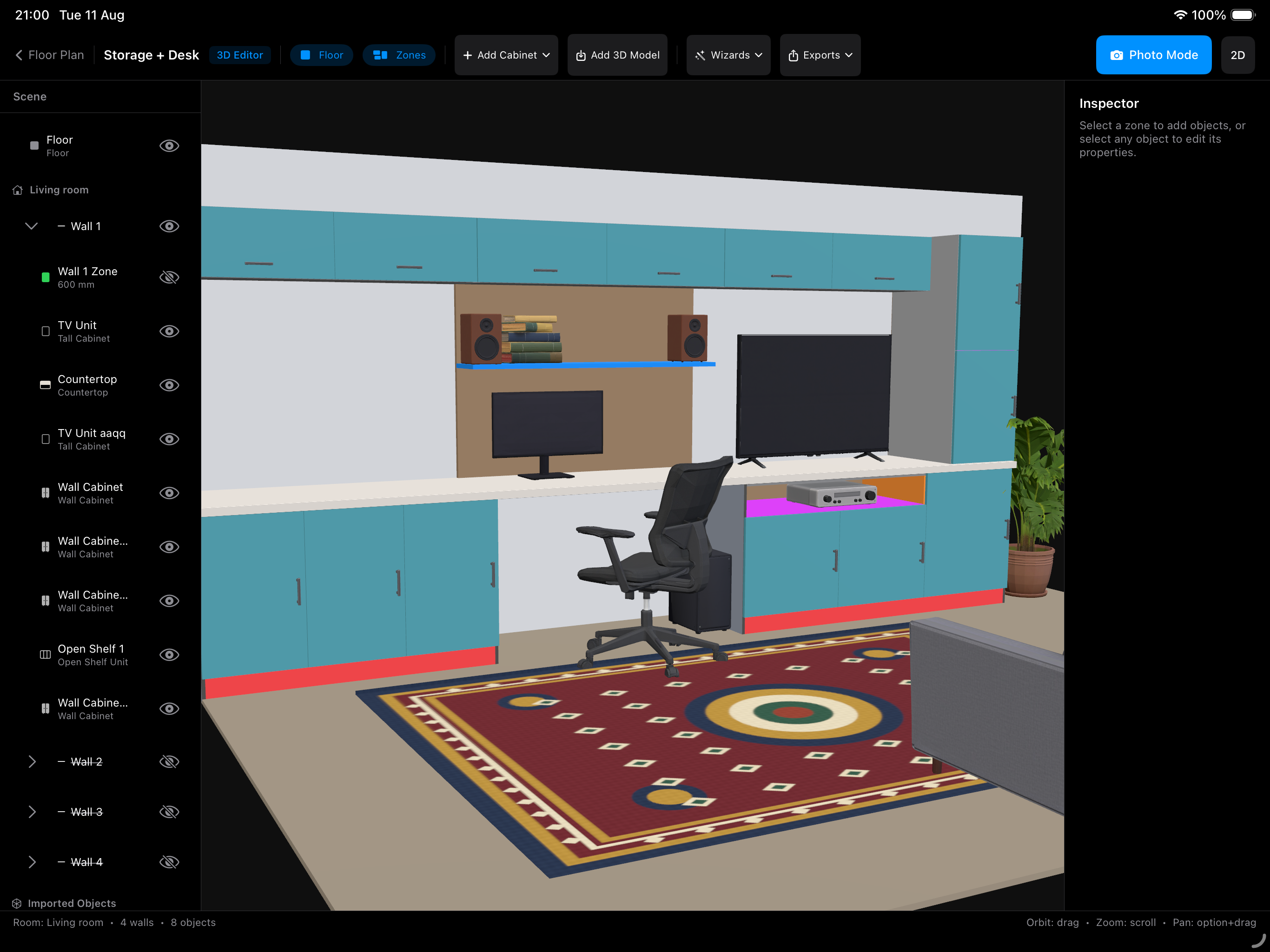

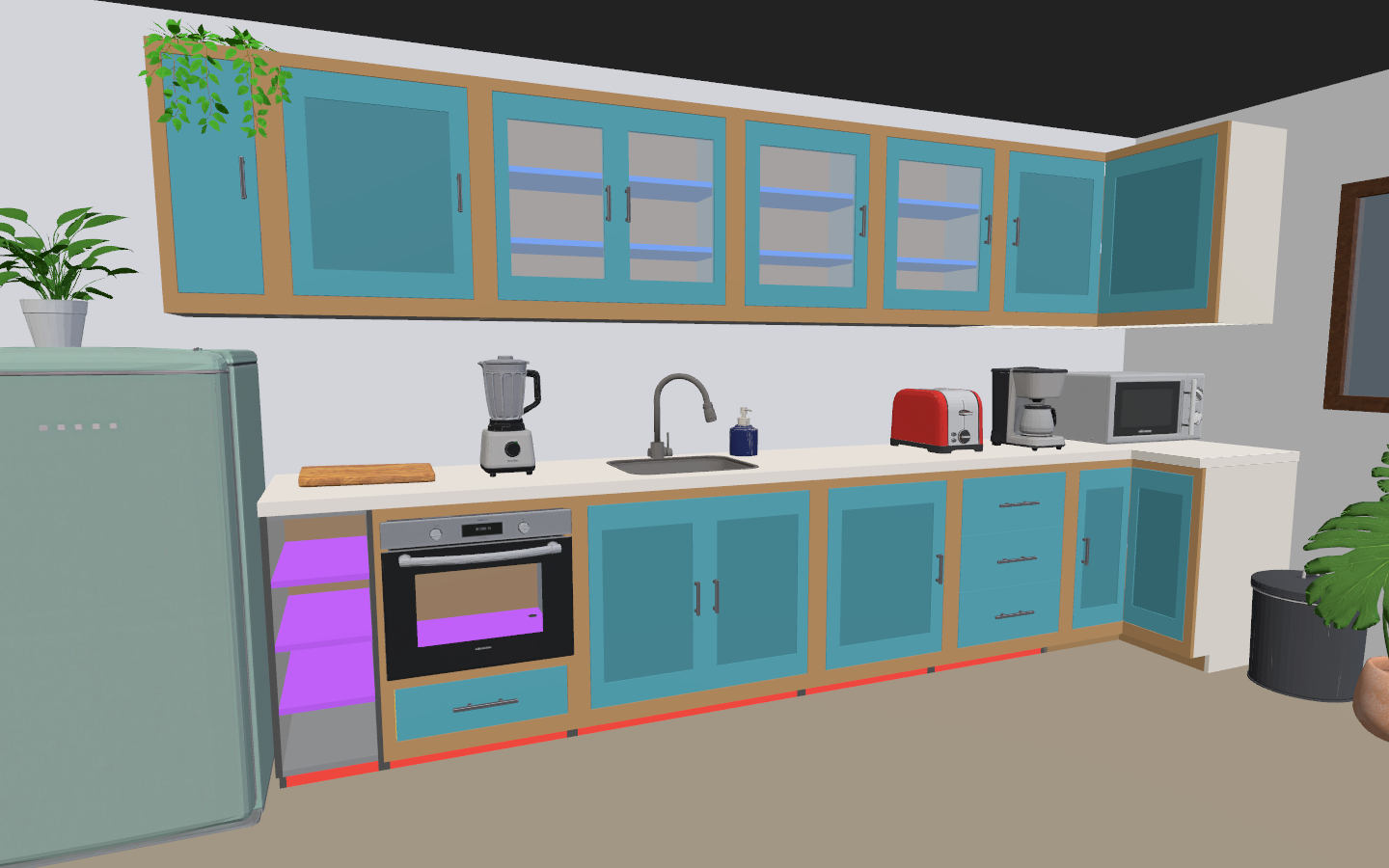

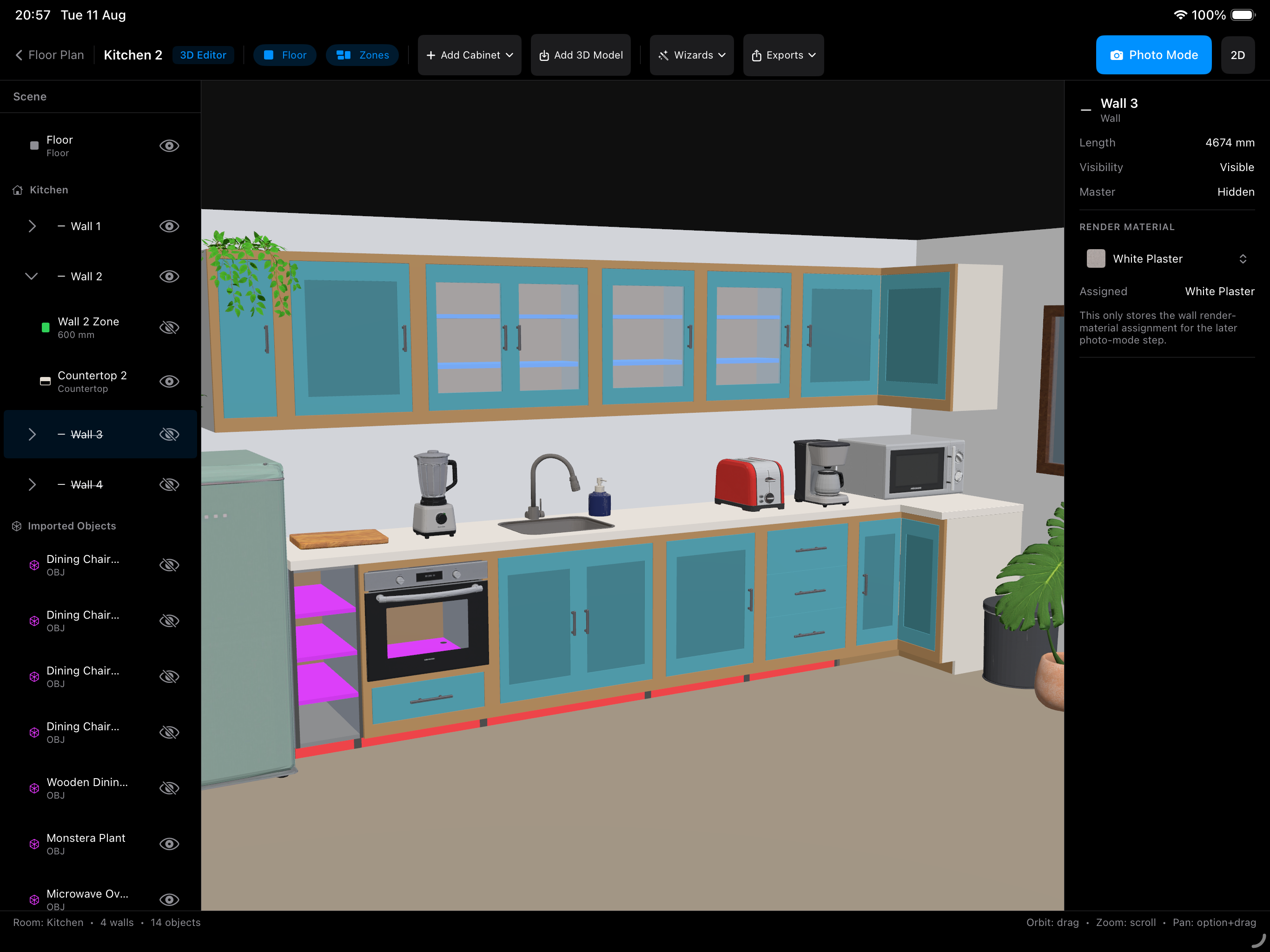

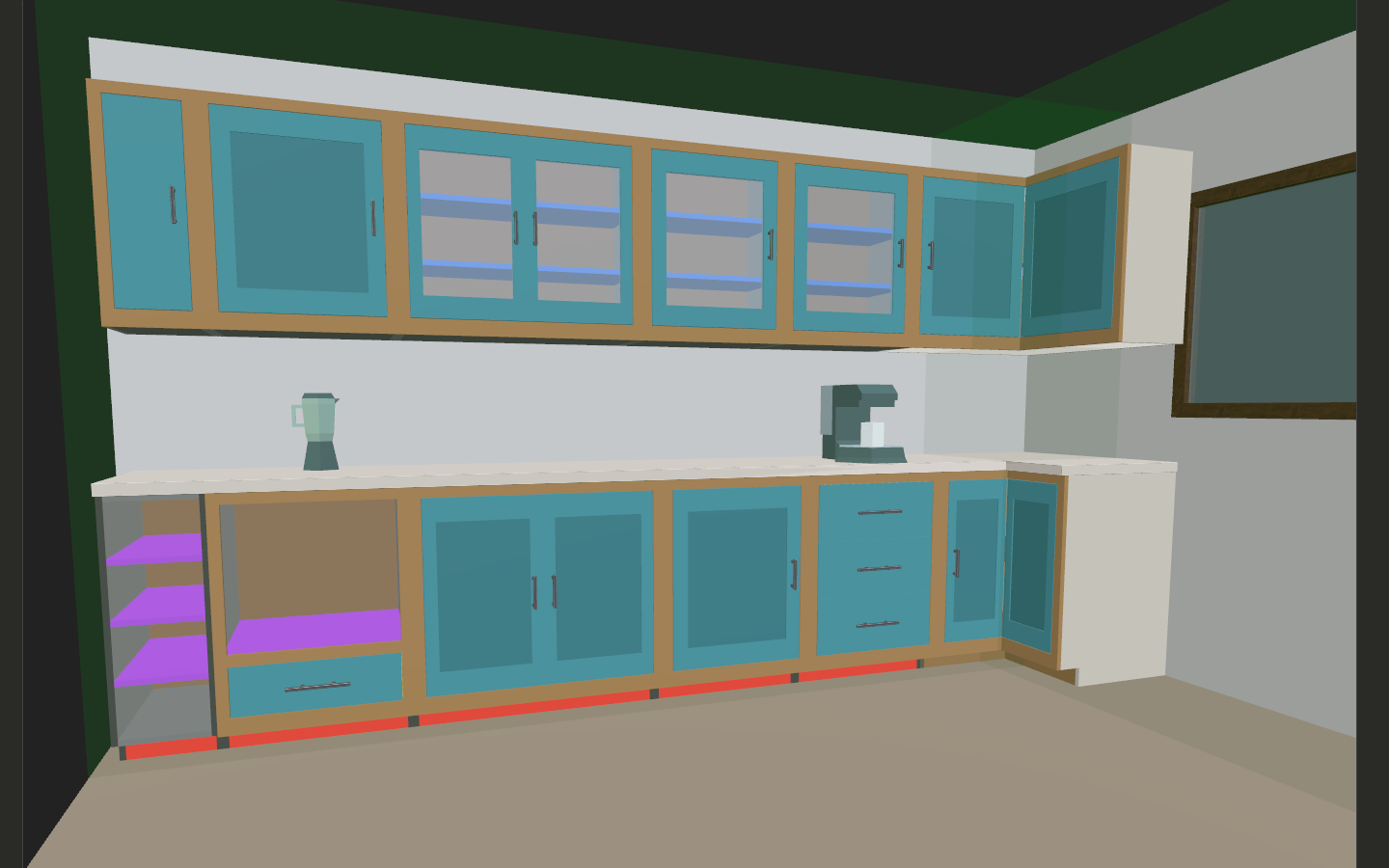

3D room layout Place and position cabinets directly in the 3D view. Snap to walls, resize with drag handles, and push or pull neighbouring objects as you adjust. Wall, base, and tall cabinets sit at the correct mounting height automatically.

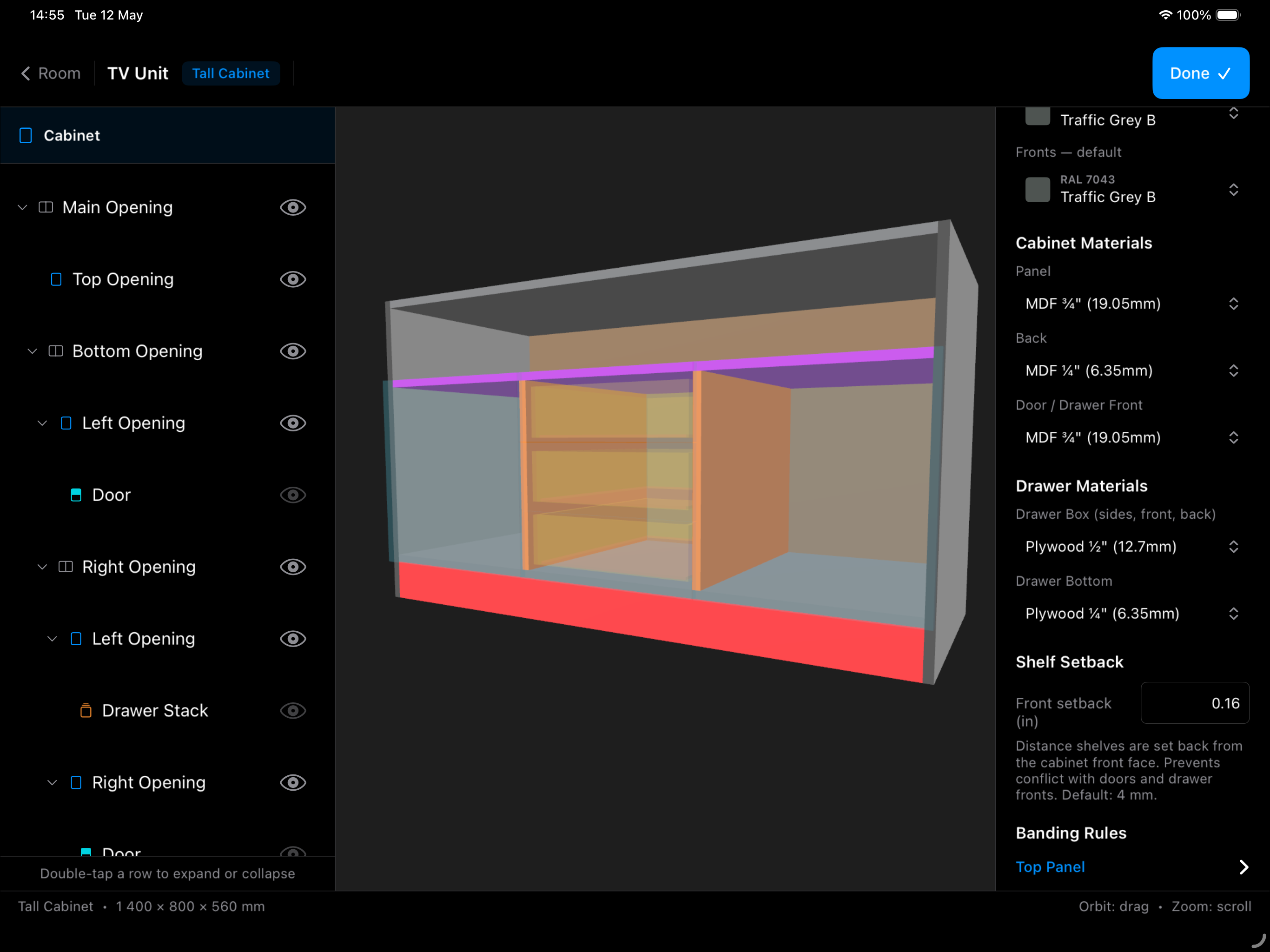

Cabinet editor Each placed cabinet links to a full cabinet definition you can edit at any time. Live 3D preview, structured opening tree, and full inspector — all in one panel. Split openings, add shelves at fixed or relative positions, build drawer stacks with individual gap control per side, and add single or double doors with per-edge gap settings. Every change updates the 3D preview instantly.

Cabinet types Base, wall, tall, and topless cabinets, plus corner cabinet variants. Framed or frameless. EU and US standard cabinet dimensions built in as defaults.

Door styles Choose between flat, embossed, recessed, and glass door faces per cabinet. Visual only — no effect on the cut list.

Real panel dimensions, not estimates Every cabinet produces a complete panel set — sides, top, bottom, back, shelves, doors, drawer fronts, and drawer boxes — with exact dimensions, materials, and edge banding rules per panel and edge, flowing directly into the cut list.

Materials and finishes Assign materials, thicknesses, and colors to every component. Separate materials for carcass, fronts, and back panels. Preview textures in the 3D editor. Control top style, plinth height and depth, and finish per cabinet independently.

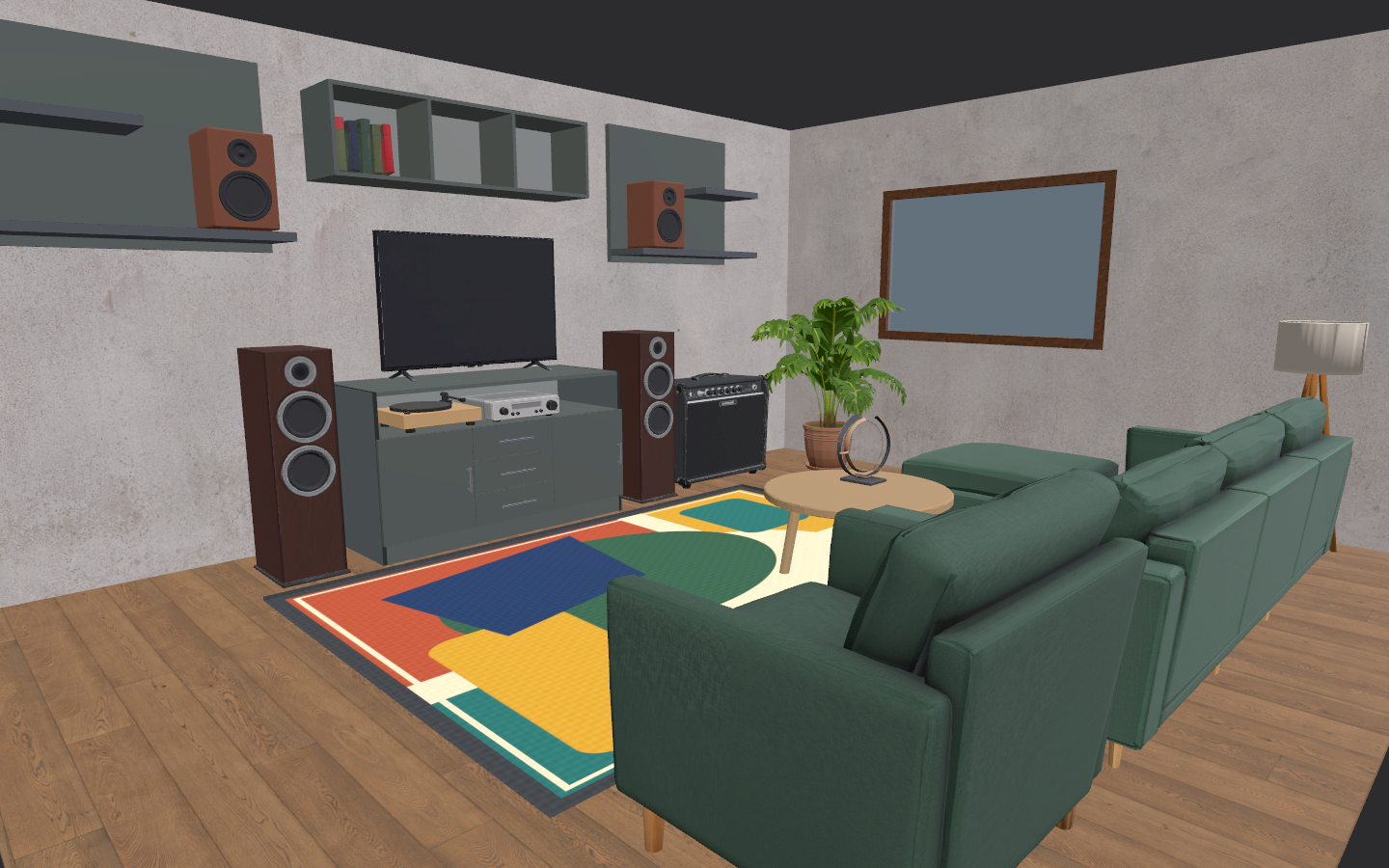

Custom 3D models Import any OBJ file and place it anywhere in the room. Add appliances, furniture, or decor to complete the layout. Scale, rotate, and position each model freely in 3D.

Built-in 3D model library Browse and place over 90 furniture, appliance, fixture, and decor models directly into your room — no need to source your own files.

More

• Island zones — free-standing cabinet runs anywhere in the floor plan, full cut list included.
• Open shelf unit — back panel and shelves only, no carcass.
• Photo textures — apply photographic images to walls and splashbacks.

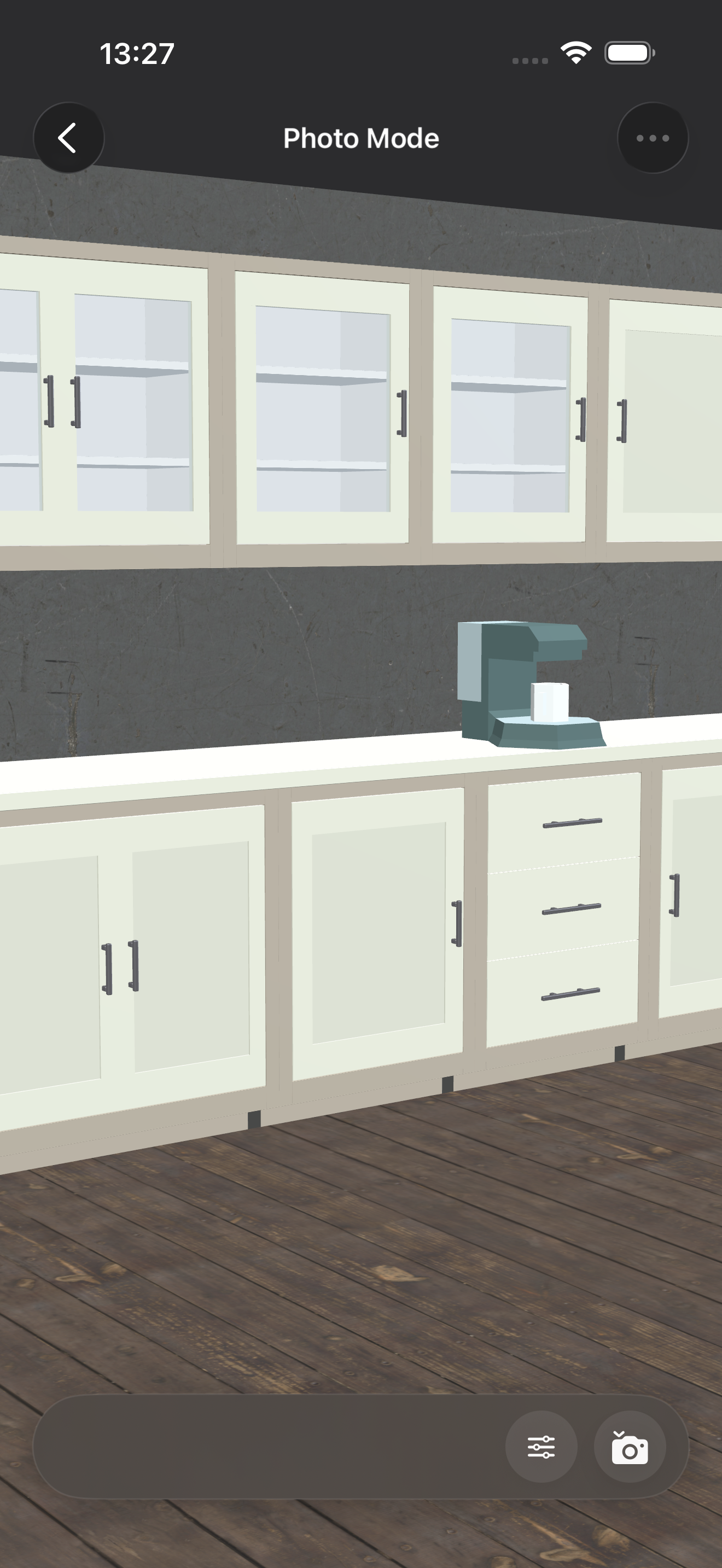

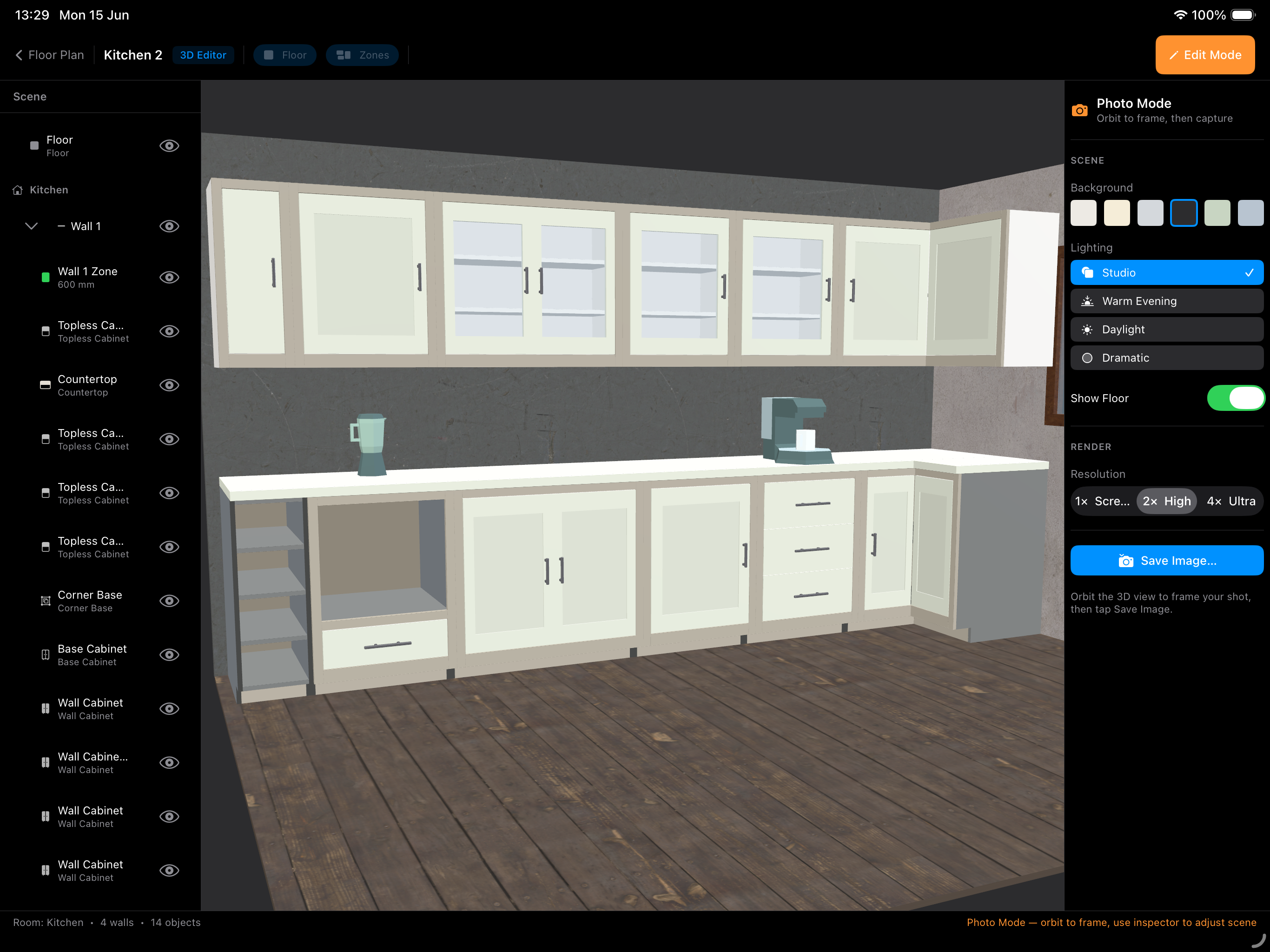

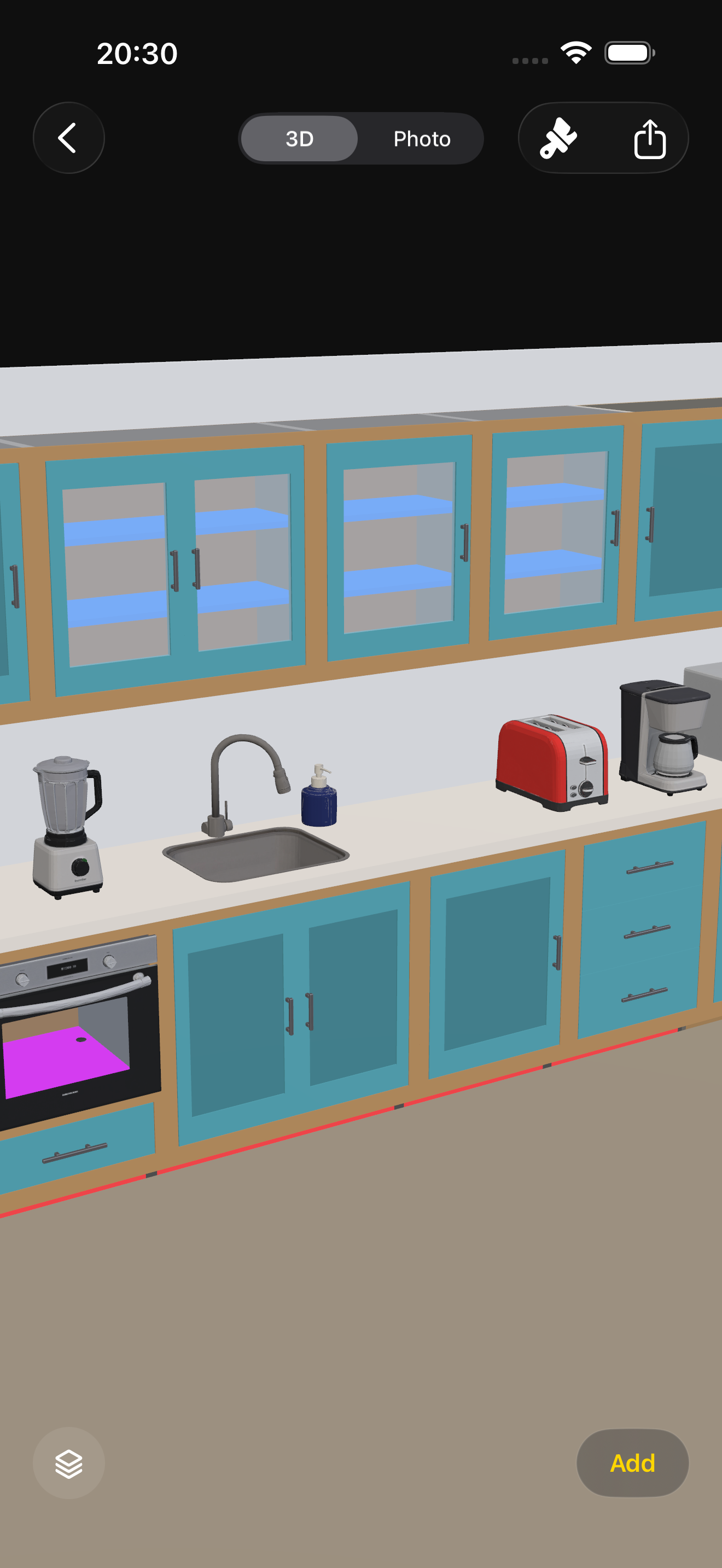

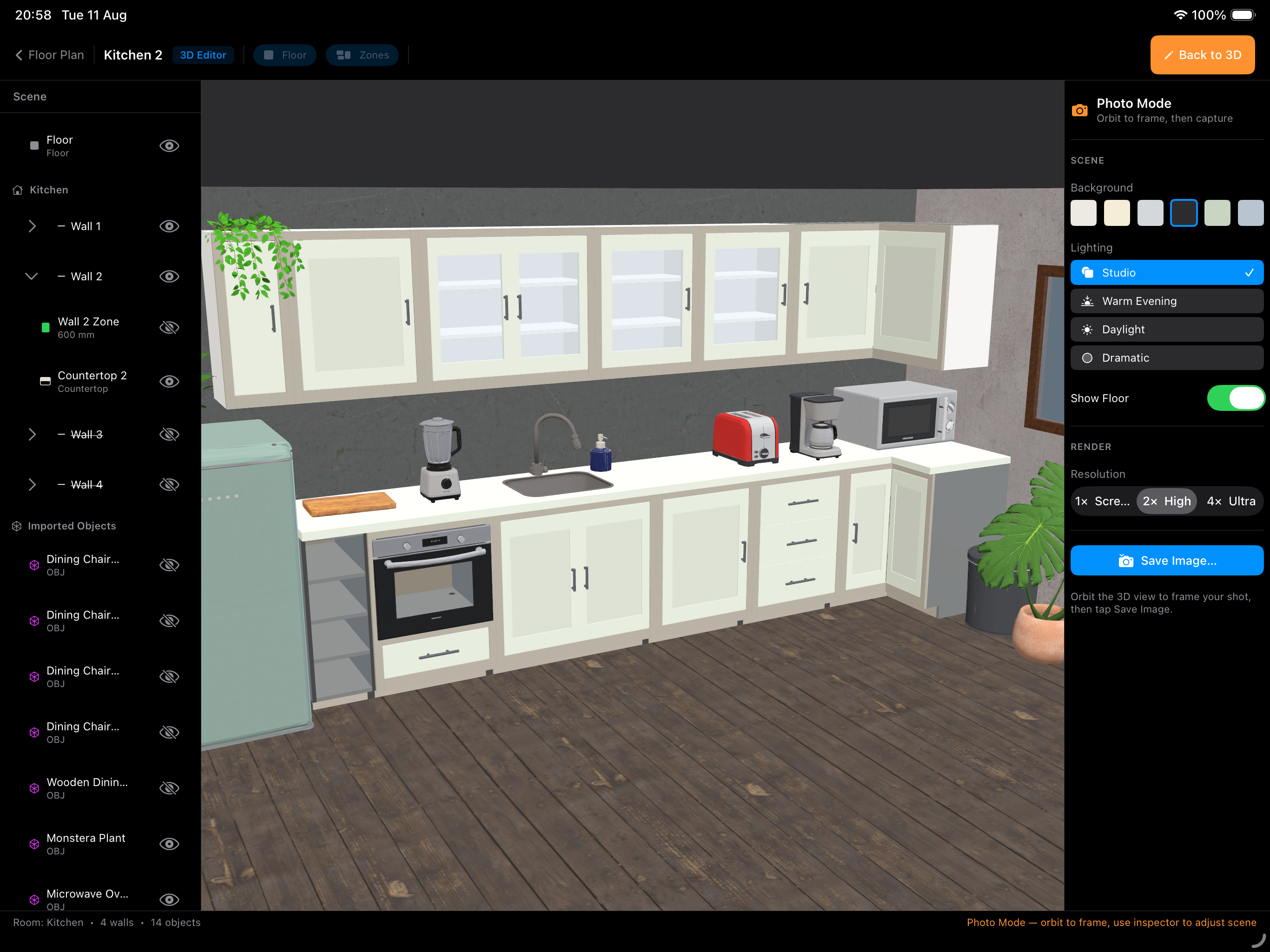

Photo mode Render clean images of your room layout with all materials applied. See it finished before you spend anything — for yourself, or to help decide.

Photo-Real Render Turn any room or cabinet layout into a photorealistic AI-generated render. Describe materials, finishes, and lighting, or leave it default — either way, see a realistic result in seconds. Refine or upscale any render afterward. Requires Standard Edition; credits sold separately.

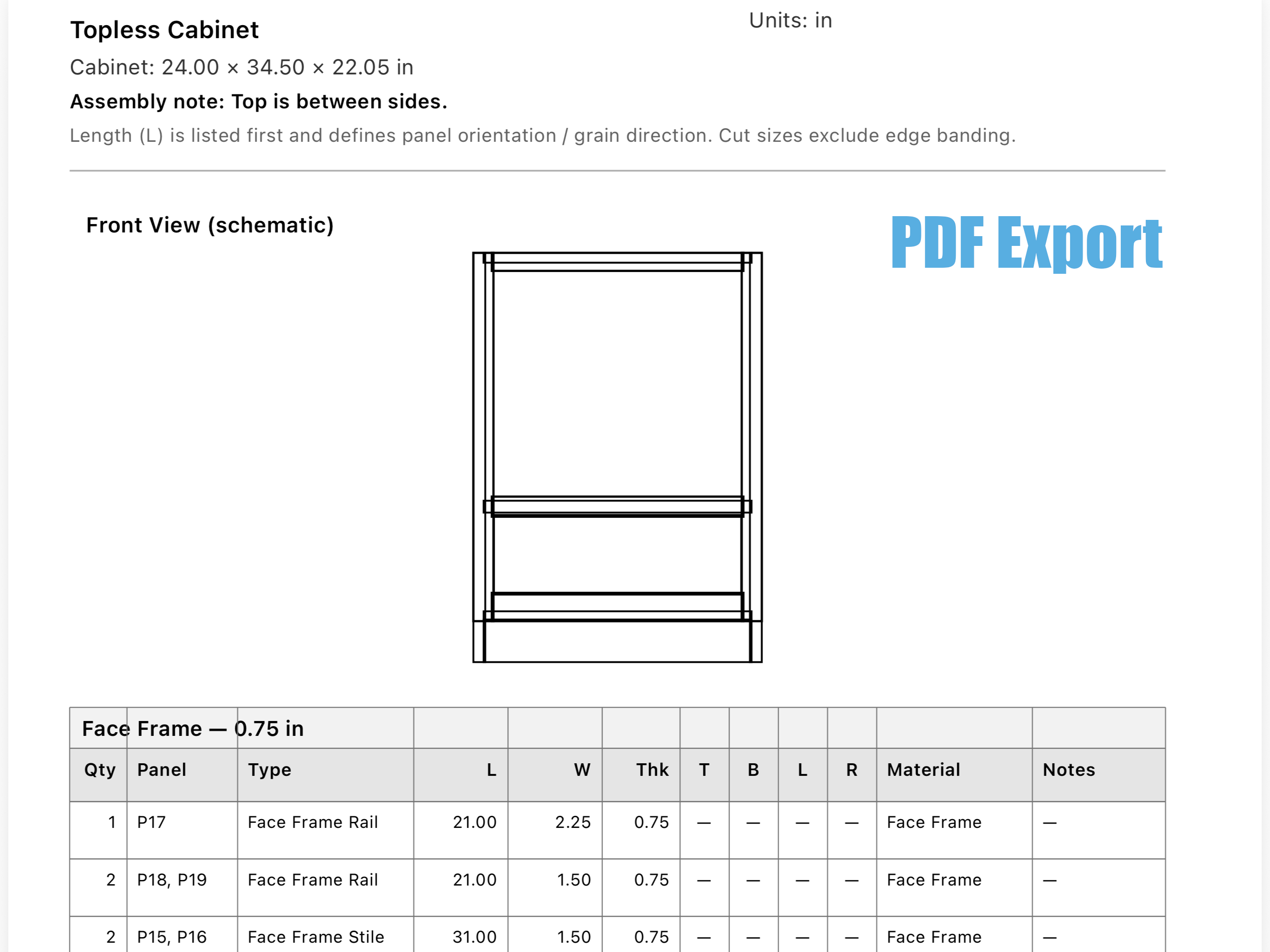

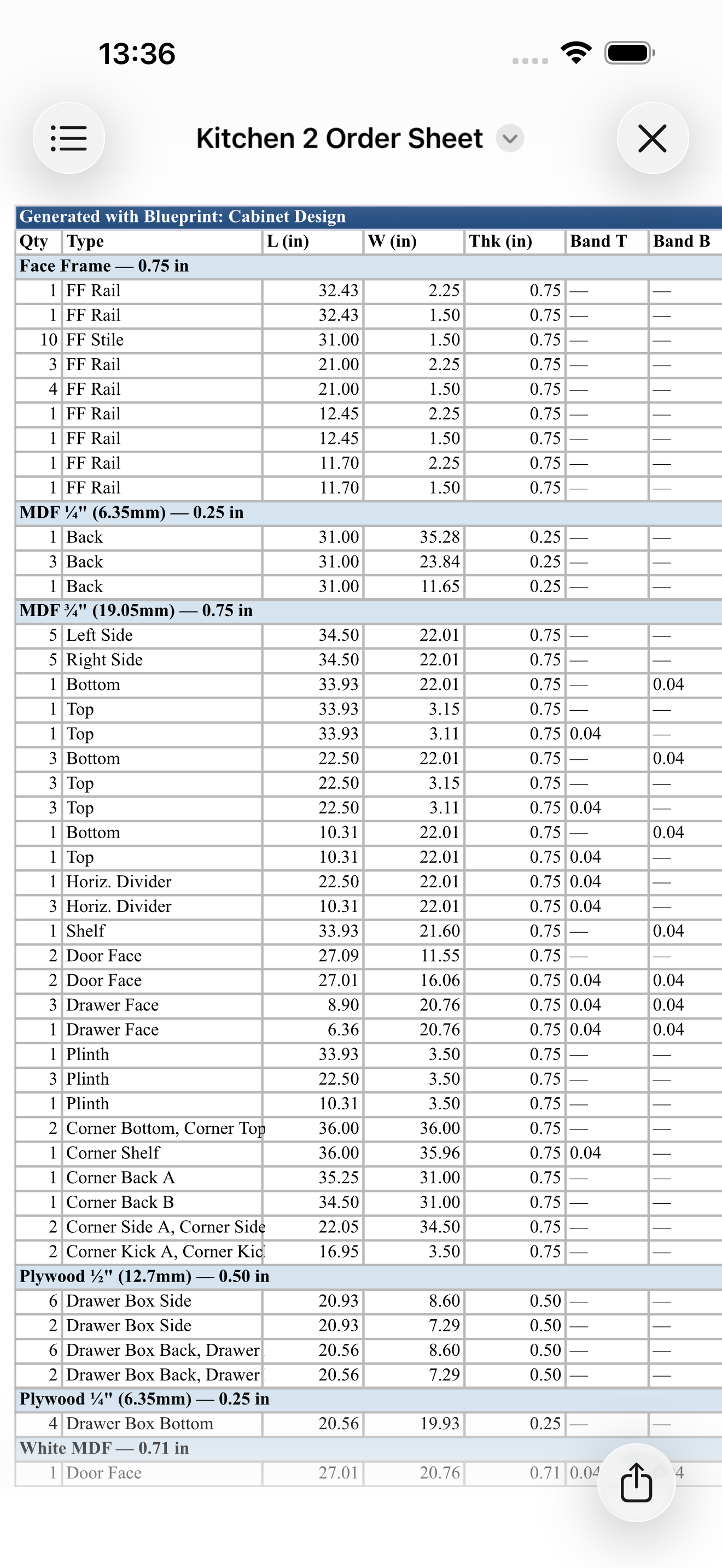

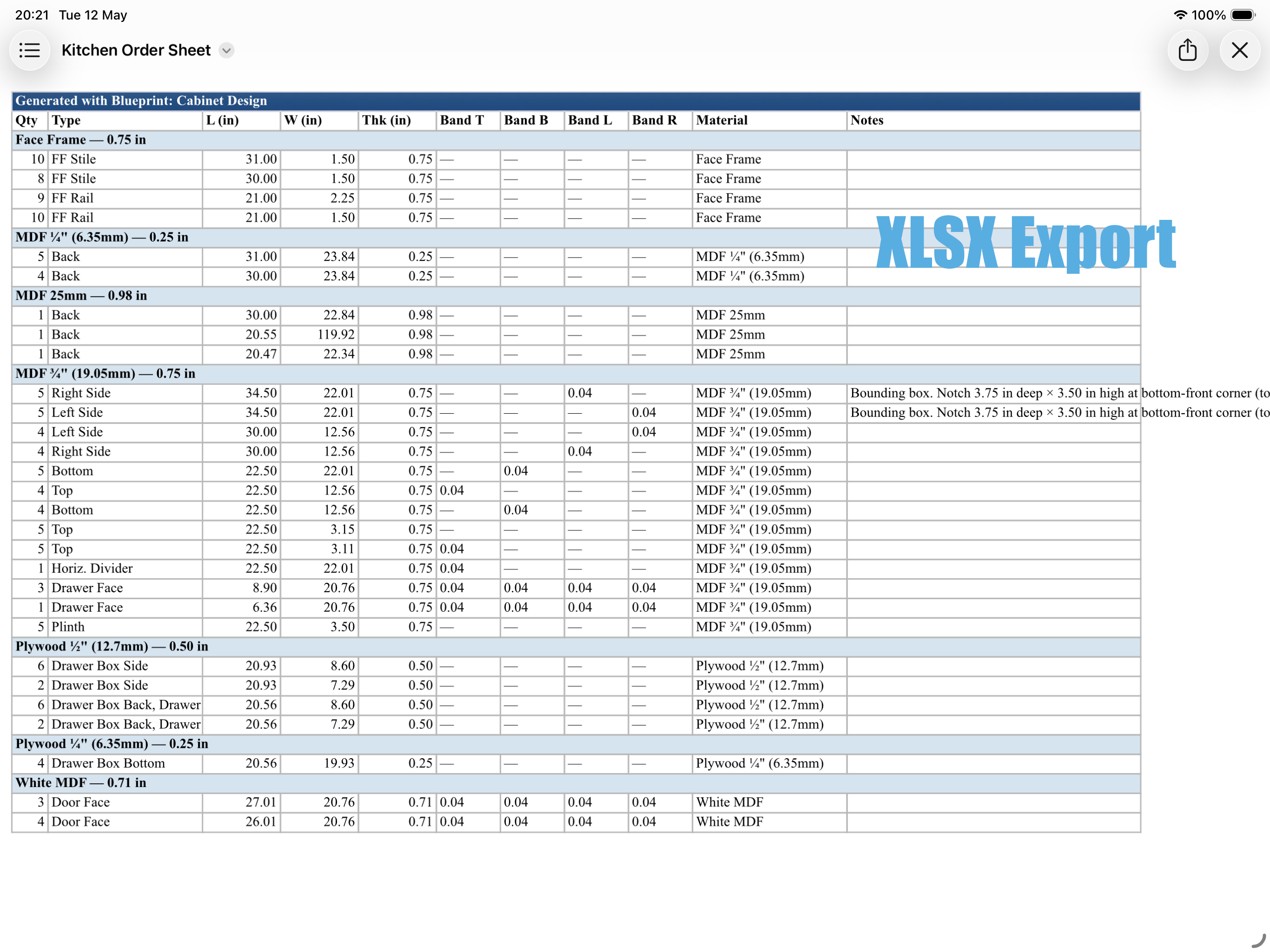

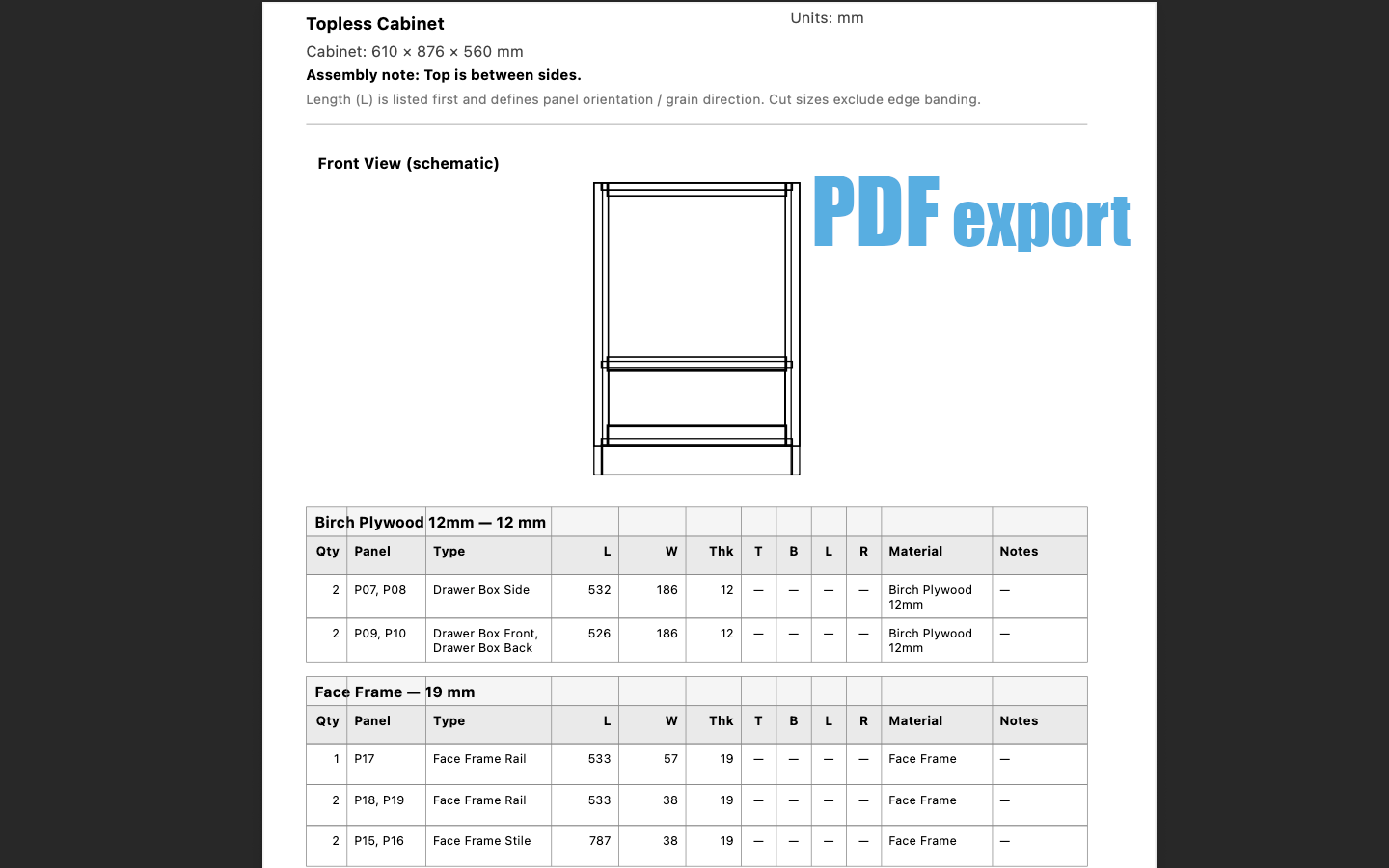

Cut list export Export a complete, ready-to-use cut list as a PDF. Every panel listed with final dimensions, material, grain direction, and edge banding on all four edges. Cut it yourself, or hand it to a cabinet shop.

Cutlist Optimizer (add-on) Arrange all panels on standard sheet sizes automatically, minimise waste with intelligent nesting, and export as a DXF file. Available as a separate add-on purchase.

A real plan you can act on — not just a picture of one.
