VerCivil: Structural Engineer

Project-based structural design — RC, steel column, retaining wall, seismic, wind. Submission-grade PDF report. ACI 318, EC2, IS 456, AISC 360, EC3, IS 800.

Project-based structural engineering platform. Organize structural members into projects, design each member with code-aware engines, and export a submission-grade PDF report with cover page, member index, material schedule, and engineer credential block. Covers leading international and Thai design codes. Fully offline.

PROJECT WORKFLOW • Create projects with job number, address, engineer profile (name, license, organization) • Add members across slabs, beams, columns, foundations, walls, and steel connections • Status badges per member: pass, fail, or pending • Recompute project: refresh members in dependency order, propagating slab loads to supporting beams • Submission-grade PDF: cover, member index, per-member calculation, material schedule, code references appendix

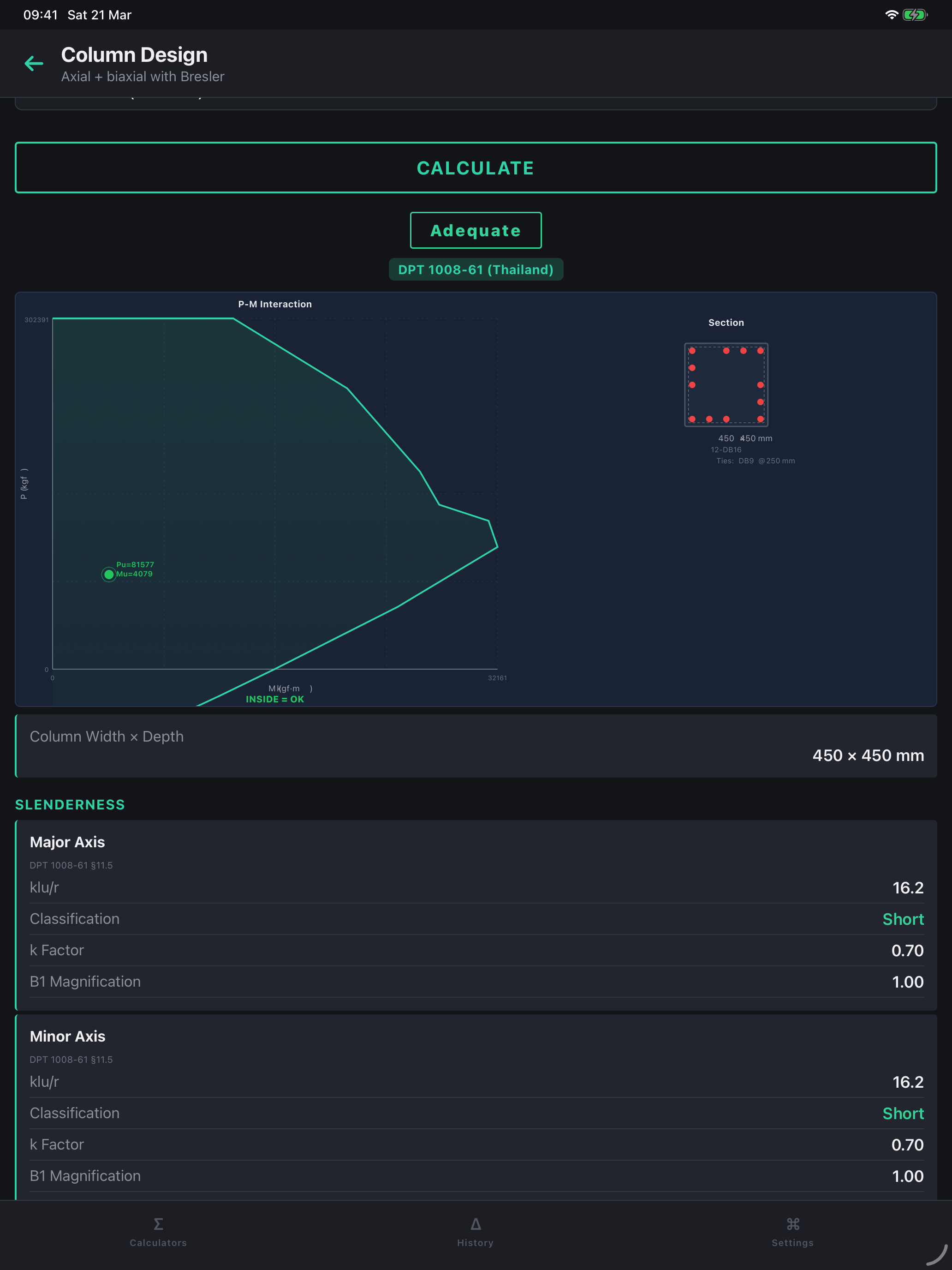

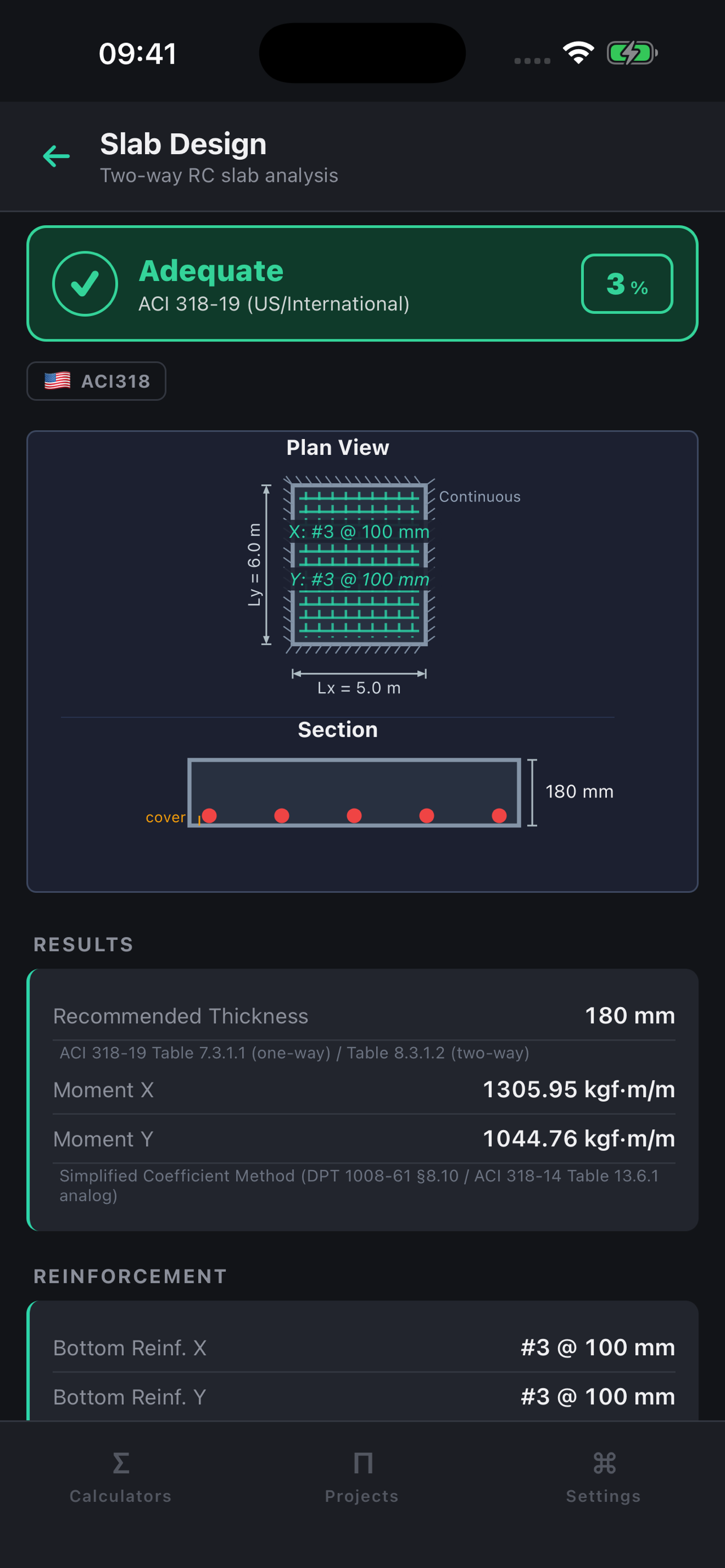

REINFORCED CONCRETE DESIGN • Slab: Two-way RC slab with deflection and crack width checks • Beam: Flexural and shear design with stirrup zone schedule (close-mid-close per ACI §22.5) • Column: Axial and biaxial bending with Bresler Load Contour and P-M interaction • Foundation: Isolated footing with punching shear, bearing pressure distribution, and optional settlement check (elastic plus consolidation)

STEEL DESIGN • Steel Column: AISC 360-22 plus Eurocode 3 plus IS 800:2007, with class-aware flexure (compact, non-compact, slender) • Section catalog: AISC W-shapes, Eurocode IPE / HEA / HEB, IS 800 ISMB, plus JIS H and BS UB / UC • Steel Connection: bolted (A325 / A490, EC3 8.8 / 10.9, IS800 4.6 / 8.8) plus fillet / CJP / PJP welds

RETAINING WALL • Gravity and cantilever wall types • Rankine, Coulomb, and Caquot-Kerisel earth pressure theories • Mononobe-Okabe seismic earth pressure analysis • Overturning, sliding, and bearing stability checks • Surcharge, backfill slope, and drainage conditions

SEISMIC ANALYSIS • ASCE 7-22 / DPT 1302 / Eurocode 8 / IS 1893:2016 Part 1 • Equivalent lateral force procedure • Story force distribution with base shear

WIND LOAD • ASCE 7-22 directional procedure • Eurocode 1 peak velocity pressure • DPT 1311 with database for Thai provinces • Windward, leeward, and sidewall pressures plus topographic factors

SECTION PROPERTIES • Rectangle, circle, I-section, T-section, L-angle, C-channel, hollow rectangle • Area, centroid, second moments, principal axes, section moduli • Torsion constant, warping constant, plastic moduli, shape factor

HYDRAULIC DESIGN • Darcy-Weisbach, Hazen-Williams, and Manning equations • Water supply and drainage modes • Pipe sizing with Reynolds number and friction analysis • Optional pump sizing with TDH and NPSHa

LIGHTING DESIGN • Lumen method per ISO 8995 guidelines • Room presets (office, corridor, warehouse, drawing room) • Fixture layout grid, uniformity ratio, power density • Coefficient of utilization and light loss factor

EVERY MEMBER INCLUDES • Interactive 2D engineering diagrams with labeled values • Pass / Fail status for every design check • Material quantity estimates (concrete, rebar, steel) • Save to project or quick history for later restore

DESIGN STANDARDS Concrete: ACI 318-19, Eurocode 2 (EN 1992-1-1), IS 456:2000, DPT 1008-61 Steel: AISC 360-22, Eurocode 3 (EN 1993-1-1 plus EN 1993-1-8), IS 800:2007 Seismic: ASCE 7-22, Eurocode 8 (EN 1998-1), IS 1893:2016, DPT 1302 Wind: ASCE 7-22, Eurocode 1 (EN 1991-1-4), DPT 1311 Lighting: ISO 8995

BUILT FOR PROFESSIONALS • Accurate formulas verified against textbook problems • Comprehensive warnings for edge cases • Dark engineering theme optimized for field use

Pay once at $19.99. No subscription, no in-app purchases, no ads. All features unlocked immediately.

Disclaimer: For reference only. All calculations should be verified by a licensed professional engineer before use in any project. VerCivil is an independent tool and is not affiliated with or endorsed by ACI, AISC, CEN (Eurocode), BIS, ASCE, ISO, or the Thai DPT. Design codes are cited only as the published standards the calculators implement.
