Guitar Tap

Guitar Tap turns your device into a precision tap-tone analyzer for guitar builders and tonewood enthusiasts. Tap a guitar body, a raw tonewood plate, or a brace, and Guitar Tap captures the ring-out, runs a 65,536-point FFT (about 0.67 Hz resolution), and shows you the resonant peaks that reveal how the structure and material behave.

Built around the tap-tone workflow used by luthiers following Trevor Gore's methodology — but approachable enough for any builder curious about what their wood is telling them.

THREE WAYS TO MEASURE

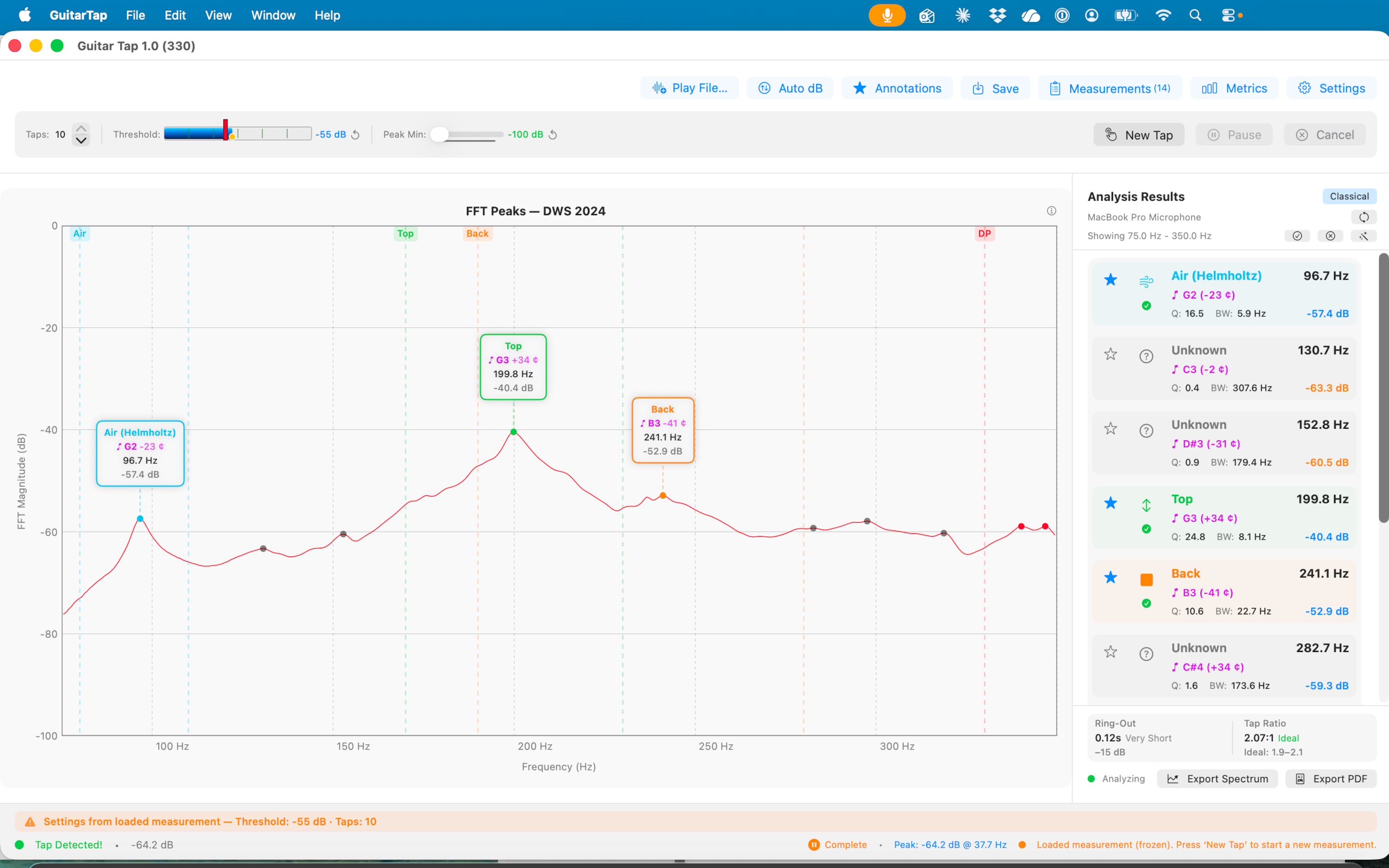

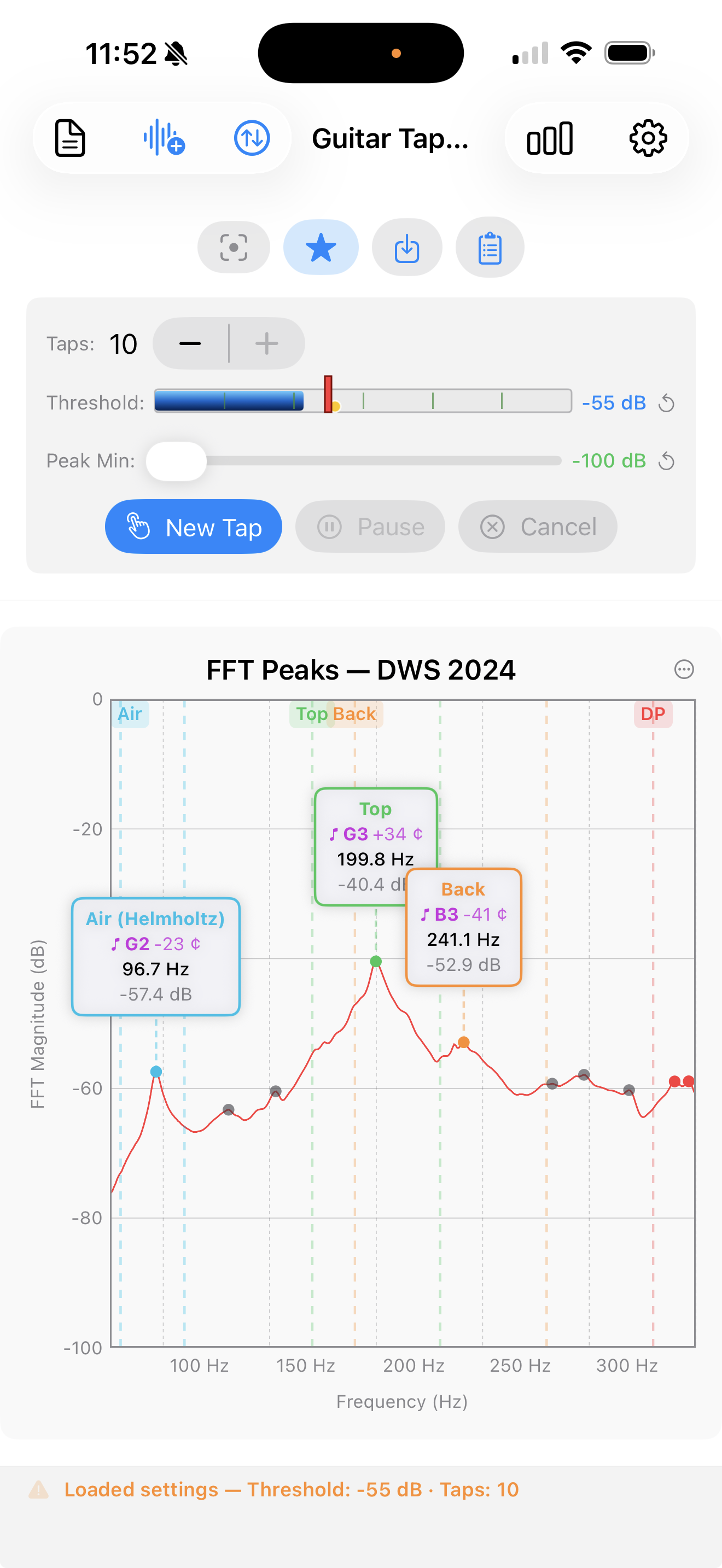

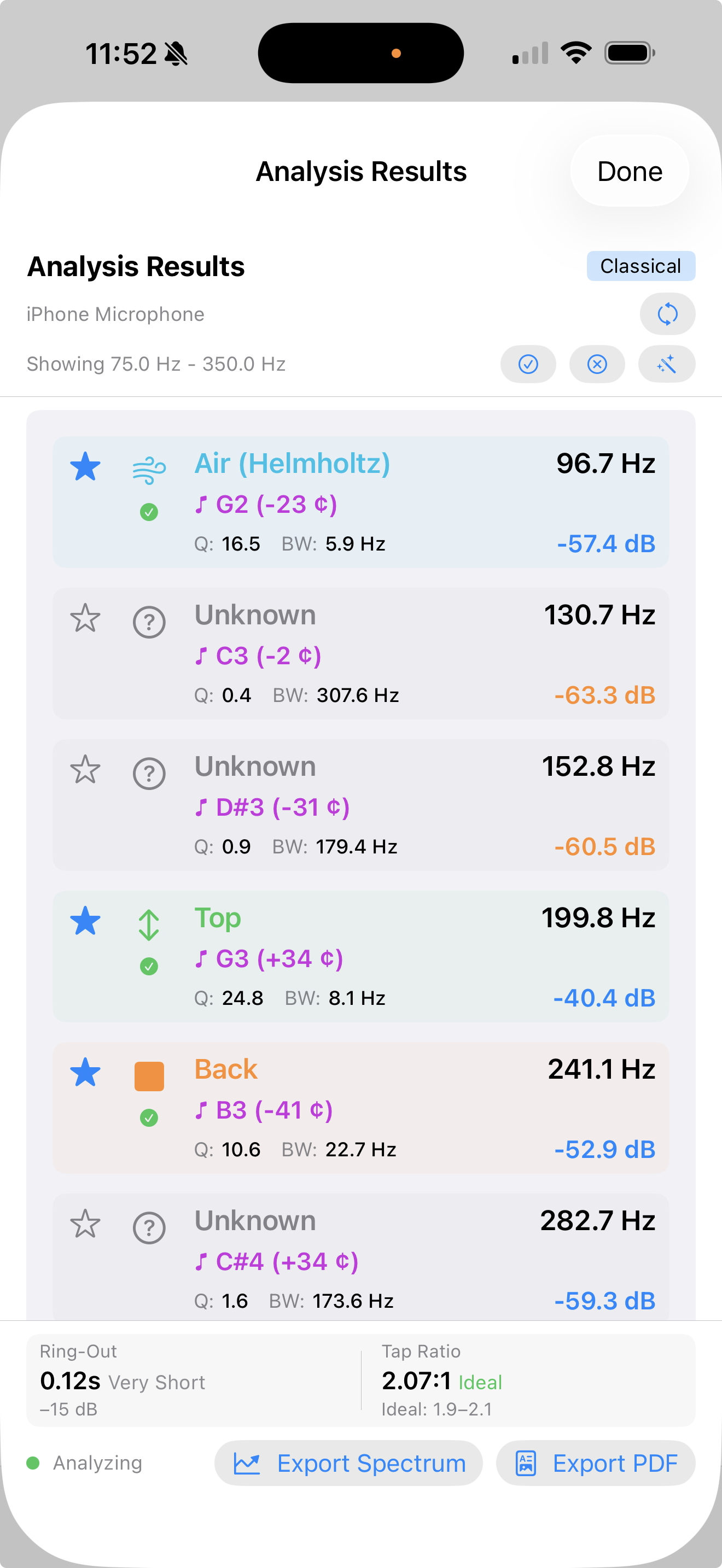

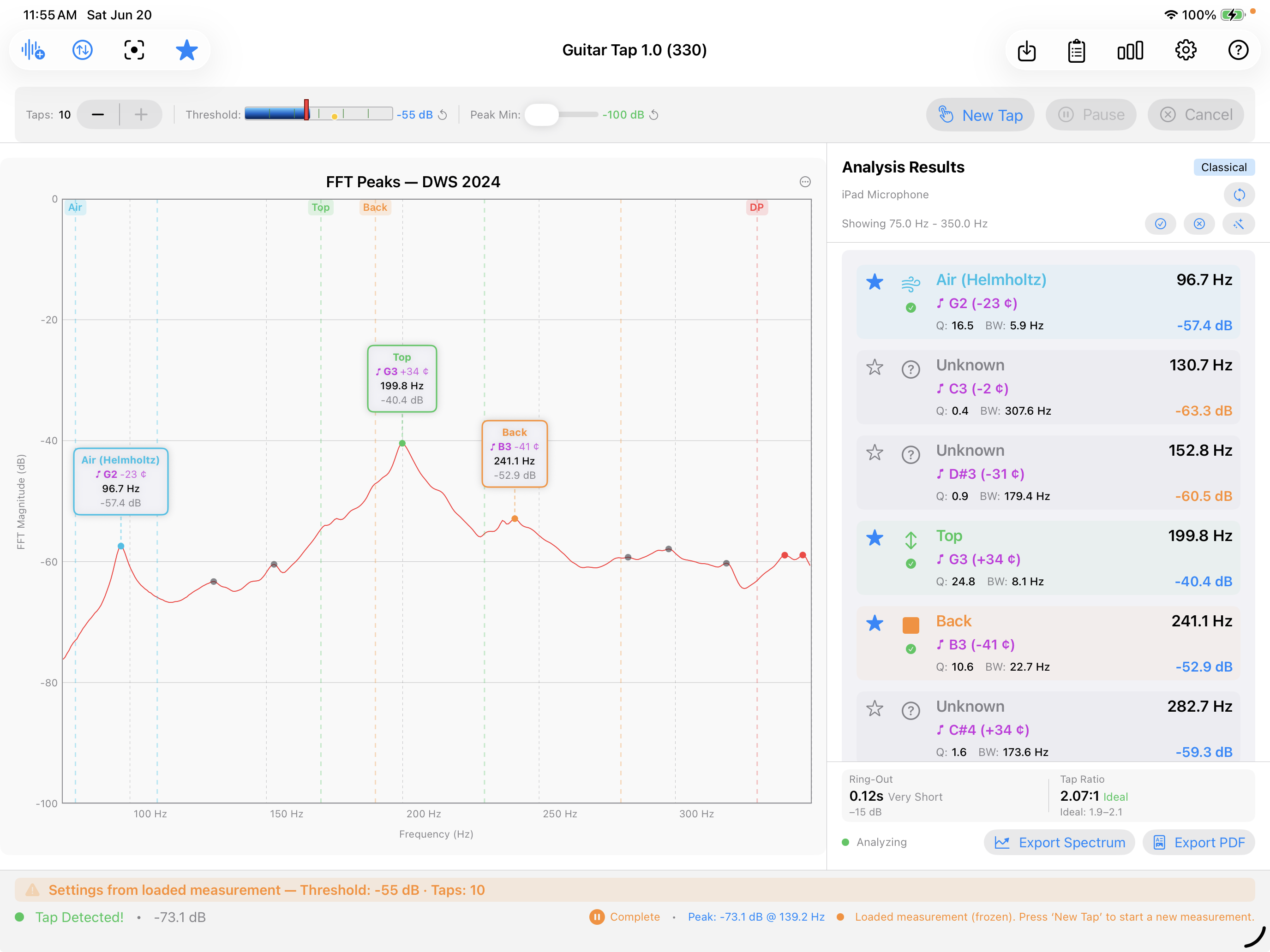

• Guitar mode — Identify the key structural resonances of a finished body: Air (Helmholtz), Top, Back, Dipole, and Ring modes. Each peak is labeled with its frequency, pitch, Q factor, and bandwidth. See the Tap Tone Ratio and ring-out decay time at a glance.

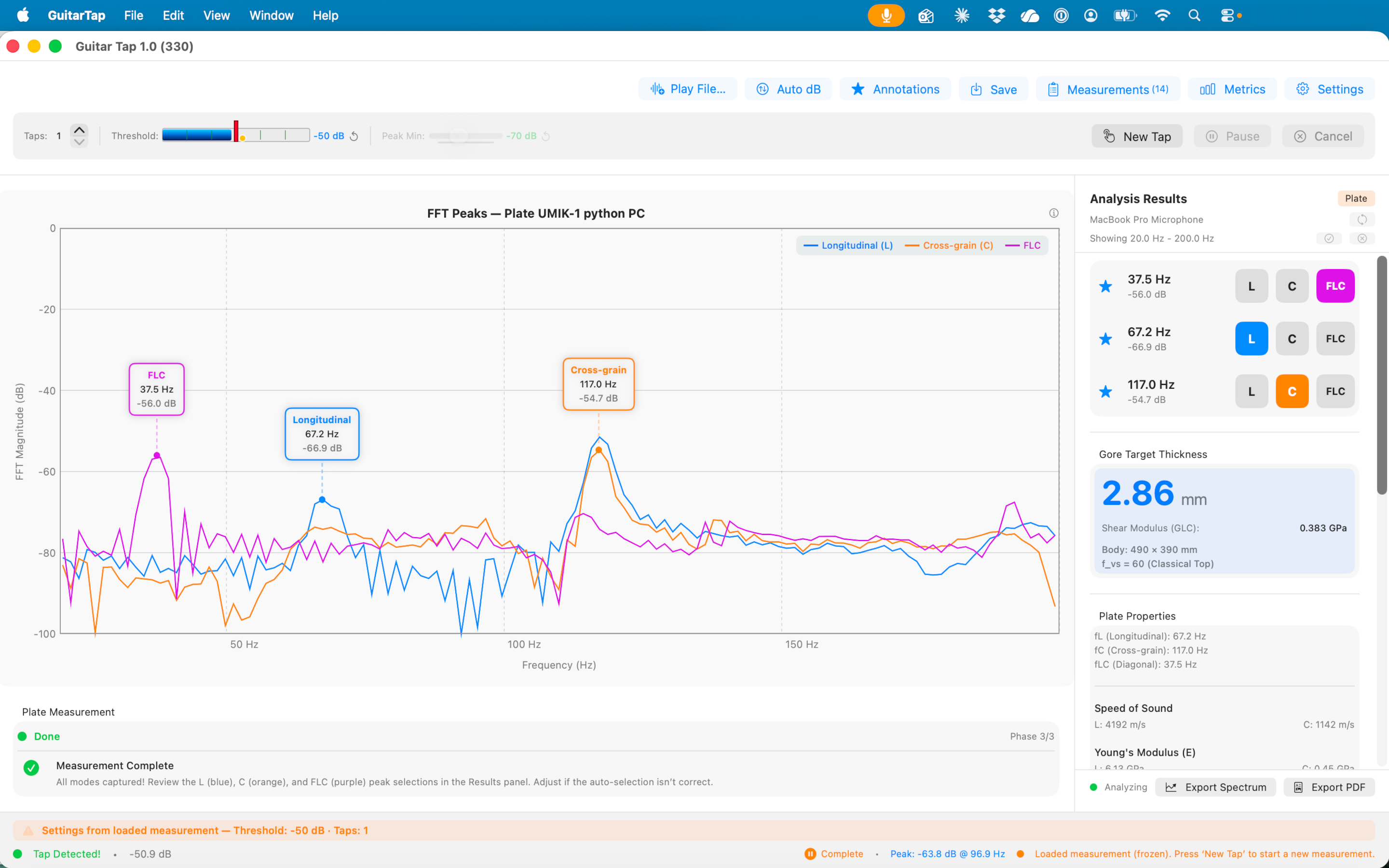

• Plate mode — Measure a rectangular tonewood blank with free-free bending taps. Guitar Tap derives Young's modulus along and across the grain, speed of sound, specific modulus, radiation ratio, and a quality grade — plus a Gore target thickness for your guitar's dimensions.

• Brace mode — A fast single-tap measurement of a brace strip's stiffness and quality.

FEATURES

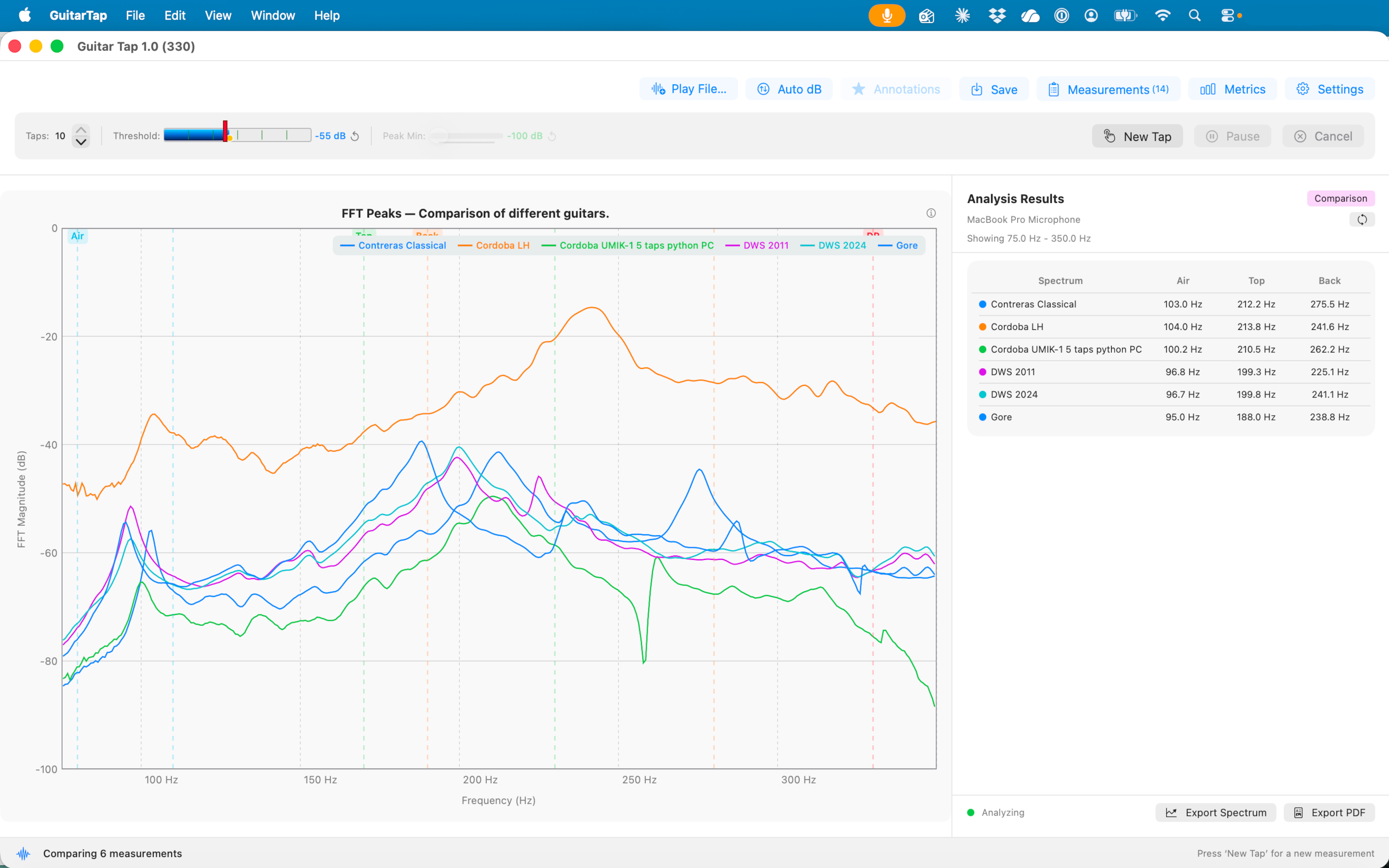

• Real-time spectrum that freezes automatically the instant a tap is detected • Multi-tap averaging (2–10 taps) to cut noise, with per-tap comparison view • Color-coded peak labels you can drag, toggle, and reclassify • Compare 2–5 saved guitar measurements overlaid on one chart • Save measurements with names and notes; export as files, spectrum images, or PDF reports • Import and share measurements via the Files app, AirDrop, and more • Microphone calibration support for measurement mics • Spruce quality scale, anisotropy ratio, and density checks built in • Play an audio file through the analyzer instead of the live mic

PRIVACY

Everything runs on your device. Guitar Tap has no accounts, no ads, no tracking, and never sends your audio or measurements anywhere.

Works on iPhone, iPad, and Mac.
