ZMC-BMS

This application is an intelligent system for monitoring and managing all types of batteries from the ZMC-HiLo Battery series manufactured by HiLo Ltd.

It is used in Li-ion batteries for electric bicycles, scooters, small electric vehicles, home or industrial solar energy storage systems. Through Bluetooth 5.0 or Wi-Fi (Cloud) technology, it provides constant monitoring, management and all necessary protections for their reliable operation. At the same time, the application allows for optimizing usage and an increase in the EV range and battery life. Dynamic real-time measuring and reporting of the current and total (accumulated) energy consumed provides you with peace of mind and security, especially on longer routes. Saving routes and statistics for each of them can help improve daily use, and the saved information about the load and battery operating mode (Battery Log) is a valuable tool in the hands of more advanced EV users.

1. Features

• Real-time display of the current values ​​of: Total voltage (Vbatt), current (Chg / Dch), output / input power (W), current counters for the state of charge (SOC), temperature, voltage of each individual cell in graphic and digital form, on / off balance for each cell, speed (only for EV), current energy consumption (Wh / km) and many others.

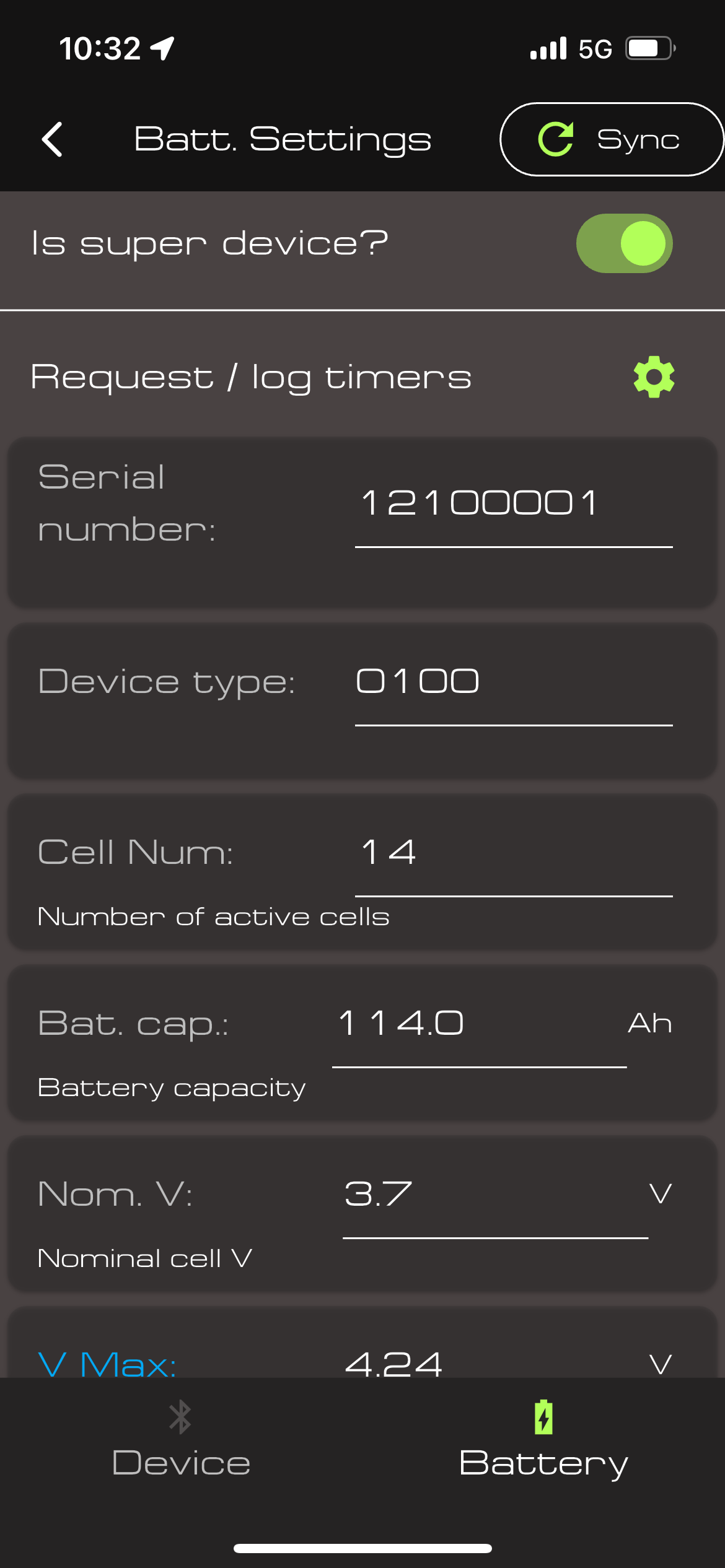

• Display of all system settings, as well as the parameters of the battery BMS with a way to lock / unlock the ability to change them.
• Individual PIN code for access to a device (battery). Separate independent profile for an unlimited number of added devices (batteries) in the application.
• “Smart balance” function. The process works throughout the entire charging time, which increases the efficiency many times over when cells need to be balanced.
• Notifications for triggered protection in problematic conditions such as: Over current (Over current - Chg/Dch), high or low voltage of a cell (Low/High Voltage), high or low temperature (Low/High Temp), short circuit in the load (Short circuit), output status (Lock/Unlock), communication failure (Out of range), etc.
• Ability to record and view in graphic form the parameters of battery usage (Battery Log) when the application is started.

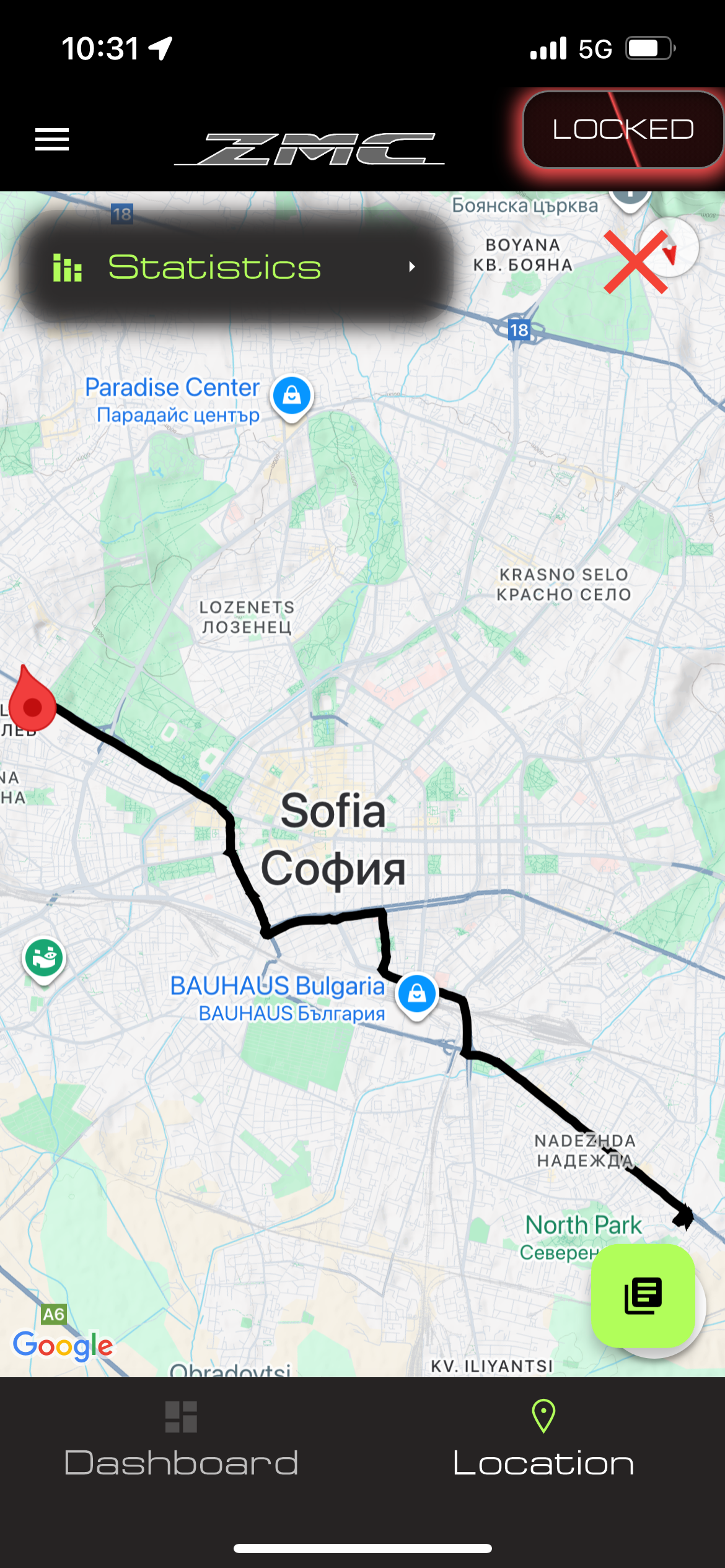

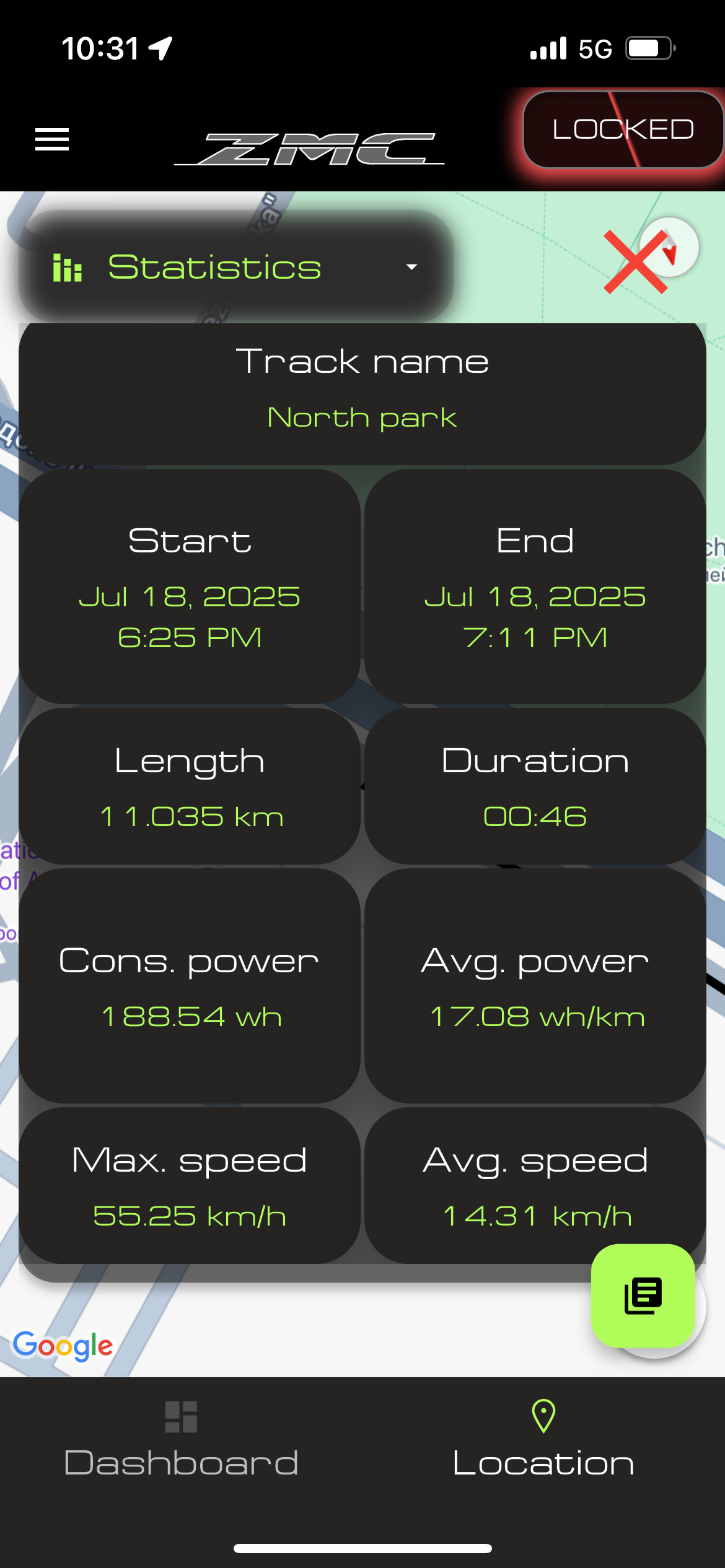

• Ability to record and view routes (Saved routes) with statistical parameters to them such as: time, average and maximum speed, total (Wh) and average energy consumption (Wh/km Avg) when the application is started.
• Data is stored in the “Cloud” to preserve routes and logs them when changing the phone or needing remote viewing.
• Monitoring and management of low and high-voltage stationary batteries for energy storage via MQTT broker.
• Full-fledged operation in “background mode” without the display being turned on.
• Low micro-consumption of the battery itself. Guaranteed maintenance-free storage for over 1-2 years.
