ETCS BaliseViewer

ETCS Balise Viewer for simple visualisation of Eurobalise data

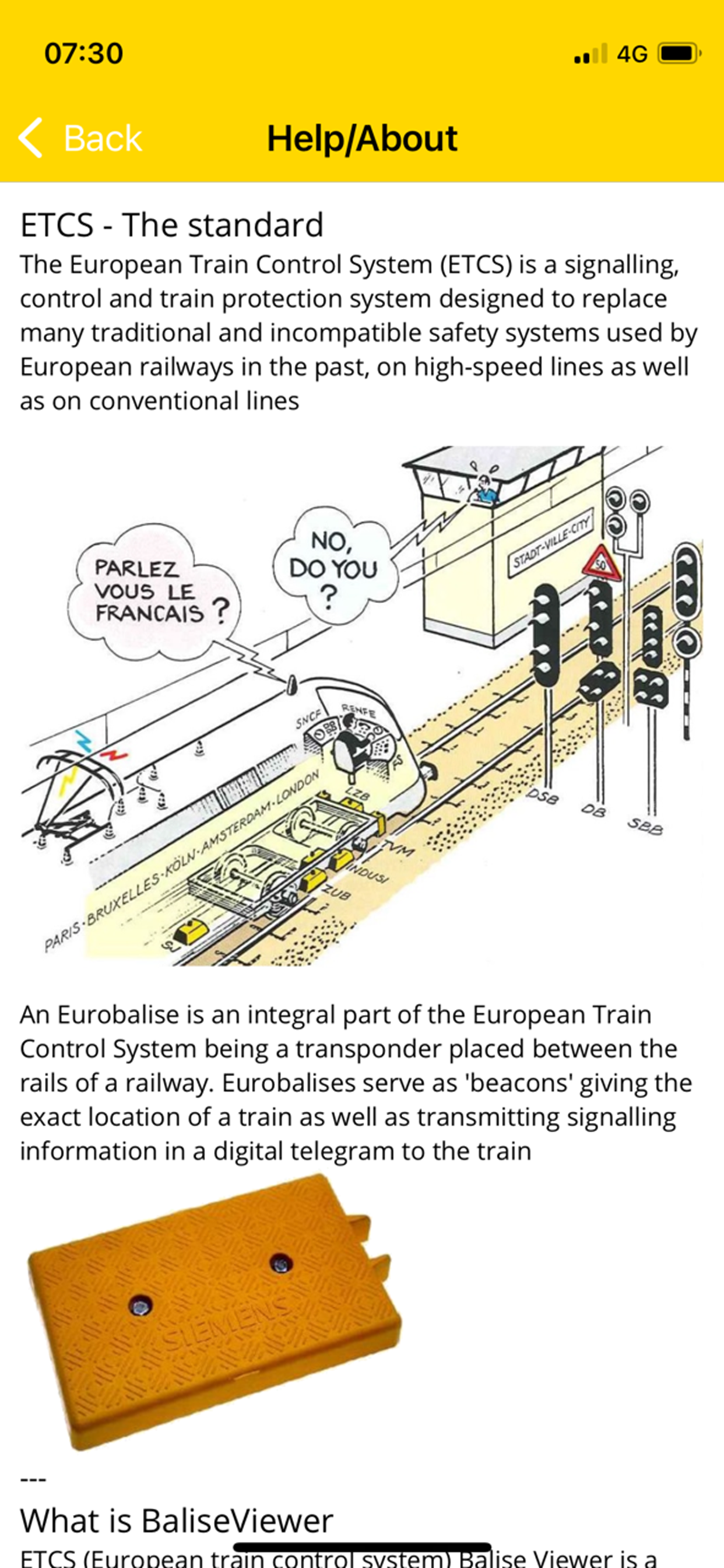

ETCS (European train control system) Balise Viewer is a simple app for the visualisation of the content of ETCS Eurobalise data according to the ETCS language. It is used for testing purposes in railway signalling environment. LEU (Lineside Electronic Unit) and TLG (Telegram) programming files can be imported and corresponding data is displayed and visualised. The implemented data view model maps :

• LEU-channel(s) with corresponding telegram(s) (if imported from LEU file)
• Telegram with corresponding headers and packets
• Packets with corresponding variables and contents If telegrams contain specific national information (packet 44) the corresponding signal aspect is displayed if possible. Actually the following NID_XUSER are implemented :
• NID_XUSER = 2, ZUB SBB/BLS Switzerland,
• NID_XUSER = 3, ZSI 127
• NID_XUSER = 9, RSBB UKsys
• NID_XUSER = 13, SNCB TBL1+
• NID_XUSER = 39 SMCT Italia Other national systems can be implemented if corresponding specification are provided. The app needs an internet connection.
