OhmniView

Try OhmniView beta version. Enter promo code BETA90DAYS to access full capabilities

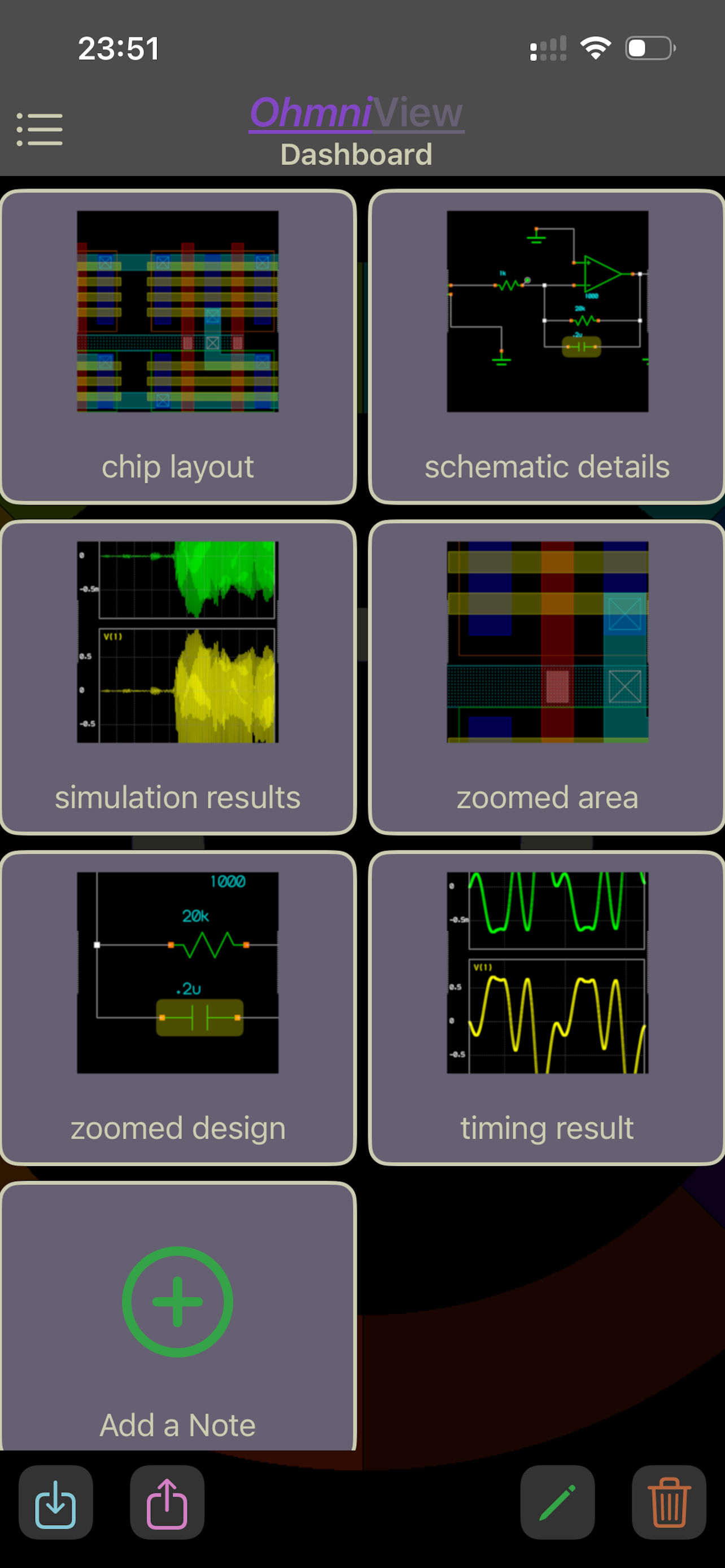

CKTDraw: Schematic editor/generator with compatible import and AI assistant to dramatically simplify circuit creation efforts. GDSView: High-performance GDSII viewer for complex layout visualization with flexible user-defined layer definition. WaveBox: Analog waveform viewing and analysis tools for both imported waveform data and results from the built-in simulator. RFGear: Common RF design utilities including Smith Chart and FFT-based tools. DashView: Interactive design summary that facilitates effective technical discussion and collaboration. Supported Format: Import:GDS, ASC, ASY, CSV, TRA. Export:SVG, PDF, PNG End User license agreement can be found at : https://www.apple.com/legal/internet-services/itunes/dev/stdeula/
