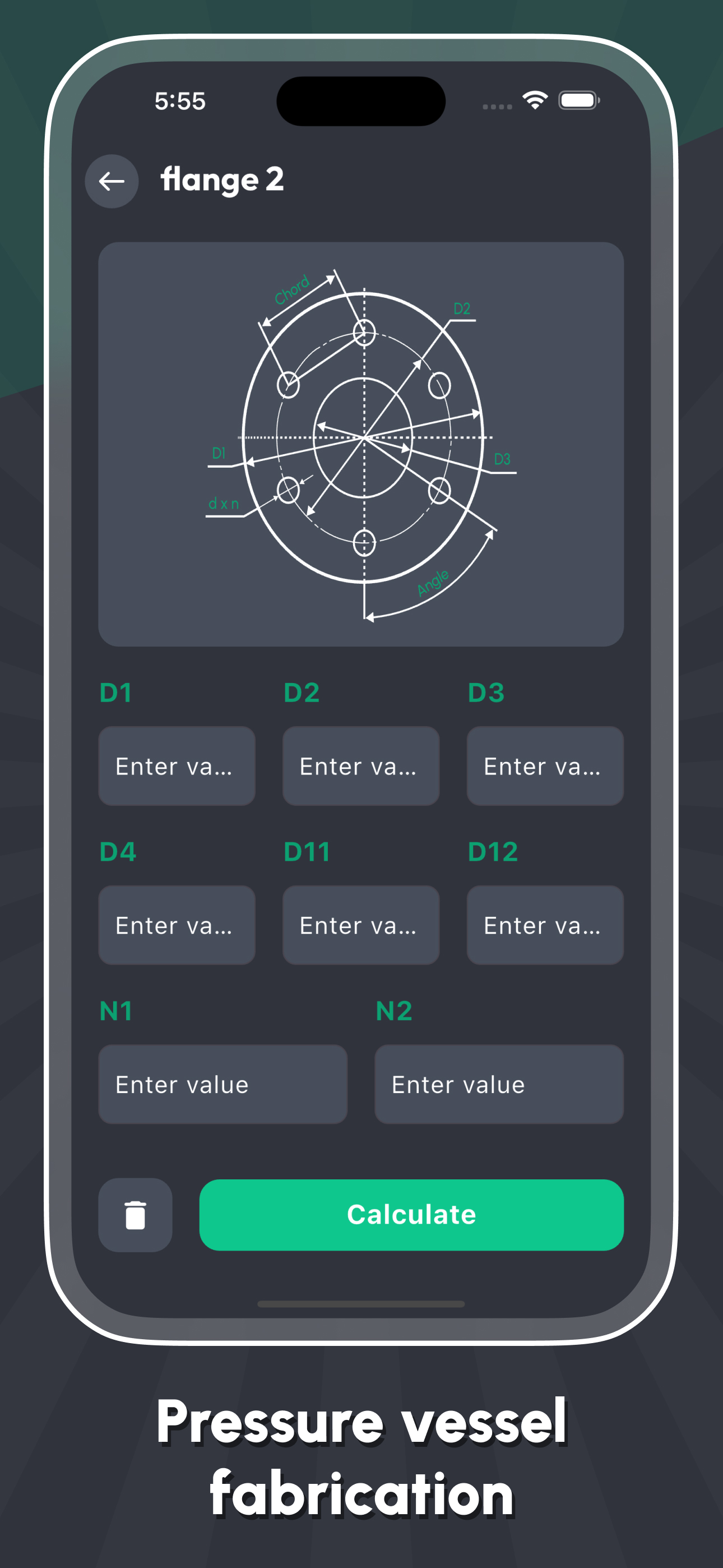

Flat Pattern Bend Calculators

Quickly and accurately calculate the flat pattern dimensions for various fabricated components.

Quickly and accurately calculate the flat pattern dimensions for various fabricated components including lobsterback bends, elbows, tee pieces, frustum cones, truncated pipes, cones with accessible vertices, and complex transitions like round-to-square or square-to-round.

This app uses triangulation methods to simplify layouts for even the most challenging shapes like screw flights, truncated pyramids, and angled pipe cuts.

Key Features:

• Supports flat pattern calculations for bends, tees, elbows, cones, and pipe intersections
• Handles advanced shapes like truncated cones, pyramids, and screw flights
• Includes transition layouts: round to square, square to round, and rectangle to round

Designed for professionals in:

• Pressure vessel fabrication
• Piping and ducting
• Welding and insulation
• Storage tanks, heat exchangers, agitators
• Mechanical and process equipment
• Structural and industrial fabrication

Download now and streamline your sheet metal calculations today!

Whether you're on the shop floor or in the field, this tool will save you time and ensure precision in your fabrication work.

In app purchase included : Monthly for 3.99$ Yearly for 5.99$ Life time for 9.99$
