MobileEview

MobileEView is NIVELCO's first mobile phone application that communicates with NIVELCO devices via Bluetooth®. The new product responds to today's challenges and needs and allows users to use NIVELCO devices easily and efficiently. The MobileEView application allows easy management of transmitter settings using the commissioning and maintenance wizards. Configuration settings can be saved and easily accessed for future use. The application displays data in a clear, structured way, making it easy to review. It also provides the possibility to test and verify.

Various test functions allow you to verify that the device works properly in the application, thus giving you more reliable measurements and guaranteeing optimal device performance. The pages are equipped with help functions and information services to assist the user in using the program and the devices.

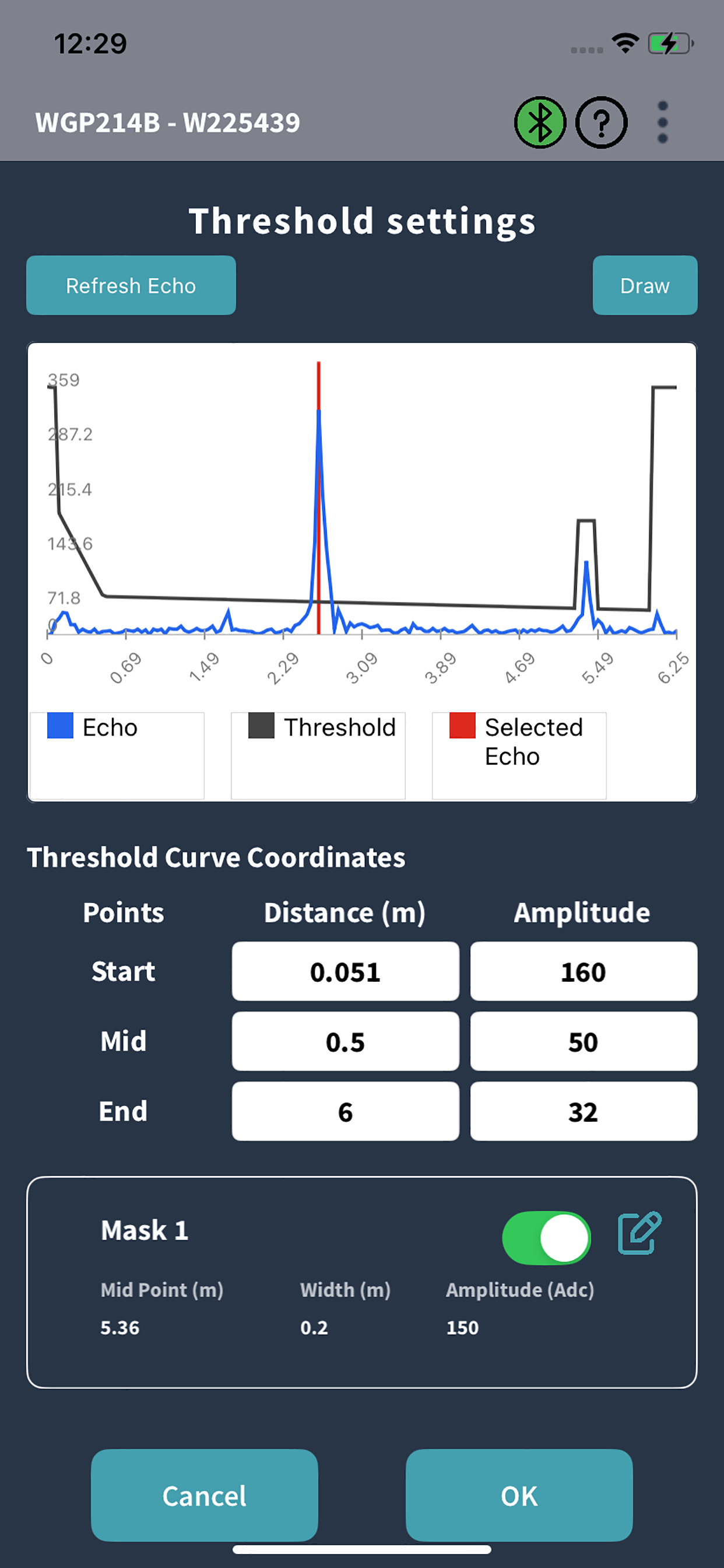

PROPERTIES – Direct connection to transmitters with Bluetooth® – Access transmitters without Bluetooth® via Bluetooth-HART modem (SAT–504–2) – Live diagram display (trend), with automatic (~3 s) update: – Flow (PV) – Distance (SV) – Level% (TV) – Temperature (QV) – Current value (VV) – TOT1, TOT2 – h Level (flow measurement) – Echo amplitude – Level change rate – Echo list display with automatic update – Manually updates echo chart display – Current PV, SV values of transmitters display already in the device selector's initial screen – Full product identification, unique user ID – Log file saving

COMPATIBLE DEVICES – NIVELCO PiloTREK WP, WE–200
– NIVELCO UNICOMM SAT–504–2 (HART–USB modem)

FUNCTIONS – Commissioning wizard (guides the user through the device settings, eliminating the possibility of errors); – Maintenance wizard (access to all parameter settings, device customization, more information and data about the device); – Testing / Verification; – Settings / Customization.
