KQ MIDI Modulate

This is a tool for MIDI experts. Not recommended for beginners.

• This app by itself does not produce sound.
• It converts input MIDI signals and outputs them.
• You can use 8x16 pads to output any MIDI signal.

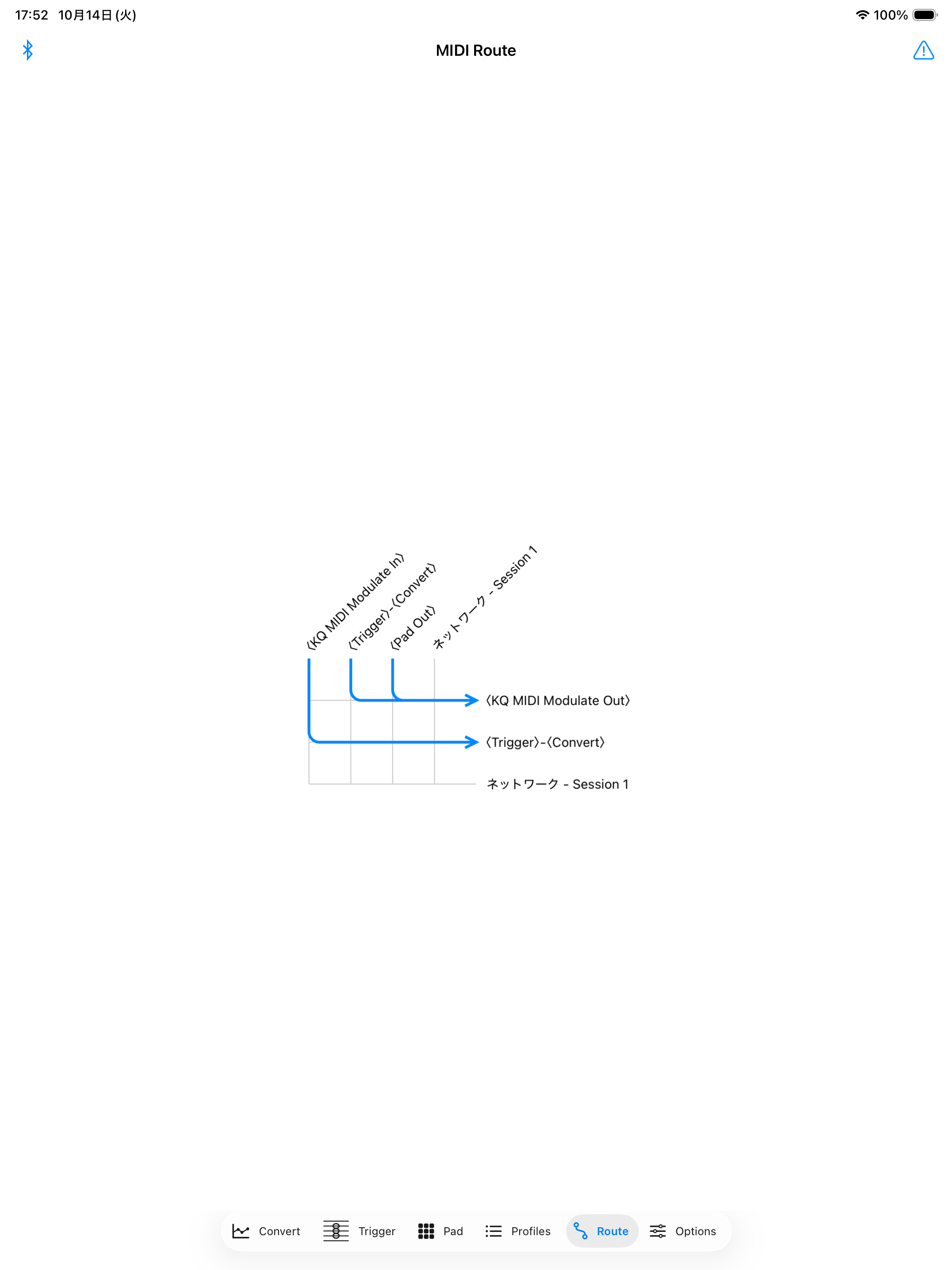

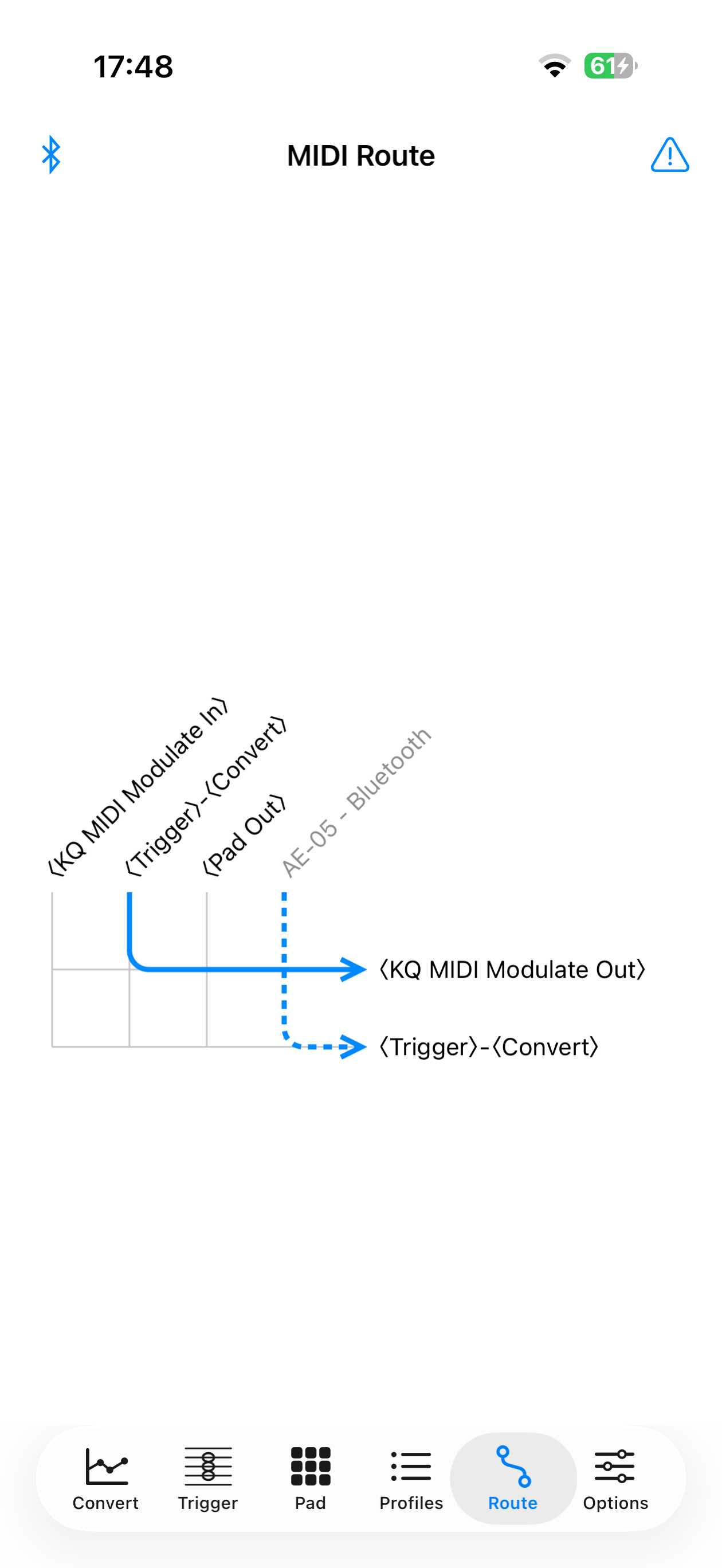

• You can route MIDI devices freely.
• This app includes 2 AUv3 Plugins.
• Compatible only with MIDI 1.0; MIDI 2.0 is not supported.
• The developer uses this app conveniently with a MIDI wind controller.

Convert Converts the values of control signals. Cannot be set per channel.

Note Ctrl, Threshold: Transmit note on messages only if the value of the Note Ctrl is above the threshold.

Key: Key of the note signal Vel1: Velocity of Note On Vel0: Velocity of Note Off CC: Control Change AT: Channel Aftertouch PB: Pitch Bend PC: Program Change N/A: Not applicable

HR: High Resolution - when enabled, handles 14-bit signals. E: Envelope, tap to open the settings window. F: Filter, tap to open the settings window. LPF: Low-pass filter, smoothes out value changes. The higher the Strength value, the slower the change. HPF: High-pass filter, applies only abrupt value changes. The value automatically approaches the Return Base value. The higher the Strength value, the faster the change.

Tap the graph to switch between line graph, history, and bar graph. Long press the graph and tap “Edit Curve” to edit the curve. "- 0 +" denotes the offset; this value is added to the input value. Press the button in the top left corner to switch to a minimized view. The "!" in the top right corner is the panic button. Pressing it sends All Notes Off and All Sound Off messages.

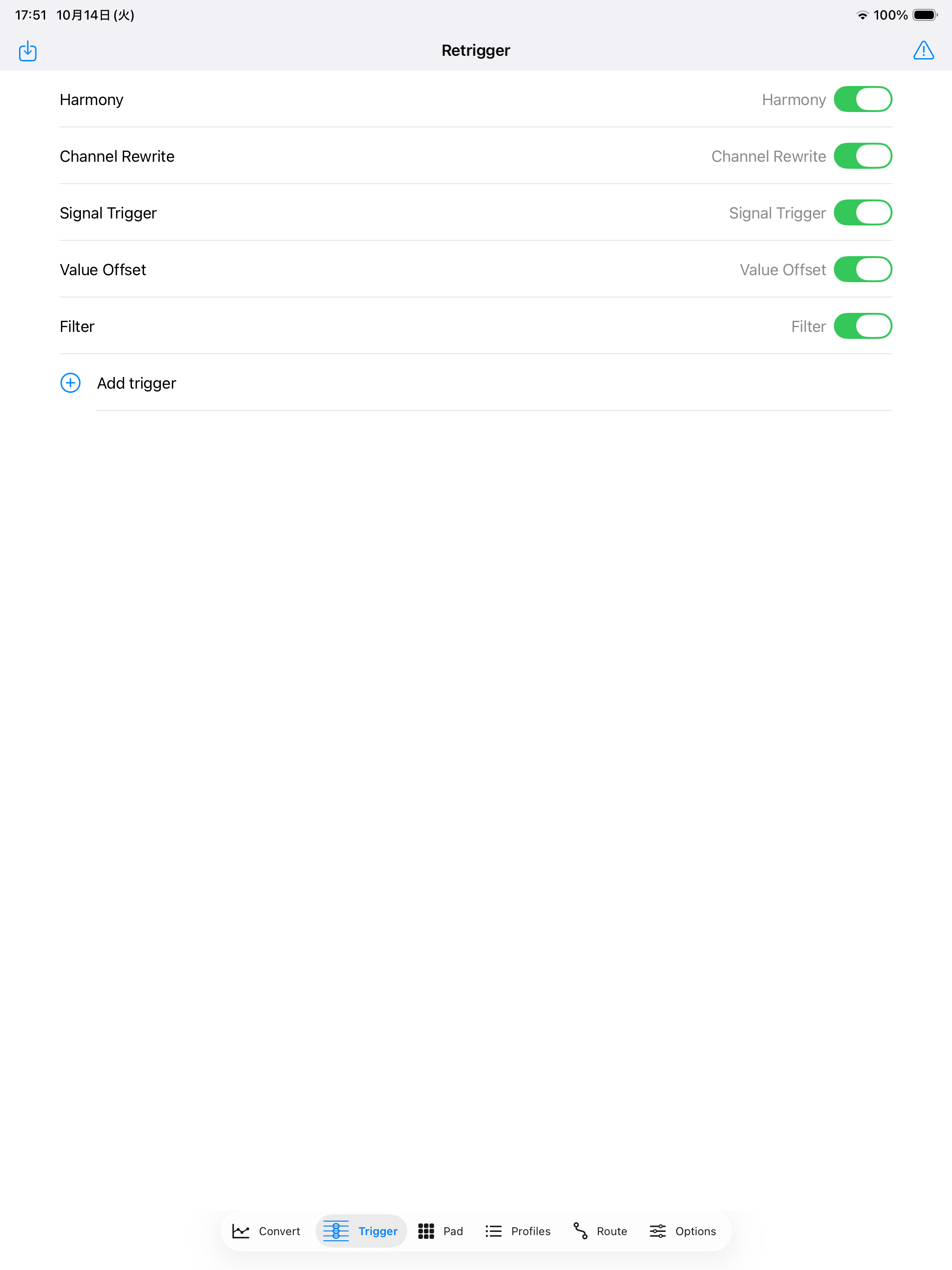

Trigger Sends signals according to the rules upon receiving specified MIDI signals. You can specify channels.

Harmony: Shifted note signals Channel Rewrite: Rewrite of channels Signal Trigger: Trigger of any MIDI signal Value Offset: Increment/decrement of value Filter: Suppression of transmission

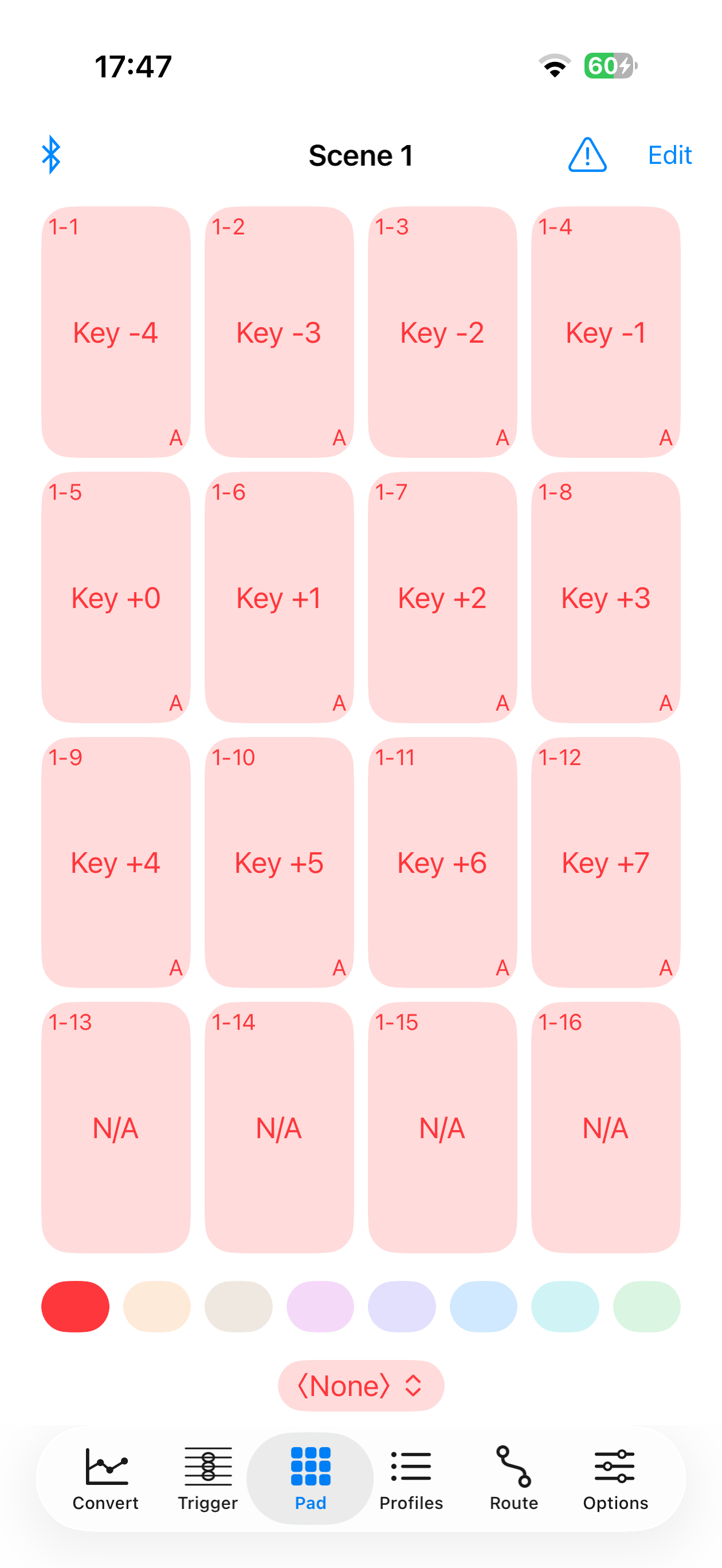

Pad Consists of 8x16 pads. Note: Note signal CC/AT/PB Oneshot: Control signal (when pressed) CC/AT/PB On/Off: Control signal (press/release) Program: Patch Change (bank selectable) Convert Offset: Offset specification for the Convert screen Load Preset: File loading on the Profiles screen Misc/SysEx: Any signal

Latch: Pads become toggles. If a group is specified, the pads act as radio buttons.

Options Key Delay: Delays Note On Velocity Convert: When outputting Vel1 in Convert, select whether to always convert or only when legato is not present MIDI Rx Channel: Receiving channel MIDI Tx Channel: Transmitting channel Filter Other Channel: Suppress transmission of channels other than receiving channel Duplicated Notes: Specifies handling of duplicated notes

Note that: The application and description contain machine-translated text.
