R+W Sensor App

R+W Sensor App Measurement data app for displaying and recording measurement data from R+W iPK.

The R+W Sensor App allows you to save data on your mobile device or the measurement amplifier itself. The data can also be exported in CSV format and evaluated on a PC.

Measurable variables:

• Torque
• Speed
• Vibration
• Temperature

Easy to use:

The R+W Sensor App enables quick and easy reading of the iPK thanks to its intuitive operation. Up to four couplings can be connected simultaneously.

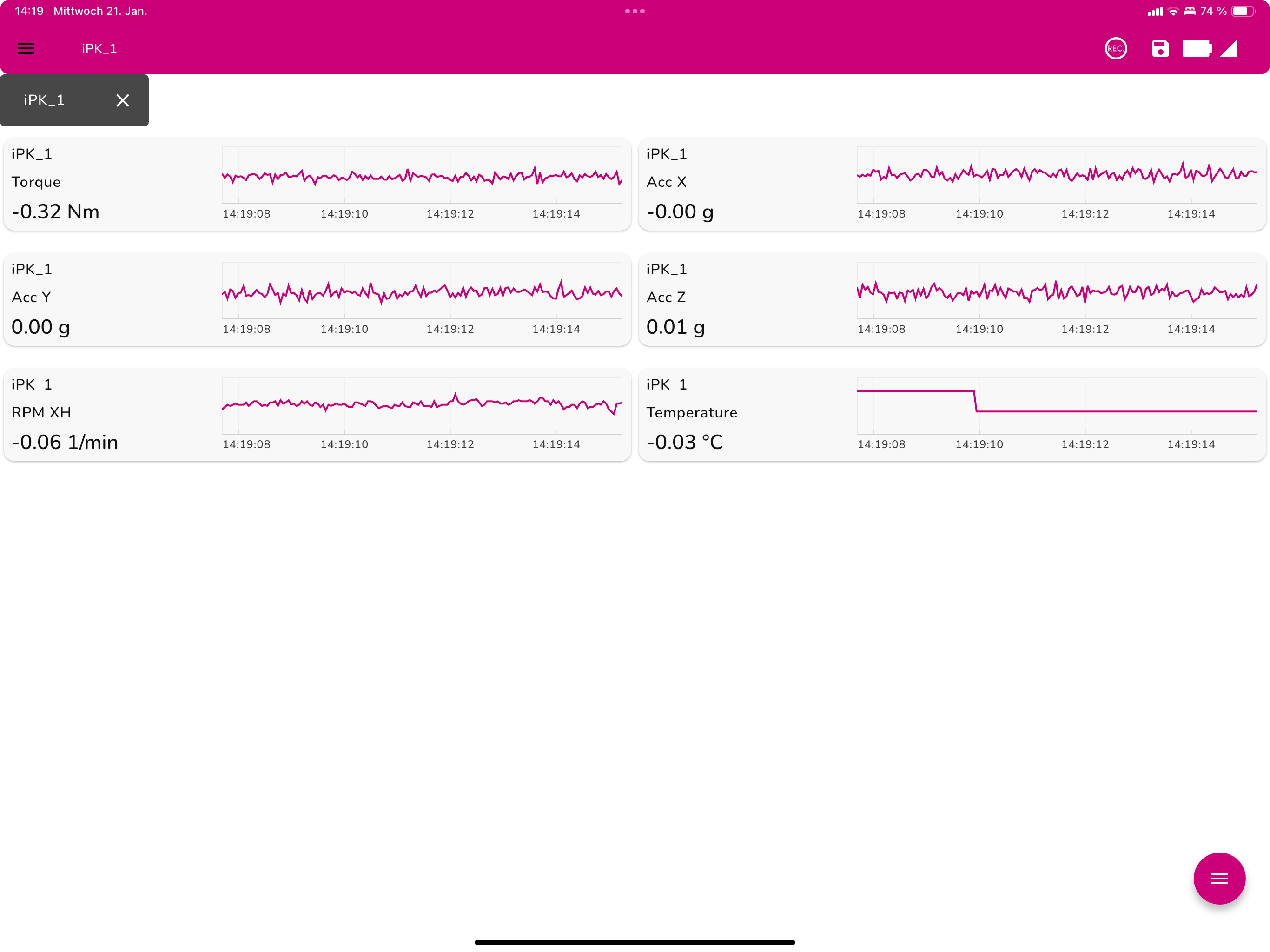

Measurement data in dashboard view:

Measurement data is clearly displayed on the dashboard. The average value with min/max values is displayed for each measured value; the time interval is configurable. The measured values can be reset to zero using a tare function.

Measurement data in chart view:

Tapping on a measured value displays it in a time-dependent chart. If several couplings are connected, each is displayed as a separate graph.

Recording measurements:

A REC button starts or stops recording the measured values, which are saved as a CSV file on the device.

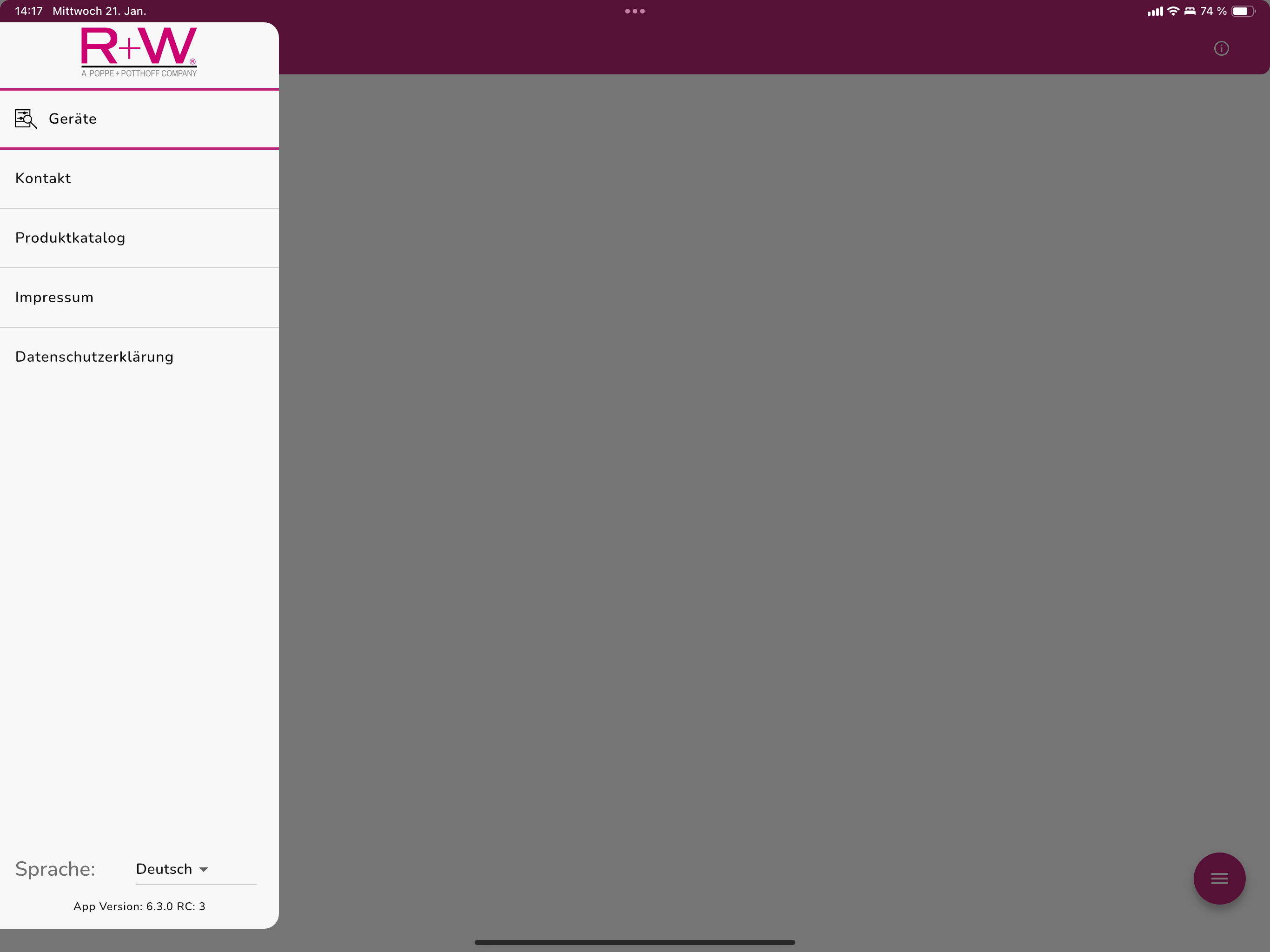

Other app functions:

• Display of signal strength and battery status
• General information / settings
• Resetting the iPK

Note! This app is only compatible with the iPK from R+W.
