ElectricalWiringPro

Electrical code & design calculators for electricians, engineers working with wiring systems and other electrical professionals.

Written by a working Electrician using it on a daily basis.

Calculations per 2011 National Electrical Code.

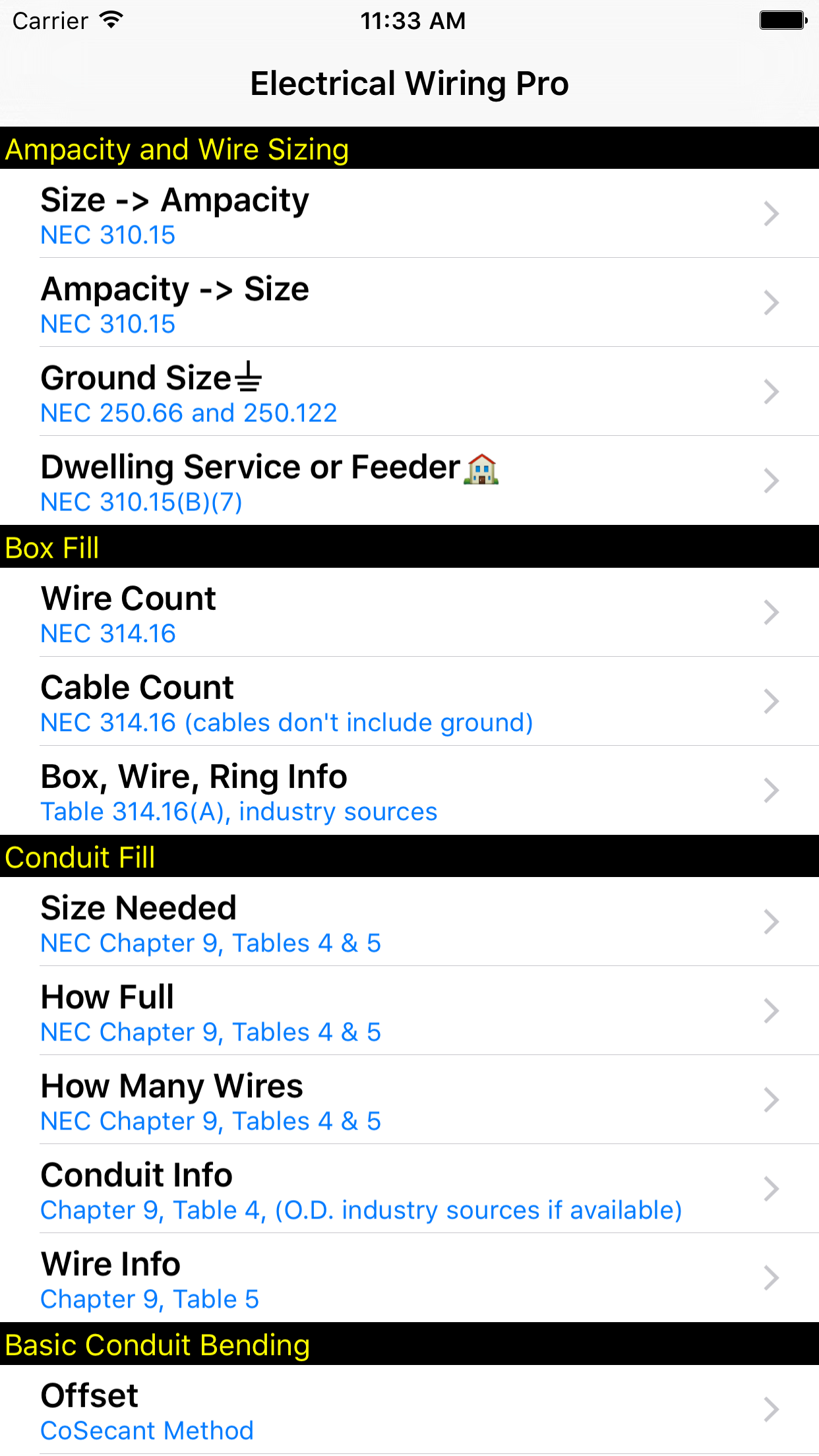

o Ampacity / Wire Size

• Wire Size -> Ampacity
• Ampacity Needed -> Wire Size
• Dwelling Service Size
• GEC Size
• EGC Size

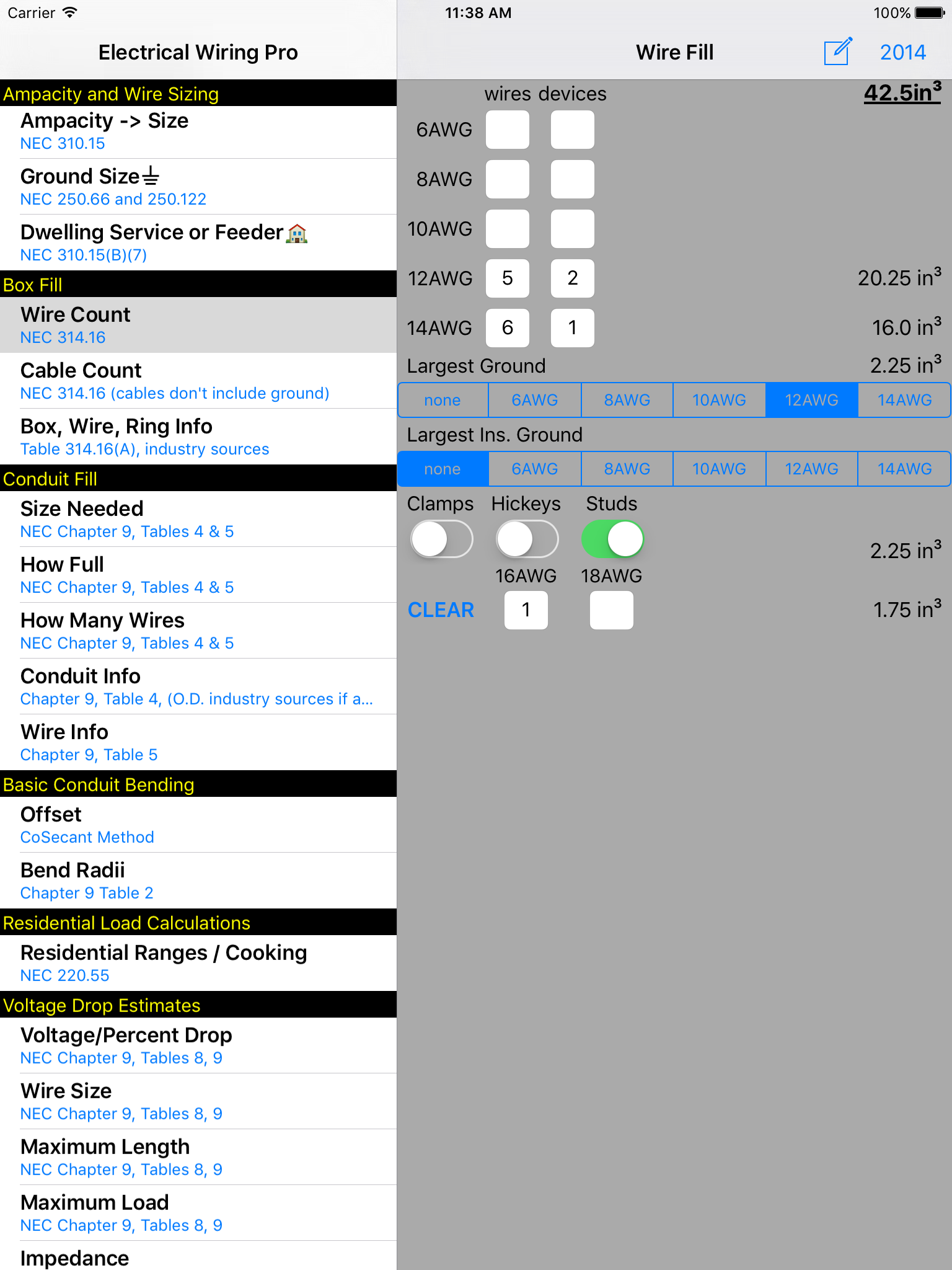

o Box Fill

• Box Size from Wires / Devices
• Box Size from Cables / Devices
• Standard Box and Typical Plaster Ring Info

o Conduit Fill

• Conduit - Maximum # of Wires
• Conduit Size Needed
• Conduit % Full
• Conduit Size Information
• Wire Size Information

o Other

• Cover Depth
• Phone Pin Color Codes
• Ethernet (EIA/TIA568 a & B) Color Codes
• Receptacle Configurations More features delivered as free upgrades.

We hope you find the app useful.
