Fixture Tester

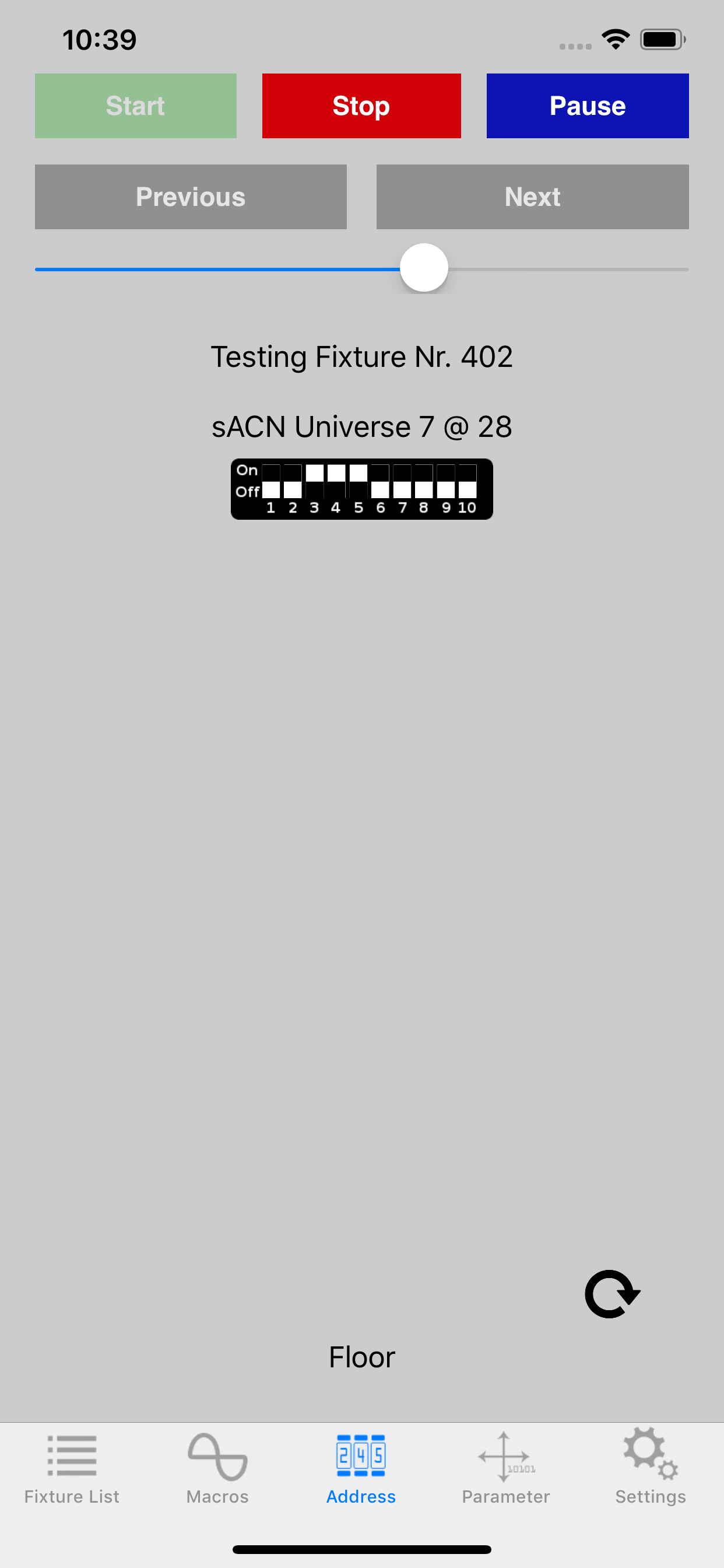

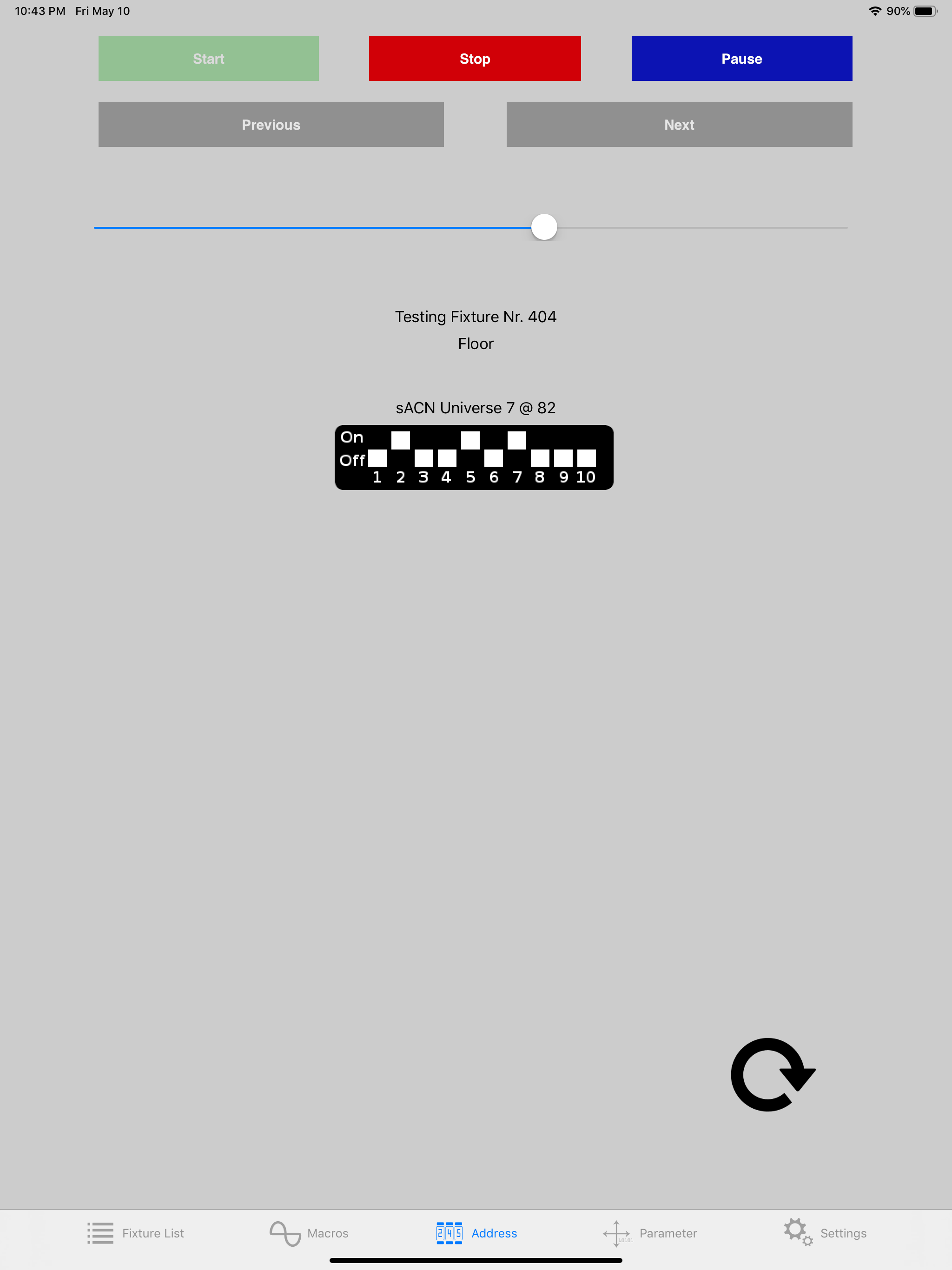

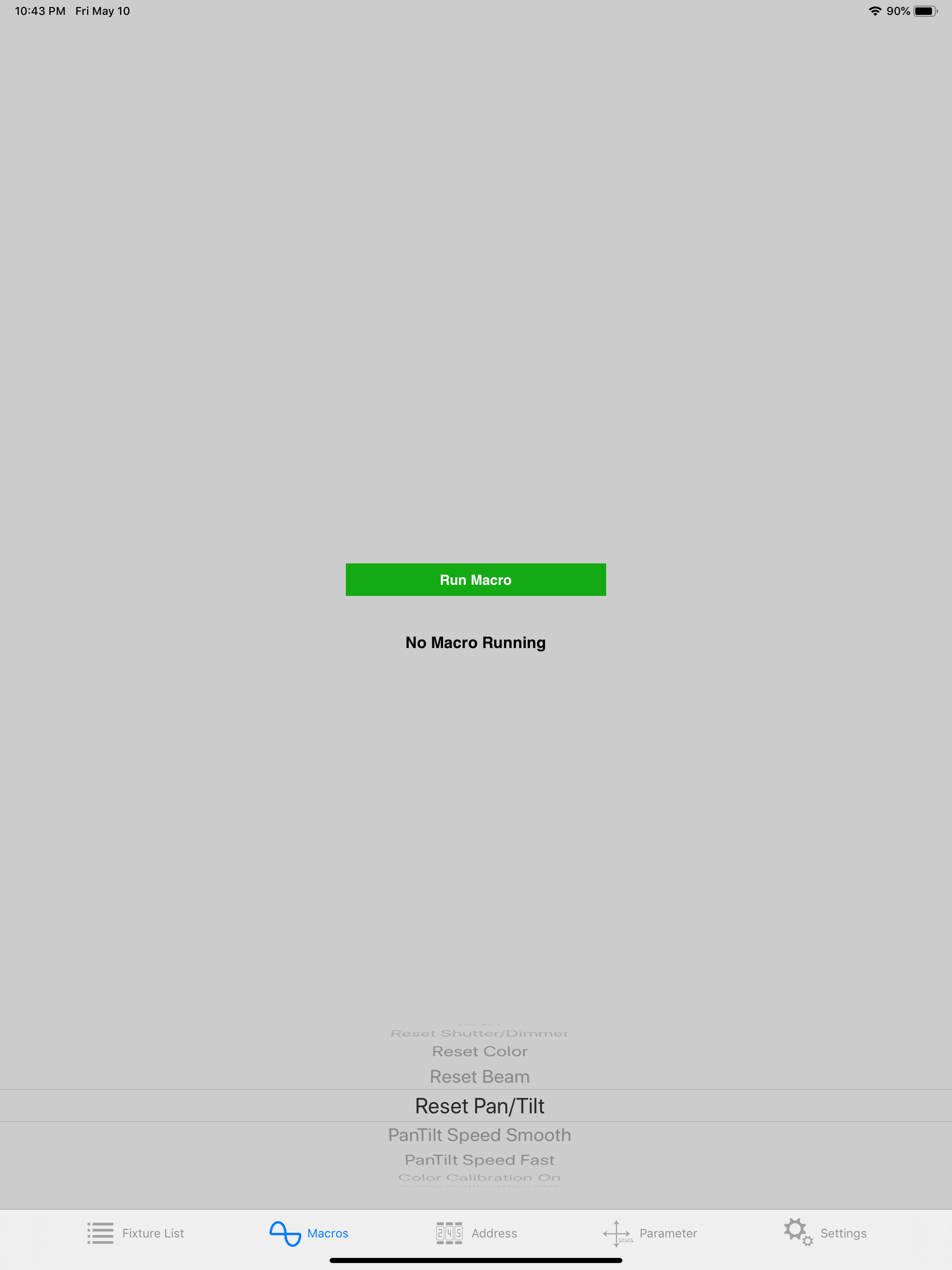

Fixture Tester is an application to test all the fixtures in the network using Art-Net or sACN. Fixtures can be added manually or an already existing patchlist from ELC Lighting's dmXLAN can be imported. When there are fixtures selected, the associated macros like 'Lamp on' can be run on the selected fixtures. To test whether or not the fixtures have the correct address, there is the address test. This test homes the selected fixtures one by one automatically at an adjustable speed. To test the various functions of the selected fixtures there is the parameter test. This test first homes all the selected fixtures. Then it runs all parameters from 0 to 255 and back, one by one.

Custom libraries and patchlists can be downloaded in Fixture Tester with iTunes, ELC lighting's dmXLAN v4 or FileUploader, which is a free download at www.bartvanstiphout.com. Patchlists can also be shared using Airdrop, mail or other applications. Using an ethernet node, the universes can be converted to a Dmx signal.

Since version 1.7 it is also possible to program the dmXLAN Nodes from ELC lighting.

Full RDM control of all fixtures which are connected to a Node from ELC lighting!
